5-тонный Регулируемый Гидравлический Штатив для самолета с механическим удлинителем и

Name:

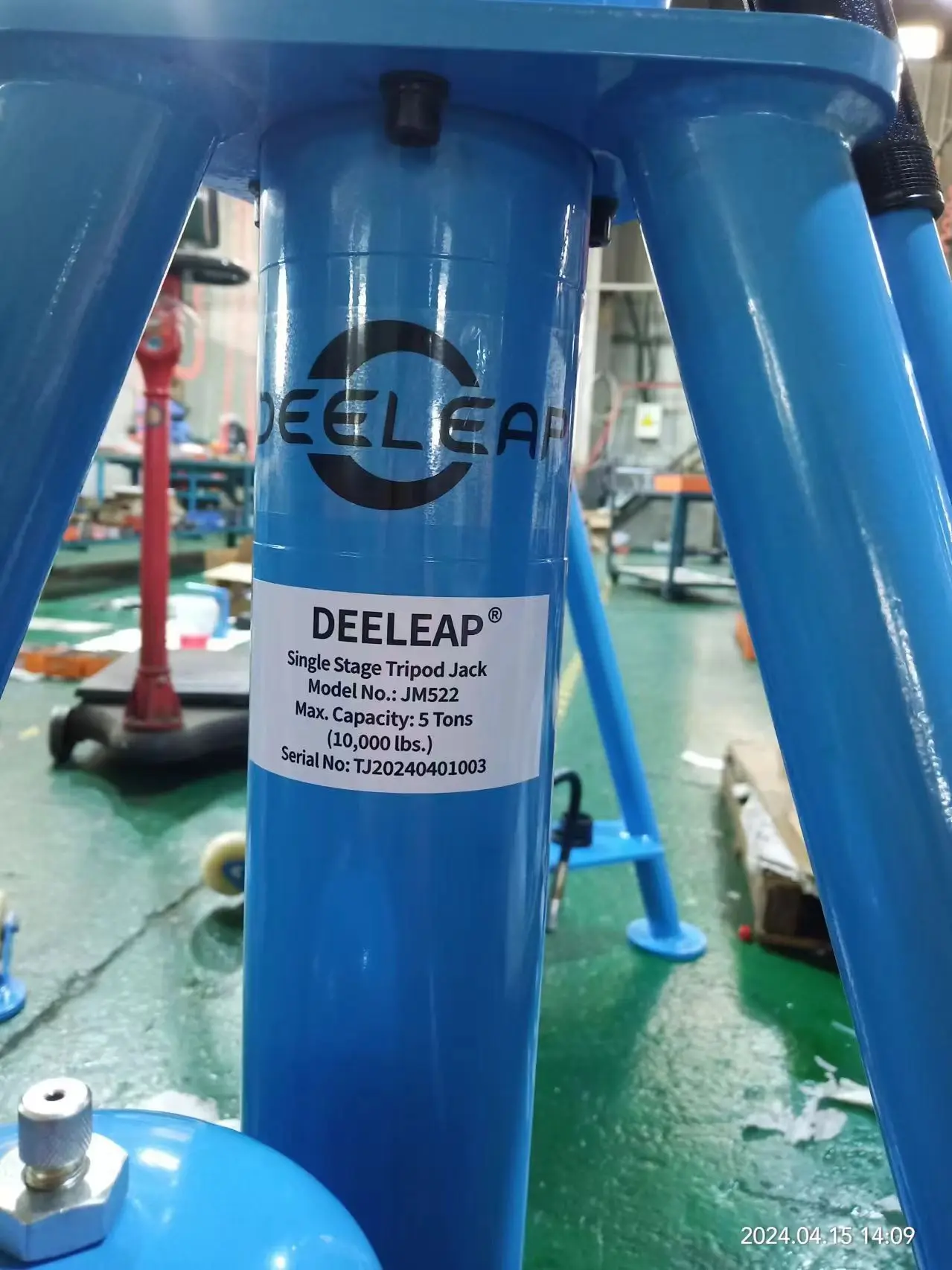

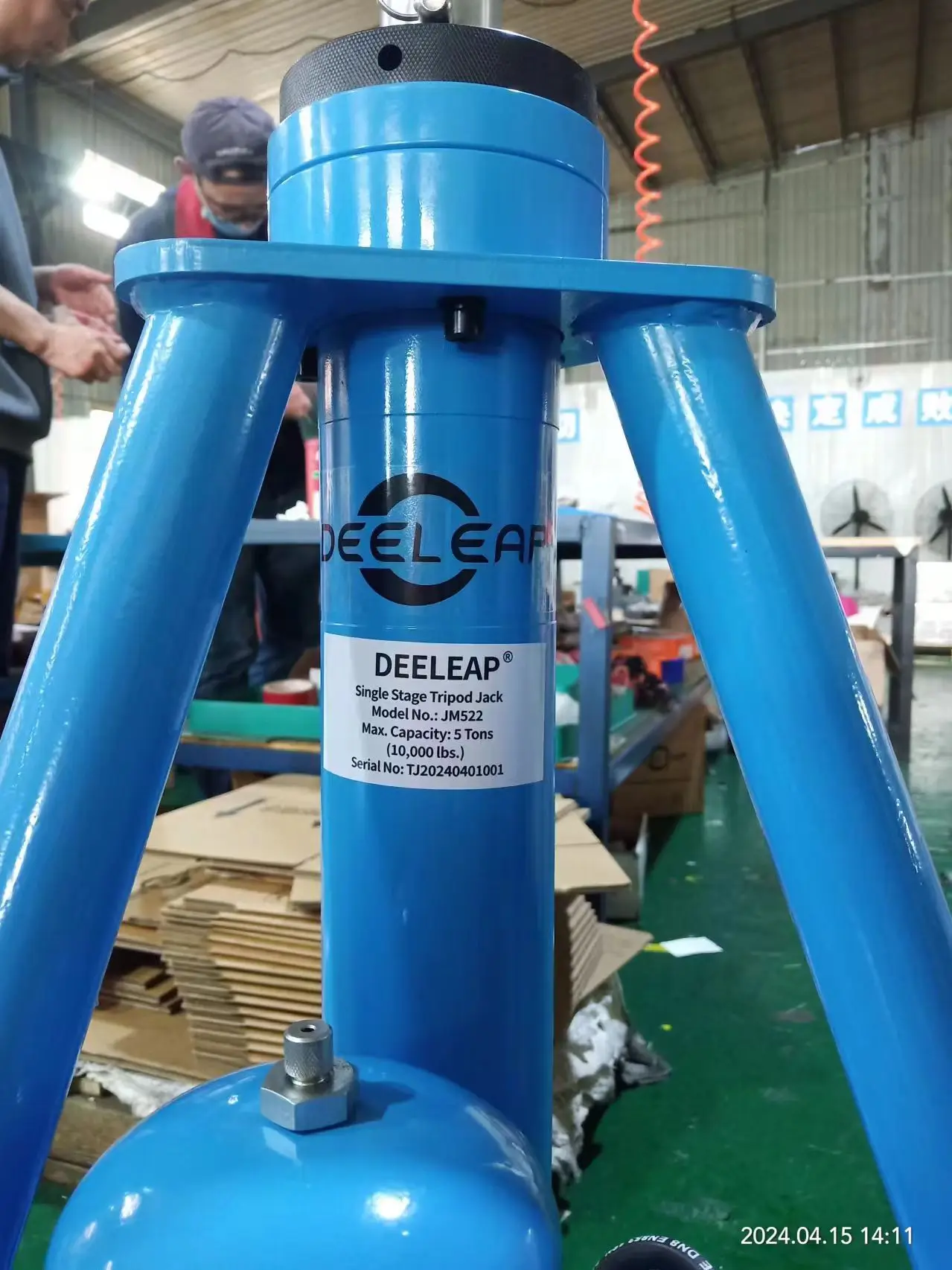

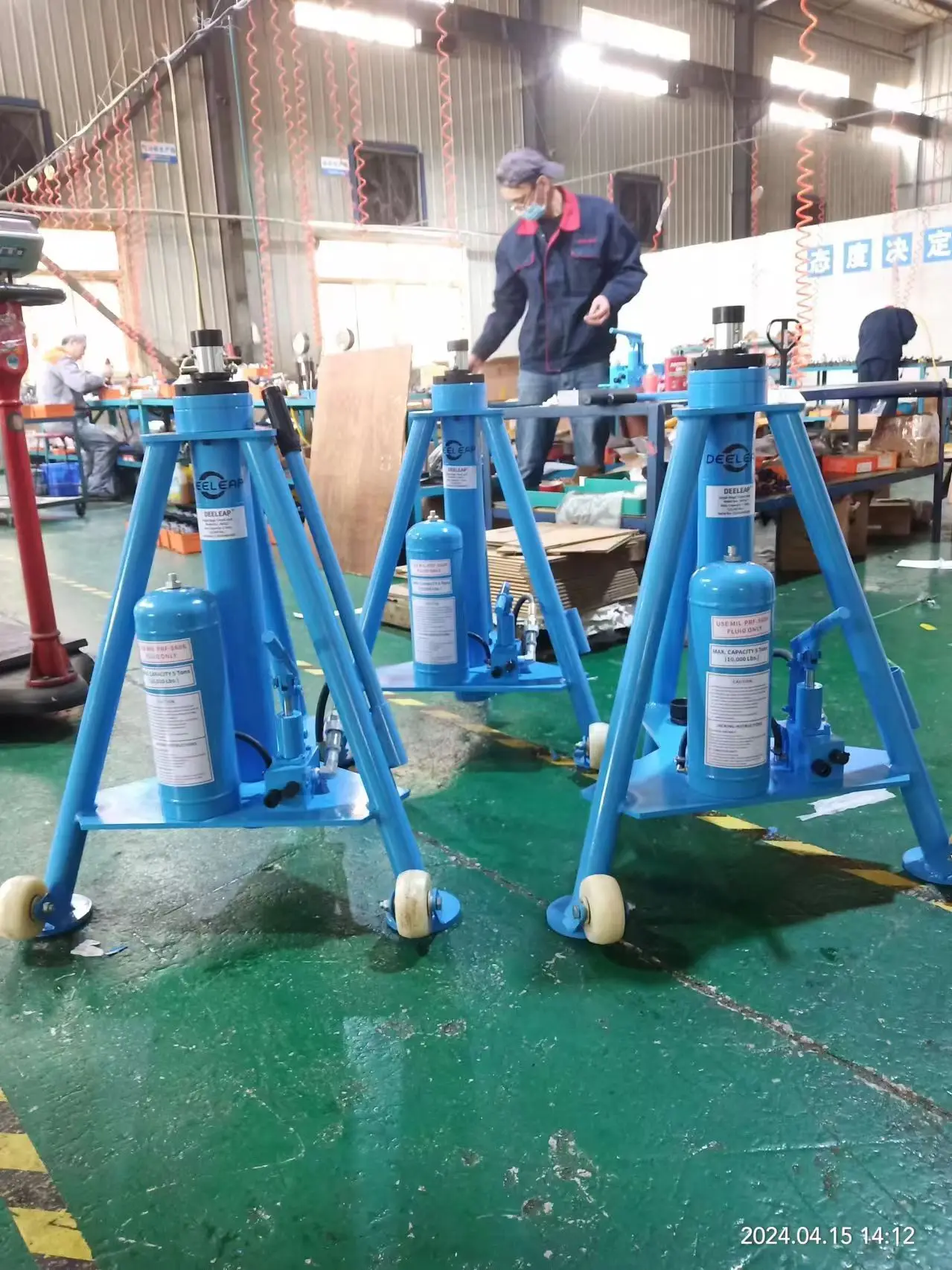

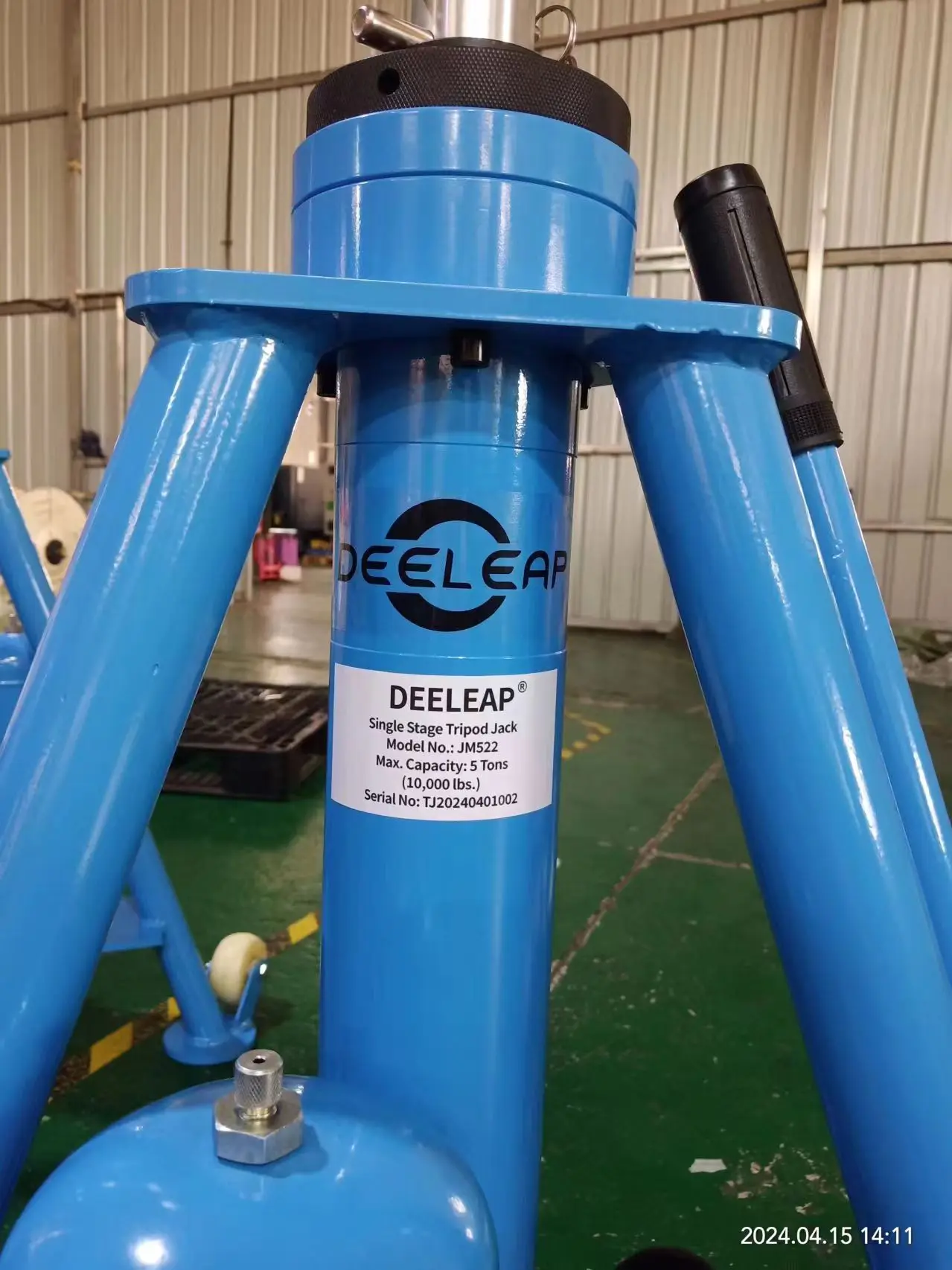

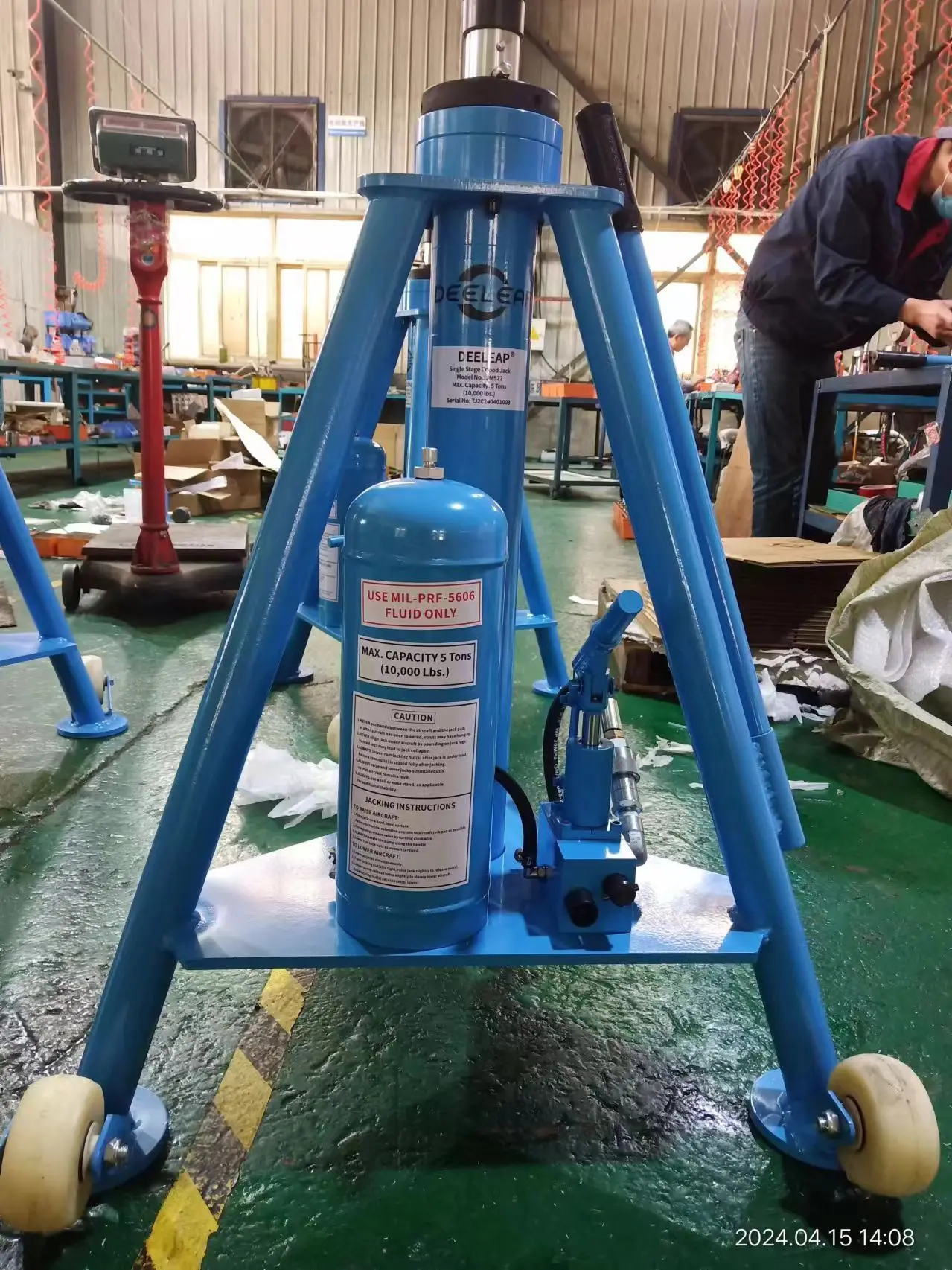

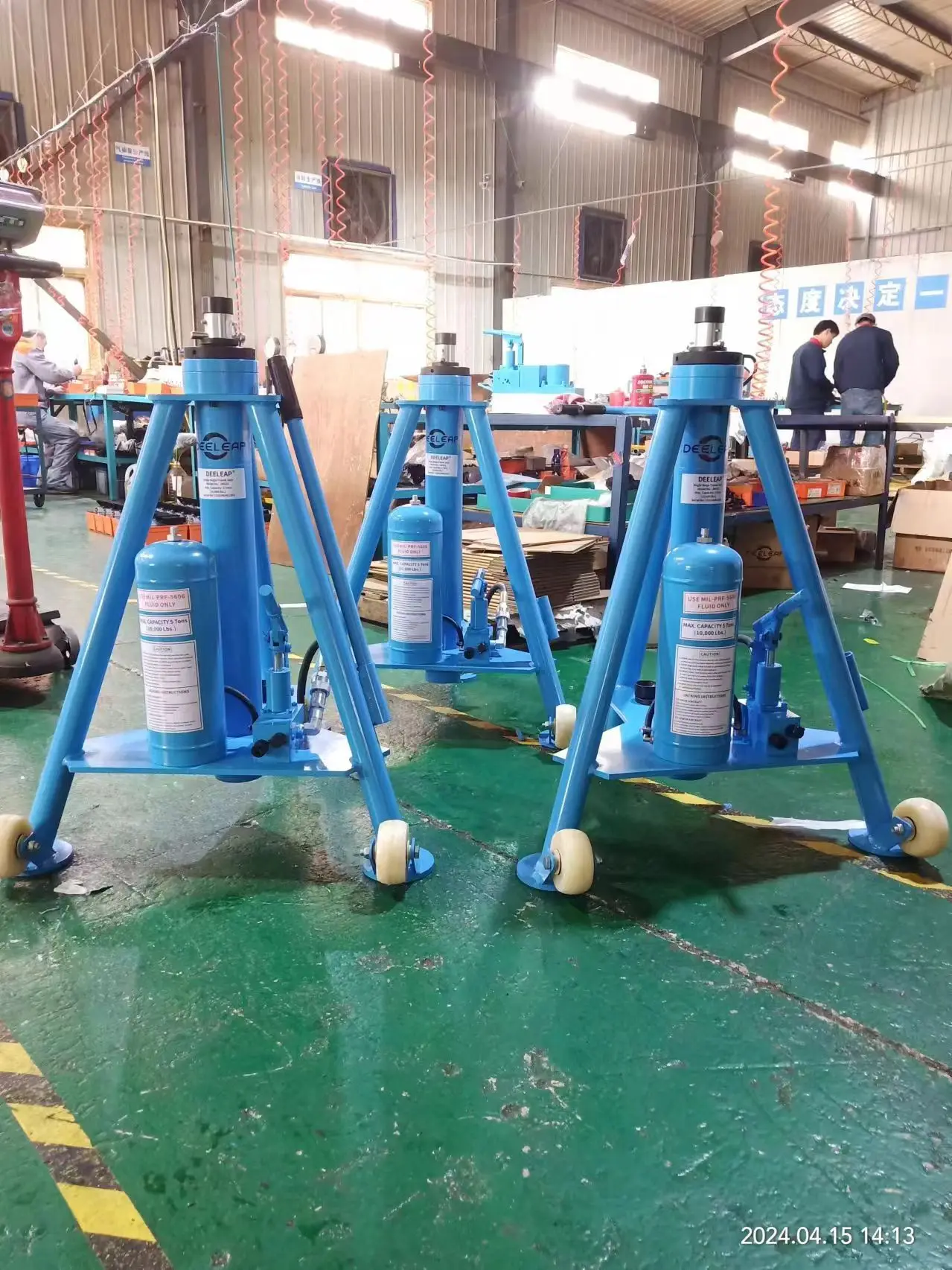

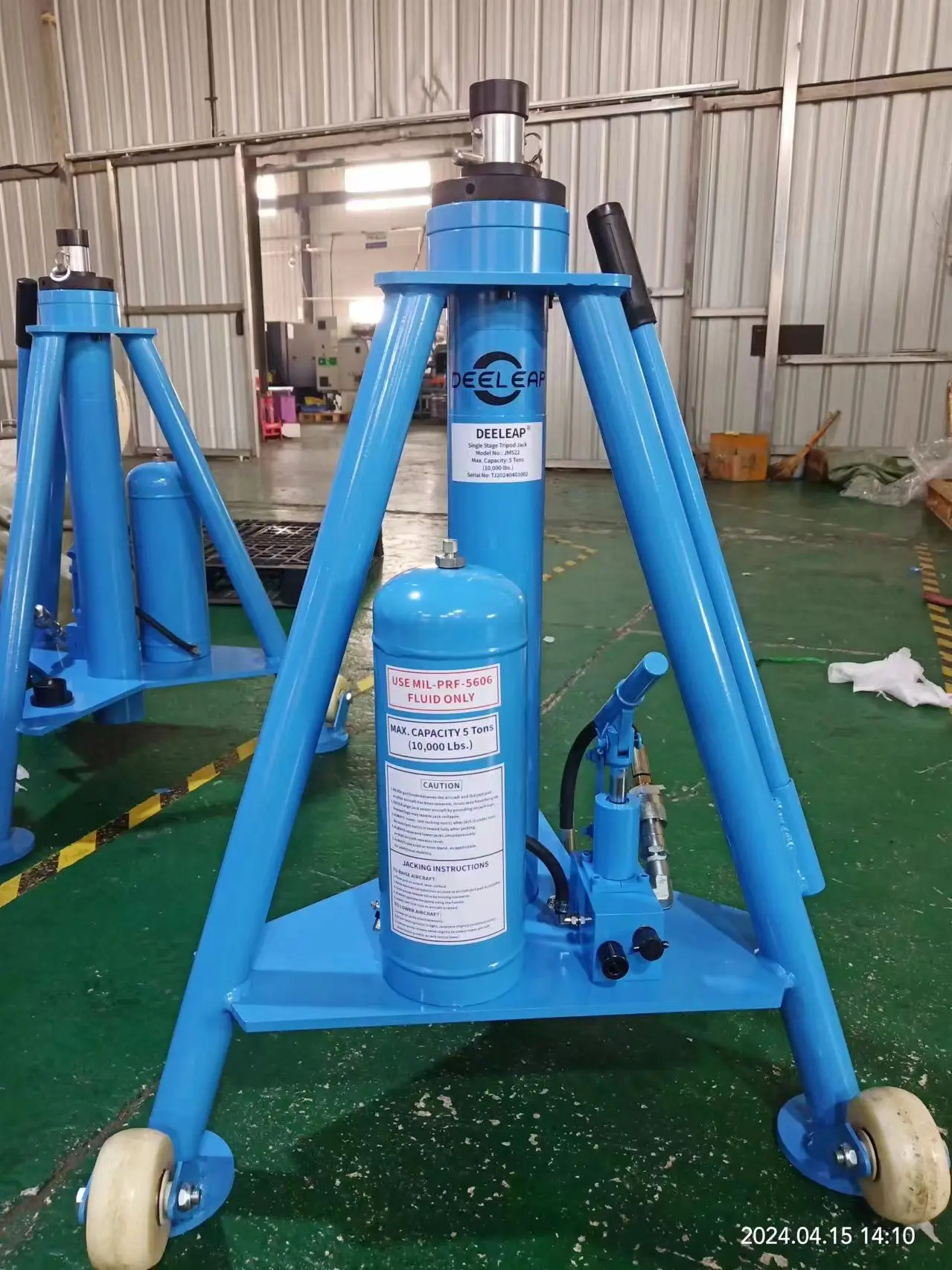

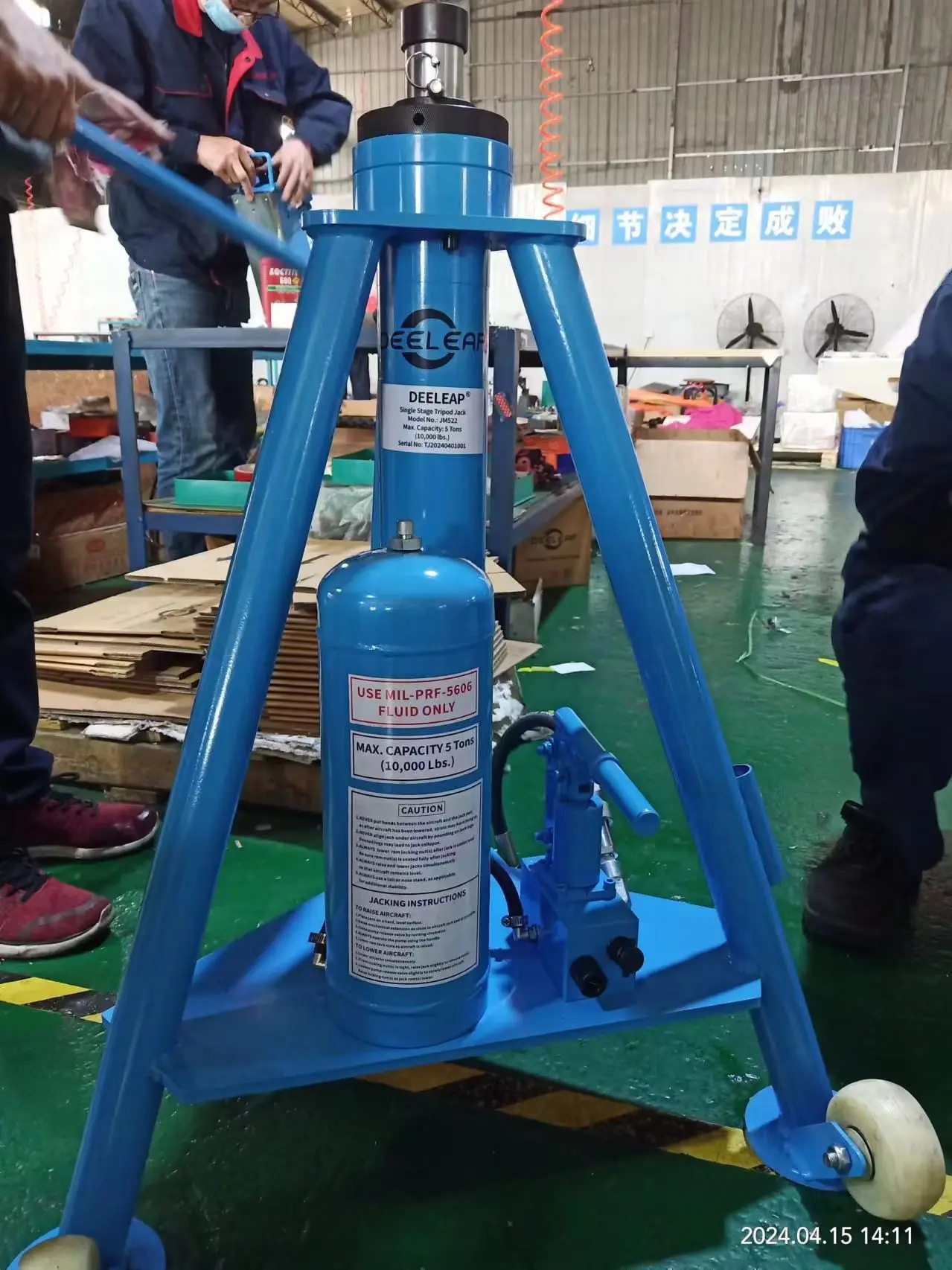

5 Ton Capacity Adjustable Hydraulic Tripod Aircraft Jack with Both Mechanical Extension and Hydraulic Extension

Features:

1. **Stability and Safety**: Its tripod design provides excellent balance and stability, reducing the risk of slippage or tipping, crucial for user safety.

2. **Adjustable Height**: It typically features adjustable height settings, allowing for flexibility and adaptability to different vehicle sizes or working conditions.

3. **Durability**: Built for longevity, often with robust materials like steel, it withstands heavy use and harsh environments.

4. **Portability**: Many models are designed for easy transport, making them ideal for both workshop and on-site use.

5. **Ease of Use**: Simple to set up and operate, it's accessible for both professionals and DIY enthusiasts.

6. **Versatility**: Suitable for a wide range of applications, from automotive repair to construction support.

These attributes make the tripod jack a valuable tool in various settings.

Applications:

Aircraft jacks have several layered applications in the aviation industry:

1. **Routine Maintenance**: Used for standard aircraft servicing, such as tire changes, brake inspections, and undercarriage checks.

2. **Repair and Overhaul**: Essential in more extensive repair works, including engine replacements and structural repairs.

3. **Weight Balance Testing**: Assists in balance and stability checks, critical for aircraft safety.

4. **Emergency Services**: Employed in urgent repair scenarios, often in airfields and military operations.

5. **Aircraft Assembly**: Integral in the assembly process of aircraft, providing support and stability.

Their design caters to the unique demands of various aircraft types, from small private planes to large commercial jets.

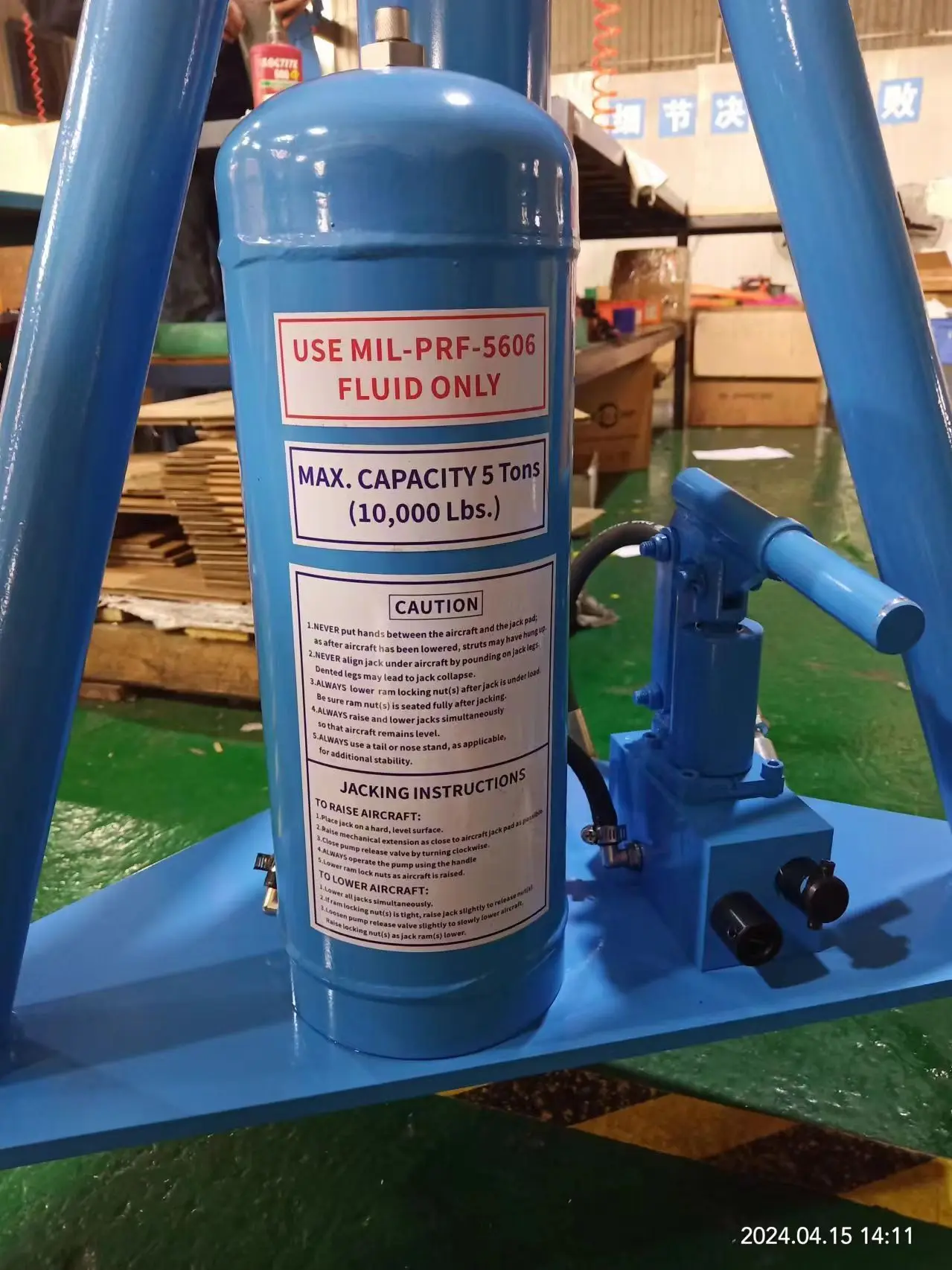

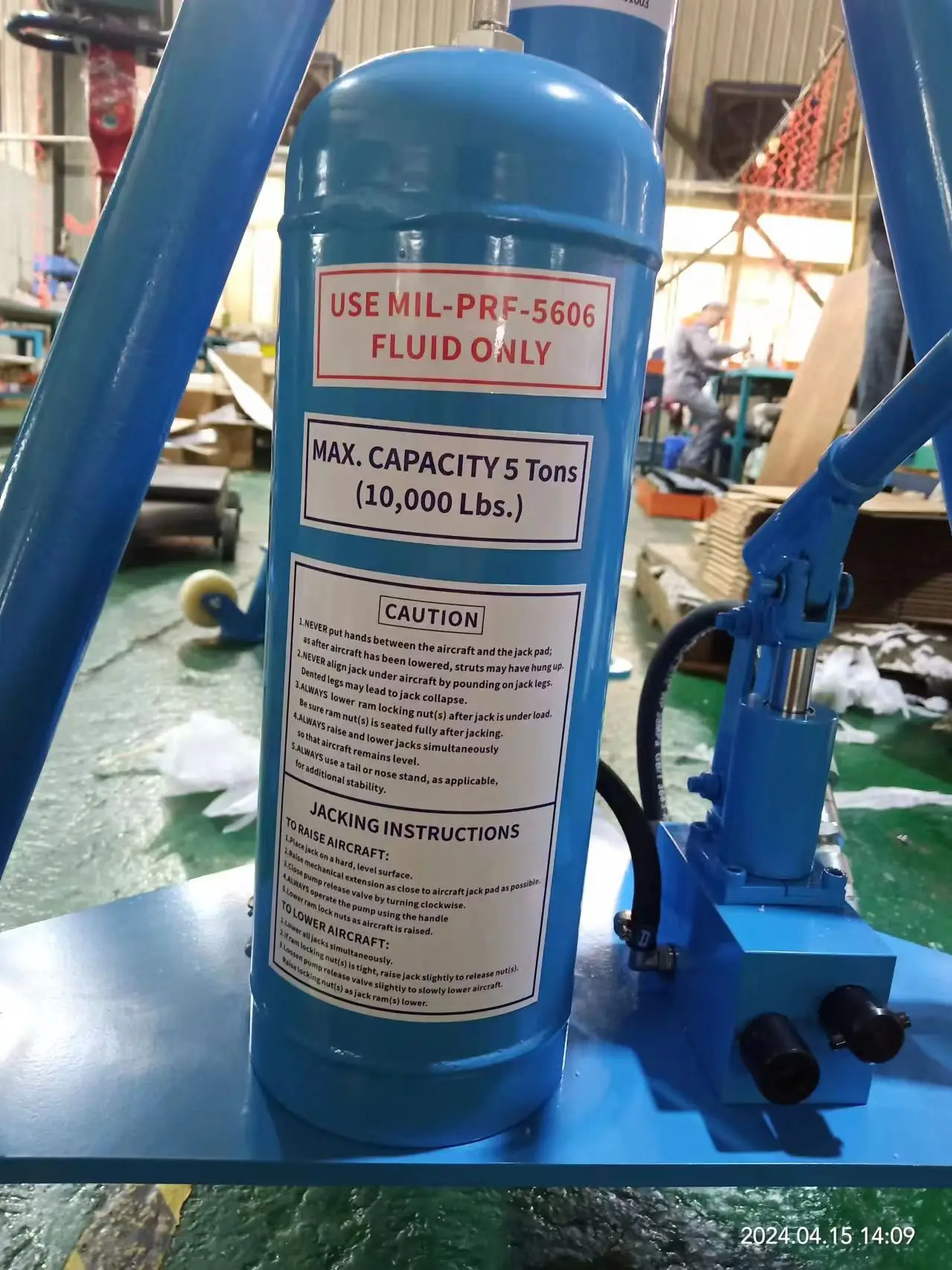

  CAUTION
1.NEVER put hands between the aircraft and the jack pad; as after aircraft has been lowered, struts may have hung up.
2.NEVER align jack under aircraft by pounding on jack legs. Dented legs may lead to jack collapse.
3.ALWAYS lower ram locking nut(s) after jack is under load. Be sure ram nut(s) is seated fully after jacking.
4.ALWAYS raise and lower jacks simultaneously so that aircraft remains level.
5.ALWAYS use a tail or nose stand, as applicable, for additional stability.

JACKING INSTRUCTIONS

TO RAISE AIRCRAFT:
1.Place jack on a hard, level surface.
2.Raise mechanical extension as close to aircraft jack pad as possible.
3.Close pump release valve by turning clockwise.
4.ALWAYS operate the pump using the handle
5.Lower ram lock nuts as aircraft is raised.

TO LOWER AIRCRAFT:
1.Lower all jacks simultaneously.
2.If ram locking nut(s) is tight, raise jack slightly to release nut(s).
3.Loosen pump release valve slightly to slowly lower aircraft. Raise locking nut(s) as jack ram(s) lower.
