Прозрачный светодиодный экран магазин стеклянных клейких стенок закрытый прозрачный
- Категории: >>>
- Поставщик: Anhui,Yushuo,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification

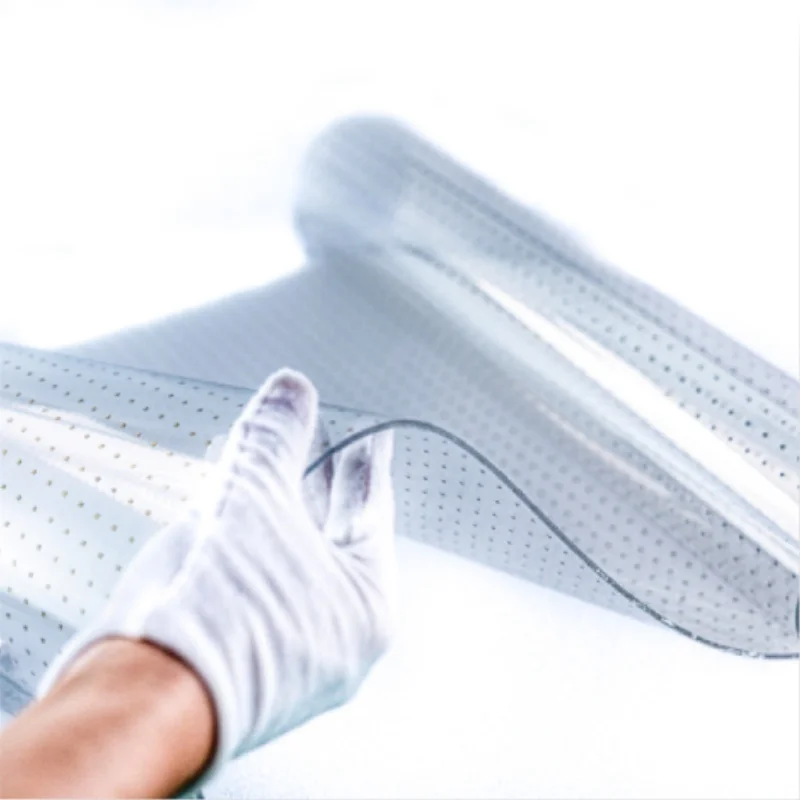

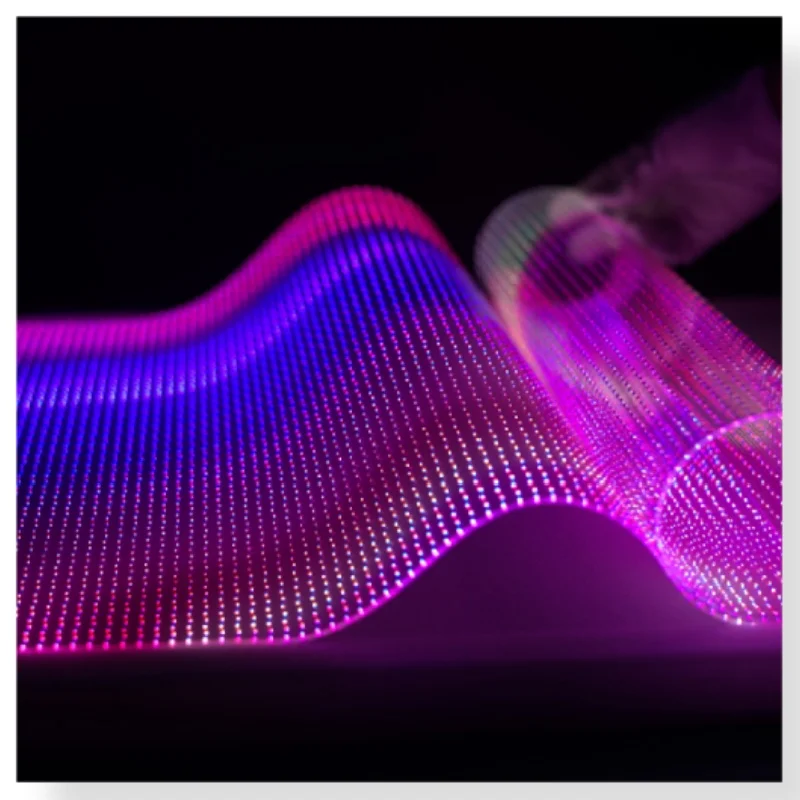

Product name | Transparent flexible film LED screen | ||||||||
Item | P6.25 | P8 | P10 | P15 | P20 | ||||
Pixel pitch（mm） | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 | ||||
Module size（mm） | 1000*400 | 990*390 | 1000*400 | ||||||
Module resolution | 160*64 | 125*50 | 100*40 | 66*26 | 50*20 | ||||
Pixel density（dot/㎡） | 25,600 | 15,625 | 10,000 | 4,356 | 2,500 | ||||

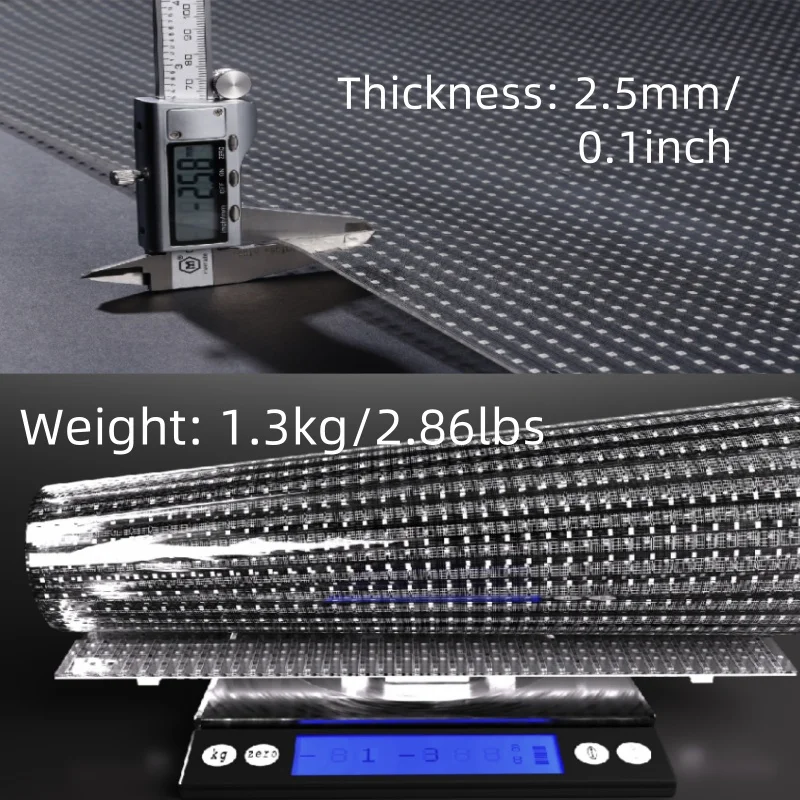

Thickness | 2.5 mm | ||||||||
Control system | Nova/Colorlight | ||||||||
Brightness | 2000~4000cd | ||||||||
Viewing angle | 160°（H/V） | ||||||||

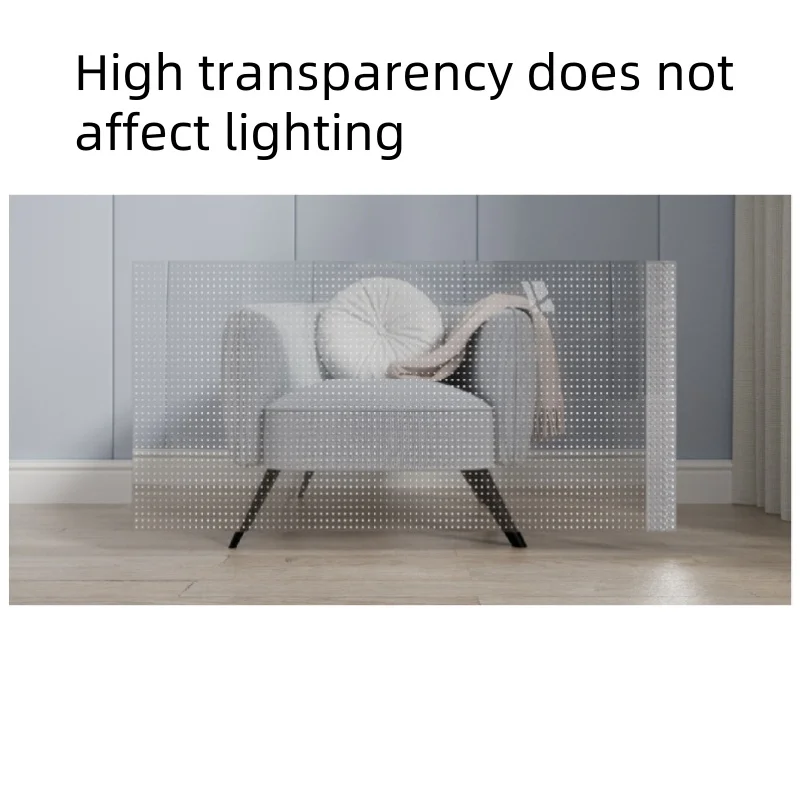

Transparency | 90% | 92% | 94% | 94% | 95% | ||||
Grayscale | 16bits | ||||||||
Refresh rate | 3840 Hz | ||||||||
LED life | 100,000 hours | ||||||||
Peak power | 600w/㎡ | ||||||||
Average power | 200w/㎡ | ||||||||
Operating Voltage | AC：110V~240V、50~60Hz | ||||||||
Operating temperature/ humidity | -20℃~55℃/10%~90% | ||||||||
Q: Can I get a sample order for the LED display?
A: Yes, we welcome sample orders to test and check quality. Both for the module or the whole screen.
Q: Can I customize it?
A: Of course. We supply the OEM service all the products can be customized, we have a professional product development team,welcome to customize.

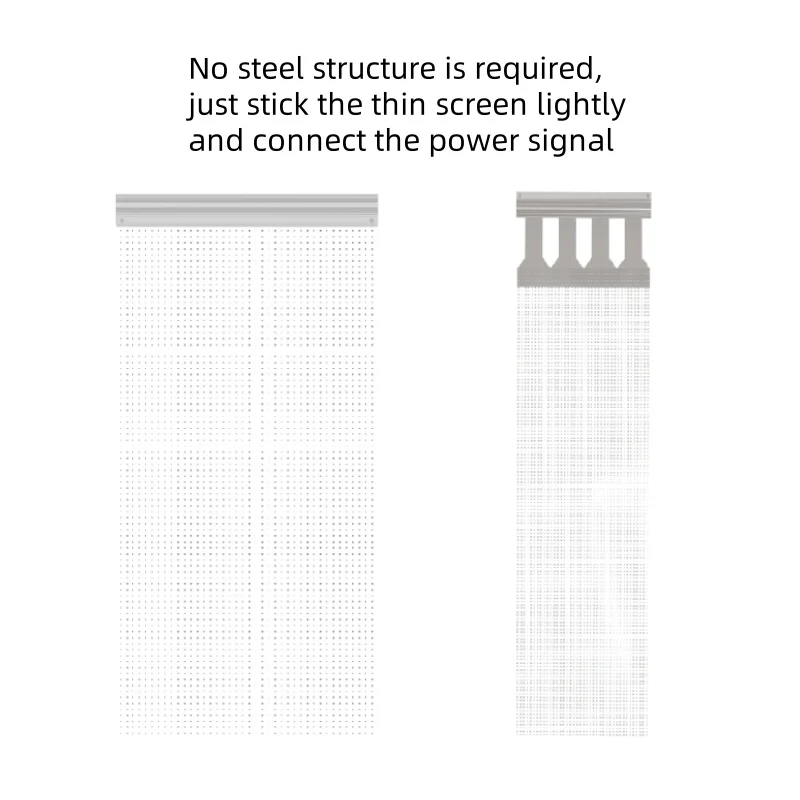

Q: The display will come to me in panel? How to install them to be one whole led screen?
A: Yes, it's very easy to install. We will provide structure drawing, installation diagram and the data connect diagram.
Q: How to operate and use the screen ?
A: The system can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
Q: What's the difference between back service and front service led screen ?
A: Back service, that mean need enough space behind of the led screen, so that the worker can do the installation or maintenance.
Front service, the worker can do installation and maintenance from front directly. It will be very convenience and can save the space, especially when led screen fixed on the wall.
Front service, the worker can do installation and maintenance from front directly. It will be very convenience and can save the space, especially when led screen fixed on the wall.
Q: What's the best size of led screen?
A: The best aspect ratio of LED display are W16:H9 or W4:H3.
Q: What about the lead time?
A: Sample needs 3-5 workdays, mass production time needs 10-20 workdays.
