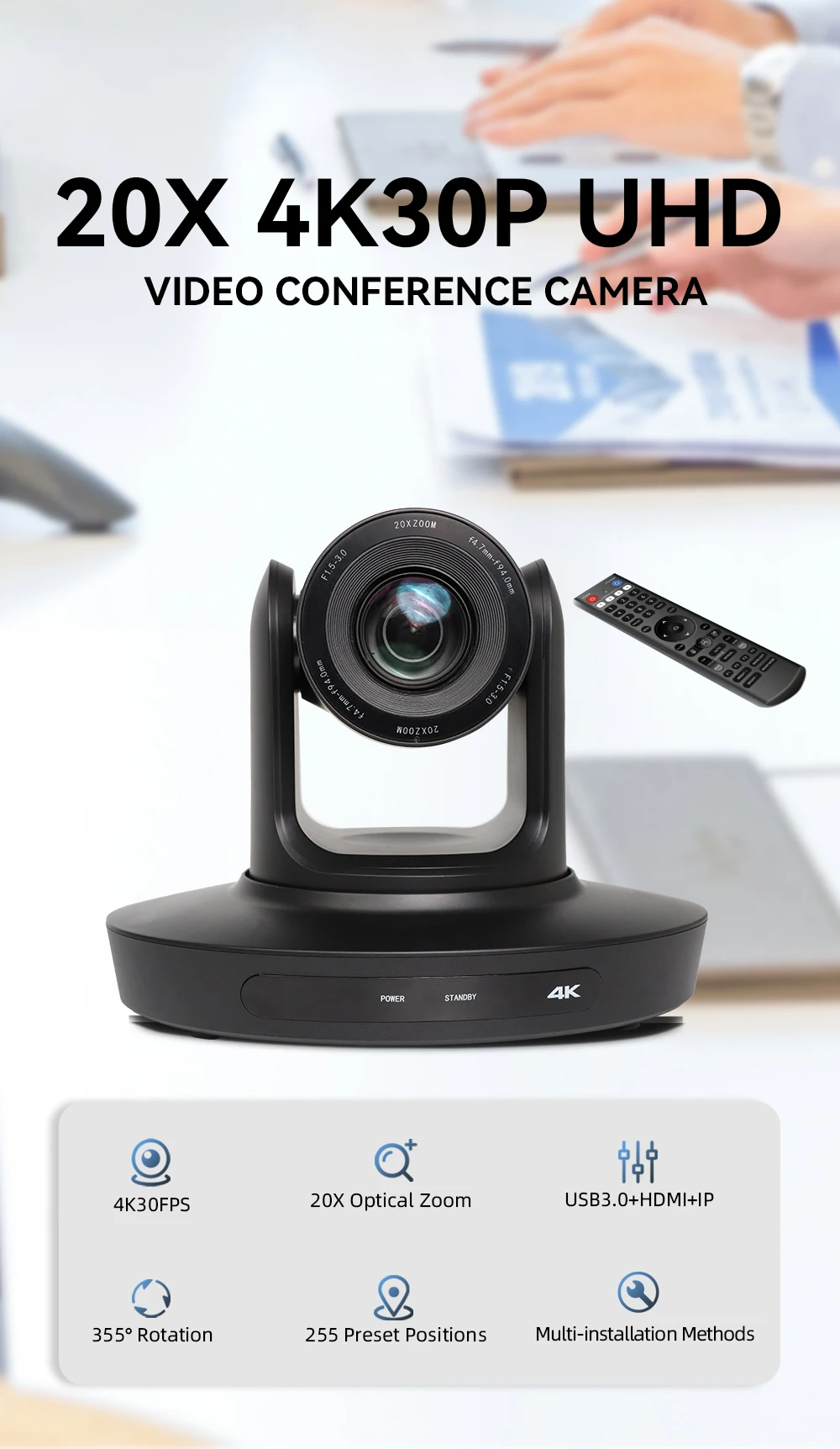

KATOV 30FPS 4K PTZ камера KT-UH45GH 20x оптический зум IP USB HDMI с Poe камерой прямой
- Категории: >>>
- Поставщик: Shenzhen,Jinjiutianshi,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Image Parameters | ||
Resolution | HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 | |
Image Sensor | SONY 1/2.8" CMOS | |
Pixels | 8.50 Megapixels, 8.29 Effective Megapixels | |
Scan Mode | Line by line | |
Lens | UH45GQ: 10X Optical Zoom, f=4.2mm(W)~42mm(T), F1.76~F3.0 UH45GH: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 | |
Horizontal View Angle | UH45GQ: 67.5°(W)~7.6°(T) UH45GH: 58.7°(W)~3.2°(T) | |
Vertical View Angle | UH45GQ: 40.2°(W)~4.3°(T) UH45GH: 32.2°(W)~1.8°(T) | |
Focus System | Auto, Manual | |
Shutter Speed | 1/25s ~ 1/10000s | |
Minimum Illumination | UH45GQ: 0.1 Lux @ (F1.8, AGC ON) UH45GH: 0.1 Lux @ (F1.5, AGC ON) | |
Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness priority | |
White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual | |
Backlight Compensation | Support | |
Digital Noise Reduction | 2D&3D Digital noise reduction | |
S/N Ratio | ≥50dB | |
Pan/Tilt | ||
Pan Angle | ±168° | |
Tilt Angle | -30°~+90° | |
Pan Speed | 1°~60°/s | |
Tilt Speed | 1°~60°/s | |
Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC | |
Preset Accuracy | 0.1°±10% | |
Flip | Support | |
POE | 802.3af (Optional) | |
USB | ||
Protocol | UVC 1.1 | |
Operating System | Window7 and above, MacOS, Linux, Android | |
Video Compression | YUY2, MJPEG | |
Resolution | 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 | |
Frame Rate | Max.30 | |
UVC Control | Support | |
LAN | ||
Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP | |
Video Compression | H.264, H.265 | |
Code Stream | Main code stream*1 | |
Main Stream Resolution | 1920*1080 | |
Bitrate Control | VBR, CBR | |
Audio | ||
Audio Compression | AAC | |
Audio Bit Rate | 128kbps | |
Interface | ||
HDMI Interface | 1 Line, HDMI: Version 1.4 | |
USB Interface | 1 Line, USB3.0, Type-B Socket | |
Network Interface | 1 Line, RJ45: 10M/100M adaptive Ethernet port | |
Audio Interface | 1 Line, Line In, 3.5mm | |
Serial Interface | 1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. 1 Line, RS422/485: 3-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol. | |
Power Interface | JEITA RC-5320A Type 4 | |
General Specifications | ||
Input Voltage | DC 12V | |
Input Current | Max.1.5A | |
Power Consumption | Max.18W | |
Operating Temperature | 0~40℃ | |
Storage Temperature | -10~60℃ | |
Color | Black | |
Dimension | (W)224*(D)170*(H)174mm | |
Weight | 1.2kg | |
Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) | |
Recommend Products
Product Parameters
Why Choose us?
1. 18 years' OEM &ODEM production experience
2. Strong technical team support
3. Professional exporting experiences
4. Excellent foreign trade team
5. Strict quality control system
6. 3 years' waranty
Qualification Honor
Exhibition Cases
Company Profile
Buyer reviews
Why Choose JJTS
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes,surely.We have very professional technical team,and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
