Product Description


ROTATION TIMBER EXCAVATOR Hydraulic GRAPPLE!!!
Xuvol Factory Forest Wood Grab Machinery 10ton 15ton Excavator Rotating Wood Hydraulic Timber Log Grapple

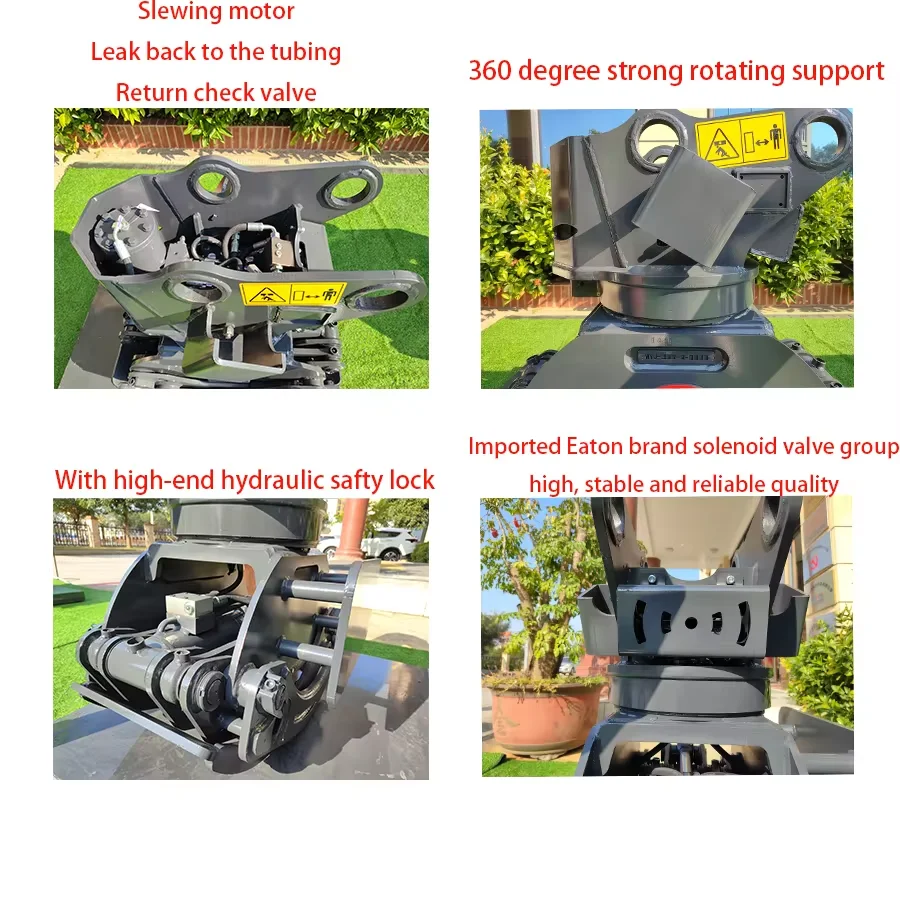

Advantages of the grapple:
1.Using special steel, Xuvol WYJ-150P log grapple has the advantages of light weight, good strength, and abrasion resistance;
2.The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which
can control the rotation speed
3.The WYJ-150P can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;
4.It can be stalled on 10t-15t excavator, use for loading and unloading wood, sugarcane and other materials.
Greatly improving work efficiency and greatly saving labor costs.
Forestry machinery Log grapple Xuvol 150P with hydraulic 360 degree rotation hydraulic log grapple

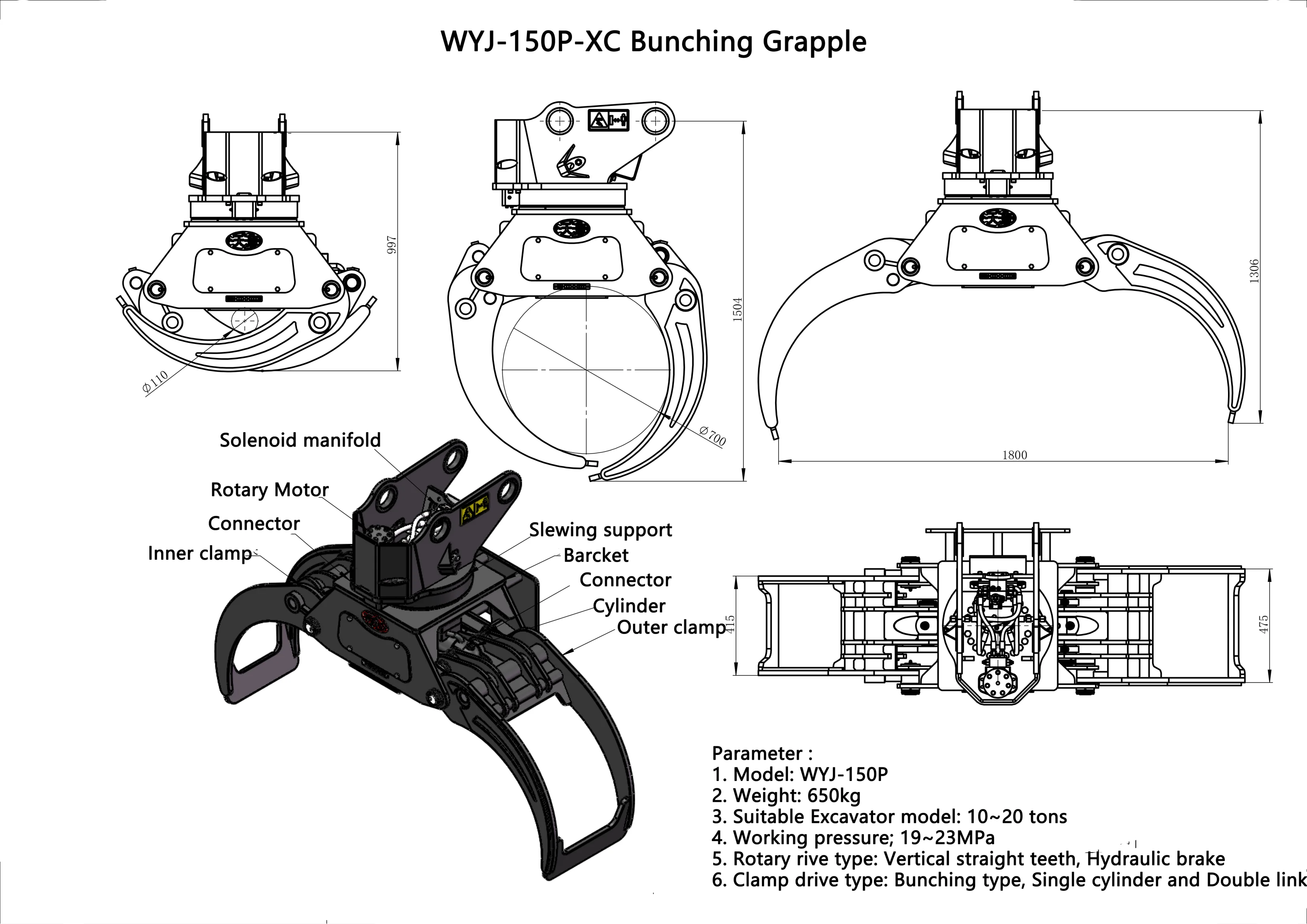

Specification


Product name
Xuvol 150P grapples with 360 rotation excavator hydraulic wood log timber grapple
Application
Grab handing wood log timber stone
Model
WYJ-150P
Grapple Type
single cylinder/bunching grapple/doubble link
Steel material
Q355B/Hardox
Max opening
1800mm
Height when clamped
1060mm
Height when opened
1400mm
Width of inner/outer clamp
415/475mm
Rotation method
External meshing vertical rotation
Motor type
Cycloid motor




Packing & Delivery




We use wood case for packaging the hydraulic rotating log grapple.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Product Details




Successful Projects






Supplier of many well-known construction machinery enterprises on global market




Company Profile








Guangxi Xuvol Construction Machinery Equipment Co.,Ltd.
Guangxi Xuvol Construction Machinery Equipment Co., Ltd. was established in 2007. On the base of Guangxi Nanning Woyuan Heavy industry Machinery Equipment Co., Ltd., is a science and technology enterprise that specializes in the R&D, manufacturing, customization, sales & service of forestry machinery, construction machinery attachments and accessories such as forestry forwarder, tree harvester, harvester head, log timber rotating hydraulic excavator grapple, grapple saw, tree shear, forestry telescopic boom, wood crushers, rock drills, etc.

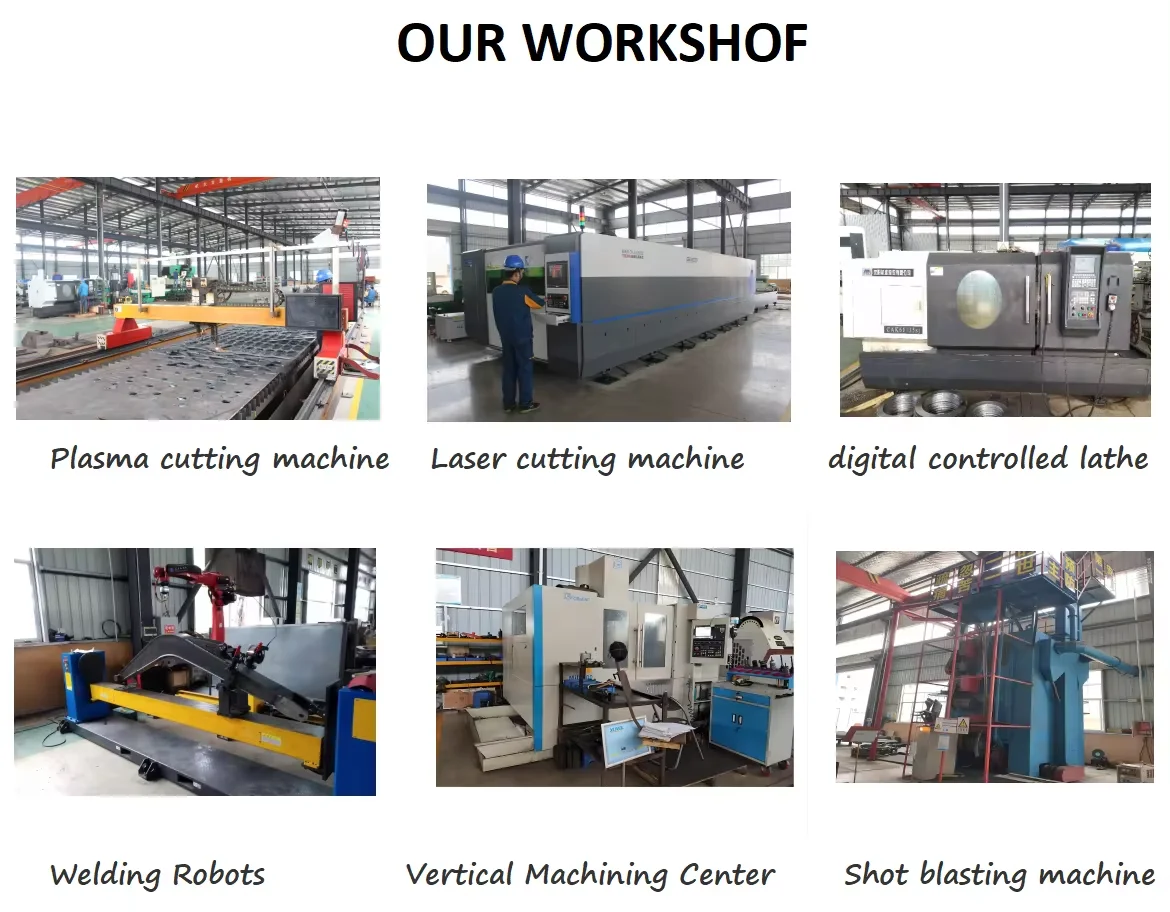

XUVOL has an experienced R&D and production team, using PLE, SLW and three-dimensional design and finite element mechanical to analysis, With CNC boring machine, vertical machining center, gantry machining center, plasma CNC cutting machine, laser cutting machine, three coordinates measuring instruments, welding robots, and environmentally-friendly painting lines, with the above advanced production and processing equipment, to guarantee the quality of products. We are a professional team with 120+staffs, more than 15 years of professional and rich experience. We firmly believe that quality comes from the trust of customers, and only by focusing can we do a good job in quality and integrity.

Welcome OEM/ODM for forestry machinery






More forestry machinery




FAQ


1. Who are we?
We are professional manufacturer of forestry machinery and excavator attachment. Support Customized, provide your best solution
for your requirement.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Excavator Rotating Log Grapple/Tree Harvester Head/Grapple Saw/Log Crane/Tree Shear/Forestry Forwarder, Shredder/Mower/mower
weeder/brush cutter/Forestry Telescopic Boom, Mobile Crushers, etc.

4. Why should you buy from us not from other suppliers?
15+ years R&D forestry machinery and excavator attachments manufacturing experience. Factory with laser cutting robots and many other professional production machine. With 5 production lines, CE certificate. OEM and ODM available.

5. What services can we provide?
Accepted Delivery Terms: CFR,CIF,EXW,CPT；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
