Product Overview

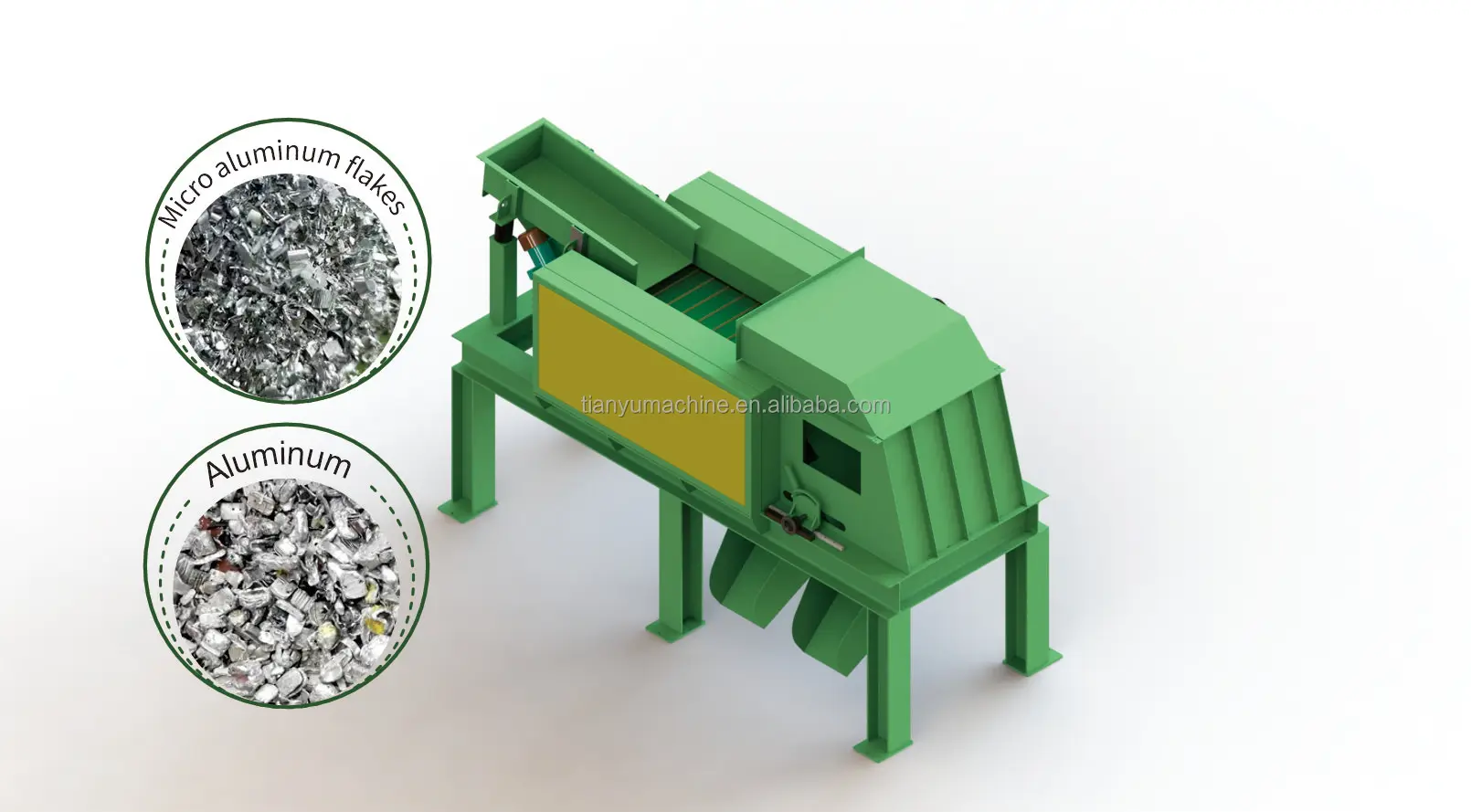

ECS600 Strong magnetic field Eddy Current separator for Aluminum and Copper Non Ferrous Metal Separation
Standard Eddy Current Separator including Vibration Feeder, Converyor Belt, Eddy Current Drum Separation Zone, Material Discharge Box and Control Cabinet. Standard unit is applicable for separating non ferrous metal such as AL, Copper, Zinc from material stream.
Vibaration Feeder Including the feeding table and two units of vibration motor.
Conveyor Belt drive by Gearbox Motor，also rotate the outer shell of eddy current drum.
Eddy Current Rotor which is rotate at high speed of 3000 rmp which is drive by another Motor.
Vibaration Feeder Including the feeding table and two units of vibration motor.
Conveyor Belt drive by Gearbox Motor，also rotate the outer shell of eddy current drum.
Eddy Current Rotor which is rotate at high speed of 3000 rmp which is drive by another Motor.
Eccentric Eddy Current Separator Introduction:
Eccentic Eddy Current Separator separates nonferrous metals such as aluminum, die-cast metal, and copper from nonmetallic material.
Eddy Current Separator Features:
The Eddy Current separator separation results can be affected by the following factors
• Magnetic rotor speed
• Magnetic rotor angle setting
• Belt speed
• Strong and deep magnetic field
So we optimize our design accordingly
• Magnetic rotor speed - 0-3000rpm rotation speed
• Eccentric magnetic rotor angle setting - manually adjustable rotor position in drum shell
• Belt speed - adjustable speed motor drive
• Strong and deep magnetic field - high grade NdFeb magnet system with multiple poles in rotor.
Eccentic Eddy Current Separator separates nonferrous metals such as aluminum, die-cast metal, and copper from nonmetallic material.
Eddy Current Separator Features:
The Eddy Current separator separation results can be affected by the following factors
• Magnetic rotor speed
• Magnetic rotor angle setting
• Belt speed
• Strong and deep magnetic field
So we optimize our design accordingly
• Magnetic rotor speed - 0-3000rpm rotation speed
• Eccentric magnetic rotor angle setting - manually adjustable rotor position in drum shell
• Belt speed - adjustable speed motor drive
• Strong and deep magnetic field - high grade NdFeb magnet system with multiple poles in rotor.
Working Principle
The Eddy Current Separator (ECS) is used to separate metallic (ferromagnetic and non-ferromagnetic) materials from non-metallic ones. This magnetic separator of non-magnetic metals works on the principle of so-called eddy currents induced by a magnetic cylinder. A magnetic cylinder (separator rotor) with very strong neodymium magnets is embedded in the conveyor. At high revolutions (when the magnetic poles alternate rapidly) it creates a magnetic field that magnetizes even non-ferromagnetic metallic materials for a short term. The magnetic polarity of the particles magnetized in this way is the same as the polarity of the magnetic field created by the separator rotor. Therefore, magnetized materials are repelled and automatically ejected out of the conveyor belt.
It should be emphasized that ECS separators do not serve to separate ferrous particles. In fact, for their proper functioning and especially in applications with high ferrous content, it is necessary to remove ferrous particles before the material is treated by the ECS (e. g., by installing a conventional magnetic separator in front of the ECS separator). Possible sporadic ferromagnetic particles can be captured by the ECS separator.
It should be emphasized that ECS separators do not serve to separate ferrous particles. In fact, for their proper functioning and especially in applications with high ferrous content, it is necessary to remove ferrous particles before the material is treated by the ECS (e. g., by installing a conventional magnetic separator in front of the ECS separator). Possible sporadic ferromagnetic particles can be captured by the ECS separator.
Technical Performance
Magnetic separation Devices
Magnetic separation Devices
a wide variety of powerful Rare Earth Magnetic Separators to capture and hold ferrous and weakly magnetic stainless steel from the mixture
a wide variety of powerful Rare Earth Magnetic Separators to capture and hold ferrous and weakly magnetic stainless steel from the mixture

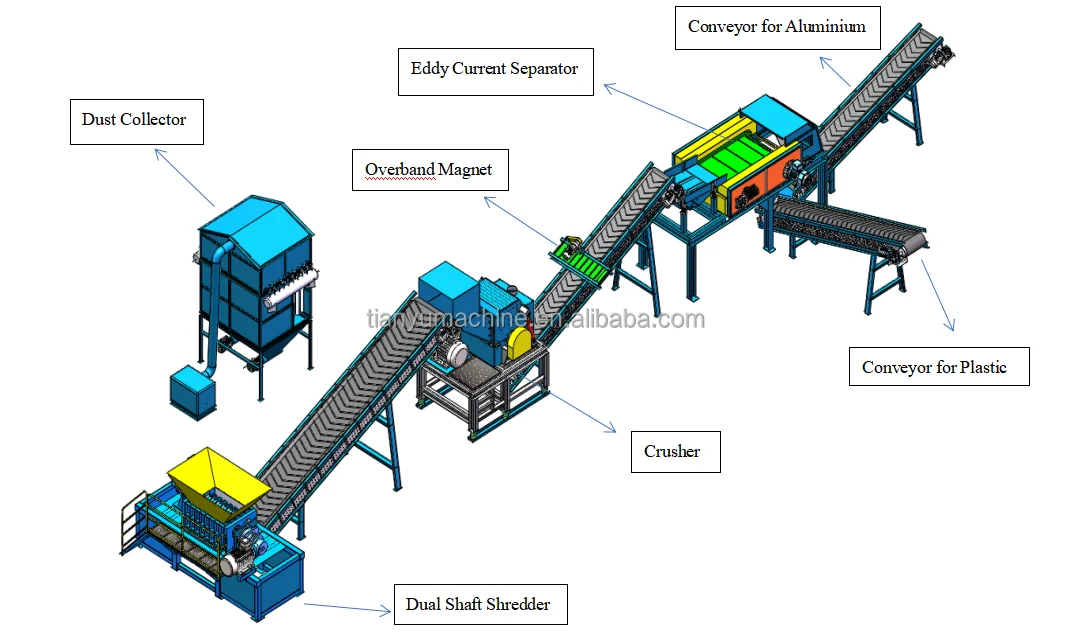

Eccentric Eddy current separator
1.High Intensity Eccentric & Concentric Eddy Current Separator for scraps nonferrous
2.Ultra High Frequency UHF ECS for micro-fine nonferrous particles recovery
Induction Sensor Sorter
normally for the waste that separated by the non-ferrous separator to recover rest of stainless steel and insulation wire etc
Air separation machine
Air separation machine for pre-treatment of dusty material --a light fraction capable of flight, known as the shredder light fraction (SLF
Trommel screen
Trommel screen or rotary screen, is a kind of mechanical screening machine widely used in the separation operation. to controls the
material separation by the particle size
material separation by the particle size
Belt conveyor
Belt conveyor the conveyor system could be customized strictly according customer`s working side .
Product Paramenters

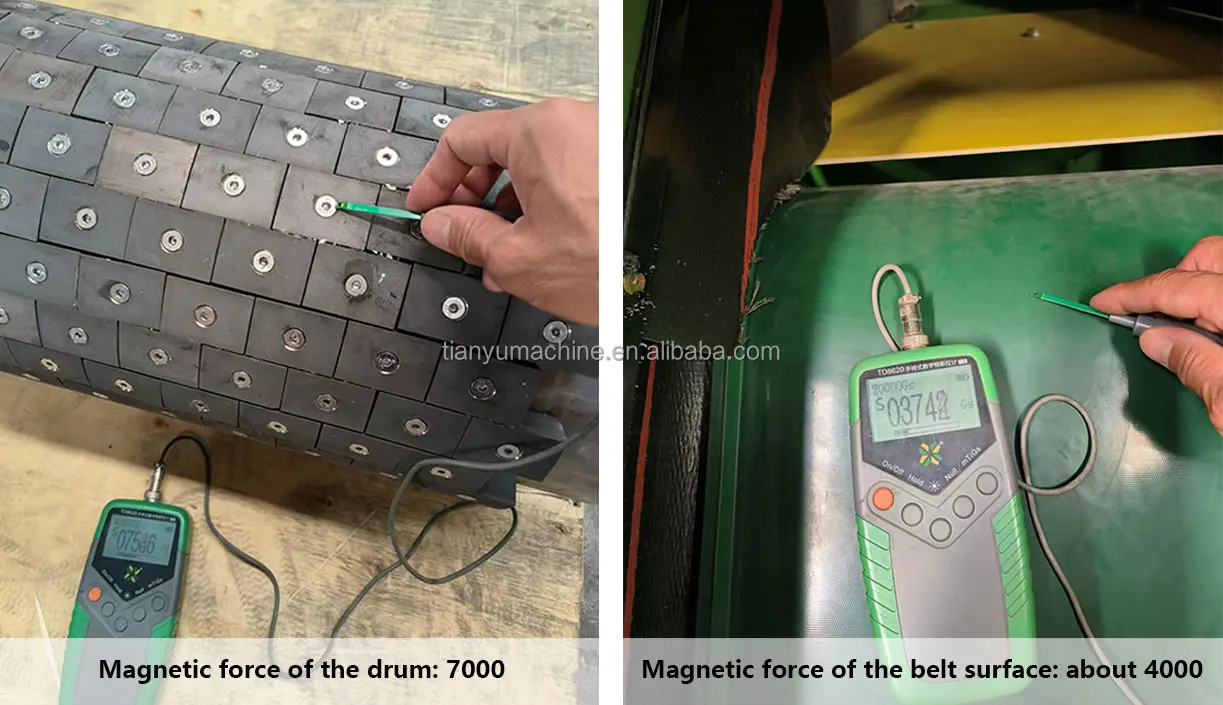

型号 Model | 皮带总宽 Belt Width | 总功率 Power （kw） | 转速 Rotation speed(r/m) | 磁场强度 Magnetic Force (Gauss) | 产能 Capacity （m³/h） | 外形尺寸 Dimension (m) | 重量 Weight （t） |
ECS600 | 600mm | 5.75 | 0-3000 | 3500-4000 | 1-4 | 3.4*1.8*1.93 | 1.5 |
ECS800 | 800mm | 9.75 | 0-3000 | 3500-4000 | 4-8 | 3.4*2*1.93 | 1.8 |
ECS1000 | 1000mm | 9.94 | 0-3000 | 3500-4000 | 8-12 | 3.6*2.4*2.05 | 2.1 |
ECS1200 | 1200mm | 10.2 | 0-3000 | 3500-4000 | 12-16 | 3.8*2.6*2.2 | 2.4 |
ECS1400 | 1400mm | 13.7 | 0-3000 | 3500-4000 | 16-20 | 4.4*2.8*2.4 | 2.8 |
ECS2000 | 2000mm | 18.75 | 0-3000 | 3500-4000 | 20-26 | 4.9*3.5*2.5 | 3.5 |
ECS2200 | 2200mm | 20.1 | 0-3000 | 3500-4000 | 26-32 | 4.9*3.9*2.5 | 4.1 |
Advantage
--Use imported bearing, long service life, work well.
--Magnetic roller adopt effective magnetic system protection,to prevent the magnetic system falls off when it high-speed operation.
--The whole machine adopts a special process,precision design,equipment run time with low noise and vibration.
--The machine installed a variety of detection and alarm system,real-time monitor the operation of every key part
--Magnetic roller adopt effective magnetic system protection,to prevent the magnetic system falls off when it high-speed operation.
--The whole machine adopts a special process,precision design,equipment run time with low noise and vibration.
--The machine installed a variety of detection and alarm system,real-time monitor the operation of every key part
Application Areas
1. Mainly suitable for the industrial waste, living garbage sorting out in copper, aluminum and other non-ferrous metals, used to more fine separation.
2. Can be widely used in garbage disposal, automobile dismantling, recycling of waste electrical appliance and other fields, and processing industry of non-ferrous metal materials processing and other industries.
2. Can be widely used in garbage disposal, automobile dismantling, recycling of waste electrical appliance and other fields, and processing industry of non-ferrous metal materials processing and other industries.
FAQ
Q: How To Choose One Suitable Eddy Current Separation Recycling Line?
A: Please tell us your raw materials and the capacity, we will recommend you the most suitable eddy current separation recycling line.
Q: What's The Raw Material?
A: The raw materials can be non-ferrous metals and non-metals, such as copper plastic composite materials, aluminum plastic composite materials, etc.
Q: What About The Machine Installation?
A: We will send engineers to customer working site for the installation guidance, commissioning and training when everything is ready on your working site, like power, cable, labors, forklift, etc.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and separation recycling line before delivery and send you the working video. You also can come to us for inspection before delivery.
A: Please tell us your raw materials and the capacity, we will recommend you the most suitable eddy current separation recycling line.
Q: What's The Raw Material?
A: The raw materials can be non-ferrous metals and non-metals, such as copper plastic composite materials, aluminum plastic composite materials, etc.
Q: What About The Machine Installation?
A: We will send engineers to customer working site for the installation guidance, commissioning and training when everything is ready on your working site, like power, cable, labors, forklift, etc.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and separation recycling line before delivery and send you the working video. You also can come to us for inspection before delivery.
