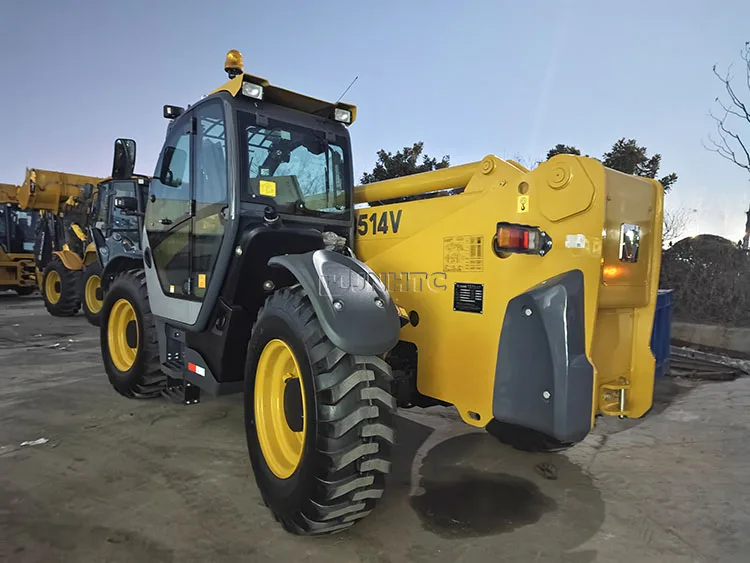

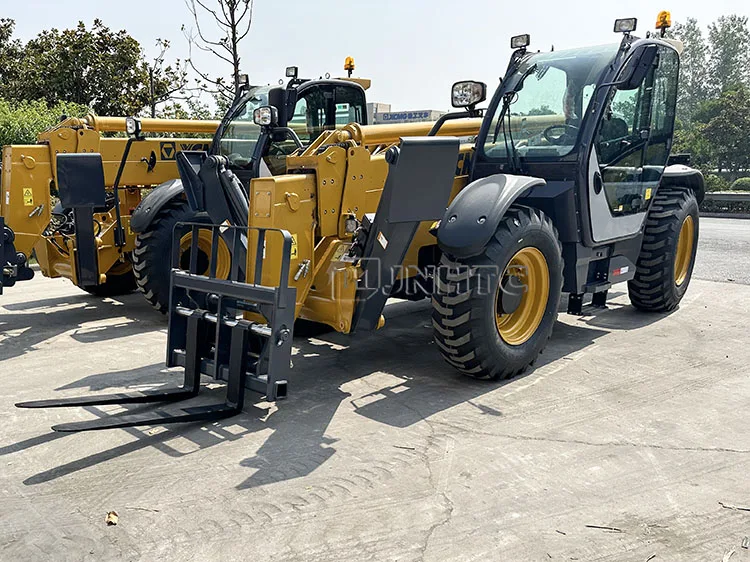

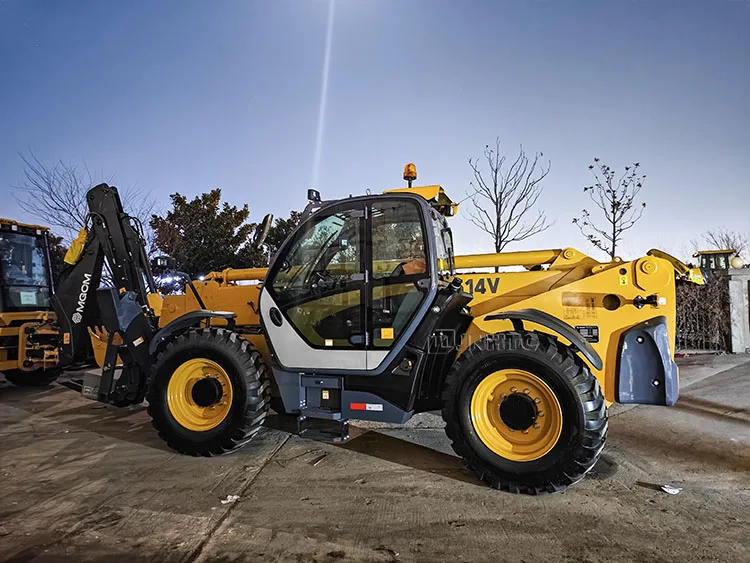

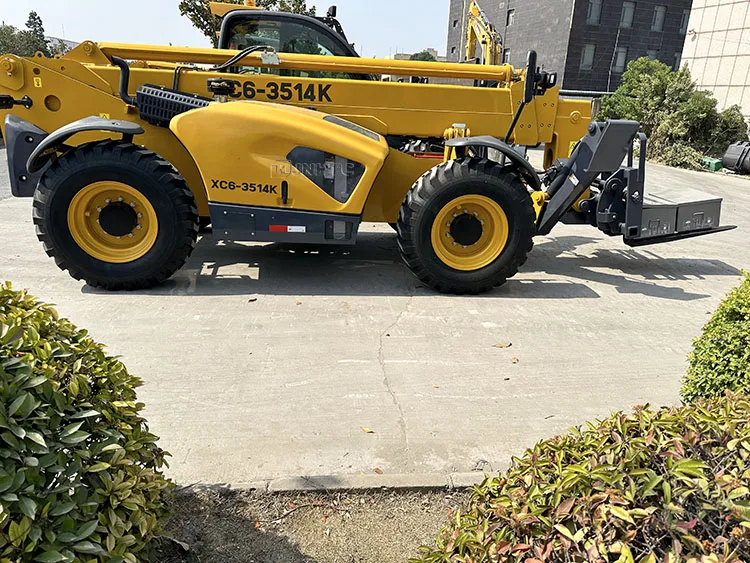

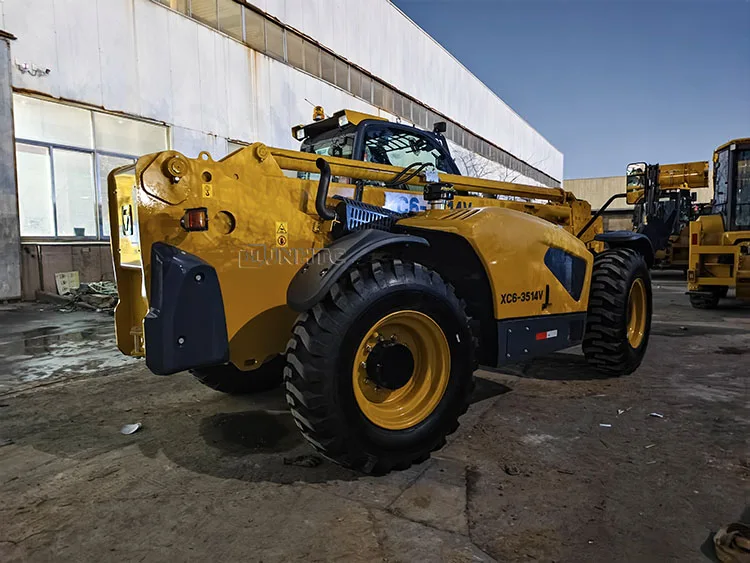

Китай новый XC6-3514W 3 5 тонн 10 метров телескопическая вилка погрузчик Землеройная
- Категории: >>>
- Поставщик: Jinan,Heavy,Truck,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Models | XC6-3514W | |
Lifting Specifications | ||
Rated load | 3500kg | |
Maximum lifting height(to upper plane of fork) | 13500mm | |
Maximum lift height of the payload | 3000kg | |
Maximum forward reach | 9400mm | |
Payload at maximum forward reac | 1250kg | |
Weight&Sizes | ||
Length(without fork) | 6200mm | |
Midth | 2420mm | |
Height | 2500mm | |
Wheelbase | 3100mm | |
Wheeltread | 1980mm | |
Minimum ground clearance | 445mm | |
Cab width | 980mm | |
Departure Angel | 34° | |
Fork cross section | 1200mm | |
Fork Front Tilt Angle | 12° | |
Fork Rear Tilt Angle | 114° | |
Minimum turning radius | 3920mm | |
Min Radius of Passage | 5330mm | |
Frame Flat Adjust Angle | ±10° | |
Weight | 10500kg | |
Tires,standard szie | 15.5-25-16PR | |
Performance | ||
Luffing time(rising) | 16s | |
Luffing time(falling) | 14s | |
Second arm stretching-out time | 25s | |
Second arm retracting time | 20s | |
Fork arm carrier forwardtiling time | 5s | |
Fork arm carrier backward tiling time | 5s | |
Engine | ||
Brand | Dalian Diesel Engine | |
Model | BF4M2012-10T3R/3 | |
Emission standard | SageⅢl | |
Max Torque | 375Nm/1600rpm | |
Power | 72 kW | |
Drive system | ||
Transmission Type | Static Pressure | |
Numbers of Gears(Front/Rear) | 2/2 | |
Maximum traveling speed | 30 km/h | |
Parking Brake | Electonic Parking Brake | |
Service Brake | Wet Brake | |
Hydraulic system | ||
Pump Type | Gear pump | |
Fow-Pressure | 170L/min-270bar | |
Tank Capacity | ||
Engine Oil | 9L | |
Hydraulic Oil | 125L | |
Fuel Oil | 125L | |
Others | ||
Steering Wheels/Driving Wheels | 4/4 | |
Control Type | Electronic Control Centralized Control Handle | |
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we
will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around
after-sales services including machine maintenance and operation and technical training services etc .
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we
will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around
after-sales services including machine maintenance and operation and technical training services etc .
