Production Display
PP Triaxial Geogrid 2% 185 kN/m
PP Triaxial Geogrid 2% 225 kN/m
Products Description
Introduction

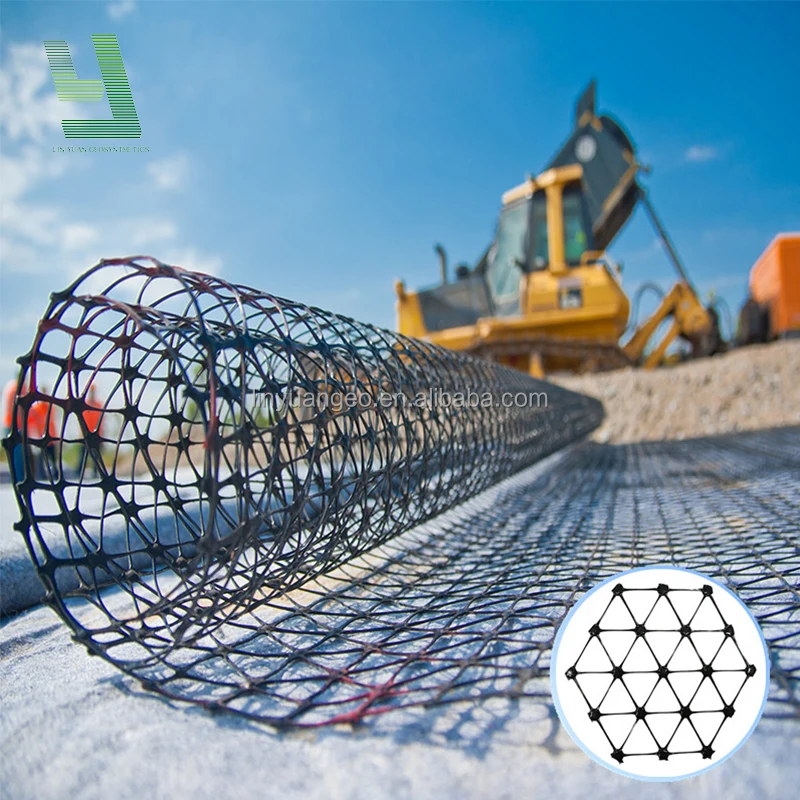

Triaxial geogrid is manufactured from polypropylene,mainly applied in strengthening soft ground of highway,railway,slope protecting projects, airfields etc.It can increase stability and loading capacity of fundus,prolong the project life.
Product Name | PP Triaxial Geogrid |
2% Tensile Strength | 150/ 185/225/295/420 kN/m |
Mesh Size | 40x40 |
Roll Width | 3.95 Or 5.95 m |
Roll Length | 50 Or 75 m |
Standard | CE, ASTM, ISO |
Index Properties | T14 | T15 | T16 | T17 | T18 | ||||
Rib Pitch (mm)(MD/TD) | 40 | 40 | 40 | 40 | 40 | ||||
Ridial Secant Stiffness at 0.5% Strain | 225 | 285 | 300 | 390 | 450 | ||||
Rib Shape | Rectangular | ||||||||
Aperture Shape | Triangular | ||||||||
Junction Efficiency | 90% | ||||||||
Application

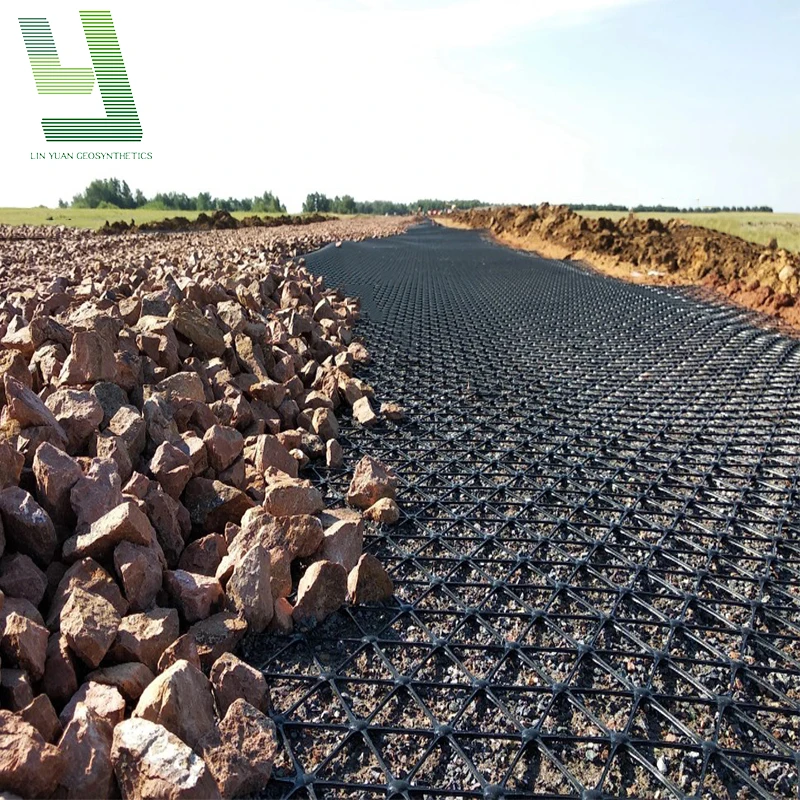

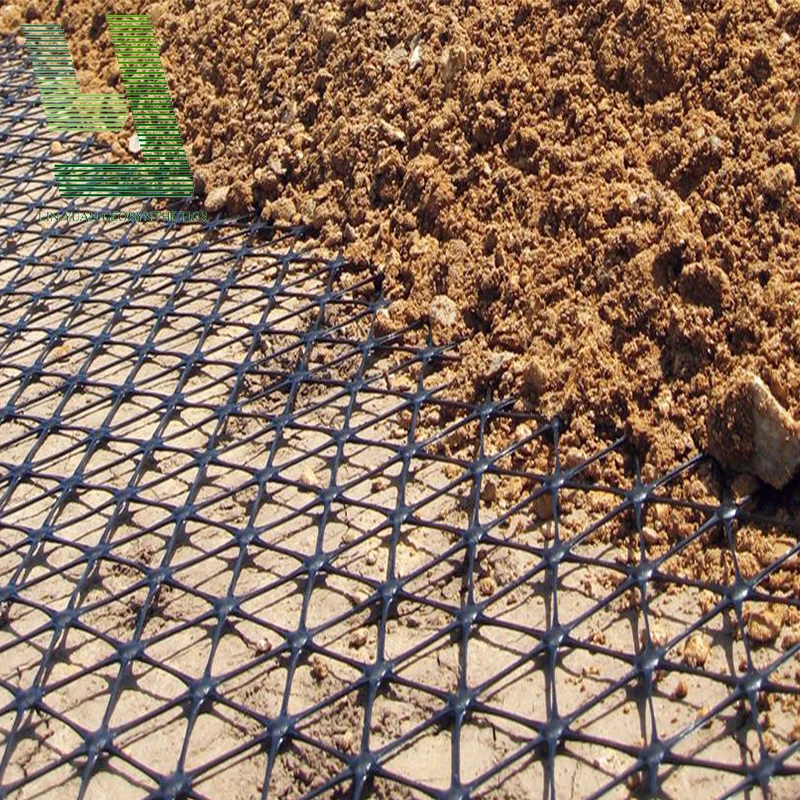

PP Triaxial Geogrid is strengthening soft ground of highway,railway,slope protecting projects, airfields etc

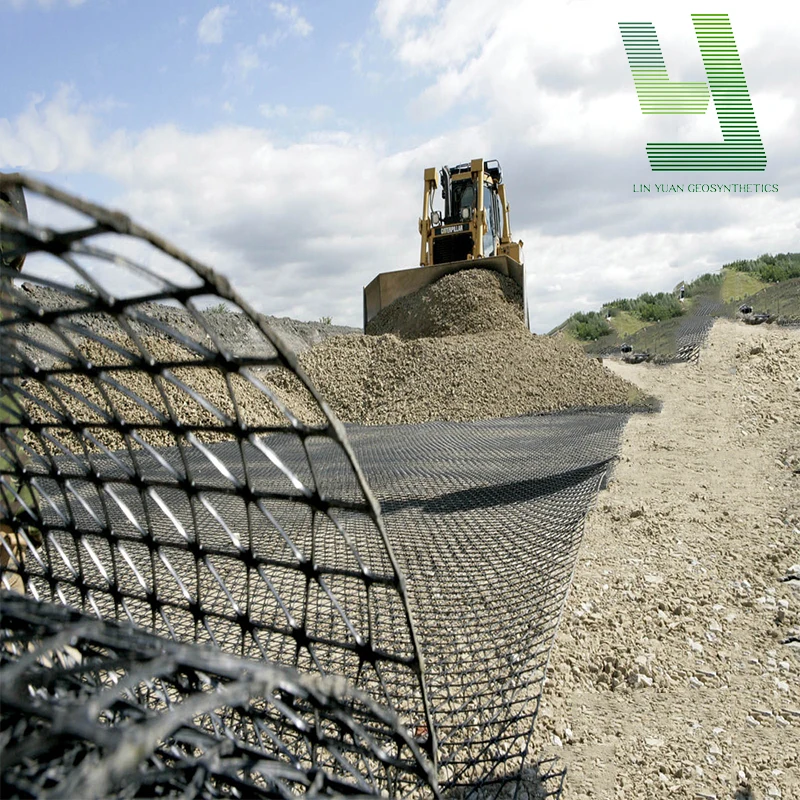

Road Reinforcement
Airport Reinforcement
Quality Control
Packaging &Shipping
Packaging: Strips packaging or Pallet Packaging
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Best Seller Products
Company Introduction
Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevant products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
