Product Description

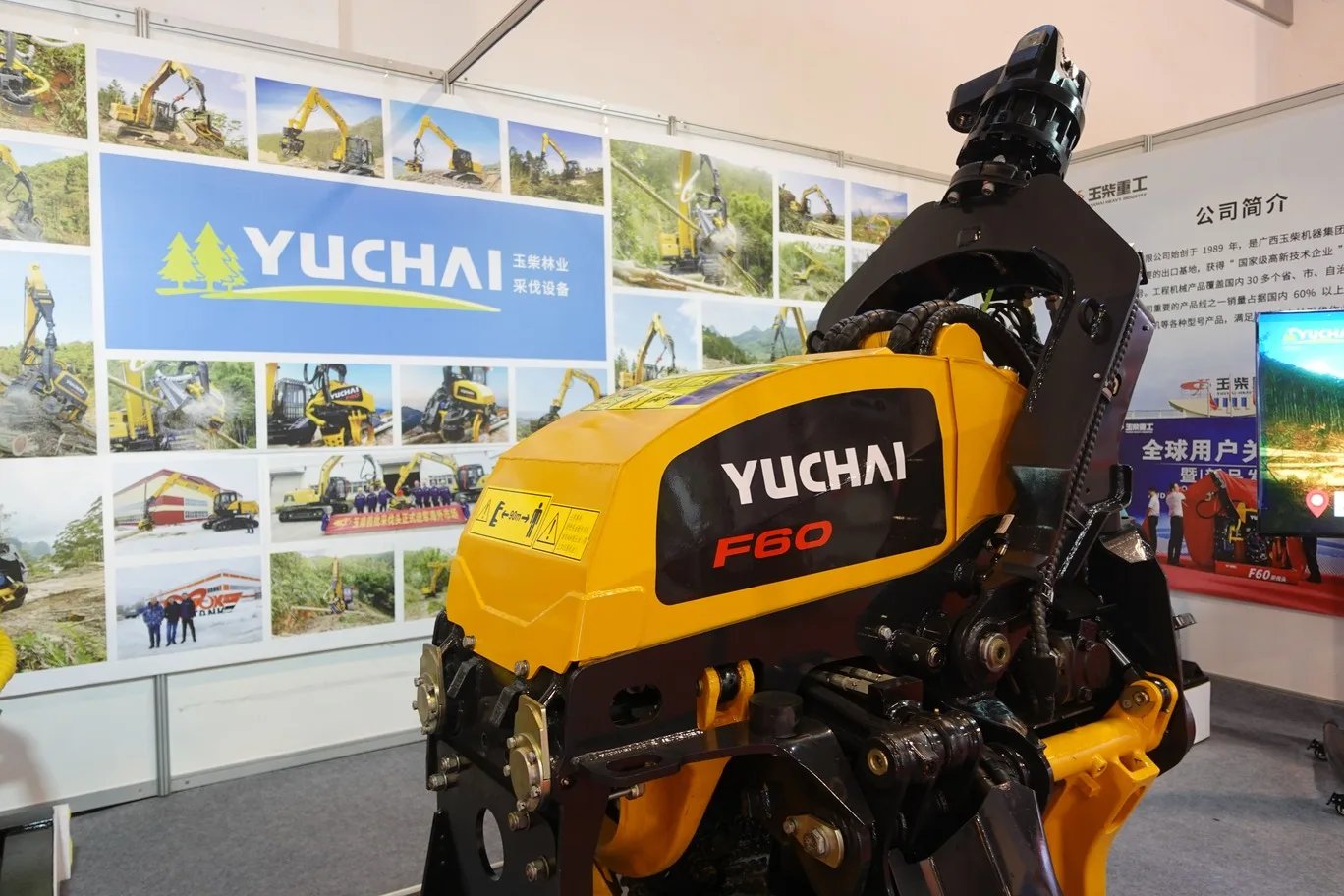

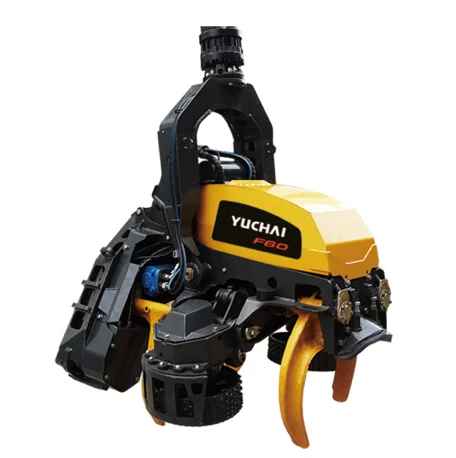

Multi-functional Forest Cutting Equipment Yuchai F60 Harvester Head for Forestry Excavator
Yuchai F60 harvester head is a multi-functional forest cutting equipment. Harvester head is suitable for trees with a diameter of less than 600mm, and is equipped with 5 knives and 3 rollers. This machine has better stability, higher yield, wide application range and easy operation. The machine can be equipped with an excavator of 12-28 tons.
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance

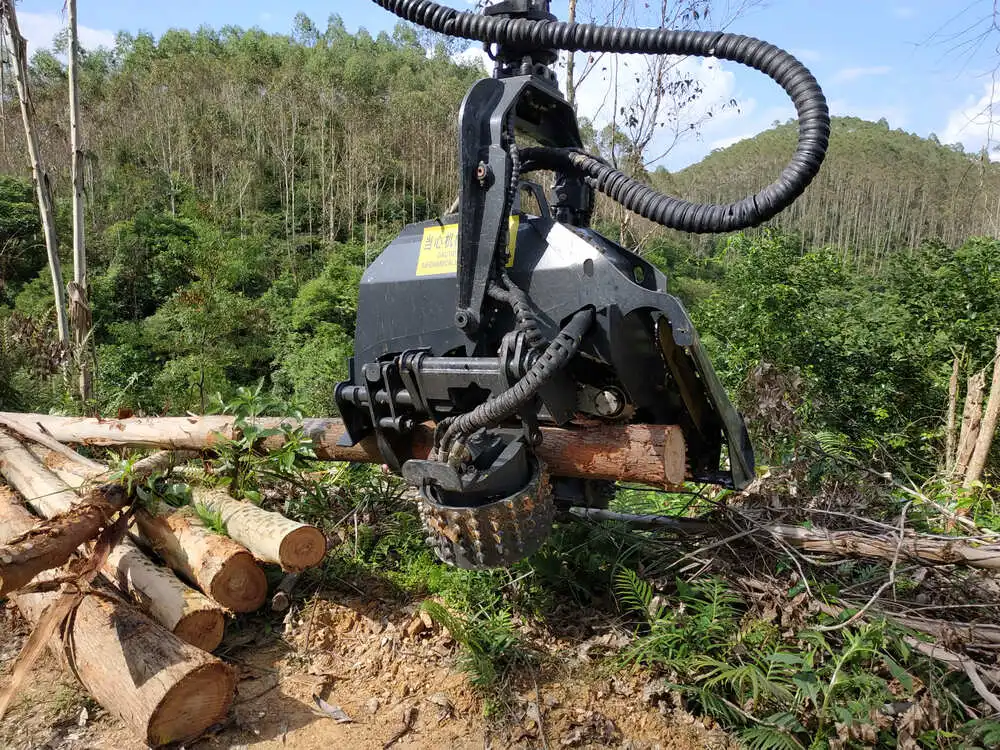

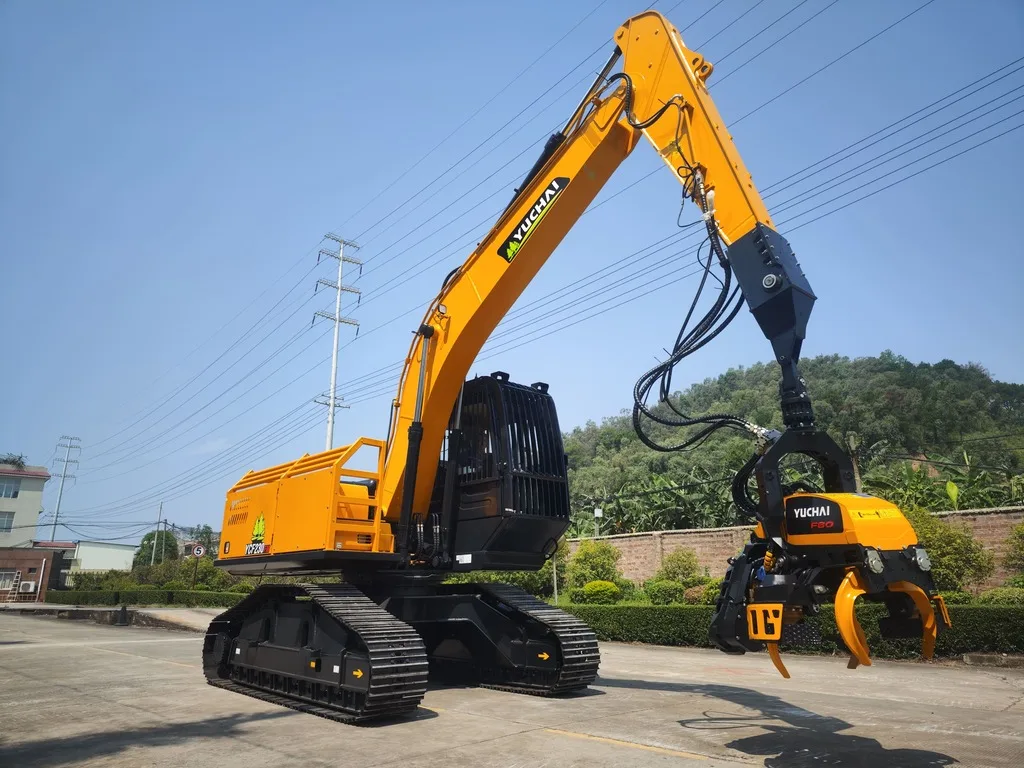

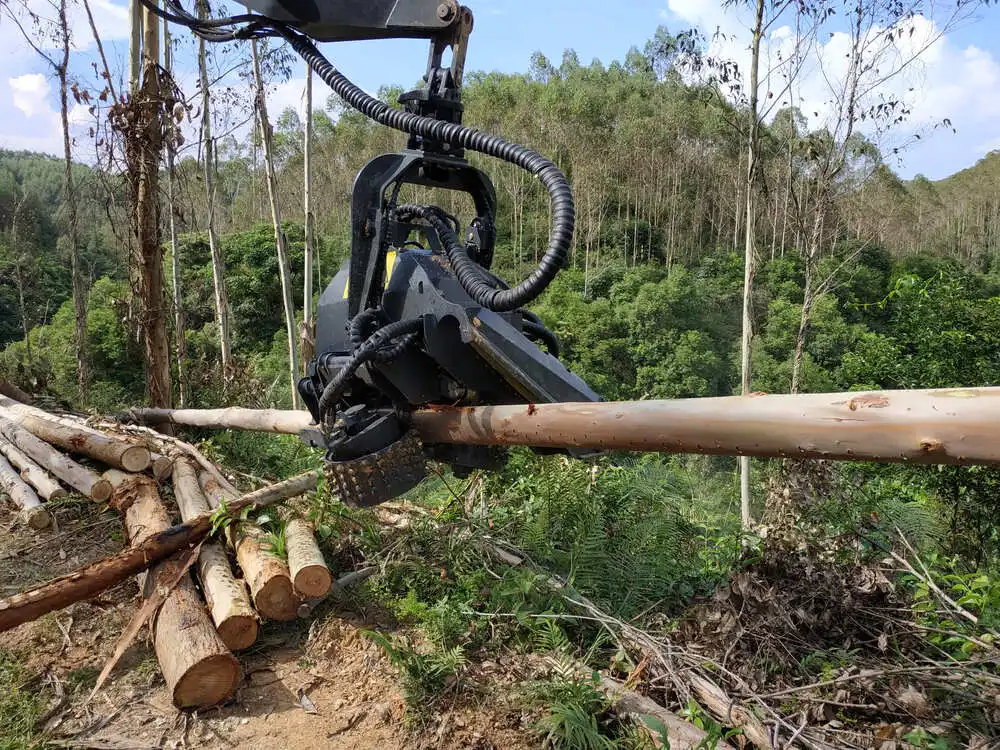

Details Images
Product Paramenters
Chainsaw maximum cutting diameter | 640mm |
Guide bar length | 750 (29.53 in)mm |
Chain pitch | 0.404 |
Capacity of chain oil tank bar | 8L |
Rollers quantity | 3 |
Rollers diameter | 400mm |
Max. opening of rollers | 600mm |
Max. feed force | 25kn |
Max. feed speed | 0-6m/s |
Diameter tip-to-tip | 400mm |
Front knives max. opening | 640mm |
Rear knives max. opening | 650mm |
Operating hydraulic | 28Mpa |
Flow required | 200~250L/min |
Power required | 85-130KW |
Operating vdtage | 24V |
Dimension | 1445x1500x1530mm |
