Products Description
Short overview MEM TZ6-4050 heat press
Pneumatic six station transfer press for medium and large batches.
Pressure balancing system on heat plate and bottom plate.
Operates in automatic or manual modes.
Operates in automatic or manual modes.
Adjustable air pressure by air reducing valve.
Lifetime factory on-line service.

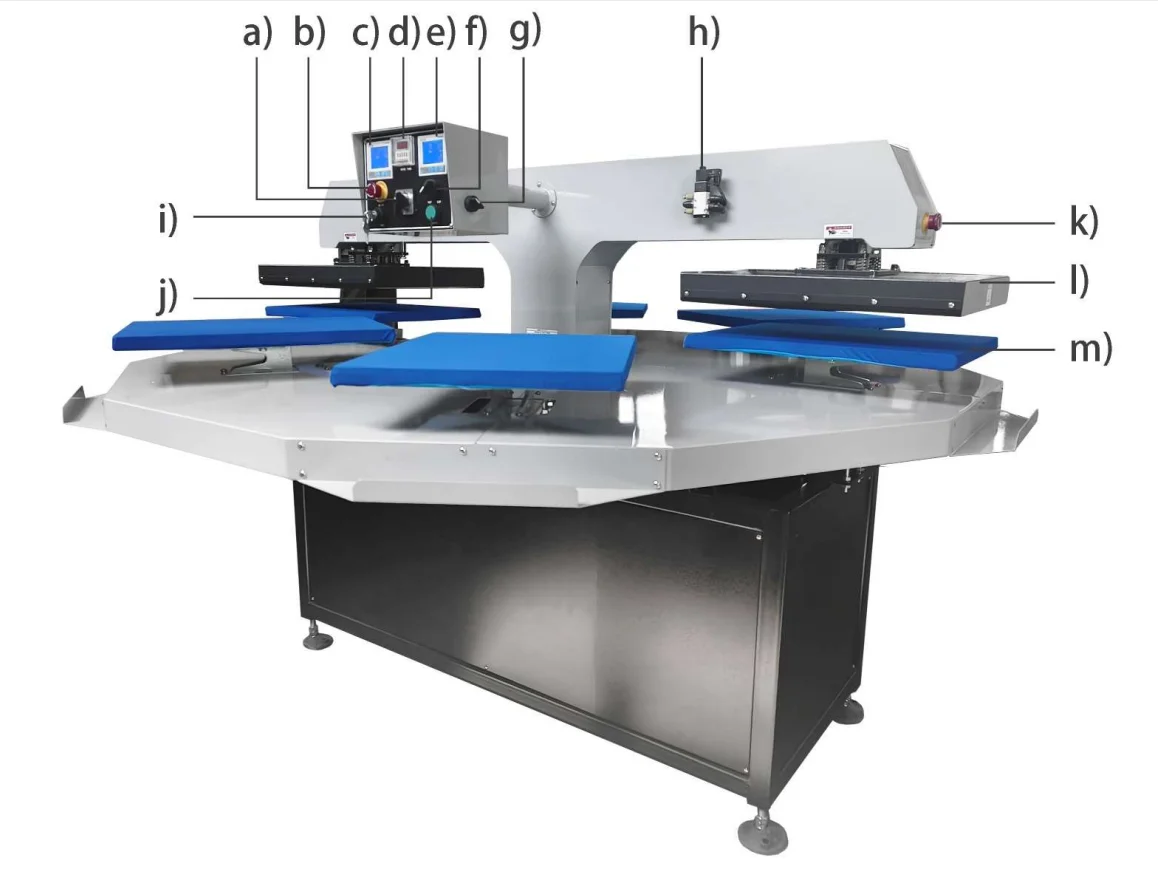

a. Manual /semi-auto/auto switch
b. Emergency stop button
c. Temperature controller(heat 1)
d. Rotate timer
e. Temperature controller(head 2)
f. Rotate speed switch
g. Head 2 power switch
h. Solenoid valve
i. Power switch
j. Rotate button
k. Emergency stop button
l. Heat plate
b. Emergency stop button
c. Temperature controller(heat 1)
d. Rotate timer
e. Temperature controller(head 2)
f. Rotate speed switch
g. Head 2 power switch
h. Solenoid valve
i. Power switch
j. Rotate button
k. Emergency stop button
l. Heat plate
m. bottom plate
Model | TZ6-4050 |
Voltage and power | 220V 6000W single phase |
Time range | 0-999 sec. |
Max. Temp. | 260 C/ 500 F |
Heat plate size | 40X50 CM /16"X20" |
Dimensions (L*w*H) | 2130*2130*1400 mm (60"x60"x55") |
Shipping dimensions (L*w*H) | 2000*1500*1520 mm (59"x 44"x 56") |
Shipping weight | 500 kgs /1000 lbs |
Max. press thickness | 42 mm |

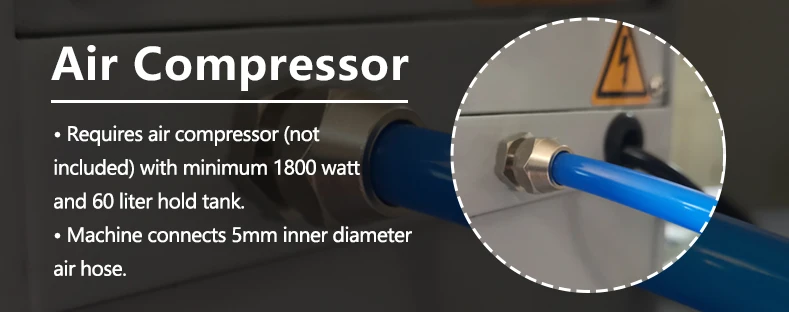

Pneumatic connection
Charge the compressor to 0.6-0.7 Mpa, up to 0.8 Mpa (120 psi) if possible.
Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it.
Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it.
After the pressure is set, push the cap back down. The set pressure should be lower than on the manometer of the compressor.
Commonly used pressures are between 0.4 to 0.6 Mpa (60 to 90 psi).
Commonly used pressures are between 0.4 to 0.6 Mpa (60 to 90 psi).

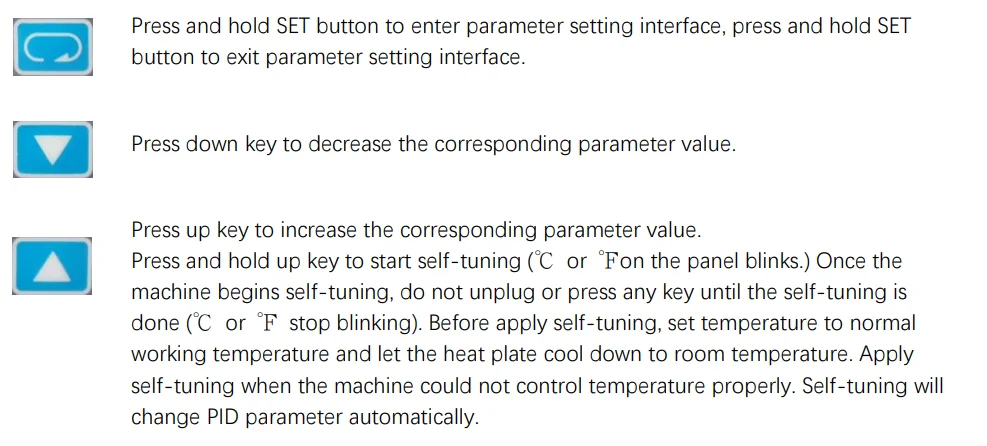

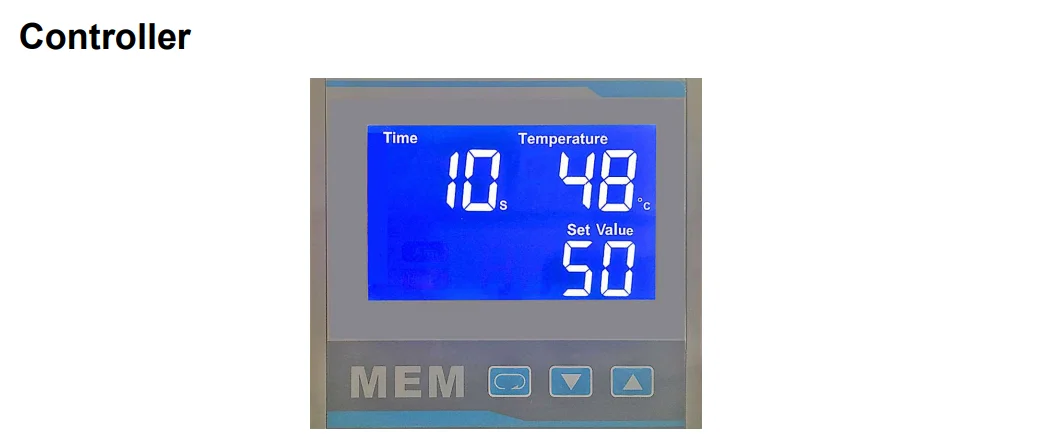

With the temperature controller, temperature (°C and °F) and pressing time can be adjusted. The Set Value are showing the setting value, the Temperature digits are showing the actual value. Counter (reset after power off) function that counts the number of transfers that have already been made during the current session could be enabled, contact MEM for counter function enable instruction.

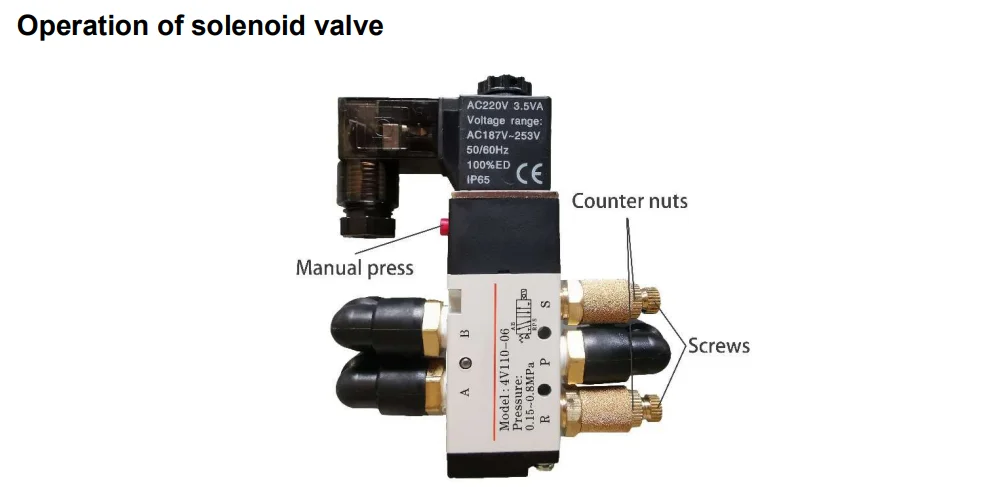

On the side of the solenoid valve there are two silver/golden screws which restricting the air flow speed of the cylinder.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
Packing & Delivery
Standard export wooden case packing to make sure the machine safety during the transportation. Customer can be rest assured.
Company Profile
FAQ
1. Is your company manufacturer or trading company?
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
3. Are the machines CE Approved?
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
Thoughtful service
Lifetime factory on-line service.24H online service
A good partner for you
A good partner for you
