Product Overview
Factory Price Mercury-free And Reagent-free Sorting Nickel Gold Ore Selection Equipment Small Scale GT60 Gemini Shaking Table
Jiangxi Henghong Mining Machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

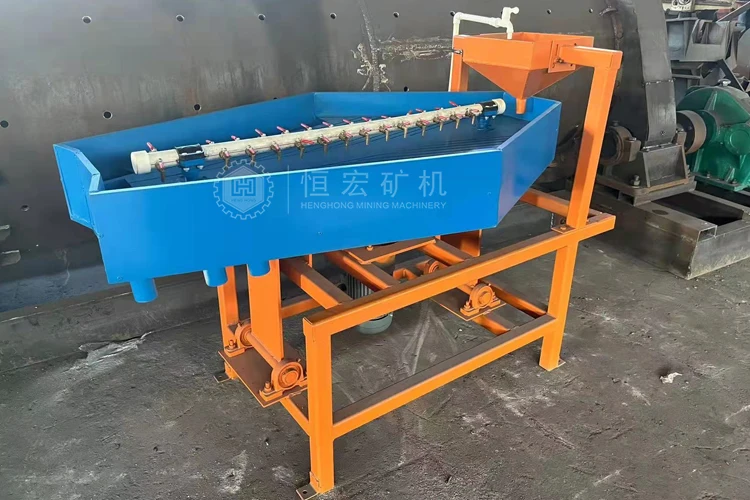

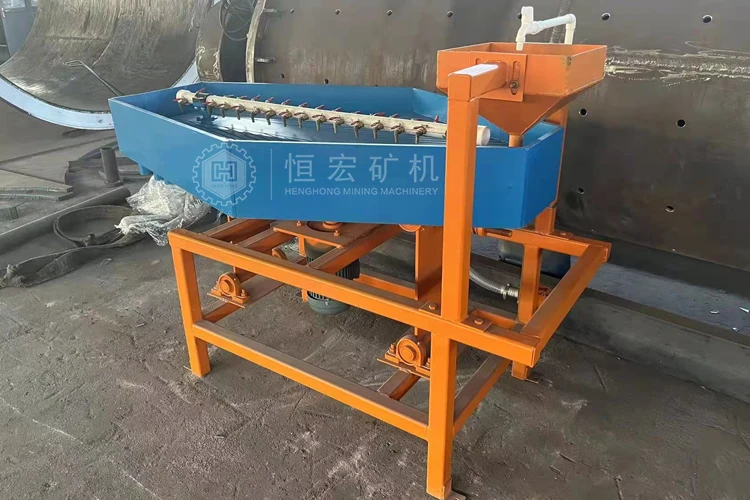

Gemini Shaking Table Introduction

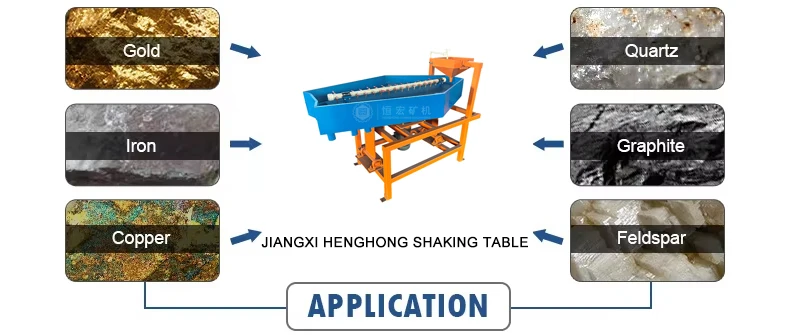

Gemini Table, also known as a precious metal table, works according to the specific gravity prince. Ideal for grain sizes between 30 micron and 2mm. It is specially designed for precious metals such as Gold, Palladium, tantalum and copper. It can maximize the concentration rate in the ore with its low energy consumption. Thanks to the frequently installed mini valves, fine adjustment can be made in the water collector as you wish. We have two types of production, Gemini Table laboratory type and Industrial type.

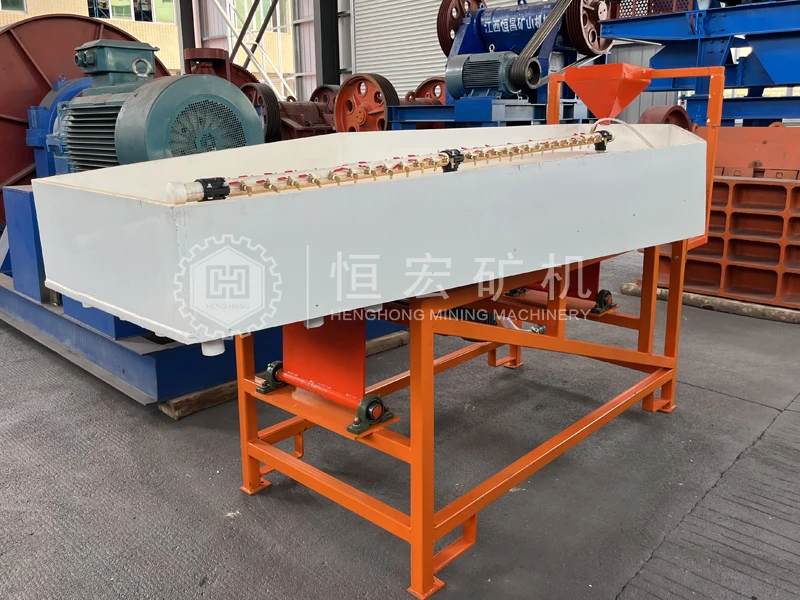

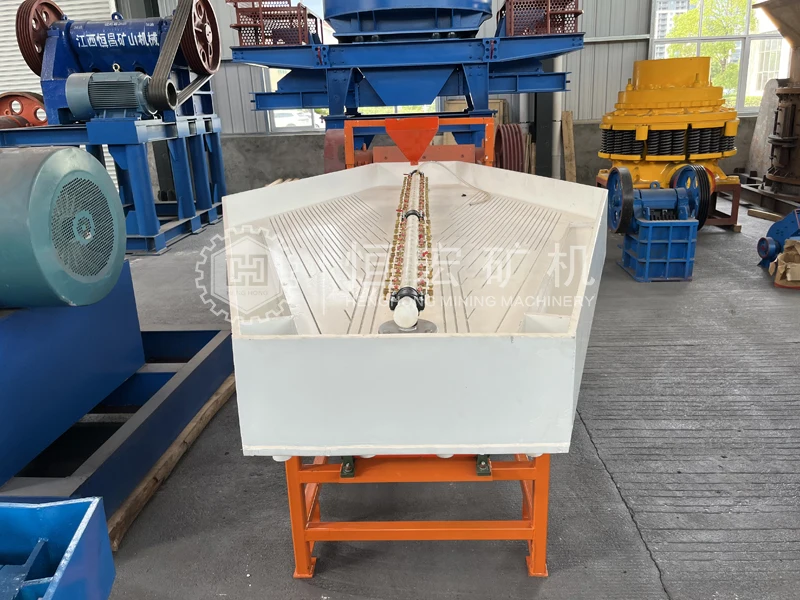

We also supply 6S Shaking table, It can not only be used as an independent beneficiation machine, but it often works with jig separator machines, centrifugal concentrators, sluice box, flotation equipment, magnetic drum separator, spiral classifier, and other ore dressing equipment.
Product Parameters
Model | GT60 | GT250 | GT1000 |
Capacity (t/h) | 0.1-0.4 | 0.2-0.8 | 0.6-1.2 |
Power (KW) | 0.55 | 0.75 | 1.1 |

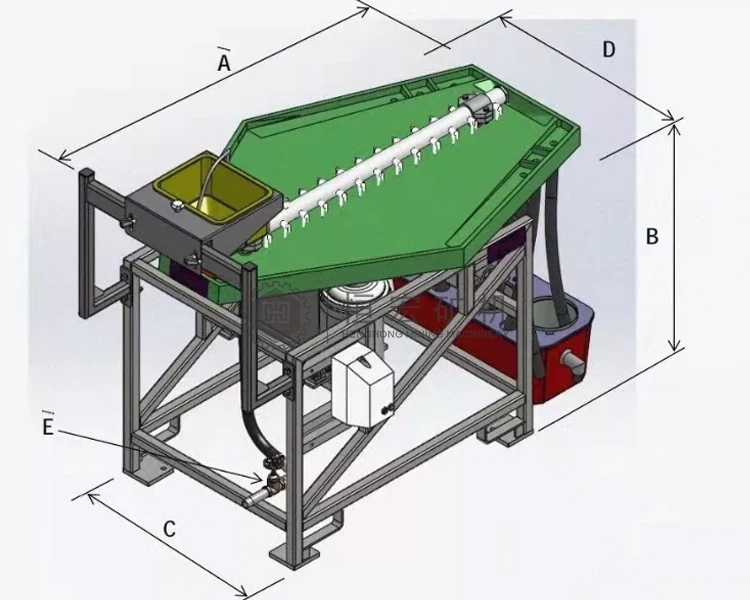

Operating dimensions A(mm) | 1490 | 2180 | 2800 |
Operating dimensions B(mm) | 1160 | 1350 | 1365 |
Operating dimensions C(mm) | 670 | 700 | 916 |
Operating dimensions D(mm) | 897 | 1340 | 1750 |
Operating dimensions E(l/min) water flow | 12 | 25 | 38 |
Net weight(kg) | 145 | 220 | 320 |
Approximate packed dimensions L*W*H(mm) | 1420*1100*1210 | 2200*1500*1500 | 2800*1900*1500 |
Packed weight(kg) | 250 | 420 | 540 |
Working Principle
Working Principle: Gemini table has been specifically designed for the recovery of fine gold to a directly smeltable concentrate. The direct drive system incorporates a geared motor, driving a crank connected to the table deck. The crank includes a spring connection system to absorb overrun. The bump stop system provides a fine-tuning mechanism. Table tuning is achieved by adjustment of a single screw.
Main Features
♦ The table can be operated in batch or continuous mode
♦ Direct, fixed speed feed system
♦ No massive foundation required
♦ Available for single or three-phase power supply
♦ No massive foundation required
♦ Available for single or three-phase power supply
♦ Simple operation & Adjustable feed rate
♦ Deck constructed of hard-wearing gel coat with GRP backing
♦ Adjustable “bump stop” to control deck motion amplitude
♦ Recessed deck grooves for gold collection
♦ Multiple dressing water cock valves for wash water control
♦ Central water manifold constructed for resistance to attack by contaminated process water

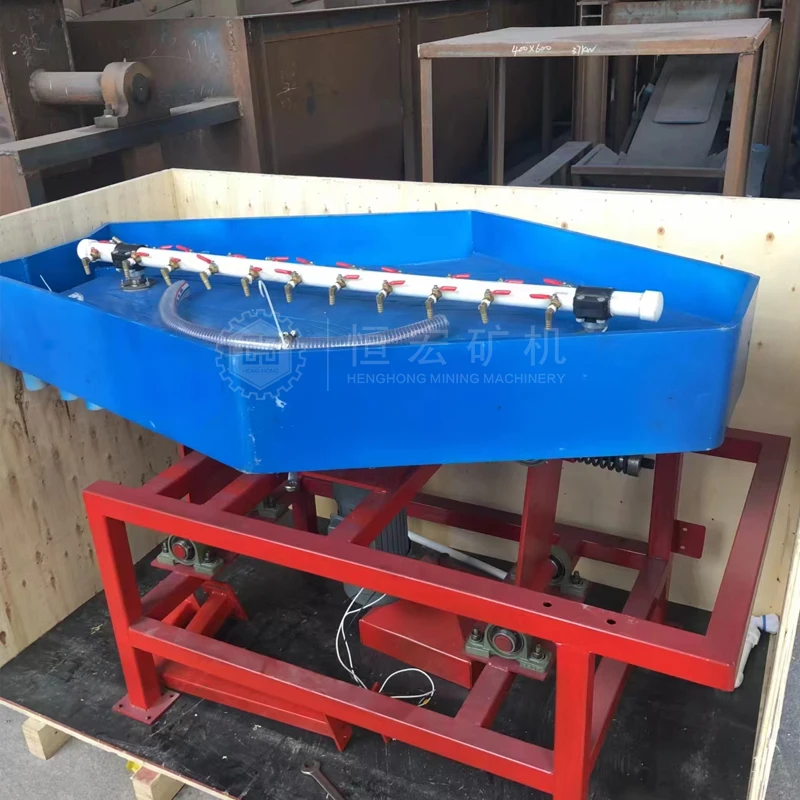

Packing & Delivery
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
Successful Project
Shaker Table Project in Malaysia
Shaker Table Project in Zimbabwe
Shaker Table Project in Peru
Shaker Table Project in Thailand
Shaker Table Project in Mexico
Shaker Table Project in China
Shaker Table Project in Sudan
Shaker Table Project in Mongolia
Shaker Table Project in Australia
Company Profile
Related Products
Popular Products You May Like
FAQ
Q1: Are you manufacturer or trade company?
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
