Цена:32 818 020,00 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Equipment Picture Display










Equipment Details


Main Component

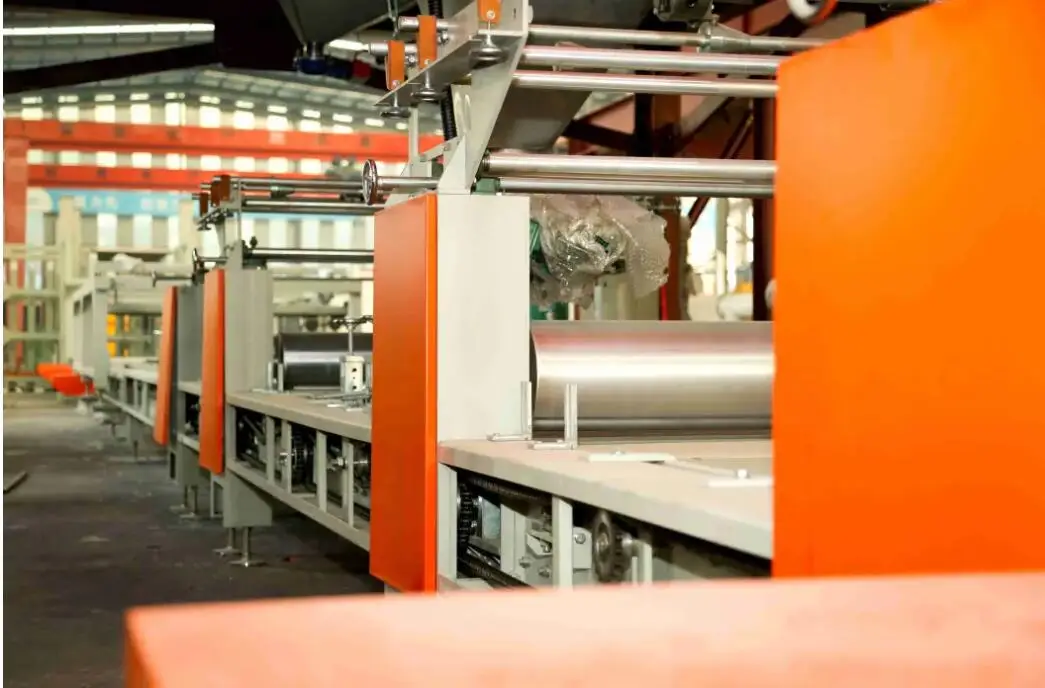

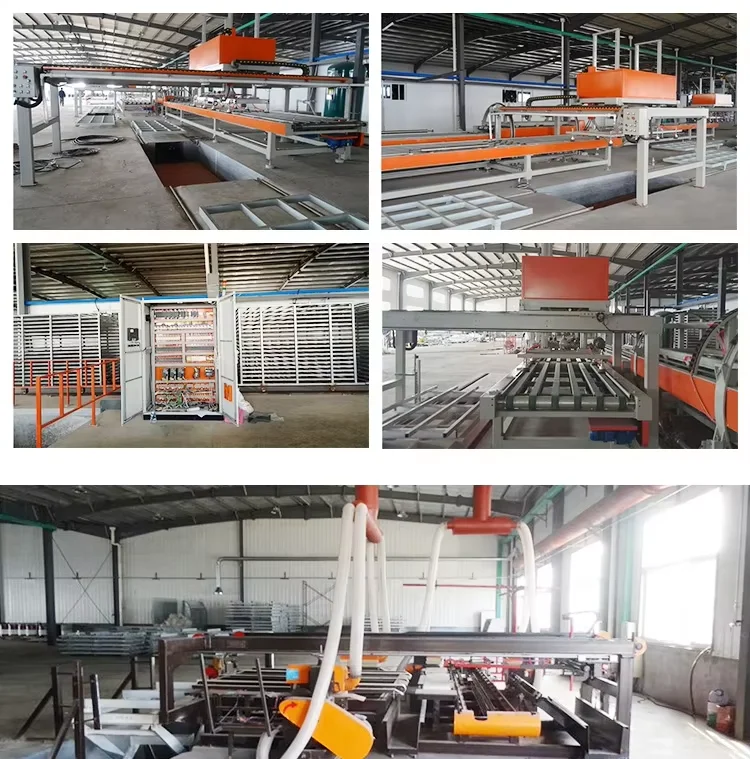

Feeding Material Making Board System
It used PCL automatic control system,gang control for each part. it is automatically, less labor and high efficiency.And we design automatic feeding system for measurement and rate precisely.Also，most parts of this system has professional dedusting system,so there is even no dust during the production, the workshop environment is much more better.

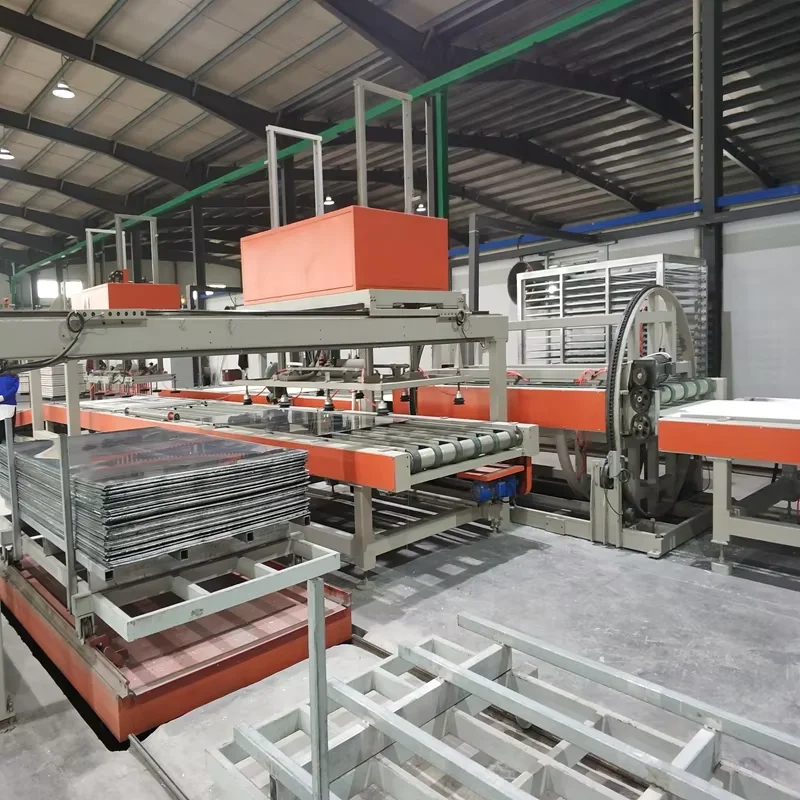

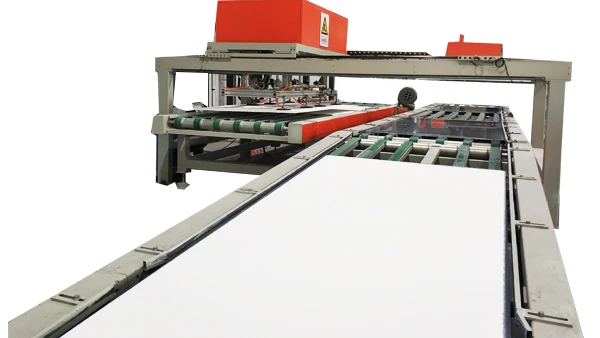

Automatic Stripping Line
The whole line used PCL automatic control system,gang control for each part,and has the function of re-seperation of the plate and mold, so it has no adhesion between them. it is automatically, less labor and high efficiency.

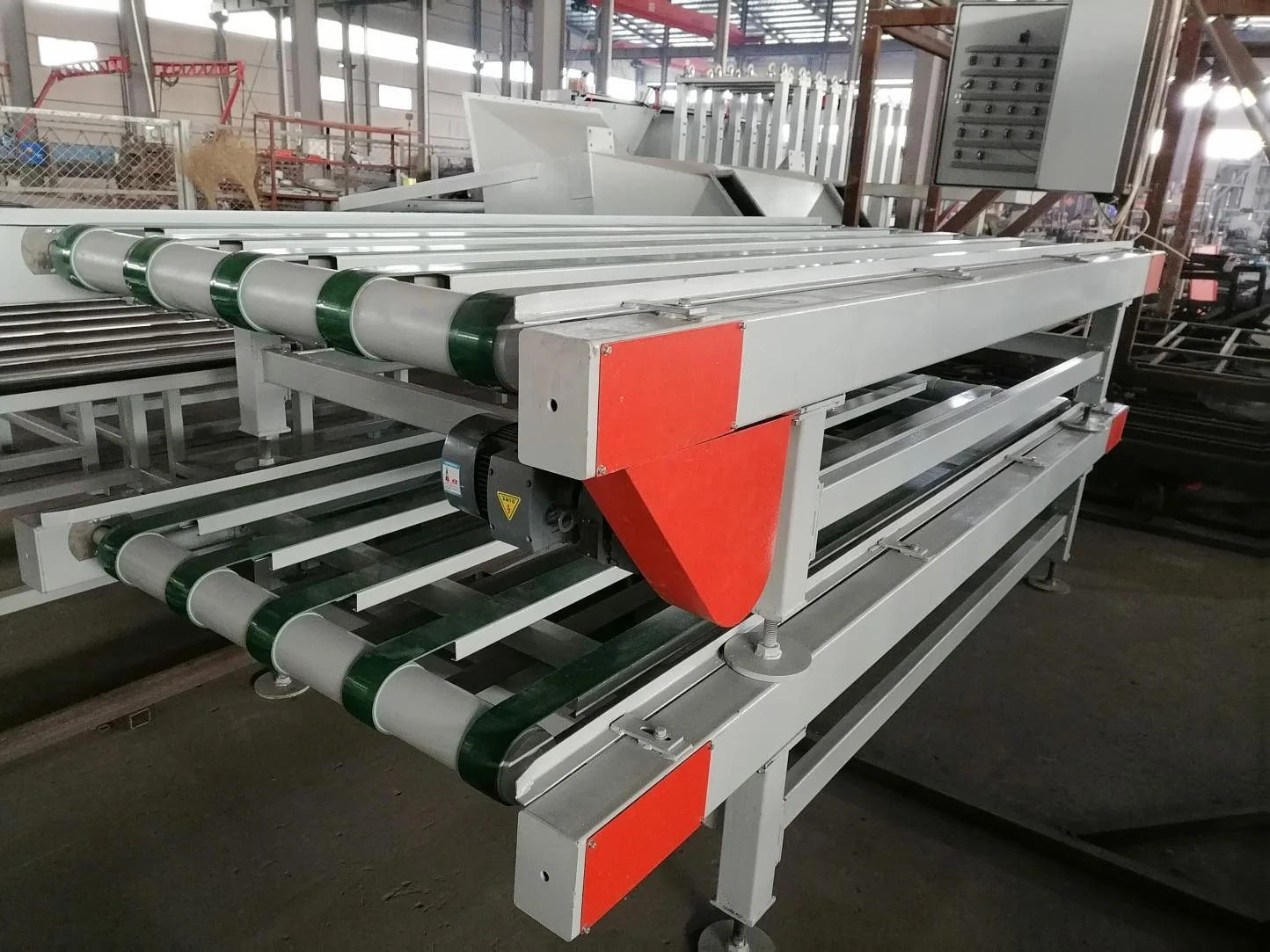

Automaatic Cutting and crushing system
The whole line adopts PLC automatic control system, the system has the functions of automatic board-loading,automatic board-arranging, automatic cutting, automatic stacking and automatic edge-feeding.each link realizes linkage control, high automation and less Labor.
Automatic sanding System
Using two or more sanding machines to connect and automatically turn over the board, the board can meet the requirements of the customers,and meet the different sanding requirements of the customers.


Control system
Control system uses Siemens PLC,touch screen control and servo motor system.All the whole system has ethernet interface,it can connect with frequency converter,control the motor start and stop, also control the speed.

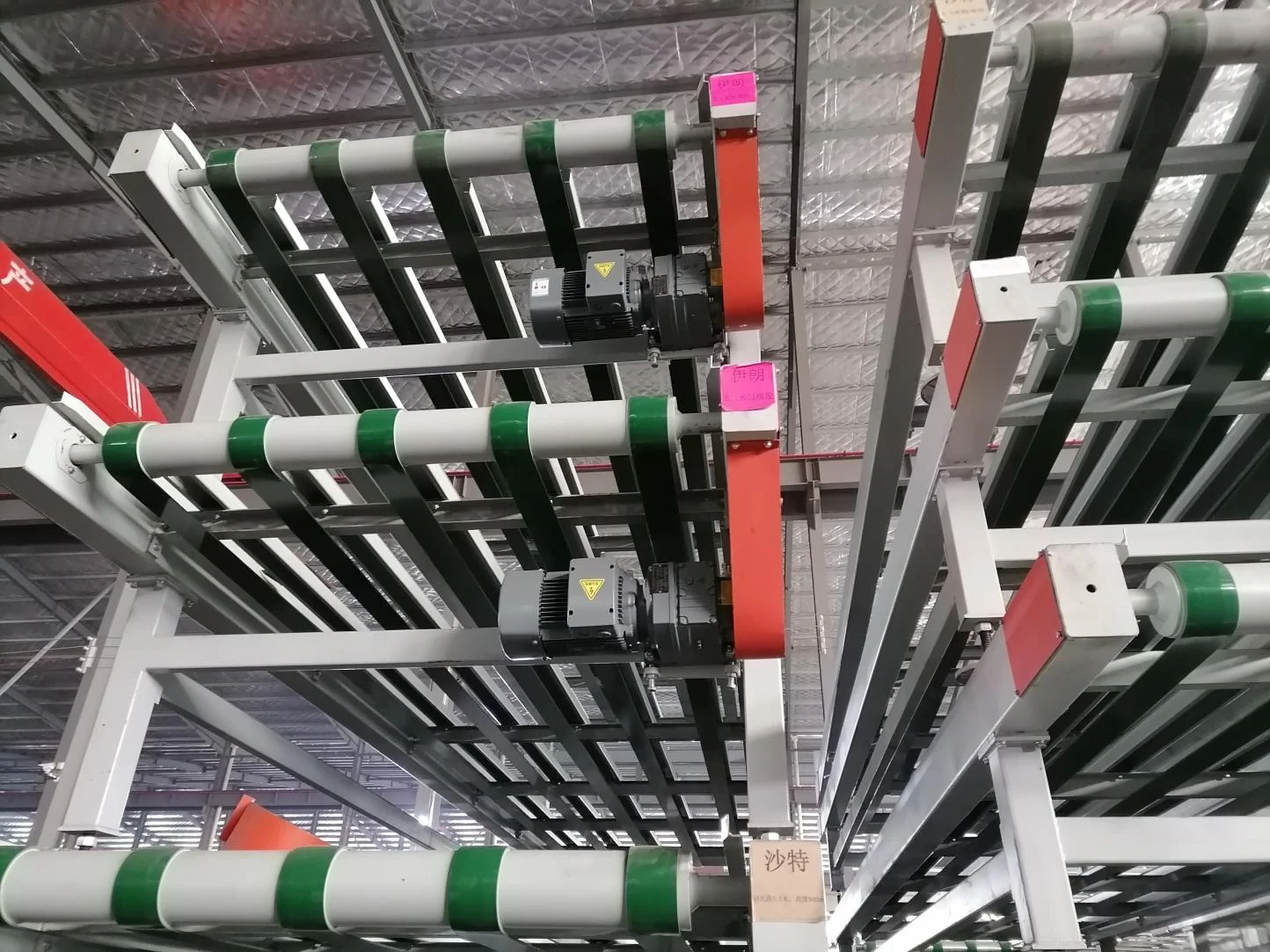

Maintenance room System
Hot Air, electric heating and heat conducting oil are used in maintenance room for customers to choose.Adopt PLC intelligent system,can realize automatic heating,automatic mixing heat, automatic regulating and automatic maintenance.

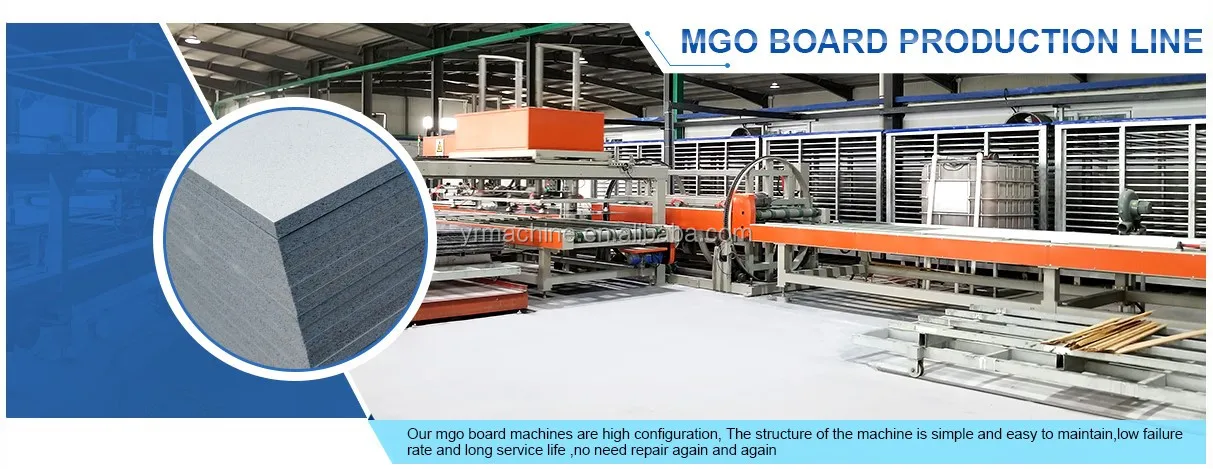

High automation mgo board production line




Project Overview




1
Finished Product
Standard board and Premium Sanding MgO board
2
Product Specification
(2440-3050)*(1220)*(3-20)mm
3
Designed Capacity
250-300 PCS /hour
4
Designed Capacity

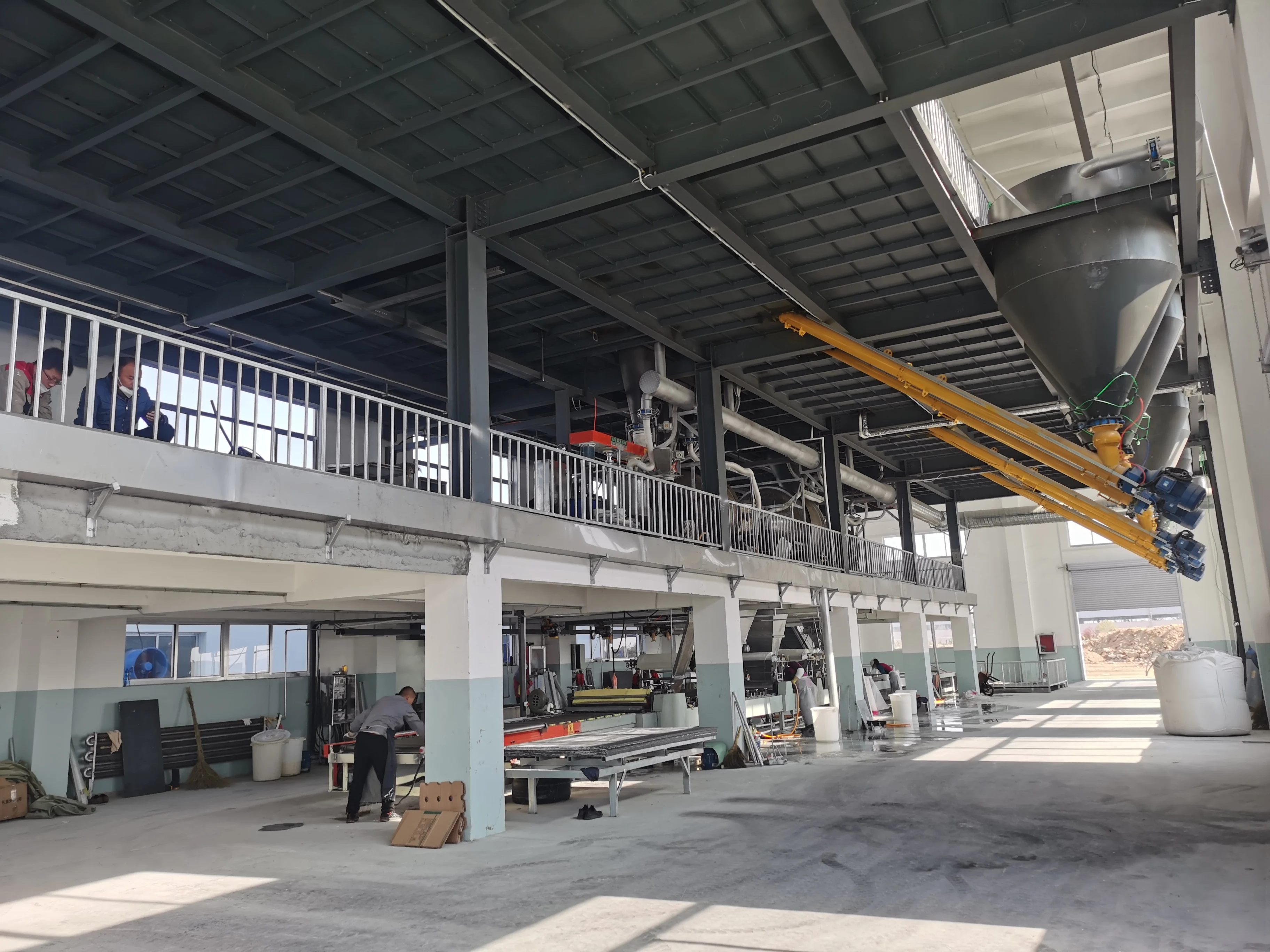

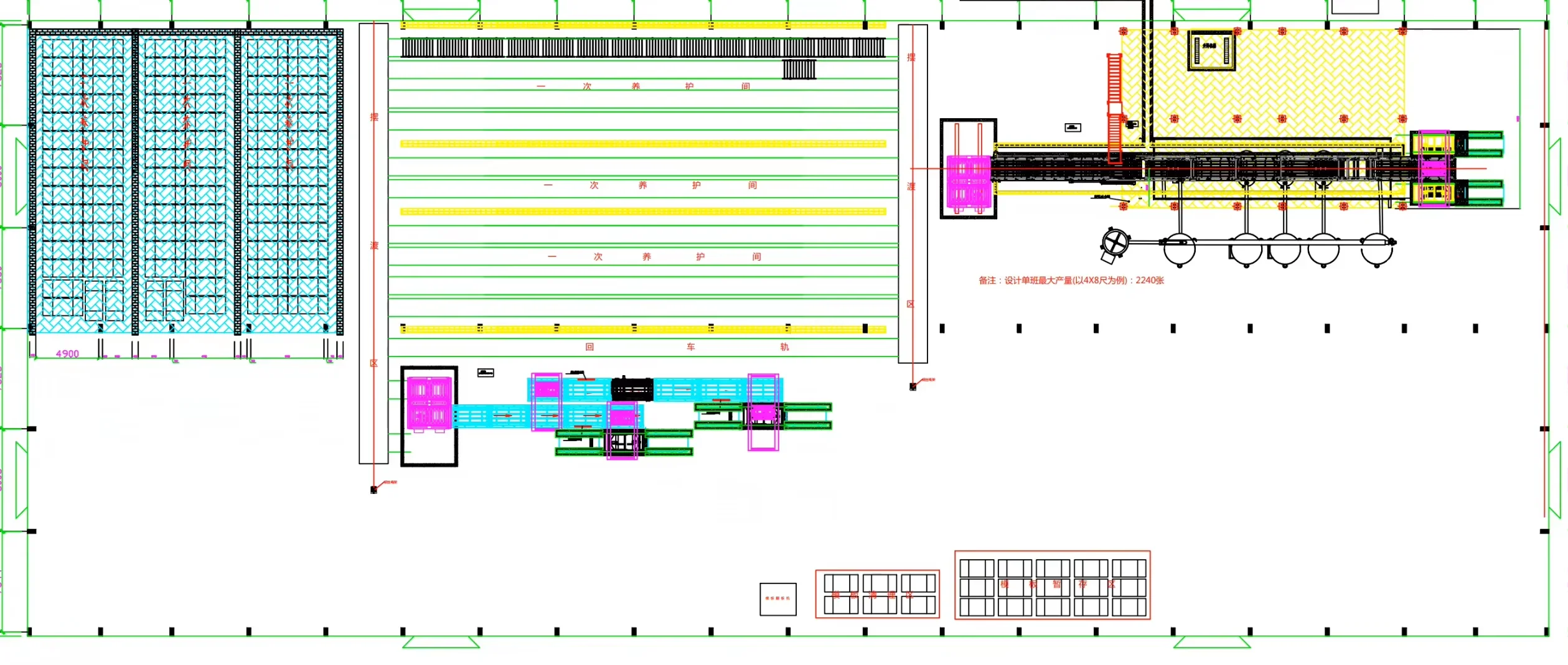

Building area: 10,000 square meters (including raw material area, production area, curing area, finished product area). Plant
height ≥ 6 meters, Mixing area height ≥ 9.5 meters
5
Design transformer installed capacity
630KVA
6
Designed production water consumption
40 Ton/ Shift
7
Designed production water consumption
8 cbm/min
8
Natural gas consumption
400 cbm/day(based on 0°C, winter season)
9
Design and production labours
Around 25/shift(Aslo should based on to production process requirements)






Yurui (shandong) Machinery Co., Ltd. is a manufacturer of pure sulfate Magnesium Oxide Board, DON’T use any magnesium chloride and totally chloride free.
Our factory is equipped with high automatic machine and mature new technology to make the pure sulfate Magnesium Oxide Board. From the raw materials to the test of the final products, we take care of every single detail. Because we take the quality as our life.




Deeply study MgO board and production machinery for 20+years,own top technique.
1. Professional export team:full of experience to handle the export,transportation,files,and documents.
2. Experienced engineer and workers for production: Our general engineers own 18 years experience and professional technology in MGO board field, proficient in the process from No.1 generation MGO board production until the newest MGO board machine design/manufacturing.
3. Equipped with high automatic production line,ensure standard and consistent processing.
4. Strict production procedures and strict QC system and implement.

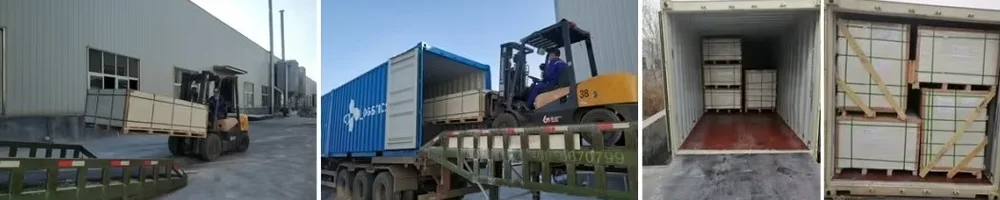

Packing and Shipping


Before Package
Before package, the board will be tested and inspected again by our lab and worker. Each of the board will be cleaned to make surethe board are clean and pick out any defect board.


During Package
We will use film to cover the pallets to avoid any mosiure during the transportation. Use green PET package strapping - Bundle the boards and reinforce the pallets.




FAQ


Q1. How do you pack your boards?
A: Generally, we pack our goods in strong wood pallets.

Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% against to the BL copy.

Q3. What are your terms of delivery?
A: FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples. If you have special requirements of the products, we also could discuss with our engineers.

Q6. Could you provide samples?
A: Sure, please contact us now.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Warmly welcome you contact me for your questions.
