Машина для прокатки листового металла
US $10000
Машина для формования зерновых
- Категории: >>>
- Поставщик: Cangzhou,Dingtuo,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

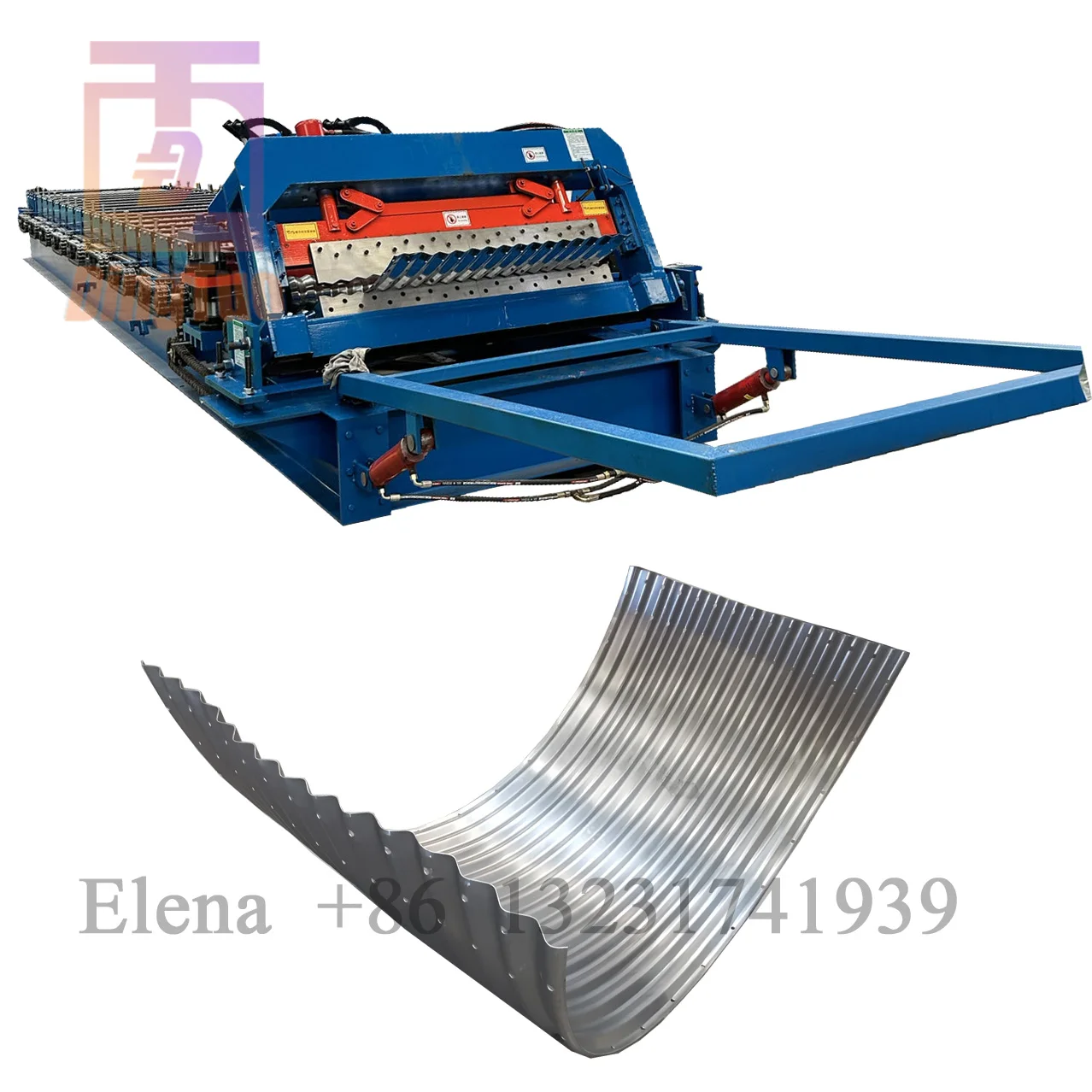

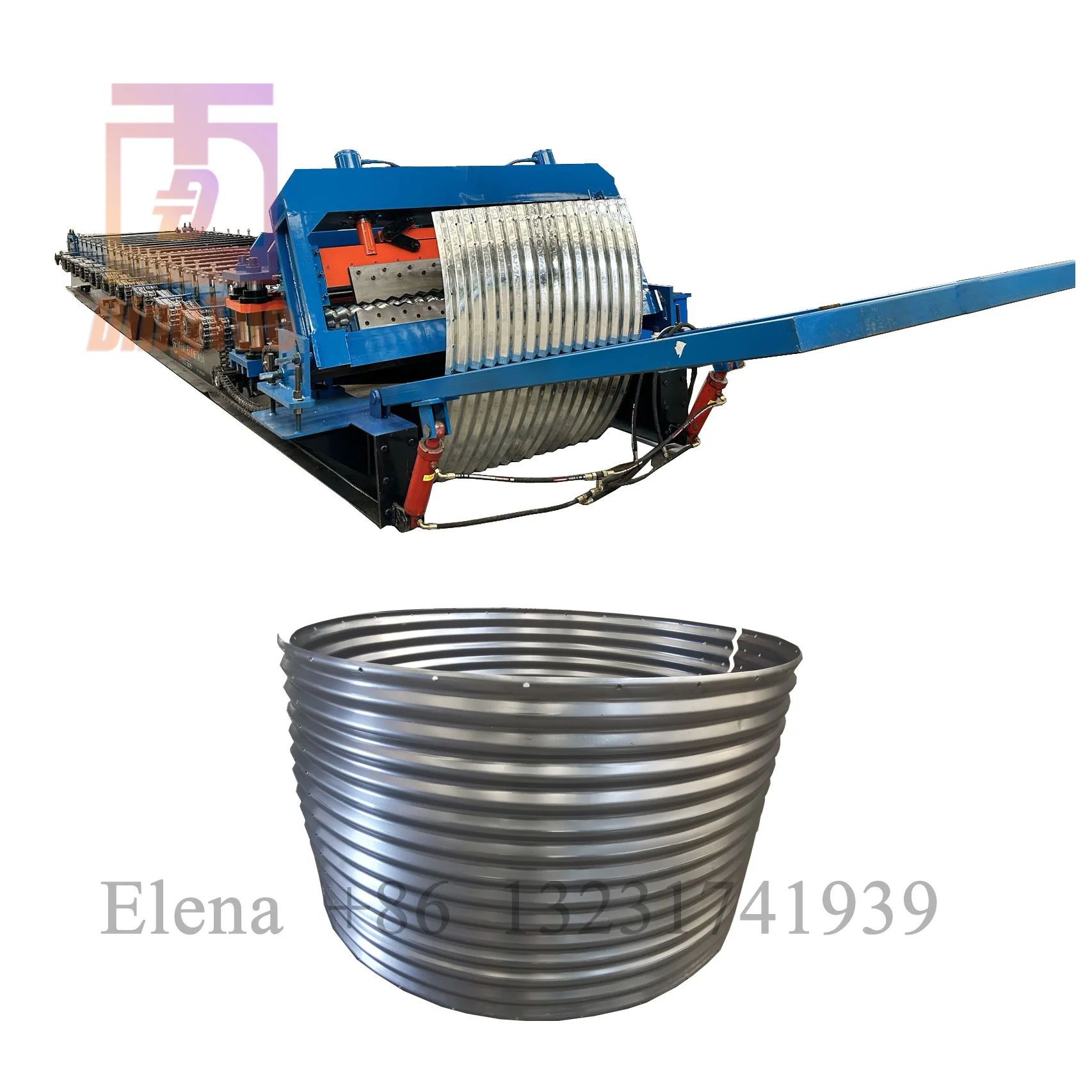

1250 *3 MM GALVANIZED STEEL CORRUGATED SHEET ROLL FORMING MACHINE FOR SILO GRANARY AND GRAIN BINS AND WATER TANKS
Our company is a company that develops and produces supporting equipment such as metal granaries, steel silos, water silos, and supporting long and short ladders, upper and lower vertebral bodies, upper and lower adapters, and protective rings. R&D and manufacturing of molding machines. Now has a unique management model and product research and development capabilities. Thousands of series of profiled steel production lines have been developed and manufactured, such as: wall roof panel production line; floor steel bearing plate production line series C-shaped steel, Z-shaped steel CNC belt production line, beam and column-free arched roof production equipment, The shielding room uses internal and external decorative board equipment, etc.; the company also produces electronic shielding room pressing equipment,steel coil slitting units, steel coil leveling and cross-cutting units and other equipment. The products are favored by various industries because of their light structure, reasonable design and continuous updating. The company's main business: granary processing equipment, water silo processing equipment, steel silo processing equipment, storage silo processing equipment, feed silo processing equipment, granary production equipment, water silo production equipment, steel silo production equipment, storage silo production equipment, feed Warehouse production equipment, welcome to buy more information or call for specific consultation!
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
NO.\t Description\t Quantity
1 ELECTRIC/HYDRAULIC DECOILER 1
2 FEEDING PLATFORM 1
3 FORMING PART 1
4 SIDE HOLE PUNCNIHNG PART 1
5 HEAD HOLE PUNCHING PART 1
6 3-AXIS AUTOMATIC BENDING PART 1
7 CUTTING PART 1
8 ELECTRIC CONTROL CABINET 1
9 HYDRAULIC PUMP STATION 1
10 RUN OUT TABLE 1
11 ACCESSORIES 1
3 FORMING PART 1
4 SIDE HOLE PUNCNIHNG PART 1
5 HEAD HOLE PUNCHING PART 1
6 3-AXIS AUTOMATIC BENDING PART 1
7 CUTTING PART 1
8 ELECTRIC CONTROL CABINET 1
9 HYDRAULIC PUMP STATION 1
10 RUN OUT TABLE 1
11 ACCESSORIES 1
No | Item | Data | Note | |
1 | raw material | Galvanized steel / G550 | ||
2 | raw material thickness | 22 gauge to 18 gauge(0.8-1.27mm) | ||
3 | sheet effective width | 1220MM/ 1250mm | ||
4 | cover width | 1120 mm | ||
5 | machine power | 11kw (K serious main motor power)+5.5KW(hydraulic pump station motor power) | 16.5kw.h | |
6 | machine stands thickness | 20mm | ||
7 | machine transmission way | 1 inches Double hanging drive chain | ||
8 | base frame material | 400H beam welded | ||
9 | Length counting method | OMRON (JAPAN ) brand encoder | ||
10 | Electric Control brands | PLC,Inverter : DELTA Touch Screen: DELTA Hydraulic brand: HUADE | can do other brands as clients' requests | |
11 | Voltage | 415V/480V/220V,50HZ/60HZ, 3 Phases or customized | voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939 | |
12 | cutting Die Material | Material : Cr12 processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape. | ||
13 | Machine size | L13.5m*W1.95m*H1.2m | ||
14 | machine weight | 8000 KGS | ||
15 | forming station | 15stations | ||
16 | shafts' diameter | 90 mm solid shafts | ||
17 | decoiler | with one 8tons electric decoiler | can be customized to hydraulic decoiler | |
18 | run out table | 1 piece | High-quality |
PRODUCT CONFIGURATION
Feeding platform and leveling shafts
feed material : 2 pinch rollers + 2
guide rollers
leveling part: upper 3 and lower 4
Forming Part
90mm solid shaft .
45# steel with hard chrome coating
Base Frame: 400H steel welded
Machine Stand Thickness: 20mm thick
Chain: 1 inches * 2 with chain guard

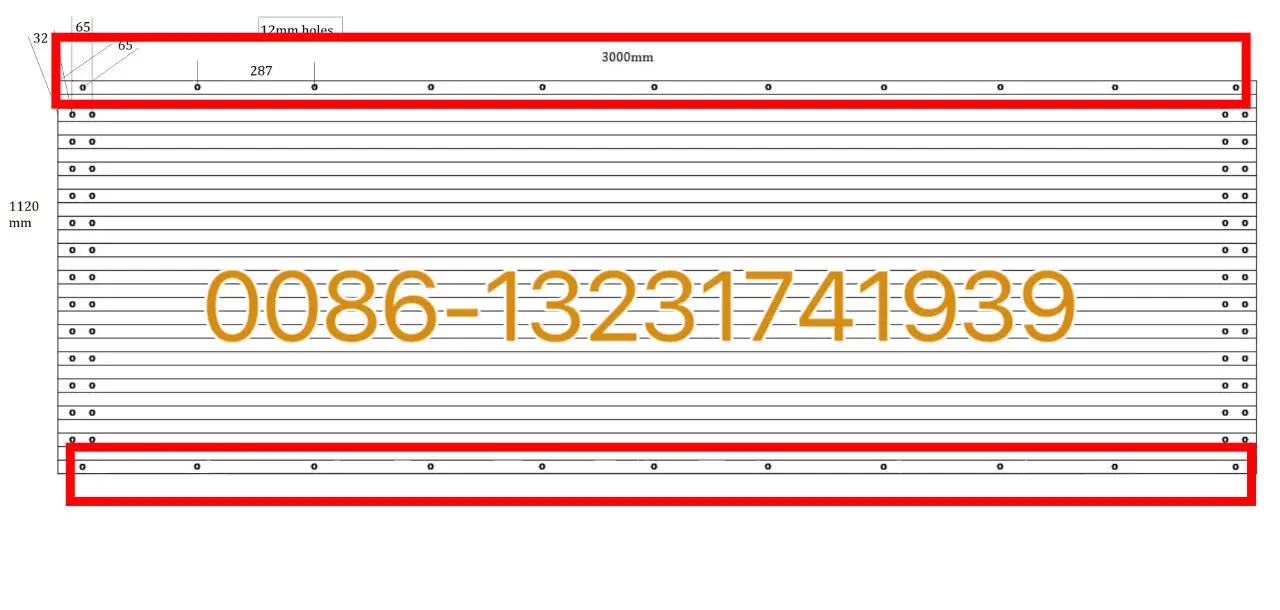

Side punching devices
perforations customized as clients needed
Silo Granary Machine Base Frame
400 H beam welded

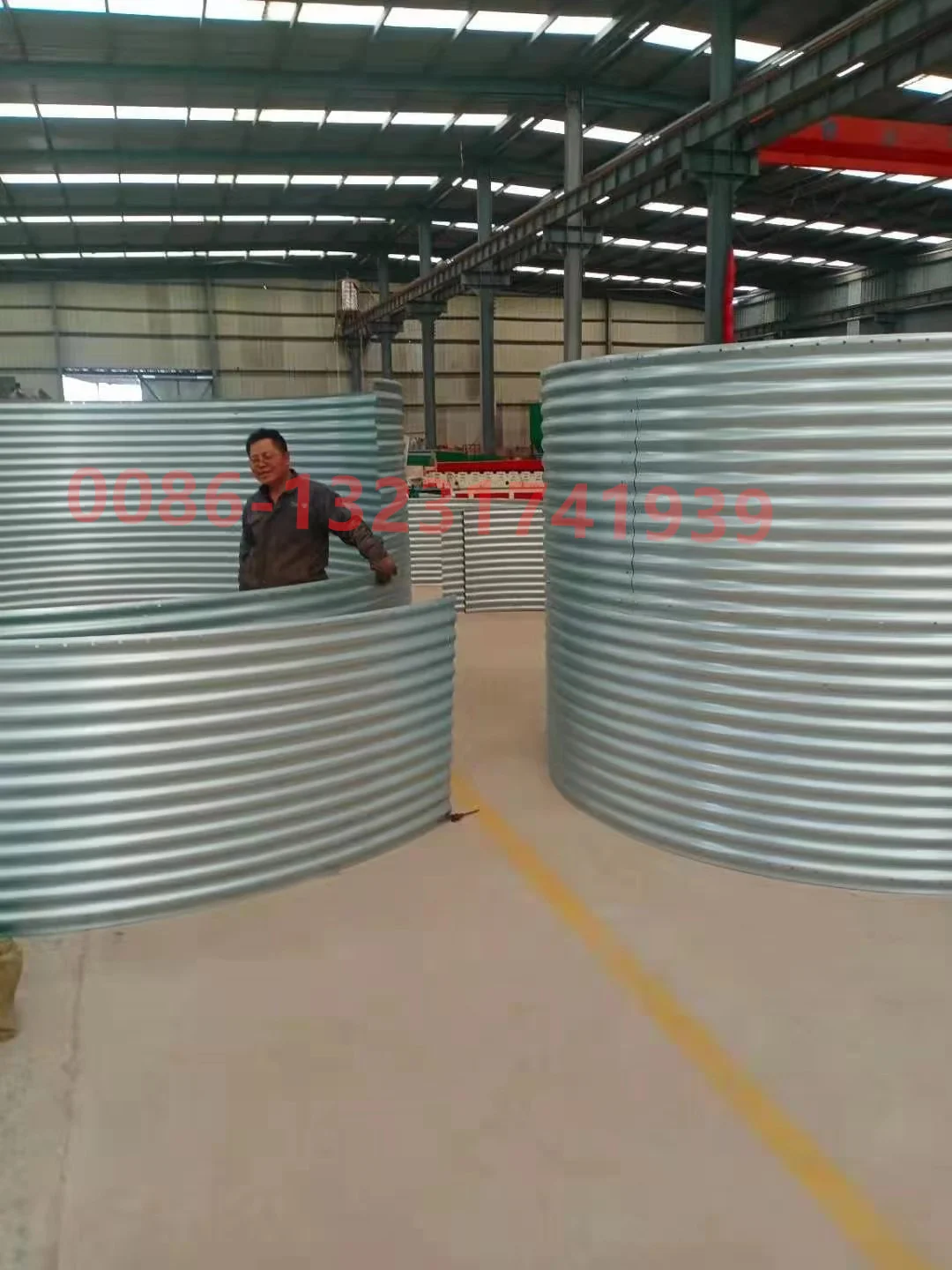

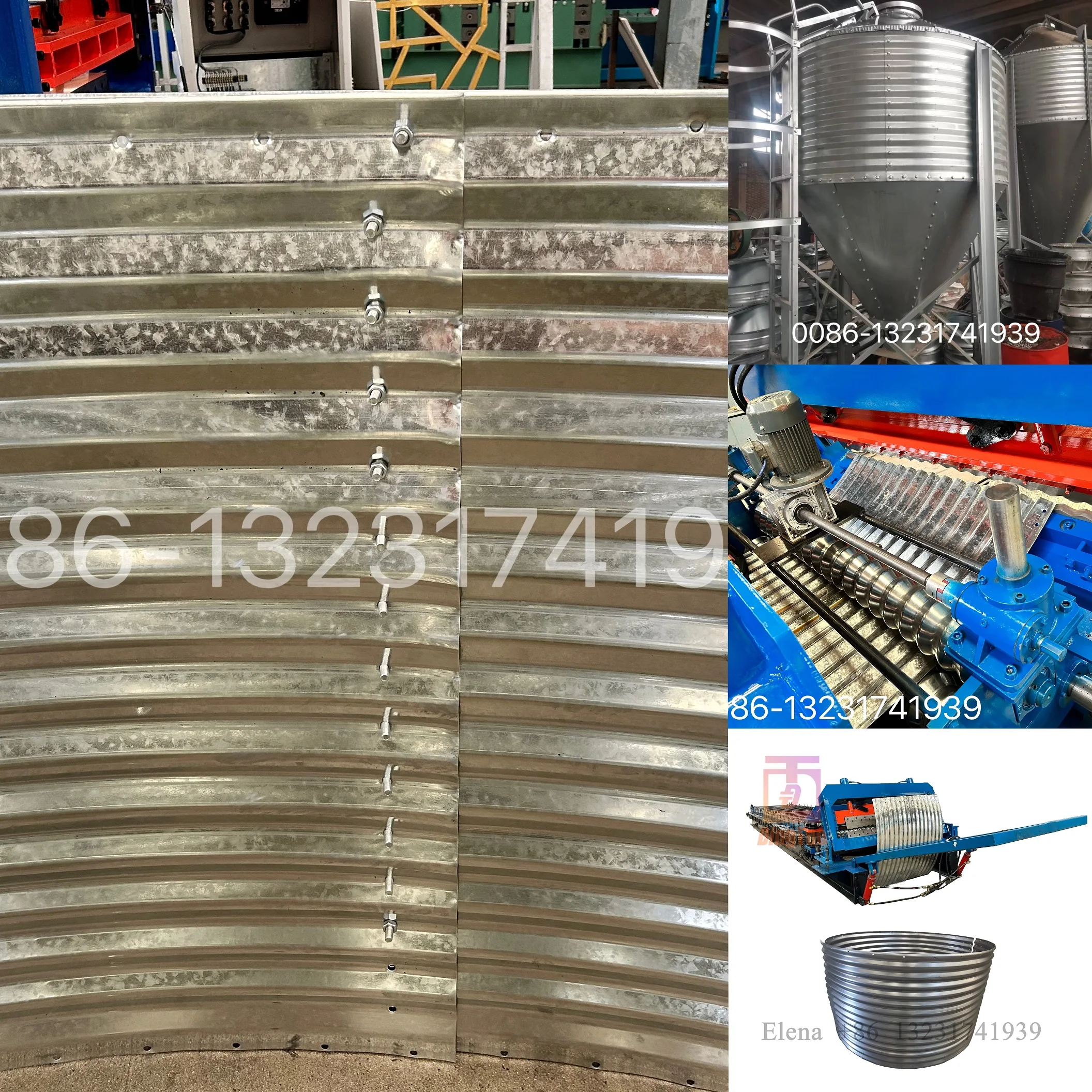

Finished water tank / silo granary/ grain bin Effects
overlapping effects great

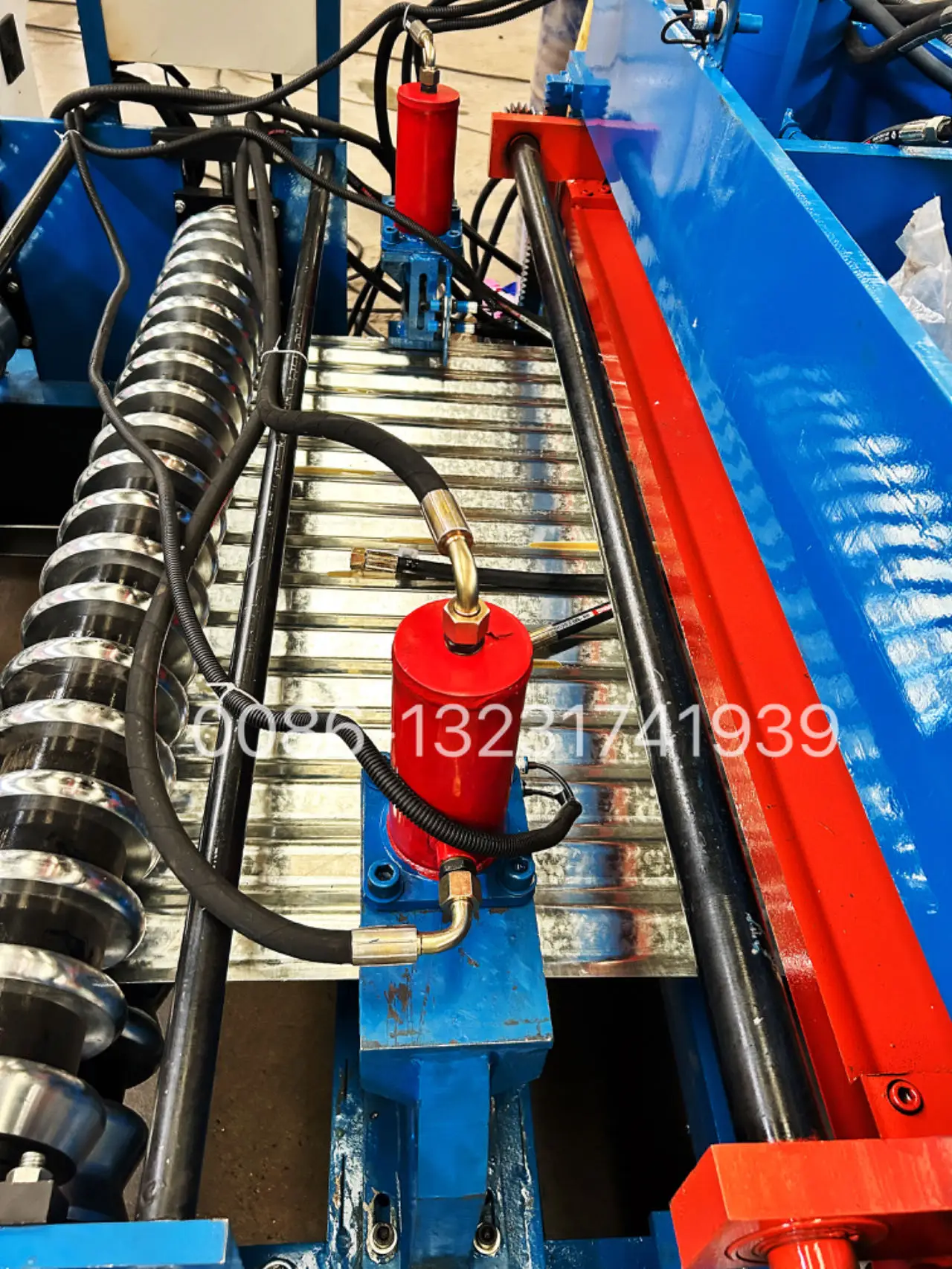

Hydraulic Horizontal Punching
Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. The punch is a consumable part, and 10 pieces are included with the machine

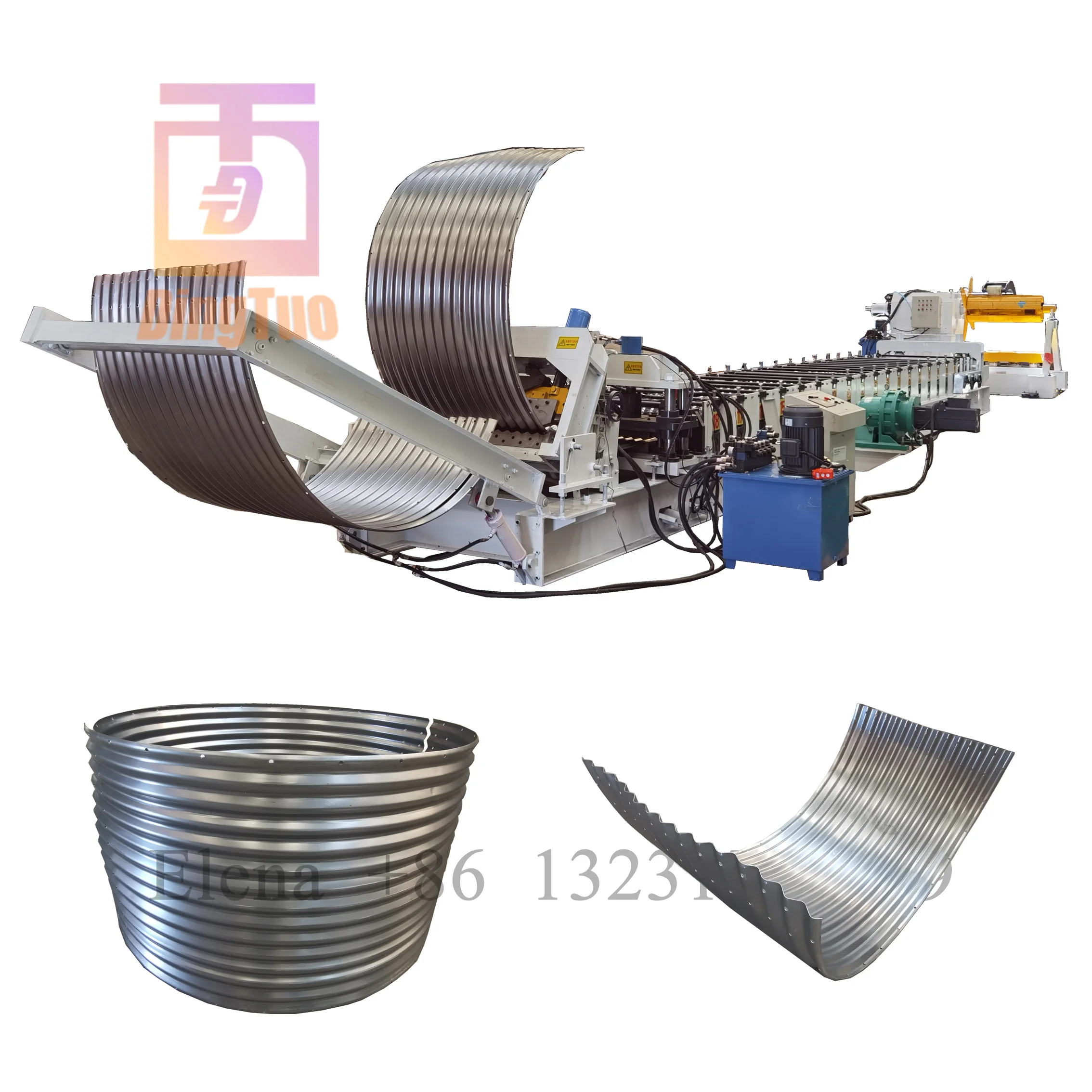

3 Axis Automatic Bending part
Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts.
Suitable for curving your 1.2 mm
galvanized material
galvanized material
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the
cutting, the main machine will automatically start. 2.Power supply: 5.5kw hydraulic pump station 3.Frame: 400H beam welding
4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring:
automatic length measuring 7. Blade material:Cr12 material with finishing
cutting, the main machine will automatically start. 2.Power supply: 5.5kw hydraulic pump station 3.Frame: 400H beam welding
4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring:
automatic length measuring 7. Blade material:Cr12 material with finishing
Successful Project
Project in Argentina
Project in USA
Project in China
