Машинка для производства шлака
3 500-3 980 $
Сухое редкоземельное слабое магнитное оборудование для разделения минералов коричневой железной руды трехдисковый ленточный магнитный
- Категории: >>>
- Поставщик: Jiangxi,Henghong,International,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
High Intensity Dry Mining Machine Three Disc Belt Separator for Ilmenite, Tantalite, Monazite, Tungsten, Tin, Tantalum, Iron Ore
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find the best mining solution & equipment manufacturer.

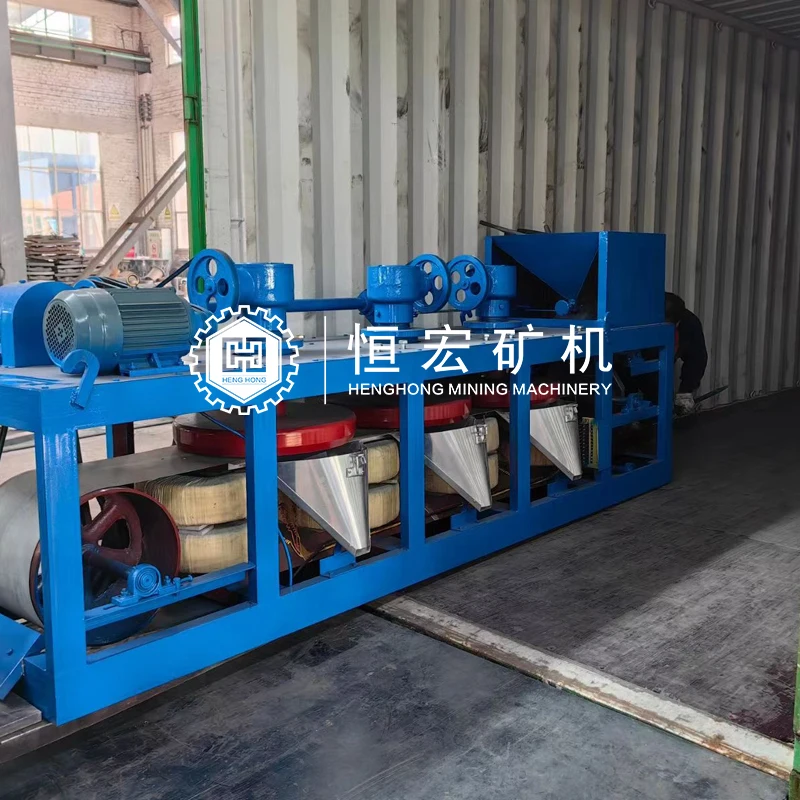

Three Disc Belt Separator Introduction
The three disc dry magnetic separator is a dry Intensified magnetic separator, It is widely applicable for separation tin, tungsten, tantalum-niobium, ilmenite, rare earth ore, chromite ores, limonite, columbium, zircon, rutile, garnet, monazite, andalusite, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
Three-disc electromagnetic separator hot selling model have 3PC-500, 3PC-600, 3PCX-600, three-disc electromagnetic separator is a highly efficient device for separation of difficult minerals with various different degree of difference in their magnetic susceptibilities, to produce very fine selectively achieved clean magnetic fractions with highest recovery. sorting mineral size less than 2-3mm of weakly magnetic minerals and rare metal ore selection, it's a very important mineral processing equipment. It can separate 4 different minerals in one time, the concentrate grade can reach 60%-70% by using this machine.
Product Parameter
Model | Unit | 3PC-500 | 3PC-600 | 3PCX-600 |
Magnetic intensity | Hauteur | Distance to belt surface 2mm Disk teeth 1700 | Distance to belt surface 2mm Disk teeth 1800 | Distance to belt surface 2mm Disk teeth 2000 |
Number of magnetic disk | Piece | 3 | 3 | 3 |
Diameter of magnetic disk | mm | 500 | 600 | 600 |
Revolution of magnetic disk | r/min | 25-40 | 22-38 | 22-32 |
Power supply | V | 380 | 380 | 380 |
Exciting coil | Unit | 4 | 4 | 4 |
Matching motor | kw | 0.75 | 1.5 | 1.5 |
Exciting power | kw | 1.5 | 1.6 | 1.6 |
Coil temperature rise | ºC | 65 | 65 | 65 |
Rated current of coil | A | 1.1-1.8 | 1.2-1.9 | 1.2-2.2 |
Duty rating | Continuous | Continuous | Continuous | |
Feed width | mm | 210 | 300 | 300 |
Feed size | mm | ≤2 | ≤2 | ≤2 |
Processing capacity | kg/h | 100-500 | 120-800 | 80-800 |
Outside Dimension | mm | 2800×800×1220 | 3200×870×1160 | 3150×900×1250 |
Weight | kg | 1900 | 2200 | 2300 |
Working Principle

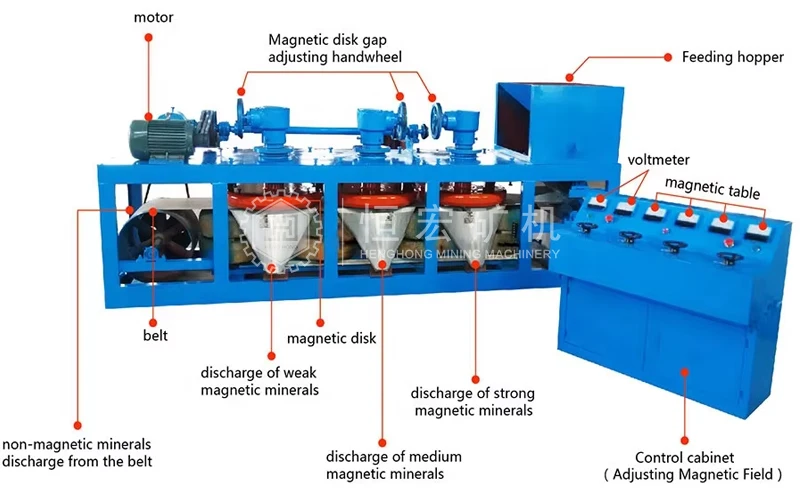

Working Principle: Dry feed material (e.g. beach sands) is discharged from a hopper onto a Vibratory Feeder tray. The material is evenly fed onto a thin conveyor belt. An even and mon-layer of material is conveyed under the rotating high-intensity magnetic discs. Whilst underneath the magnetic discs, magnetic particles are attracted to the high-gradient magnetic zones. These captured particles are

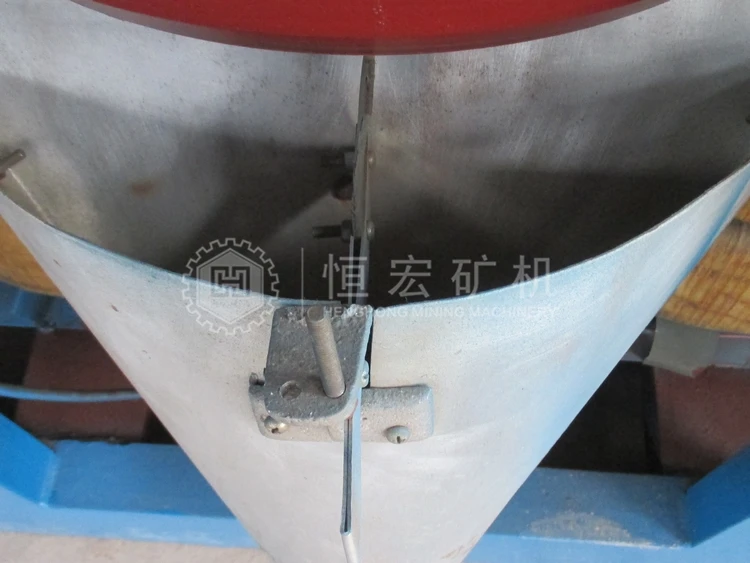

then carried by the rotating discs to the discharge chutes where they are released. Scrapers that are mounted on each of the chutes ensure the total discharge of the extracted magnetic particles. Any non-magnetic feed material will pass under each of the three discs and discharge at the end of the conveyor.
then carried by the rotating discs to the discharge chutes where they are released. Scrapers that are mounted on each of the chutes ensure the total discharge of the extracted magnetic particles. Any non-magnetic feed material will pass under each of the three discs and discharge at the end of the conveyor.
1. Multi-outputs: It's able to do the separation of up to 6 minerals of different magnetic susceptibilities in one single pass, and produce 100% clean magnetic fractions with high magnetic recovery;

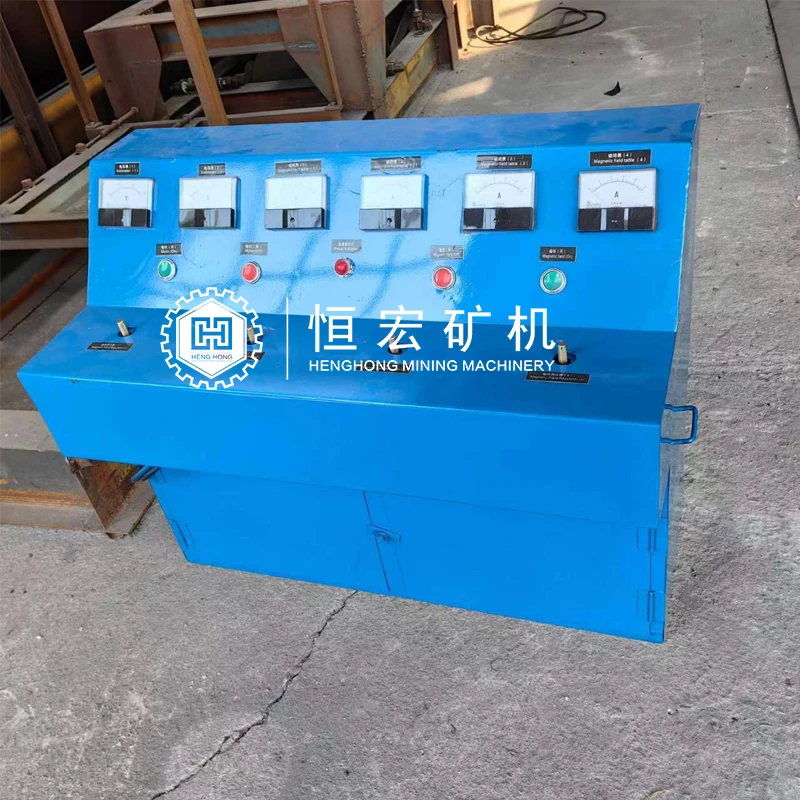

2. Adjustable magnetic intensity: It's configured with adjustable magnetic intensity mechanism, with intensity varying from 0 to 20,000 gauss, which allows for the extraction of paramagnetic particles;
3. Magnetic circuit isolation design: magnet circuit is independent of their supporting frame, and are designed to isolate and prevent any flux leakage from the magnet circuit. They are assembled on heavy nonmagnetic brackets;
4. Feed and belt speed adjustment: It's configured for precise and accurate adjustment of the feed, and their feeder will deliver a thin uniform stream of material to the belt conveyors;Besides it's with feed belt velocity adjustment mechanism to control the material flow;
5. Economical: the machine is built with the highest quality of material and are designed for economical operations as they produce clean magnetic fractions materials that requires no further treatment.

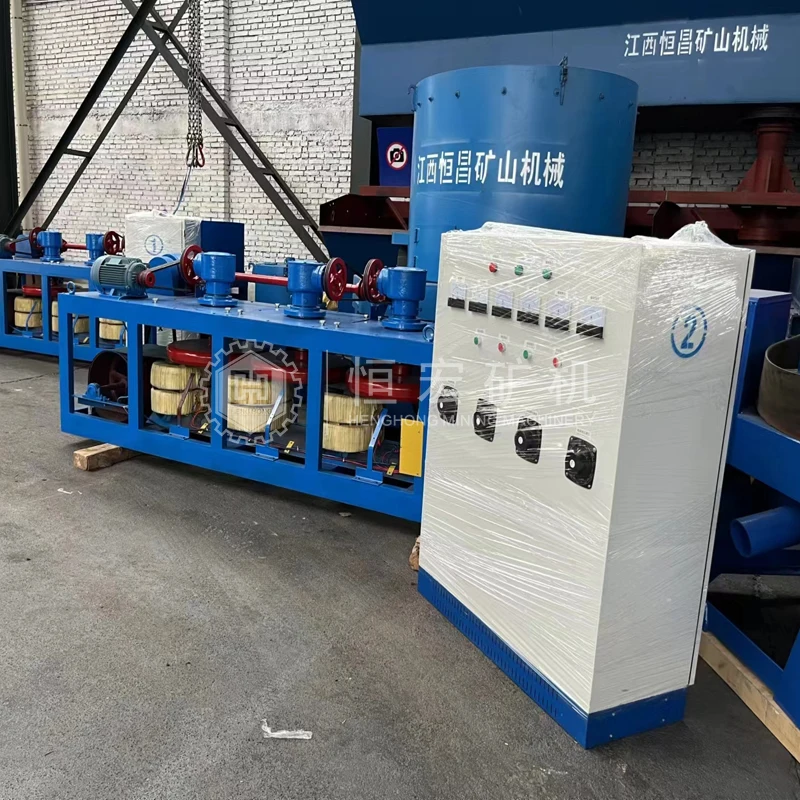

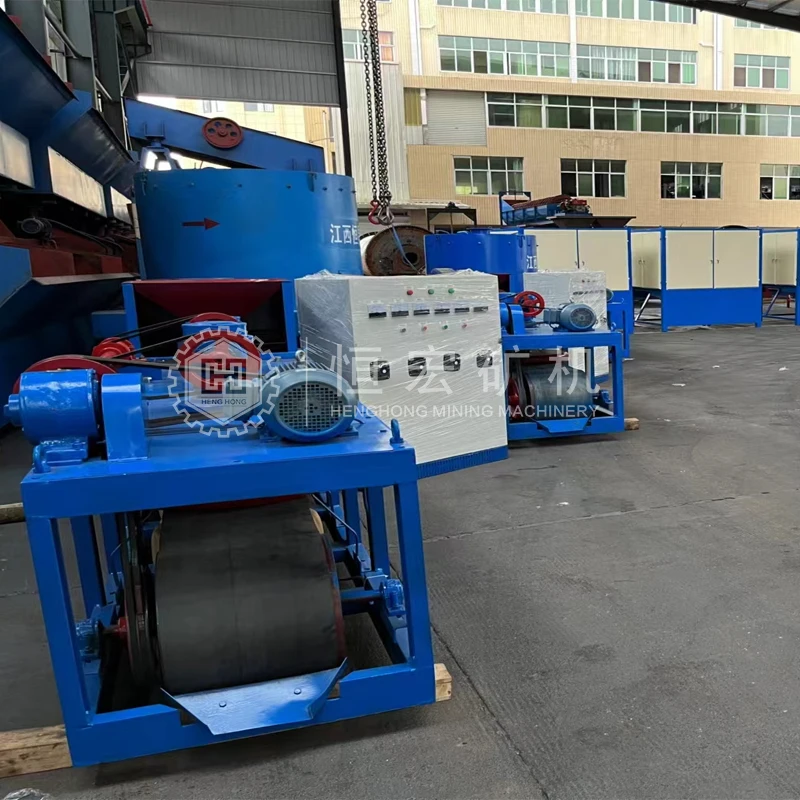

Our Workshop
Related Product
Project Flowchart

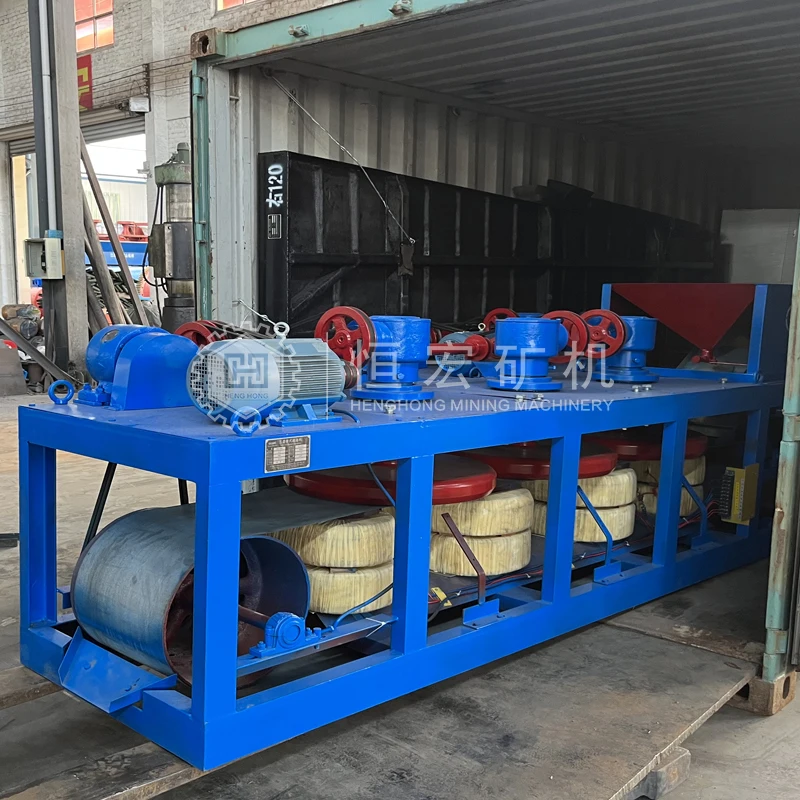

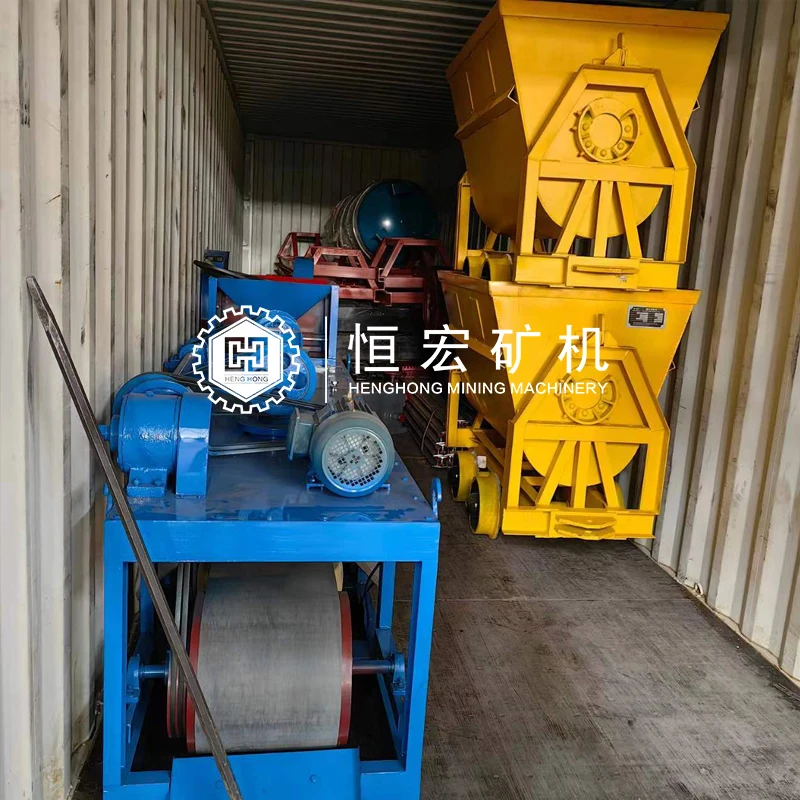

Packing & Delivery
Shipping Way：
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
Popular Products You May Like
FAQ
Q1: Are you manufacturer or trade company?
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q7: How to get the free solution and quotation?
A7: Please send inquiry to us on Alibaba, or please scan and add us as below picture, our sales manager will contact you ASAP.
