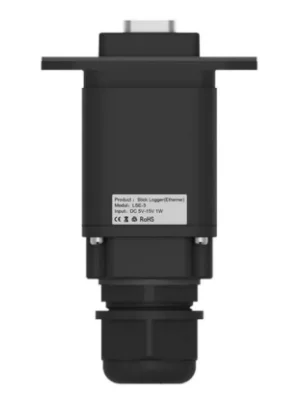

LSE-3 Ethernet Стик для инвертора Deye LSE 3 LAN stick logger поддерживает GPRS WIFI
- Категории: >>>
- Поставщик: Jiangsu,Morel,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
new Deye SUN-10K-SG02LP1-EU SUN-12K-SG02LP1-EU 10kwh 12kwh hybrid inverter single phase
Hybrid Inverter SUN-10/12K-SG02LP1-EU-AM3 SUN-5/6/7.6/8K-SG02LP1-EU-AM2 Stick Logger

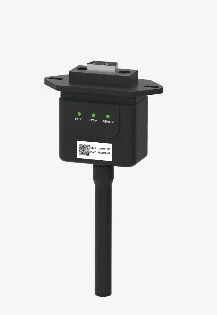

Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging
configuration to collect operation and power generation data from inverters.It pairs with solarman professional platform to enable
remote PV system monitoring and to realize distributed power station management with lower cost and higher efficiency.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident
occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
* External light indicator, logger status at a glance;
* Plug & play, pick power within inverter, no external power needed, easy to install;
* Independent from inverter to protect parts inside inverter, eliminate potential problems;
* IP65 water-proof design, resistant to bad weather, enhance stability;
* External design, easier to replace faulty equipment;
* End-user can monitor yields at any time with Deye Cloud.
DOWNLOAD AREA
>> Download Datasheet <<>> Download Manual <<

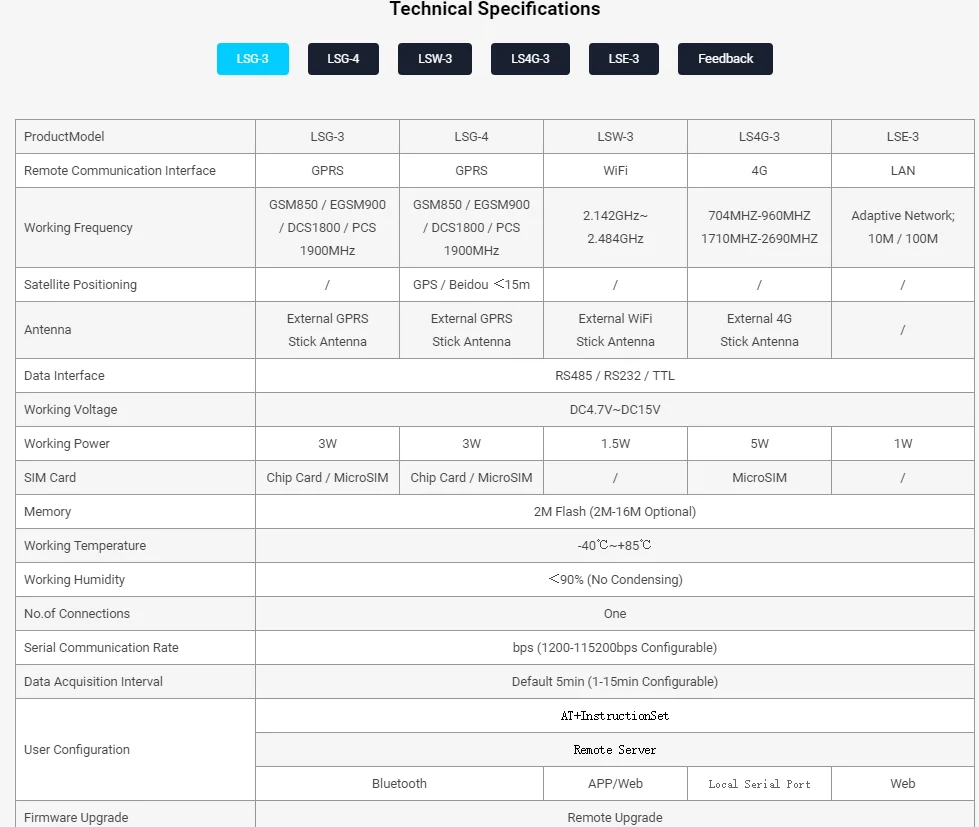

Technical Specifications
* LSG-3
*
* LSG-4
*
* LSW-3
*
* LS4G-3
*
* LSE-3
*
* Feedback
ProductModel
LSG-3
LSG-4
LSW-3
LS4G-3
LSE-3
Remote Communication Interface
GPRS
GPRS
WiFi
4G
LAN
Working Frequency
GSM850 / EGSM900
/ DCS1800 / PCS
1900MHz
GSM850 / EGSM900
/ DCS1800 / PCS
1900MHz
2.142GHz~
2.484GHz
704MHZ-960MHZ
1710MHZ-2690MHZ
Adaptive Network;
10M / 100M
Satellite Positioning
/
GPS / Beidou ＜15m
/
/
/
Antenna
External GPRS
Stick Antenna
External GPRS
Stick Antenna
External WiFi
Stick Antenna
External 4G
Stick Antenna
/
Data Interface
RS485 / RS232 / TTL
Working Voltage
DC4.7V~DC15V
Working Power
3W
3W
1.5W
5W
1W
SIM Card
Chip Card / MicroSIM
Chip Card / MicroSIM/
MicroSIM
/
Memory
2M Flash (2M-16M Optional)
Working Temperature
-40℃~+85℃
Working Humidity
＜90% (No Condensing)
No.of Connections
One
Serial Communication Rate
bps (1200-115200bps Configurable)
Data Acquisition Interval
Default 5min (1-15min Configurable)
User Configuration
AT+InstructionSet
Remote Server
Bluetooth
APP/Web
Local Serial Port
Web
Firmware Upgrade
Remote Upgrade
Others
Real-time Control, Data resuming
Our factory
Jiangsu Morel Energy Co.,Ltd.Is a professional manufacturer of panelized accessories, solar system accessories, off-grid systems
and other products.
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation
and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your
needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production
plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!
and other products.
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation
and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your
needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production
plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!

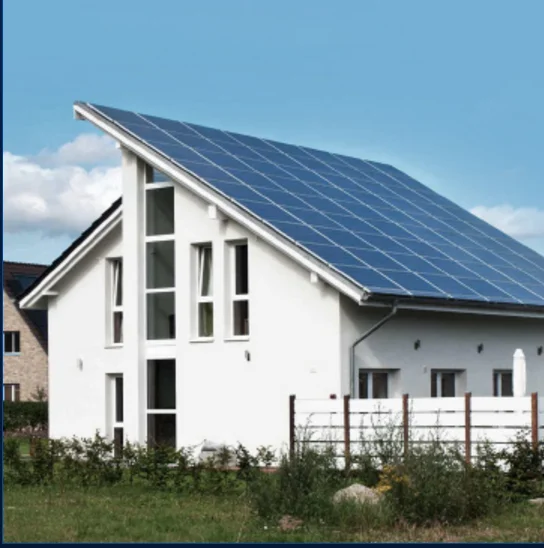

Project case
Product packaging
FAQ
Q 1. what's the payment term new Deye SUN-10K-SG02LP1-EU SUN-12K-SG02LP1-EU?
A. We accept T/T, L/C,WEST UNION, PAYPAL, CASH
Q 2. What's the delivery time ?
A. usually it will take about three weeks for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
.
Q 4. what kind of product quality your factory offer?
A. We offer most competitive prices with best quality
Q 5. Do you accept OEM business?
A.We accept OEM with your autherization.
Q 6.What is your production capacity?
A. We can finish four 40 HQ mini circuit breaker each month, four 20 HQ contactor, two 20 feet container for the frequency
inverter. Each product has different production capacity, we can talk details by email.
Q 7.Which market do you already sell?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q8. what kind of certificate you have ?
A.We have ISO9000, CB, CE, INMETRO, SONCAP, SASO
A. We accept T/T, L/C,WEST UNION, PAYPAL, CASH
Q 2. What's the delivery time ?
A. usually it will take about three weeks for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
.
Q 4. what kind of product quality your factory offer?
A. We offer most competitive prices with best quality
Q 5. Do you accept OEM business?
A.We accept OEM with your autherization.
Q 6.What is your production capacity?
A. We can finish four 40 HQ mini circuit breaker each month, four 20 HQ contactor, two 20 feet container for the frequency
inverter. Each product has different production capacity, we can talk details by email.
Q 7.Which market do you already sell?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q8. what kind of certificate you have ?
A.We have ISO9000, CB, CE, INMETRO, SONCAP, SASO
Our Services
1.Flexible and Efficient
a.Optimized global MPPT algorithm, MPPT efficiency higher than 99.5%
b.Asymmetric dual MPPT which are compatible to all kinds of solar roofs
c.Max. efficiency of 98.0%, European efficiency of 97.6%
d.Super wide input voltage range(150V-1000V), supporting all varieties of solar panels and string desings
e.With reduced derating
2.Convenient Installation
a.Transformerless, smaller and lighter
b.AC output quick connector design, for faster installation
c.Speciaized mountingl design, easy to install
3.Smart and Easy to Use
a.One-button safety setting, easy configuration of all parameters
b.Built-in independent RTC chip, supporting data storage of 25 years

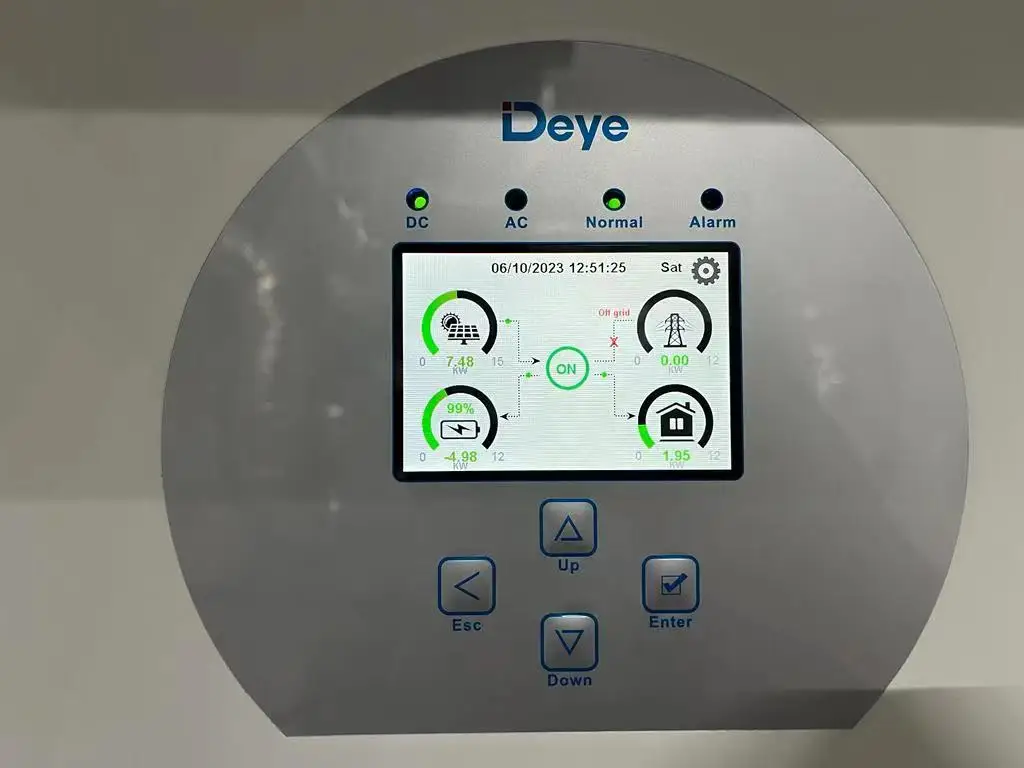

c.Integrated LCD graphical display, showing daily/monthly/yearly generating capacity
d.Integrated RS232 / Wi-Fi interfaces, for improved communication
e.Free monitoring anytime anywhere
f.Local and remote intelligent maintenance by PC, IOS and Android devices
g.Responds to power grid dispatching, energy management of micro-grids
h.Integrated with the function of reactive adjusting
4.Safe and Reliable
a.IP65 protection for indoor and outdoor installation
b.Aluminum case design to enhance heat dissipation and prevent rust corrosion, prolong life time
c.Built-in high voltage DC switch for safer maintenance and application
d.Built-in convective fans to lower the temperature of core components, prolong life time
e.Natural convection for longer life
a.Optimized global MPPT algorithm, MPPT efficiency higher than 99.5%
b.Asymmetric dual MPPT which are compatible to all kinds of solar roofs
c.Max. efficiency of 98.0%, European efficiency of 97.6%
d.Super wide input voltage range(150V-1000V), supporting all varieties of solar panels and string desings
e.With reduced derating
2.Convenient Installation
a.Transformerless, smaller and lighter
b.AC output quick connector design, for faster installation
c.Speciaized mountingl design, easy to install
3.Smart and Easy to Use
a.One-button safety setting, easy configuration of all parameters
b.Built-in independent RTC chip, supporting data storage of 25 years
c.Integrated LCD graphical display, showing daily/monthly/yearly generating capacity
d.Integrated RS232 / Wi-Fi interfaces, for improved communication
e.Free monitoring anytime anywhere
f.Local and remote intelligent maintenance by PC, IOS and Android devices
g.Responds to power grid dispatching, energy management of micro-grids
h.Integrated with the function of reactive adjusting
4.Safe and Reliable
a.IP65 protection for indoor and outdoor installation
b.Aluminum case design to enhance heat dissipation and prevent rust corrosion, prolong life time
c.Built-in high voltage DC switch for safer maintenance and application
d.Built-in convective fans to lower the temperature of core components, prolong life time
e.Natural convection for longer life
