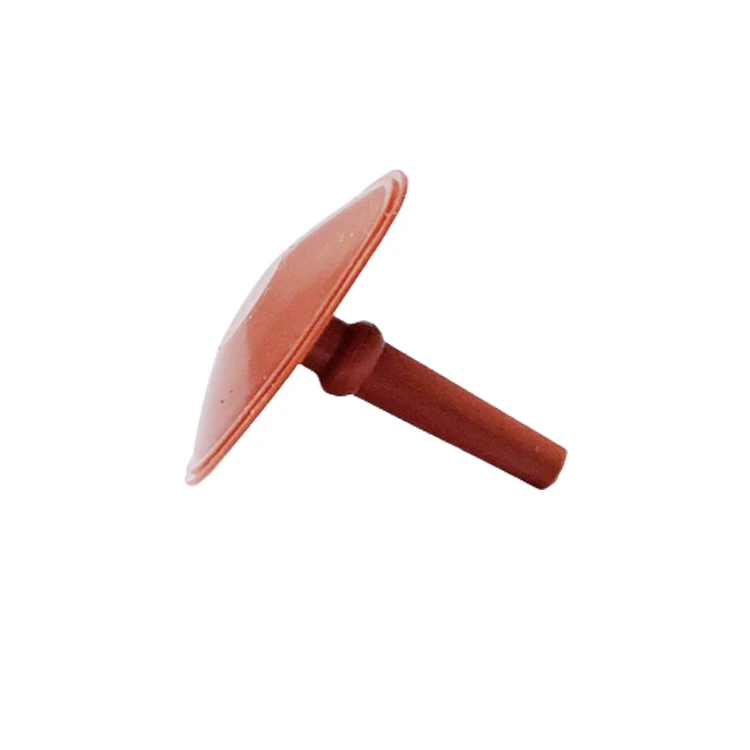

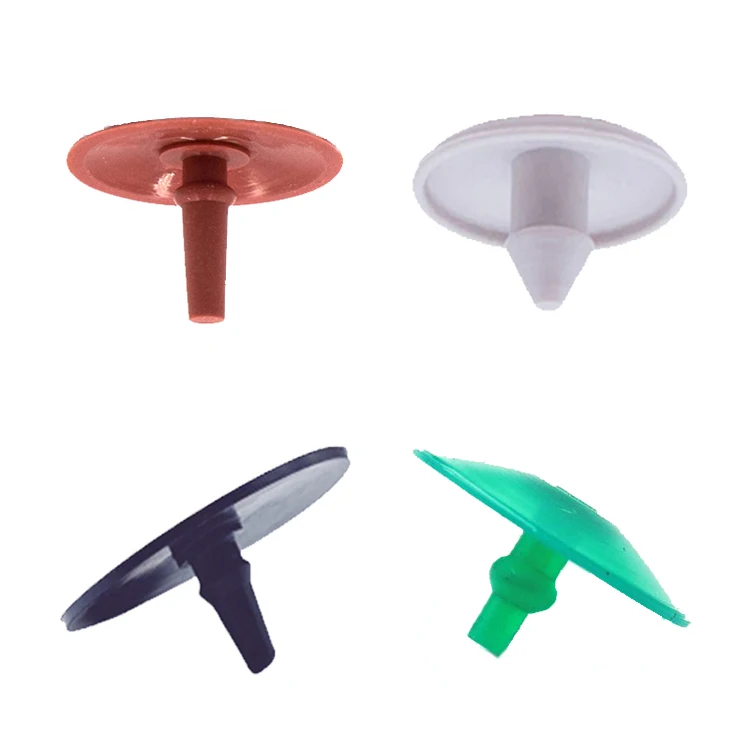

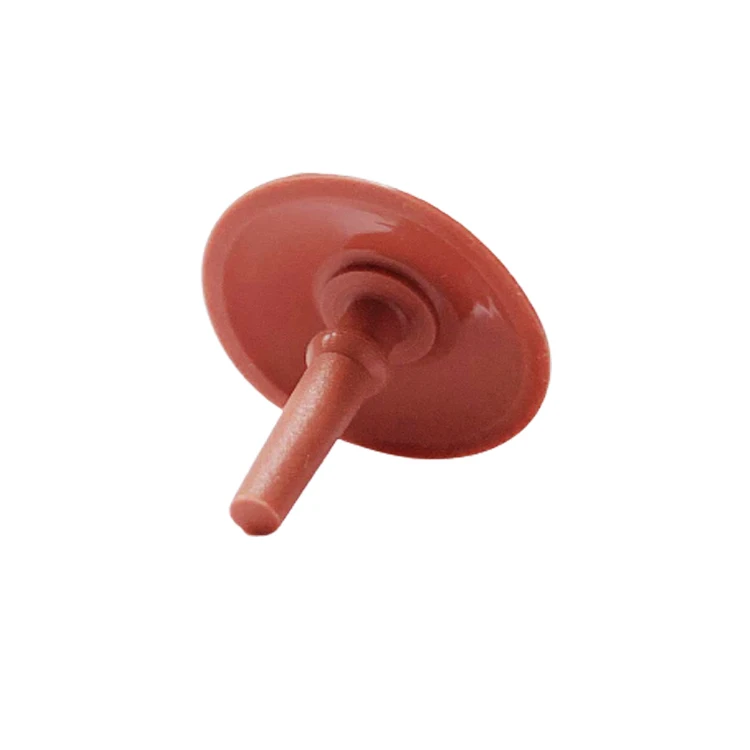

Umbrella Valve Used in Flow Control Safety Pressure Reduce And Vacuum Maintain/Air Release
| Iten name | Umbrella Valve Used in Flow Control Safety Pressure Reduce And Vacuum Maintain/Air Release | ||
| Advantage of Umbrella Valve | High Flow, Easy Installation, High Sealing Performance | ||
| Rubber Material Option | Silicone, NBR, EPDM, FKM, FVMQ etc. | ||
| Certificate | 1, BIOCOMPATABLE Test Report for Medical 2, Rohs & Reach 3, ISO 9001: 2015 | ||
| Application | Medical Infusion, Mower, Scrubber, Generator, Coffee Machine, Home Appliance etc. | ||
| Type | Check valve, No Back Flow | ||
| Opening Pressure | Based on drawing or customized (Kpa, PSI, mmHg, Bar etc.) Please ask engineer for details | ||
| Team | Designer, R&D,Engineer, Mould Workshop, Lab, 3Q, 100% Inspection 10,000&100,000 Grade Clean Room | ||
| Experience | More than 10 years | ||
| Size | Select from Catalog or Customized | ||
| Lab List | 2D Projector, Liquid Flow Meter, Air Flow Meter, High & Low Temperature Test System, Ultraviolet Radiation Ageing Machine, Ageing Oven, Electronic Microscope Etc. | ||
| Coordinate Measuring Machine | |||
--

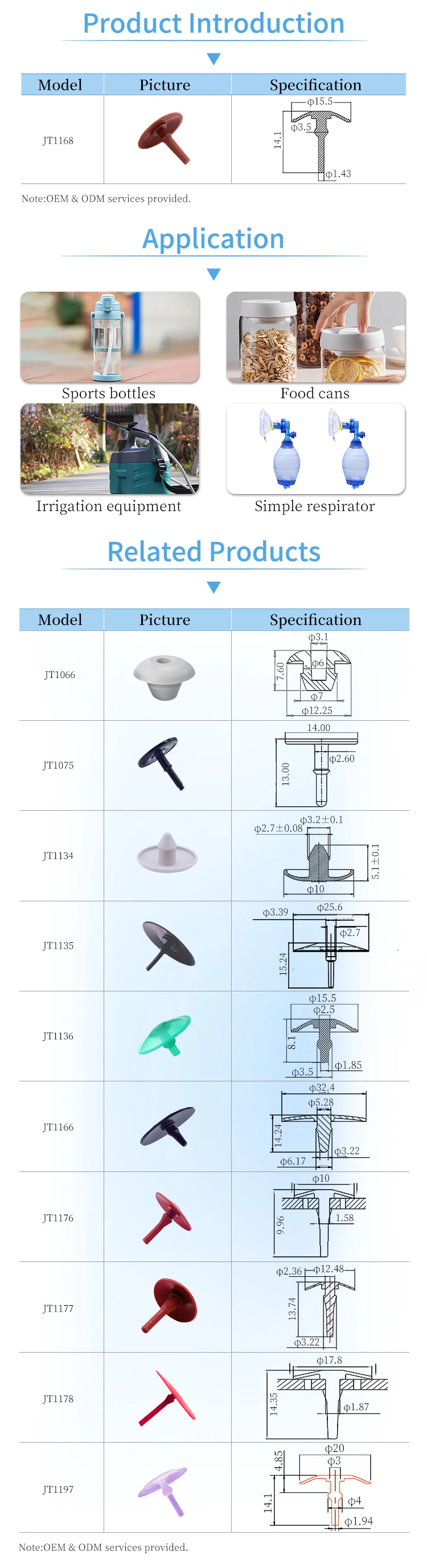

| Product Solution List | ||
| item | Product Type | Advantage |
| 1 | Medical Check Valve | Opening Pressure: ≤2kPa,No backflow on 2kPa and 200kPa,Customized Pressure. |
| 2 | Anti-Siphon valve/Anti-gravity-flow Valve | Prevent auto infusion by pressure of liquid height. |
| 3 | Duckbill Valve | Particles can pass through,Self-cleaning, installation easy,anti-backflow,Hundreds of plans to choose from.Often used for drainage, air refill. |
| 4 | Duckbill Component Valve | Particles can pass through,Self-cleaning, installation easy, anti-backflow,Hundreds of plans to choose from.Often used for drainage, air refill. |
| 5 | Umbrella Valve | Easy to install, customize opening pressure. |
| 6 | Bidirectional Valve | Combined with Umbrella Valve & Duckbill Valve, Flow pass on both direction. |
| 7 | Reducer Three-Way Valve | The interface size can be freely selected and The "in" and "out" directions can be optionally converted;Cracking Pressure Customized. |
| 8 | Spring Stem Valve | Stable opening pressure on lifetime, customize opening pressure ±3kPa |
| 9 | High Sealing Check Valve | Cracking Pressure: 0-3kPa, Customized cracking pressure tolerance ±3kPa, high performance of vacuum sealing. |
| 10 | Vacuum Check Valve | Non return on low pressure, Vacuum Pressure Maintain |
| 11 | Quick-Connect Valve | Quick Connect, Sustain 2mPa, Opening Pressure Customized |
| 12 | Anti-siphon pressure reducing valve | Quick connection, pressure resistance of 2mPa, effective pressure reduction,preventing backflow and siphoning,customized opening pressure, and protecting the safe use of equipment. |
| 13 | Hemostatic Valve/lntroducer Sheath | 1,No leakage by reverse 300kPa without puncture 2,No leakage by reverse 38kPa after puncture 3,Smooth passage of instrumentssuch as sheaths and guide wires |
| 14 | Light-resistant Check Valve | 1,Transmittance≤15% 2,No Decolorization 3,Cracking pressure ≤2kPa, no leakage in reverse 2kPa & 200kPa. Customized cracking pressure |
| 15 | Diaphragm Valve | Opening Pressure ≤1kPa, High Flow. |
| 16 | Spring Ball Check Valve | High chemical resistant, customize opening pressure ±5Kpa. |
| 17 | Spring Check Valve | Special Springs & Sealing,Corrosion-Resistant,Customizable Cracking Pressure. |
| 18 | Connectors | Straight/Y/T/L shape connector;medical grade PP material, 100,000 grade clean-room production. |
-
