Product Description

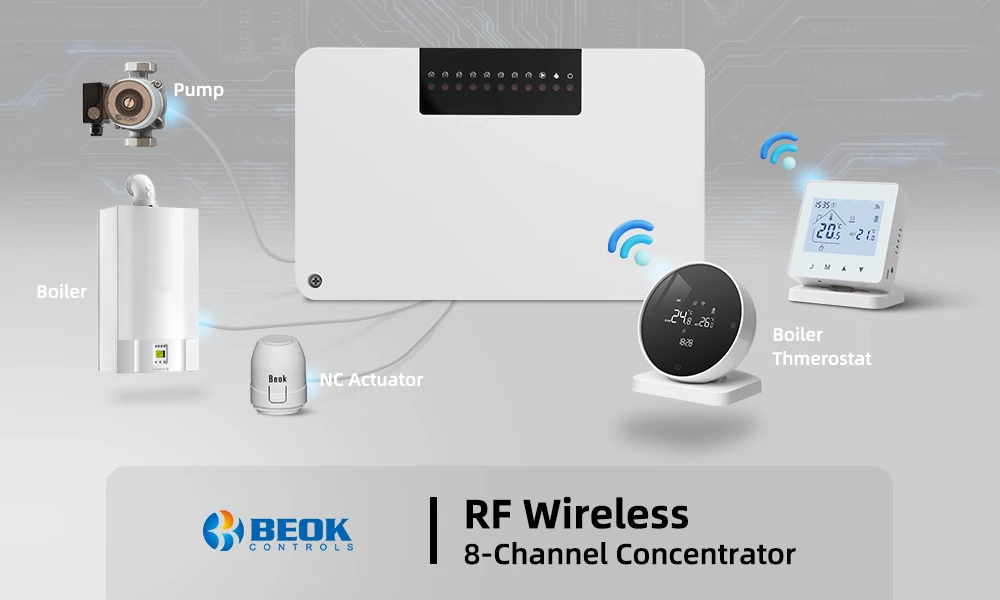

CCT-28-X, a rf wireless concentrator controllers used in water floor heating system.

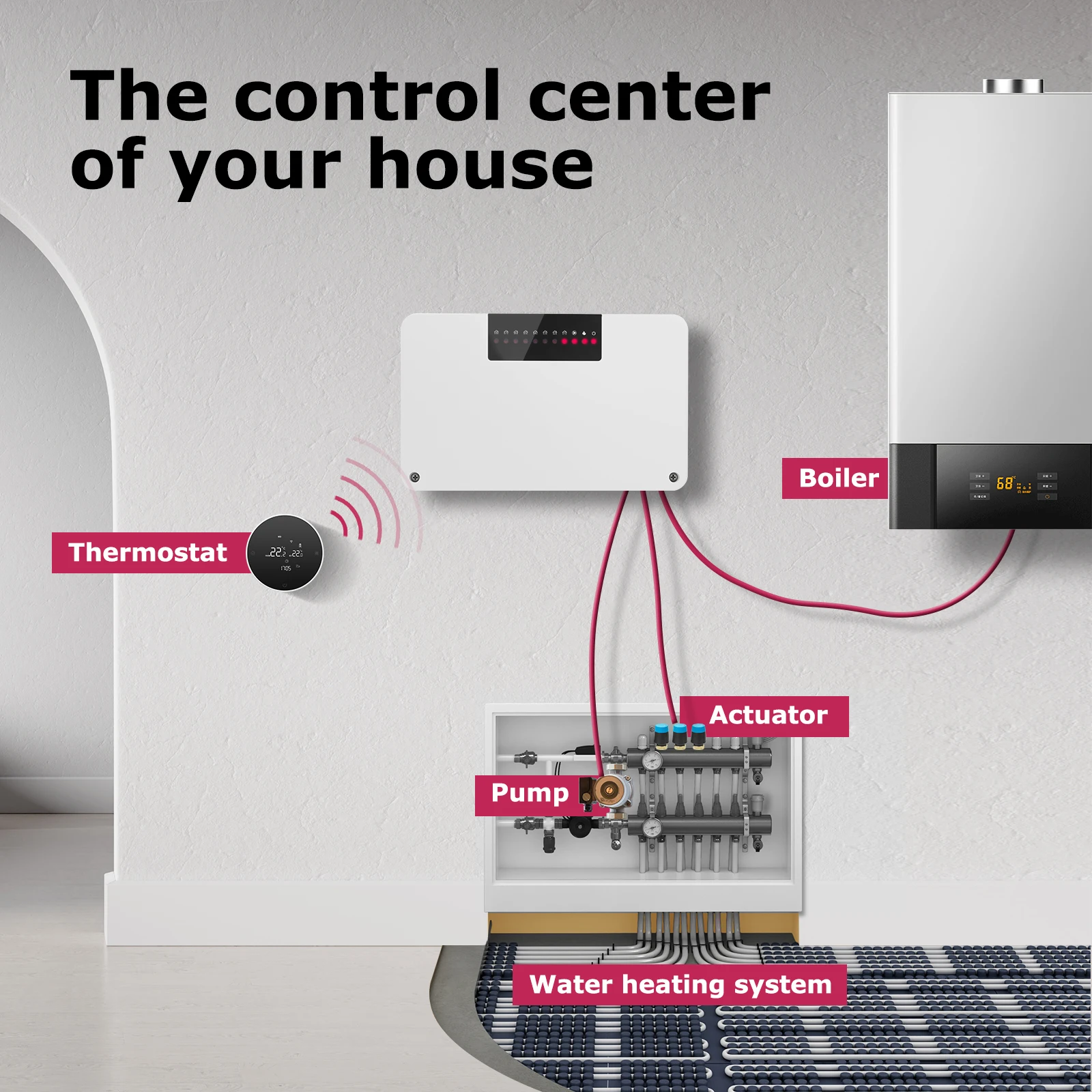

It can control zone valves, or boiler thermostats. As a central control unit, it can also control the boiler and circulation pump. According to the user's set temperature, the hub controller can control to open or close the boiler, circulation pump and electric actuators, to achieve the goal of comfort and energy saving.
Specification
Power supply: 220VAC 50\\60HZ
Load current: Max 20mA
Frequency: 433MHz
Wireless signal distance: 30m(indoor), 200m(outdoor)
Ambient Temperature: 0 - 85 Celsius
Pump output delay: 5 min
Logo: Random delivery with and without logo (if you have your needs, please contact us)
Load current: Max 20mA
Frequency: 433MHz
Wireless signal distance: 30m(indoor), 200m(outdoor)
Ambient Temperature: 0 - 85 Celsius
Pump output delay: 5 min
Max. Power of Pump: 1000W
Logo: Random delivery with and without logo (if you have your needs, please contact us)

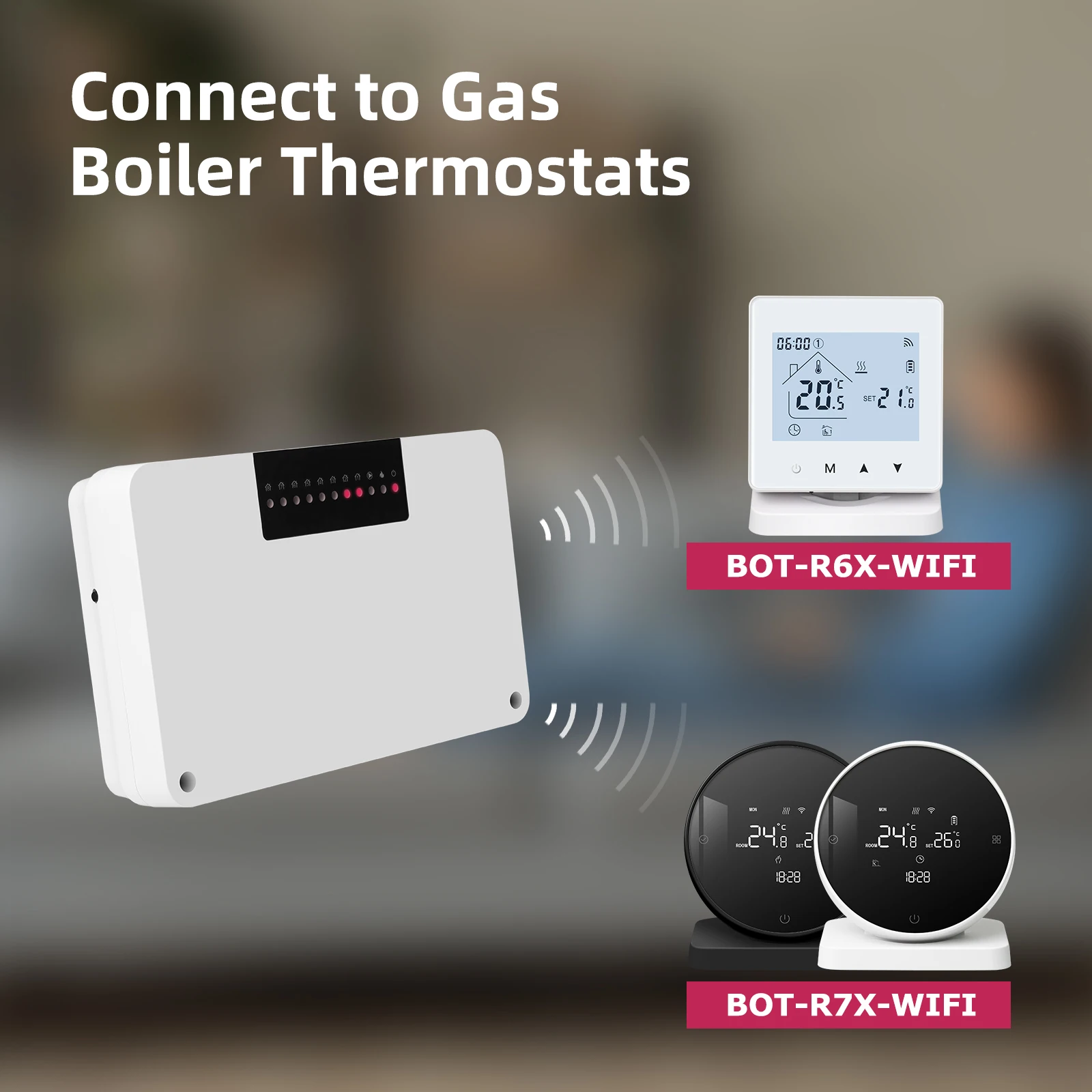

Wireless Hub Controller and Wireless Thermostat.
This CCT-28-X rf wireless can work with Beok BOT-R6X-WIFI and BOT-R7X-WIFI RF wireless gas boiler thermostat.
When BOT-R6X-WIFI and BOT-R7X-WIFI wireless thermostat work with CCT-28-X wireless hub controller, it does not need receivers.

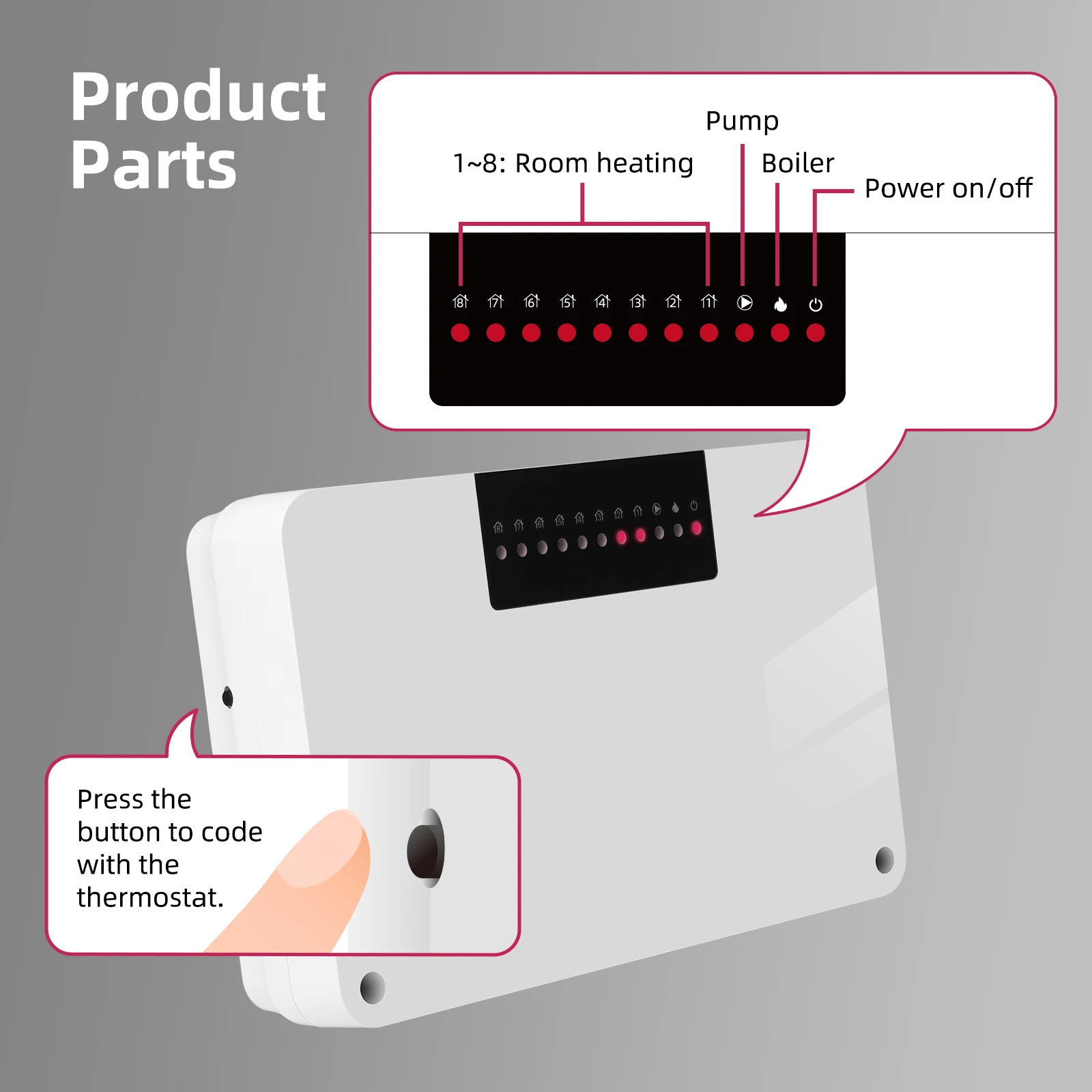

Product Indicator.
Each ouput has a indicator, user can check each devices working state easily.

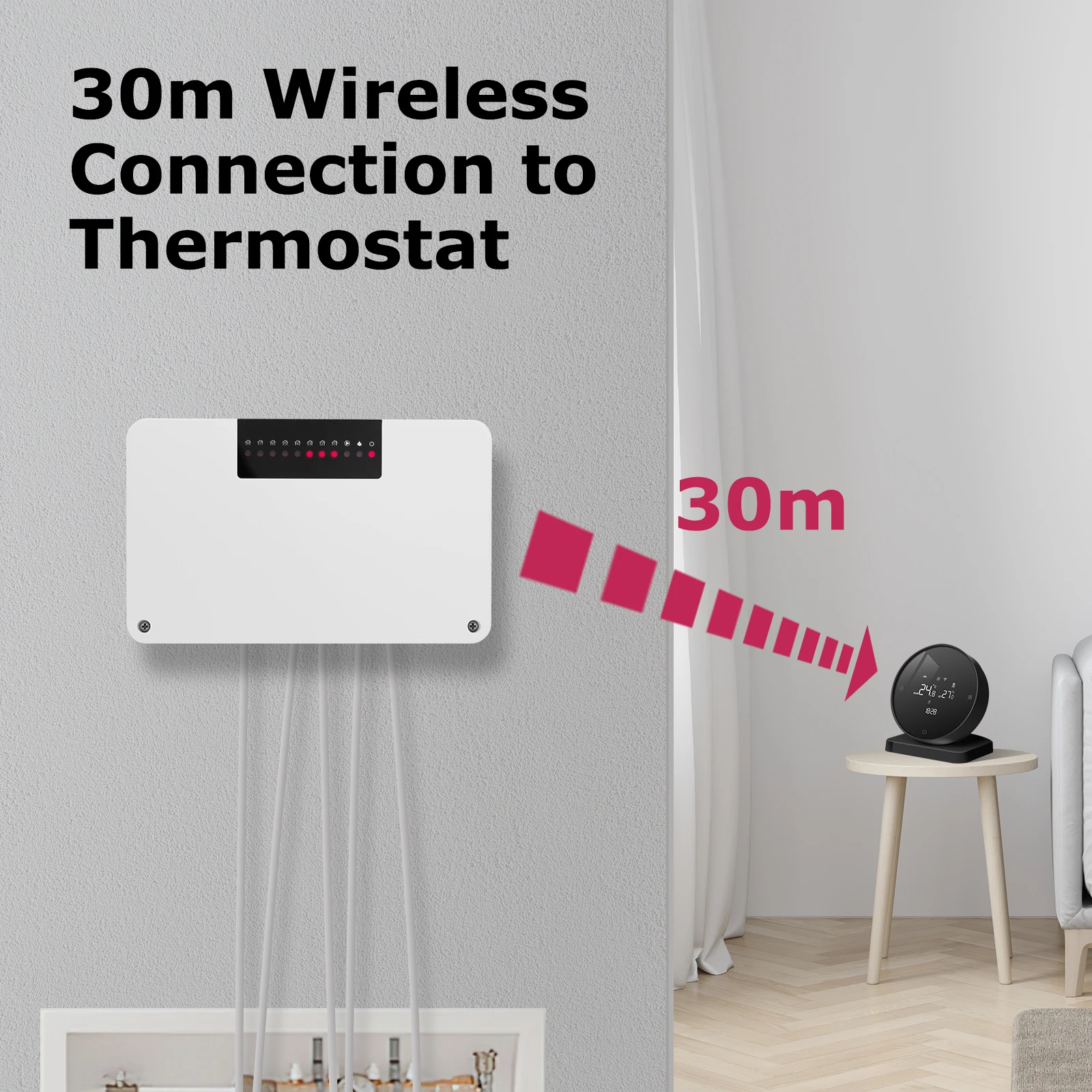

RF Wireless Signal Distance.
The rf signal distance between hub controller and thermostats is about 30 meters indoor (across the concrete walls).
Product Advantage
1 Easy to connect with power:
1 Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to thermostats. So user do not need professional wiring workers;

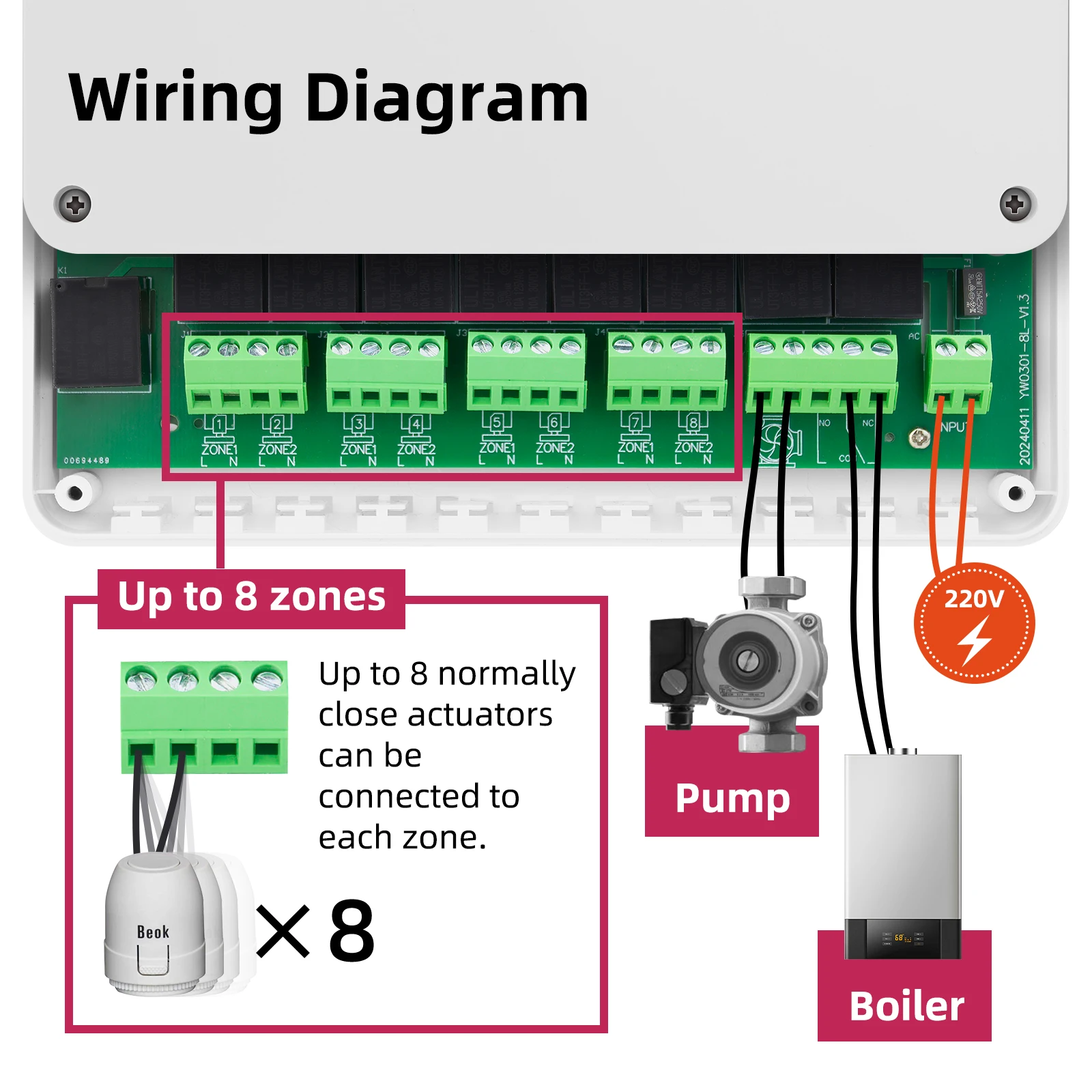

2 Easy to connect wires:
user only needs to connect wires according to wire colors;
3 Easy maintenance after installation:
all wires are very clear and neat;
4 To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of energy-saving;
5 To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature,In this way, it will reduce boiler and pump running time, to extend their working life.
Product Size
