Машина для измельчения картона с двумя
- Категории: >>>
- Поставщик: Zhejiang,Supu,Technology,Co.,Ltd.Zhejiang,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Item | Value |
Key Selling Points | Multifunctional |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction works , Other |
Showroom Location | United States |

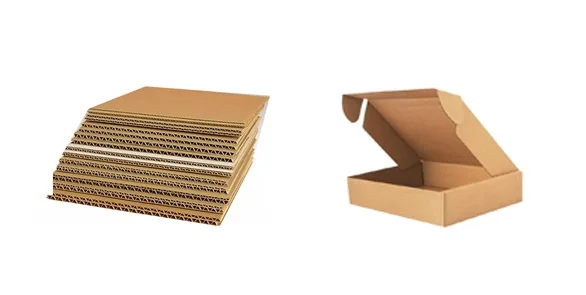

Application | Paper/ Cardboard /Wood/Plastic/Tire |
Voltage/Frequence | 380 V /60 HZ |
Blades material | High Strength Alloy Steel |
Type | Customized |
Function | Multi-Purpose |
Capacity | 800-1000kg/H |
Machine Size | 1914*1600*2270 mm |
Cutting Chamber | 600*450 mm |
Product Description
Multi Functional Paper Cardboard Carton Box Shredder
SUPU SPT600 shredder is featured sophisticated design, robust structure, and high efficient shredding result, two shaft shredders are normally used first stage shredder for materials like truck tires, steel drums, organic waste, and MSW, With a two shaft shredder, once the materials is fed into the cutting chamber, the cutting blades with hooks will grab material and then shear it down to strips. The shreds are directly discharged after cutting without passing through a screen, so the size of shreds is quite random, custom blade widths can match your required sizing. Programmed Reveres rotation of the rotor shaft can prevent damages when overload.

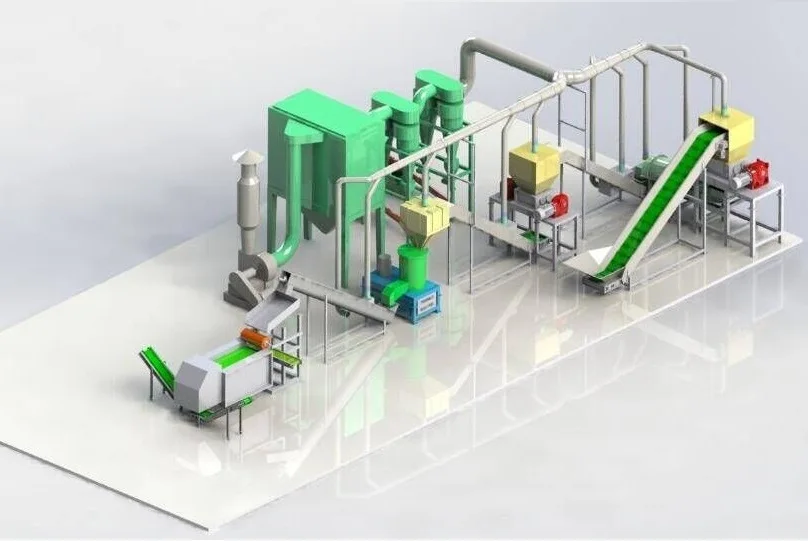

Modular design scheme to provide customers with a comprehensive integrated destruction system
According to the destruction requirements of customers,design the module selection scheme of equipment, such as the feeding system, crushing system, dust removal system, sorting system, crushing system, magnetic separation system, discharge system, briquetting system,etc., and design a mature and perfect destruction and recovery scheme for customers.

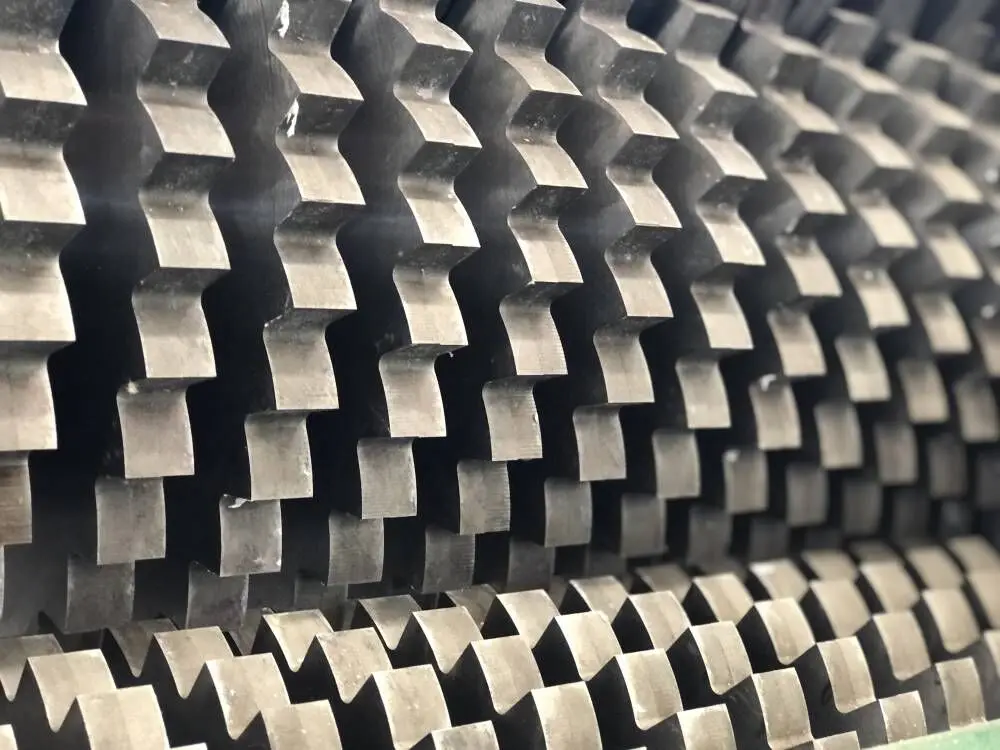

High strength shredding blade and shredding system
The core of our products is to shred the storage material, suchas WEEEs, Solid waste with metal, plastic, rubber, E-wasteinto the smallest size. Many materials contain a lot of metalso the requirements for shredding blade are very high standardOur shredding blade only have H13 grade materials. Theshredding balde are designed according to different crushingmaterials. And can adapt to high-strength crushing

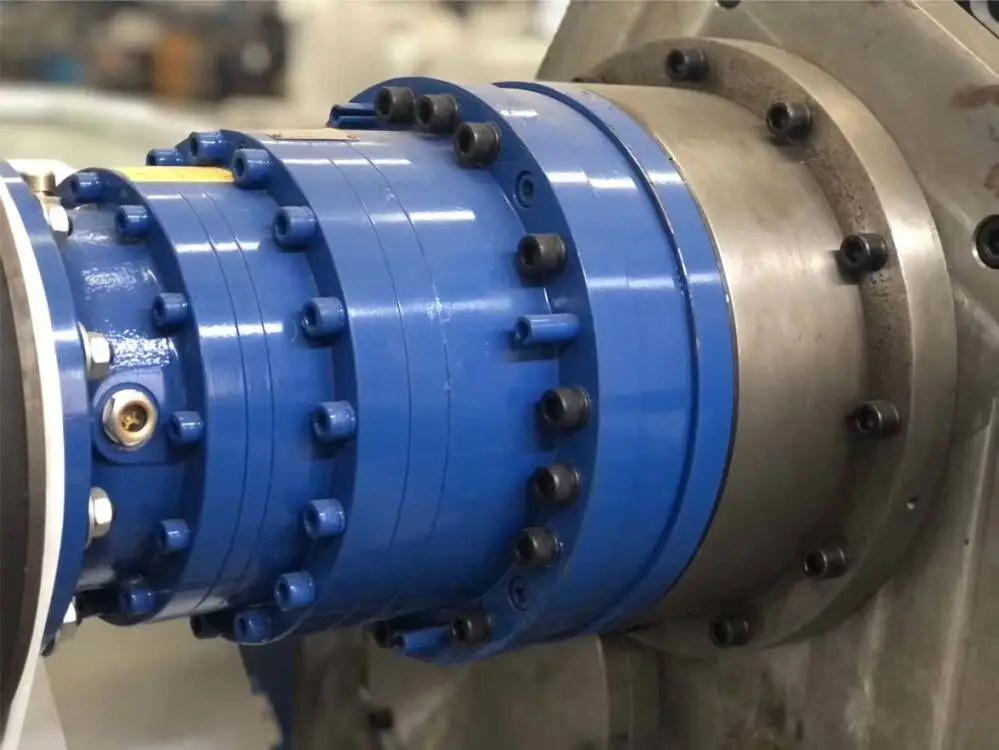

The planetary gearbox is used to reduce the speed to transmit the crushing force of high torque, which can tear the machine metal more easily than other gearbox.

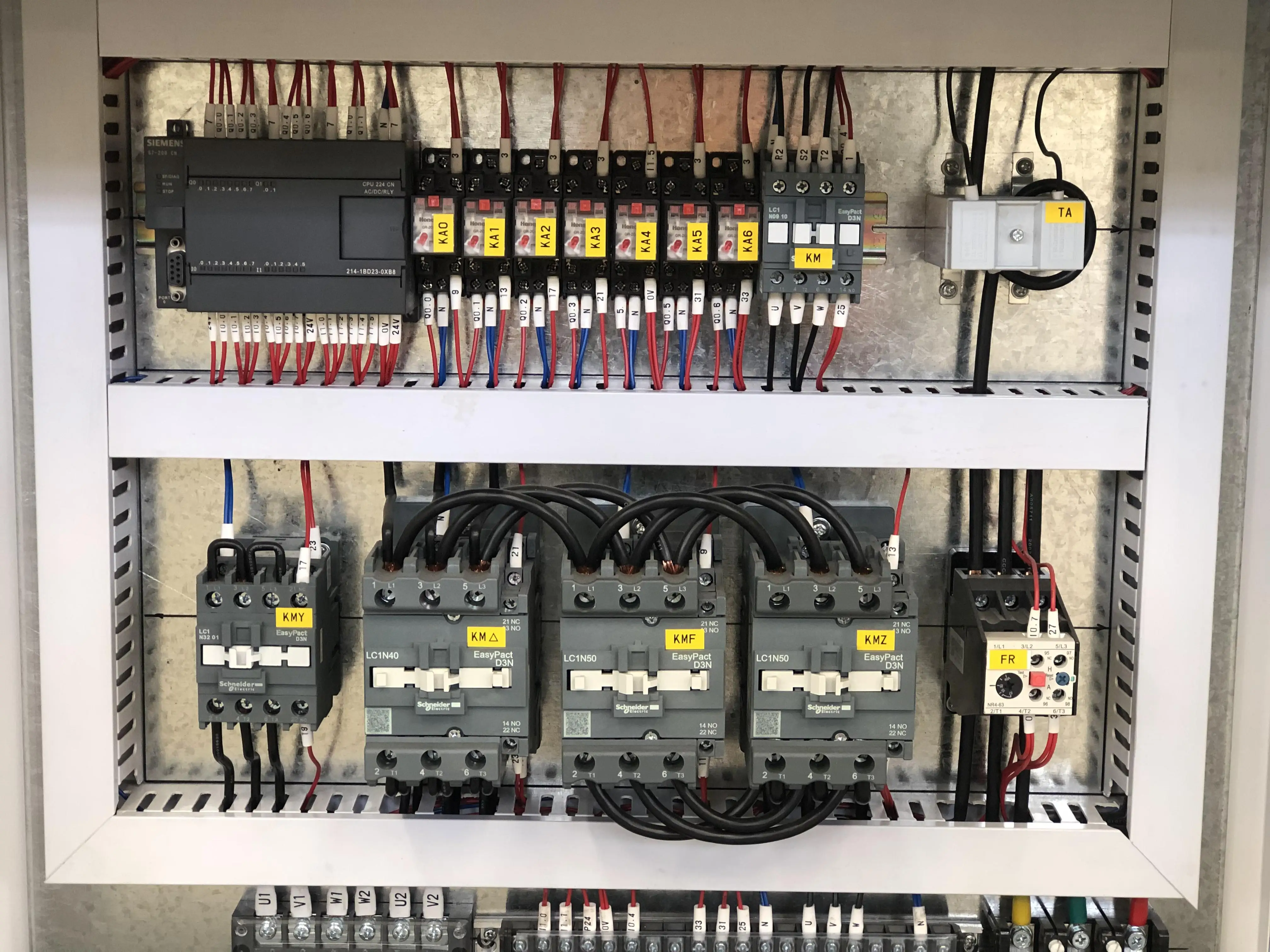

Intelligent PLC control system
The PLC electrical control system and industrial controlconfiguration software are adopted as the core control concept.Through the centralized monitoring and management of electricalequipment, as well as the implementation of logical interlockingand protection control of related equipment, the safe, stable andefficient operation of the whole system is ensured, and theautomatic control of equipment, starting, stopping, reversing andoverload automatic reversing control functions are realized. Theproduction can also be coordinated according to the equipmenton the customer's site.
