Машинка для производства шлака
3 500-3 980 $
Высокоэффективное минеральное сепараторное оборудование Графитовая угольная пена флотационная машина
- Категории: >>>
- Поставщик: Henan,Hengtailong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

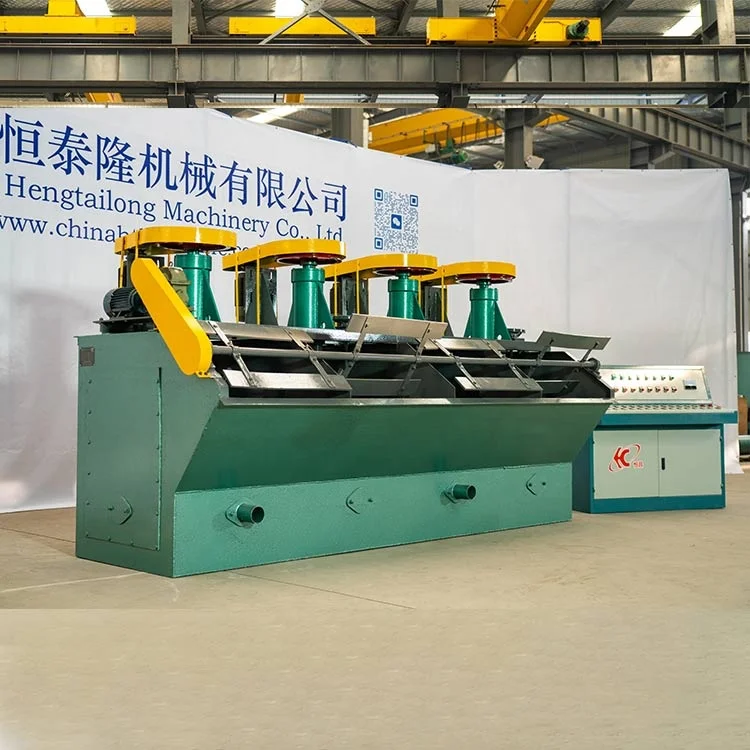

high efficiency mineral separator equipment graphite coal froth flotation machine price
It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Model | Volume (m3) | Cell size (mm) | Impeller Dia. (mm) | Impeller speed (r/min) | Capacity (m3/min) | Power (kw) | Singe cell weight (kg) |
XJ-3 | 0.35 | 700× 700× 700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
XJ-6 | 0.62 | 820× 900× 850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
XJ-11 | 1.1 | 1100× 1100× 1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
XJ-28 | 2.8 | 1750× 1600× 1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
XJ-58 | 5.8 | 2200× 2200× 1200 | 750 | 240 | 3--7 | 22/1.5 | 3400 |
SF-0.37 | 0.37 | 700× 700× 750 | 296 | 386 | 0.2-0.4 | 1.5/0.55 | 468 |
SF-0.7 | 0.7 | 820× 900× 950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 805 |
SF-1.2 | 1.2 | 1100× 1100× 1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1373 |
SF-2.8 | 2.8 | 1700× 1600× 1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 2138 |
SF-4 | 4 | 1850× 2050× 1200 | 650 | 220 | 2--4 | 15/1.5 | 2582 |
SF-8 | 8 | 2200× 2900× 1400 | 760 | 191 | 4--8 | 30/1.5 | 4129 |
SF-10 | 10 | 2200× 2900× 1700 | 760 | 191 | 5--10 | 30/1.5 | 4486 |
SF-16 | 16 | 2850× 3800× 1700 | 760 | 191 | 5--16 | 30× 2/1.5 | 8320 |
SF-20 | 20 | 2850× 3800× 2000 | 760 | 191 | 5--20 | 30× 2/1.5 | 9828 |
Product Application
Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.
Other Product Information
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black.
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black.
The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.

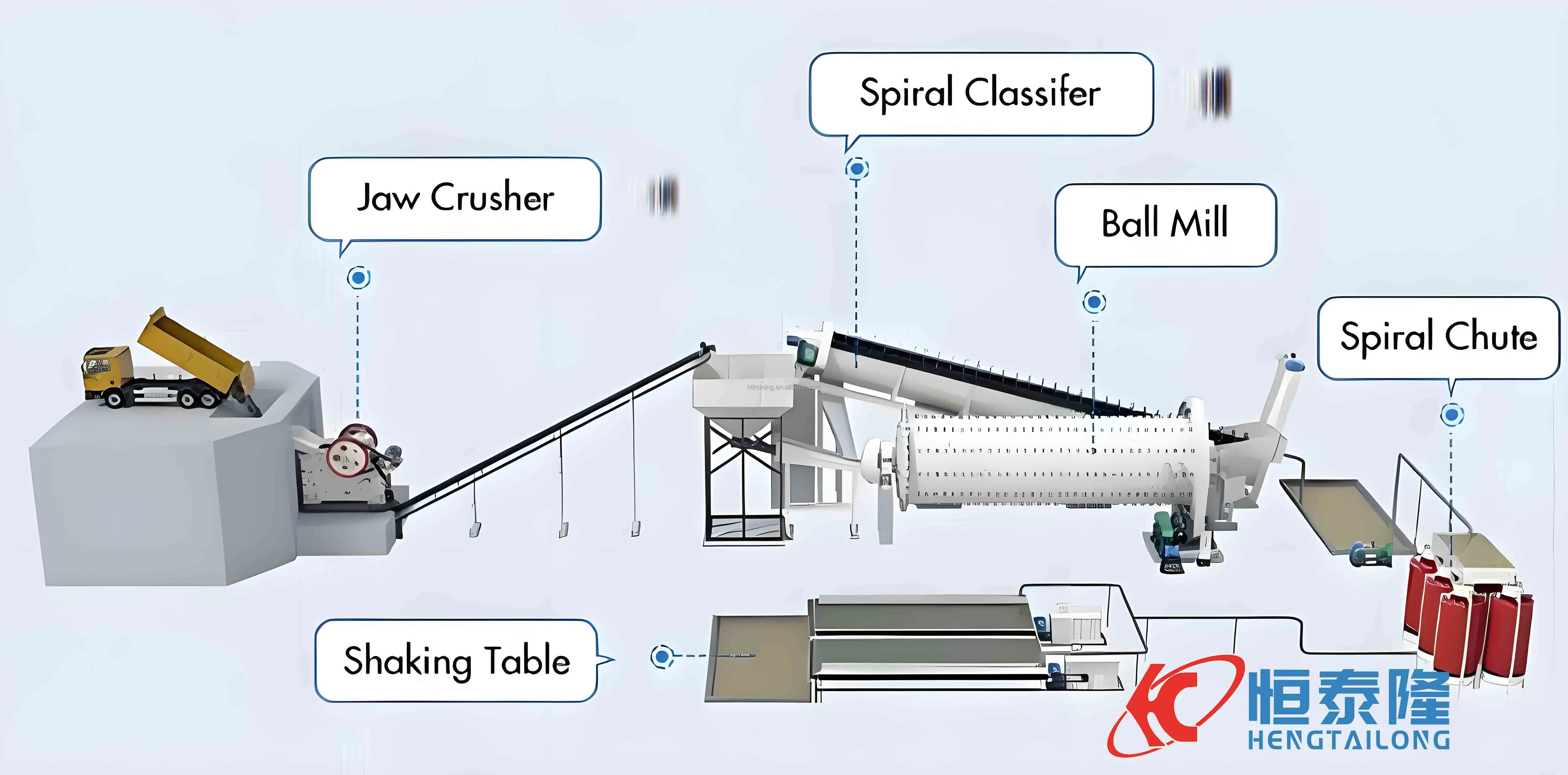

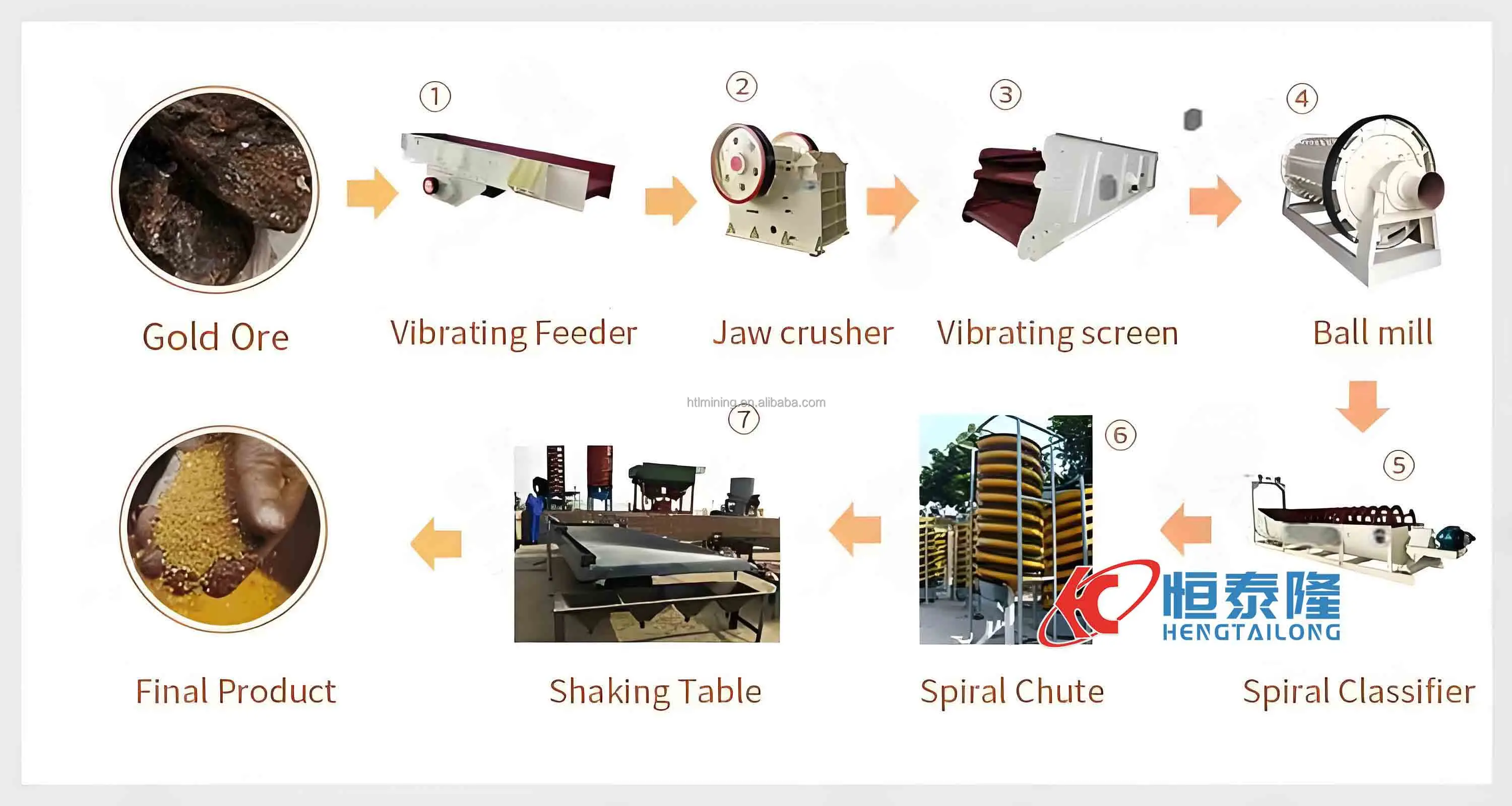

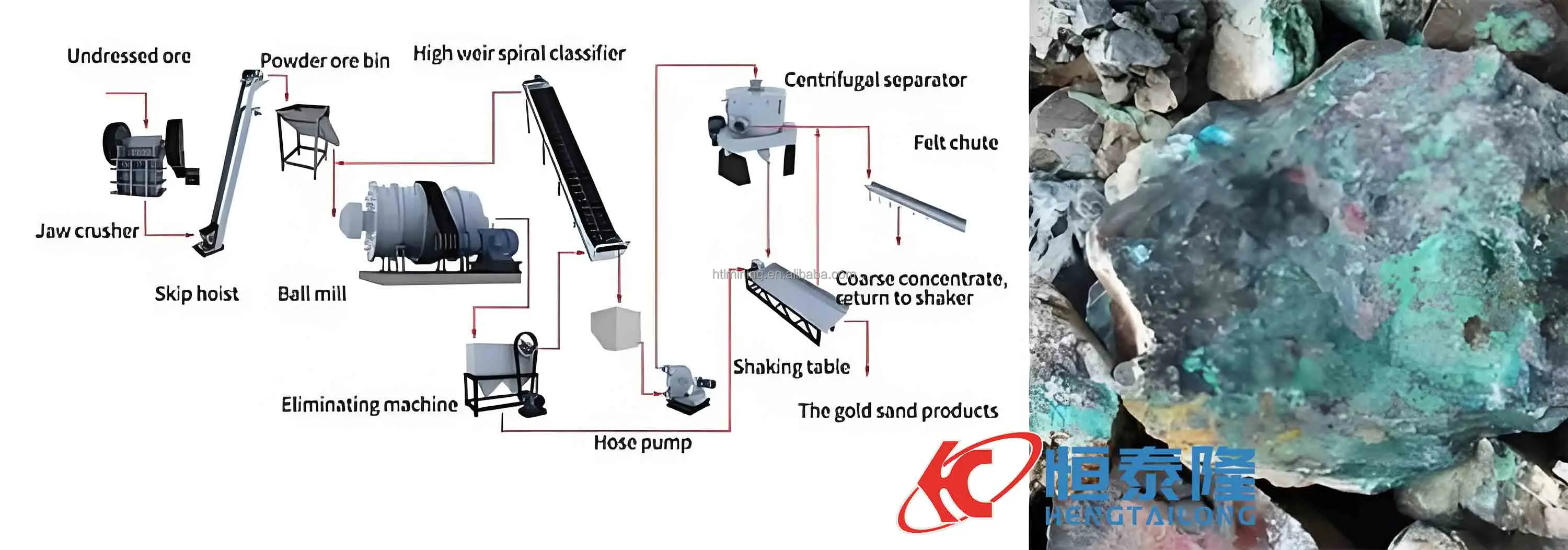

Flow chart of gold ore processing:
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate.

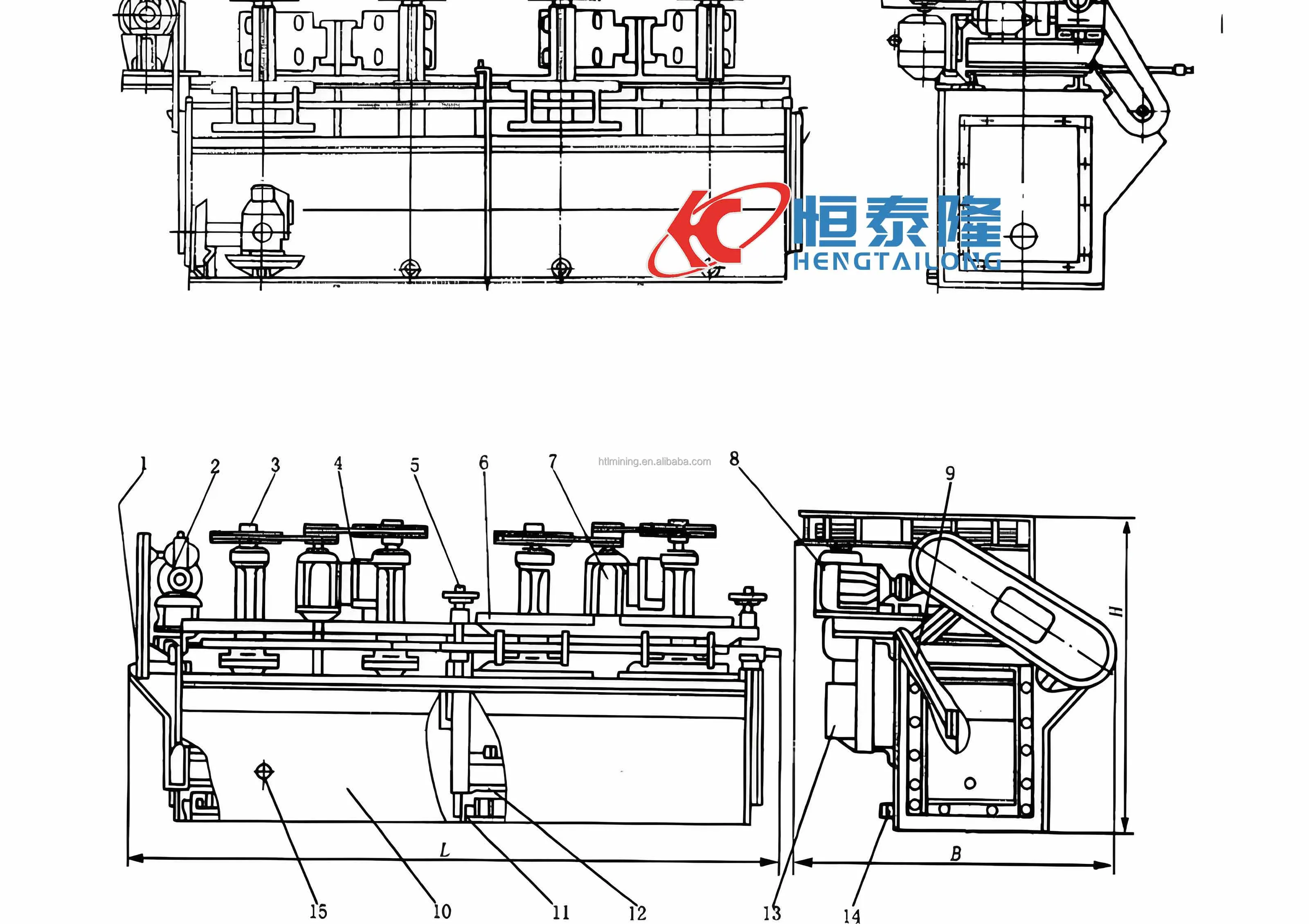

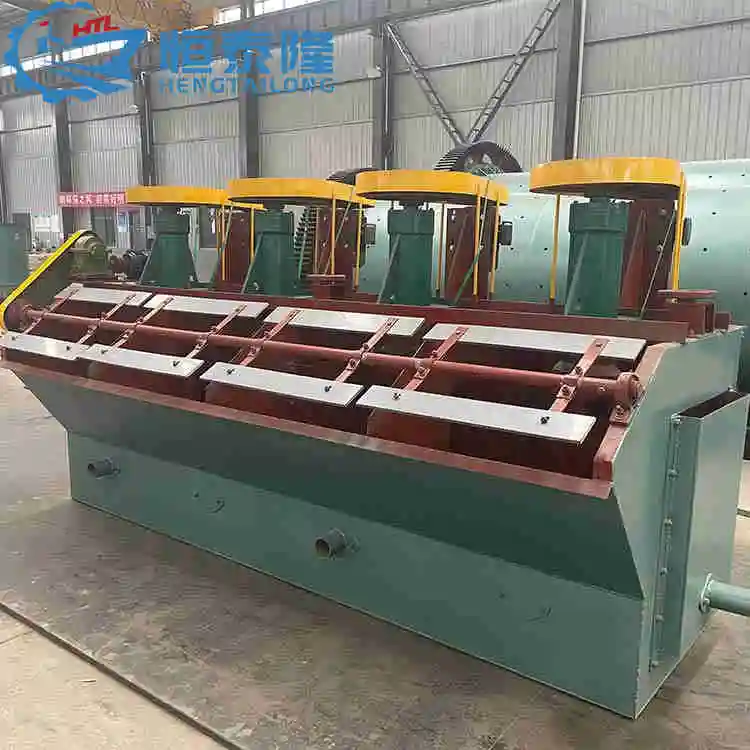

Working Principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
About Hengtailong
Gongyi Hengchang Metallurgical Building Materials Equipment Factory is located in Zhengzhou, Henan Province, China, specializing in the research and development, manufacturing, and sales services of mining equipment.
We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
Customer Visits/Evaluations/Our Services
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
