Воздушный клапан P59335 2-HA-2 стандартный воздушный управления R431005003 пневматический воздухом для буровой
- Категории: >>>
- Поставщик: Weihai,Zhonghao,Pneumatic,Hydraulic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

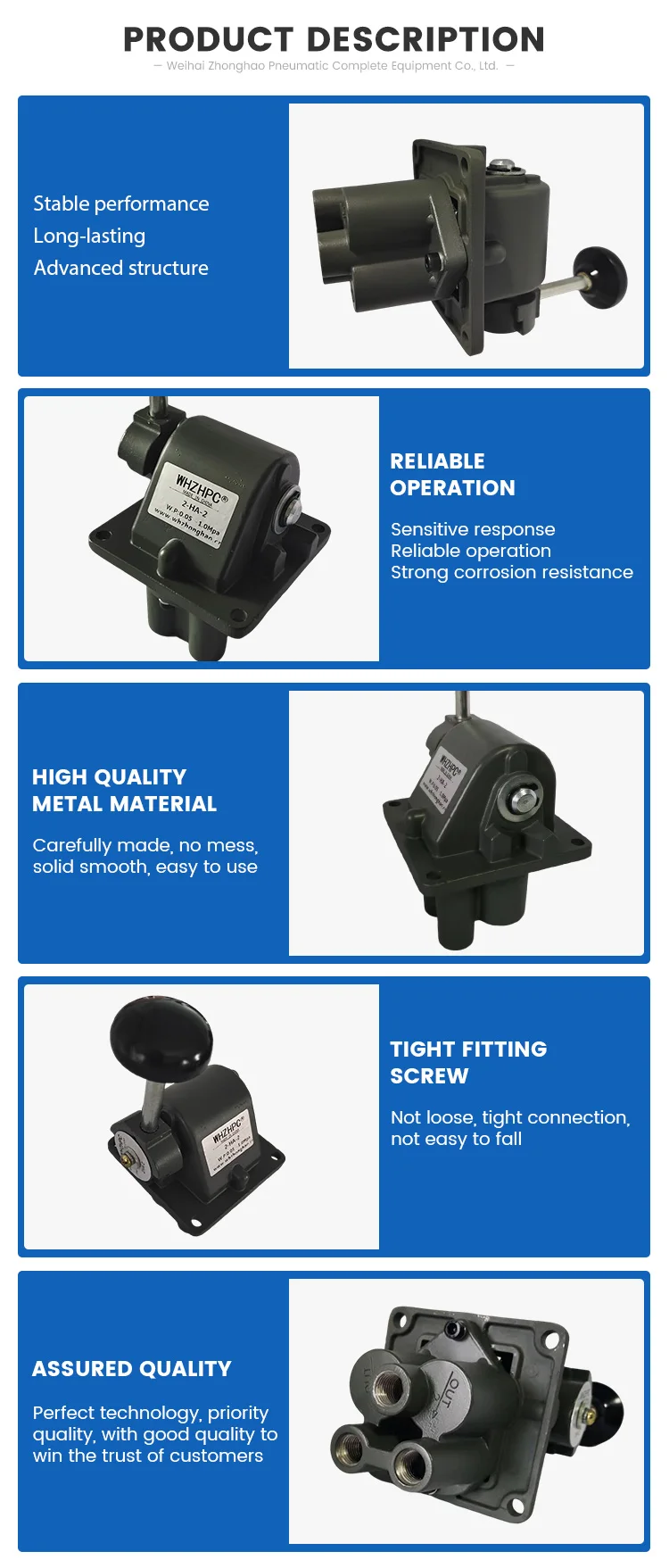

Product Description
Product Features：
The 2-HA-2 Valves are panel-mounted, 2, 3 and 5 position valves with one inlet and two outlet ports. Available with detents in each handle position, a latching handle that requires manual release to insure against unintentional operation, or spring return to center position. All ports are 1/4" NPT.
The Panel-Mounted Valve is a poppet-type pneumatic directional control valve consisting of a cam housing portion and a valve portion containing from one to four 3-way valve units.
Operating Versatility
Versatility has been designed into the operating cams. By reversing, rotating and rearranging these all-purpose cams, all the listed combinations can be made with a minimum of parts. Single unit valves for 3-way operation may be normally open or normally closed. The two unit valves have two, three, or five positions of operation as do the three and four unit valves. Detents can be had for two, three or five positions, or handle may be spring returned to center for three position operation.
Operation
In release position, as shown, the valve disc seats on the inlet valve seat and seals the passage from the inlet to the outlet port. The outlet port is vented to atmosphere through the center of the plunger.
As the plunger is forced downward by the cam force it seats on the valve disc. This seals the passage between the outlet port and atmosphere.
The Panel-Mounted Valve is a poppet-type pneumatic directional control valve consisting of a cam housing portion and a valve portion containing from one to four 3-way valve units.
Operating Versatility
Versatility has been designed into the operating cams. By reversing, rotating and rearranging these all-purpose cams, all the listed combinations can be made with a minimum of parts. Single unit valves for 3-way operation may be normally open or normally closed. The two unit valves have two, three, or five positions of operation as do the three and four unit valves. Detents can be had for two, three or five positions, or handle may be spring returned to center for three position operation.
Operation
In release position, as shown, the valve disc seats on the inlet valve seat and seals the passage from the inlet to the outlet port. The outlet port is vented to atmosphere through the center of the plunger.
As the plunger is forced downward by the cam force it seats on the valve disc. This seals the passage between the outlet port and atmosphere.
Further downward travel of the plunger unseats the valve disc from the inlet valve seat and allows inlet air pressure to flow to the outlet port.
larger image
larger image
Graphic symbols：

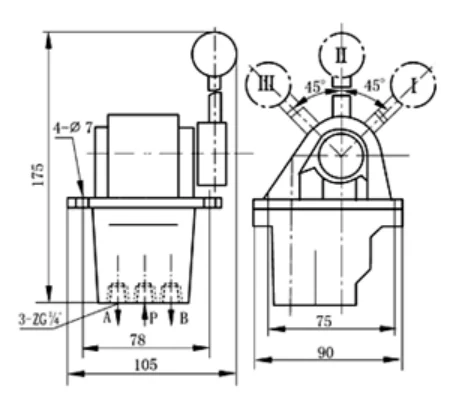

Outline and installation dimensions：
model | 2-HA-2 | |
diameter | 8mm | |
effective area S value mm² | 20mm² | |
max pressure MPa | 1.00MPa | |
leakage | 0Nml/min | |
temperature | -40---60ºC | |
durability | 200 ten thousand |
Details Images
Item # | Old Part # | Model | Cam Details | Configuration |
R431005016 | P 059340 P -059340-00000 P 59340 P059340 P59340 | 2-HA-2Y | With Detents | Standard |
R431005017 | P -059340-00001 P 059340-1 P 59340-1 P059340-1 P59340-1 | 2-HA-2Y | With Detents | With Seals For 65ºF (-54ºC) |
R431005018 | P -059340-00003 P 059340-3 P 59340-3 P059340-3 P59340-3 | 2-HA-2Y | With Detents | Chrome Plated Cover & Hub |
item-10032 | P -054427-00003 | 2-HA-2Y | With Detents | With Long Handle |
R431005861 | P 061745 P -061745-00000 P 61745 P061745 P61745 | 2-HA-2Y | With Detents | Standard |
R431005019 | P -059341-00001 P 059341-1 P 59341-1 P059341-1 P59341-1 | 2-HA-2LY | With Latch | Standard |
R431006194 | P 063158 P -063158-00000 P 63158 P063158 P63158 | 2-HA-2LY | With Latch | Standard |
R431006195 | P -063158-00002 P 063158-2 P 63158-2 P063158-2 P63158-2 | 2-HA-2LY | With Latch | Chrome Plated Cover and Hub |
R431006604 | P 065353 P -065353-00000 P 65353 P065353 P65353 | 2-HA-2LY | With Latch | Black Epoxy Coated Cover on Hub |
R431005020 | P 059342 P 59342 P -59342-00000 P059342 P59342 | 2-HA-2X | With Detents | Standard |
R431005021 | P -059343-00001 P 059343-1 P 59343-1 P059343-1 P59343-1 | 2HA-2LX | With Detents & with Latch | Standard |
R431006413 | P 064417 P -064417-00000 P 64417 P064417 P64417 | 2HA-2U | With Detents | Standard |
R431005003 | P 059335 P -059335-00000 P 59335 P059335 P59335 | 2-HA-2 | With Detents | Standard |
R431005005 | P -059335-00003 P 059335-3 P 59335-3 P059335-3 P59335-3 | 2-HA-2 | With Detents | Chrome Plated Cover and Hub |
R431005004 | P -059335-00002 P 059335-2 P 59335-2 P059335-2 P59335-2 | 2-HA-2 | With Detents | Black Coated Cover and Hub |
R431005820 | P 061652 P -061652-00000 P 61652 P061652 P61652 | 2-HA-2 | With Detents | With Long Handle |
R431005006 | P -059336-00003 P 059336-3 P 59336-3 P059336-3 P59336-3 | 2-HA-2L | With Detents & with Latch | Standard |
R431005007 | P -059336-00004 P 059336-4 P 59336-4 P059336-4 P59336-4 | 2-HA-2L | With Detents & with Latch | Black Coated Cover and Hub |
R431006008 | P 062082 P -062082-00000 P 62082 P062082 P62082 | 2-HA-2L | With Detents | Standard |
R431006010 | P -062082-00002 P 062082-2 P 62082-2 P062082-2 P62082-2 | 2-HA-2L | With Detents | Chrome Plated Cover and Hub |
R431006009 | P -062082-00001 P 062082-1 P 62082-1 P062082-1 P62082-1 | 2-HA-2L | With Detents | Black Coated Cover and Hub |
R431005015 | P -059339-00003 P 059339-3 P 59339-3 P059339-3 P59339-3 | 2-HA-2Z | Spring Centered | Chrome Plated Cover and Hub |
R431005014 | P -059339-00002 P 059339-2 P 59339-2 P059339-2 P59339-2 | 2-HA-2Z | Spring Centered | Black Coated Cover and Hub |
item-10061 | P -065760-00000 | 2-HA-2F | With Detents | Black Coated Cover and Hub |
