Product Description

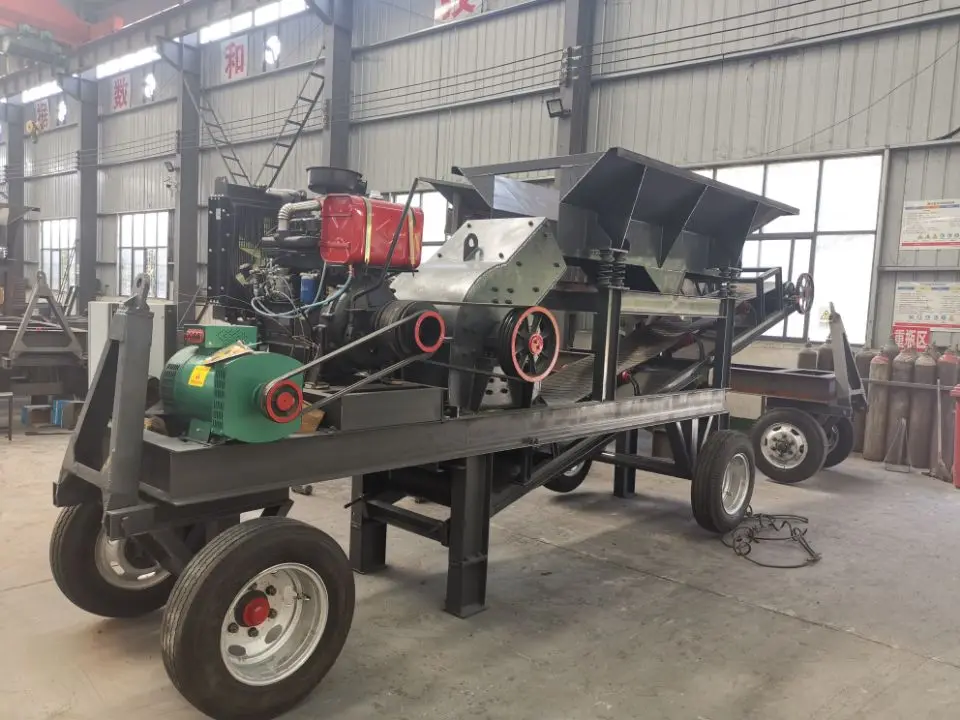

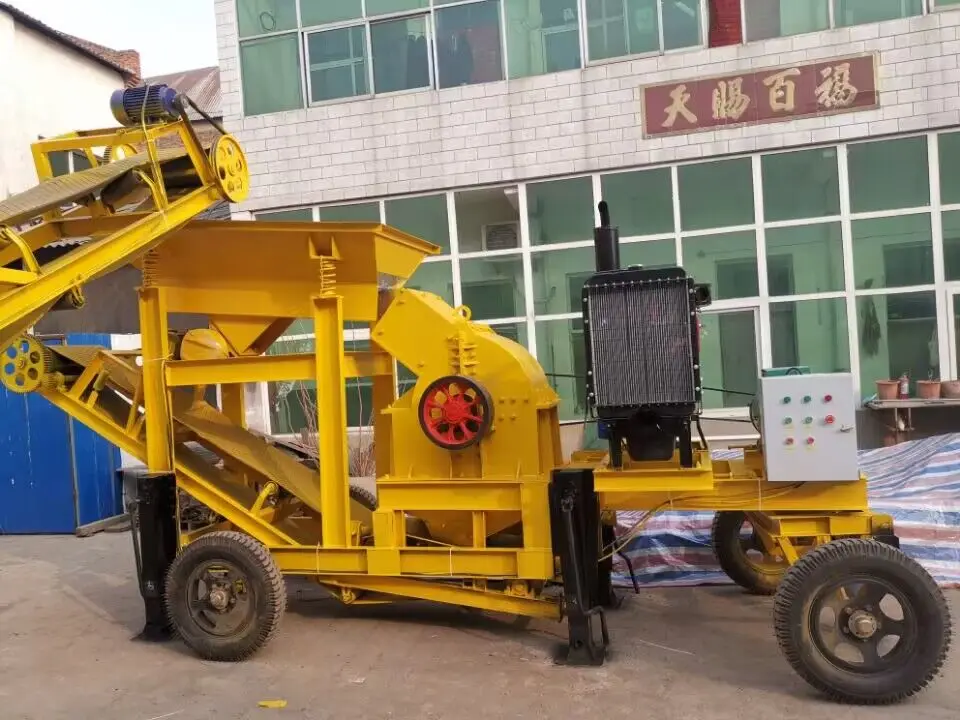

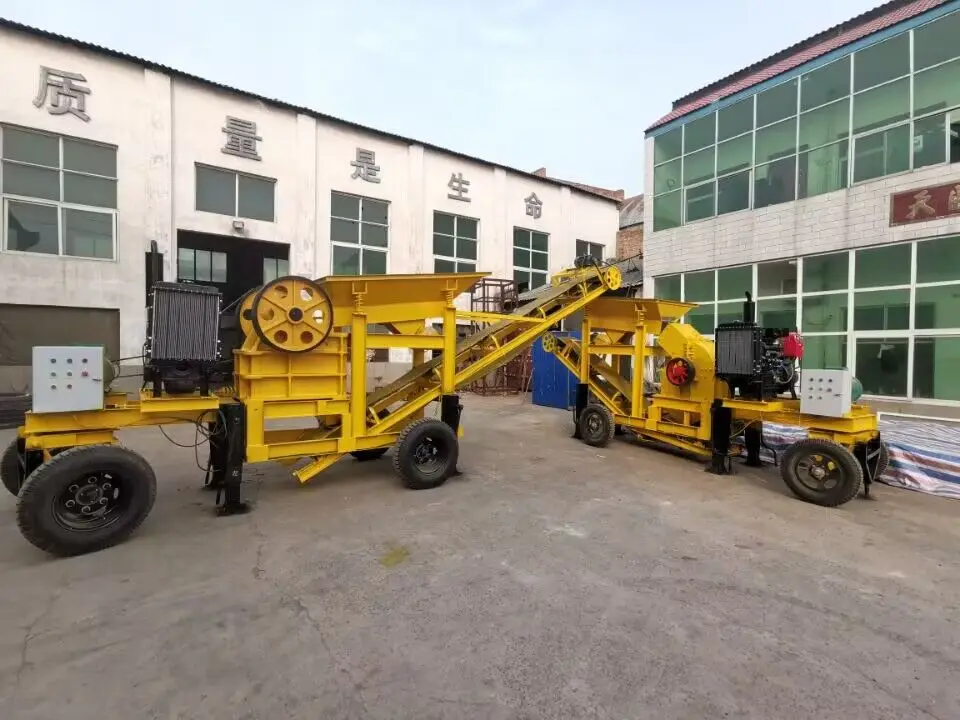

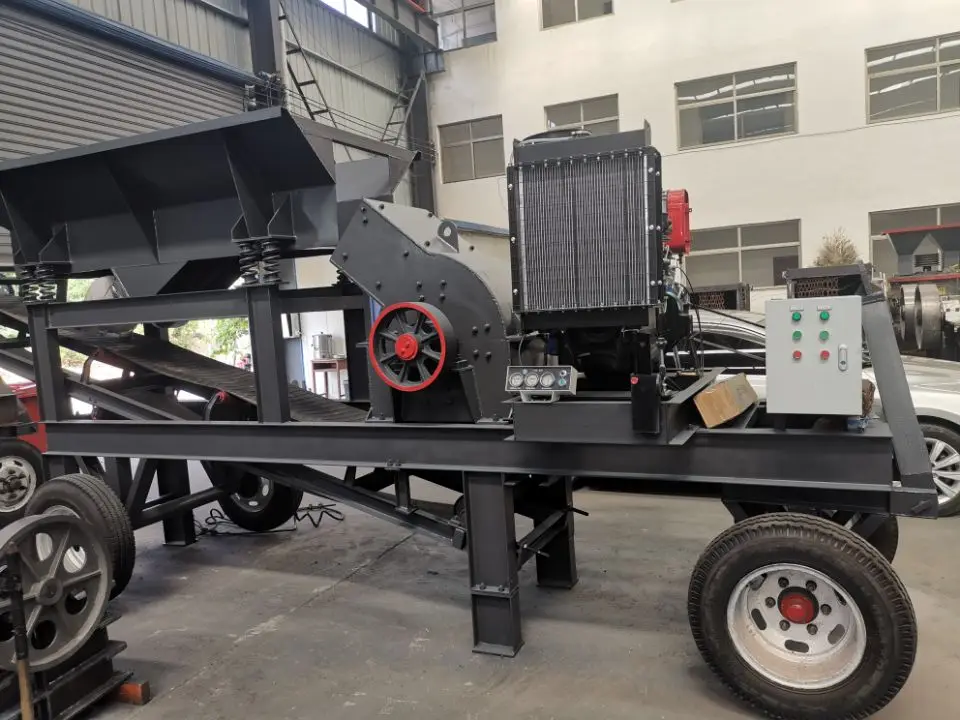

Gold Ore Glass Coal Rock 10-50t/h Mobile Hammer Crusher Machine with wheels and chassis

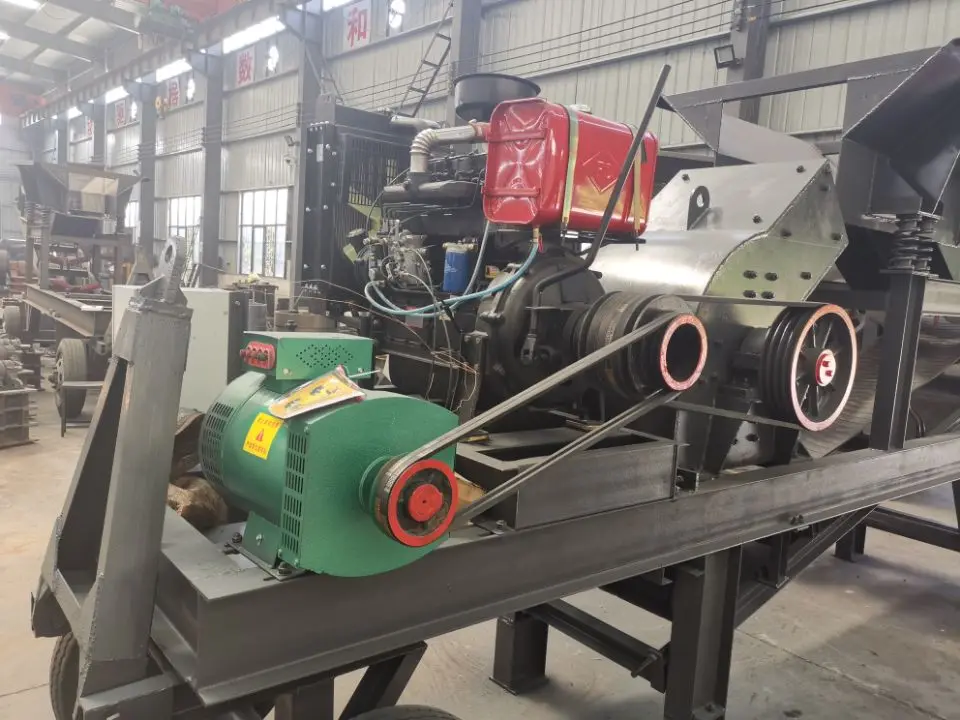

Mobile hammer crusher consists of a hammer crusher and a small trailer support.The mobile diesel hammer crusher is
specifically designed for customers who require the hammer crusher to work in remote mines or without power supply. Therefore, diesel engines can be used as an alternative to electric motors. It is widely used in making sand, brick, fine powder.
specifically designed for customers who require the hammer crusher to work in remote mines or without power supply. Therefore, diesel engines can be used as an alternative to electric motors. It is widely used in making sand, brick, fine powder.
Working Principle
When the hammer crusher is working, the motor drives the rotor to run at high speed. The material enters from the feeding mouth and collides strongly with the hammer on the rotor. After collision with the hammer, the material collides with the liner and grate/sieve plate, so as to screen out the appropriate discharging size. (secondary crusher)
Specifications
Model | Max feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (kg) |
PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |

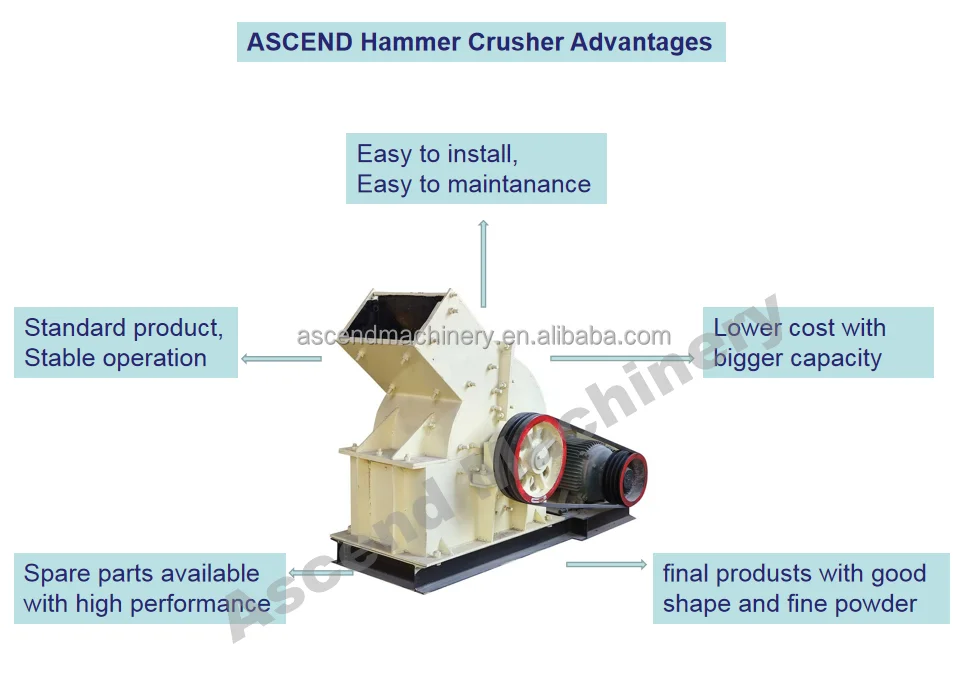

Advantages
1. Set on the frame with wheels, easy to move and flexible;
2. It has compact structure, simple operation, high crushing ratio and fine discharge.
3. In the sand making line, it is generally used ( jaw crusher+vibrating feeder+belt conveyor+mobile hammer crusher) to form a high efficiency sand making line.
2. It has compact structure, simple operation, high crushing ratio and fine discharge.
3. In the sand making line, it is generally used ( jaw crusher+vibrating feeder+belt conveyor+mobile hammer crusher) to form a high efficiency sand making line.
Applications
Final products of the hammer crushers

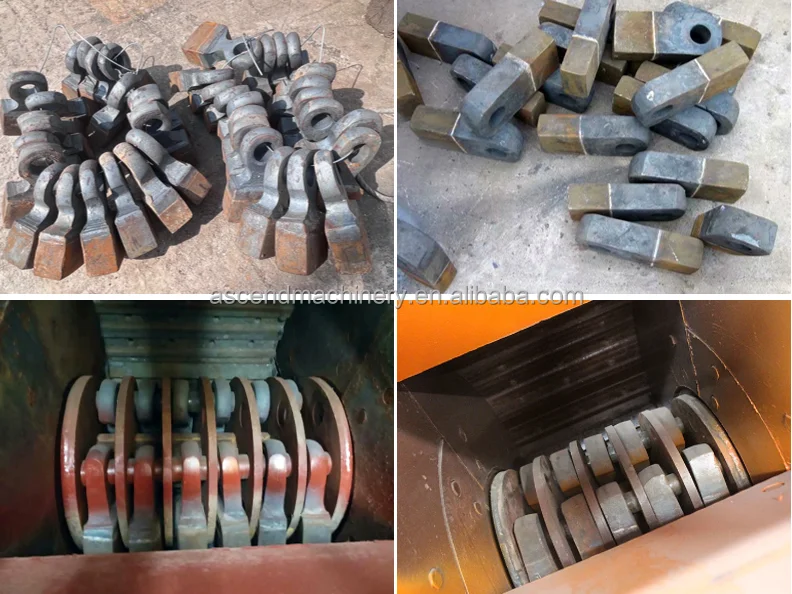

Spare parts
Working sites
