Соединительные звенья для горнодобывающей цепи детали оборудования погрузочно-разгрузочного трансмиссионного
- Категории: >>>
- Поставщик: Qingdao,Yidong,Huanneng,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Matters needing attention
1. Ensure that the mounting surface and locking surface are clean before installation.
3. After three months or 1 million tons of coal is completed, the inspection frequency should be increased
4. The allowable dynamic working load should not exceed 70% of the breaking load
5. Do not insert other accessories into the link
1. Ensure that the mounting surface and locking surface are clean before installation.
2. The expansion pin must be installed when the link is used
3. After three months or 1 million tons of coal is completed, the inspection frequency should be increased
4. The allowable dynamic working load should not exceed 70% of the breaking load
5. Do not insert other accessories into the link

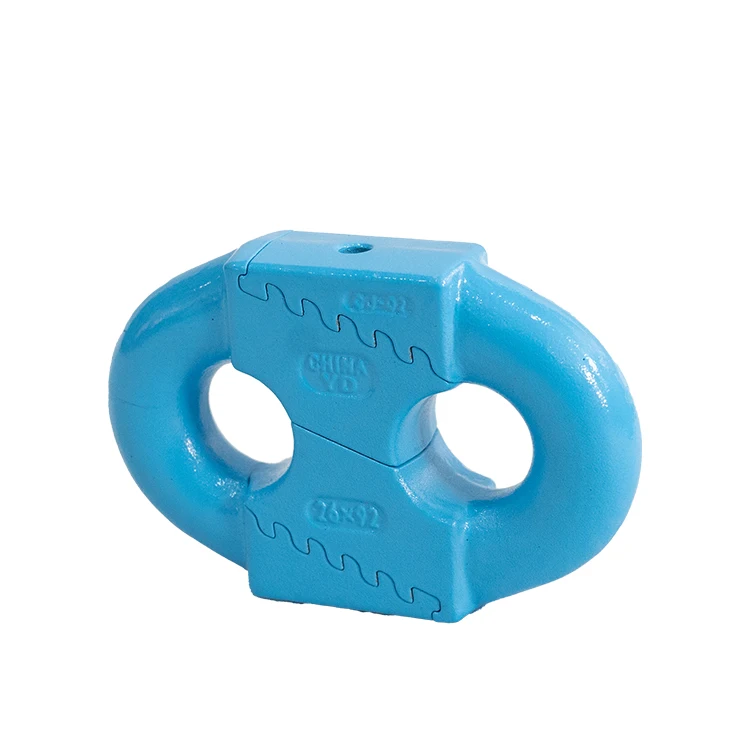

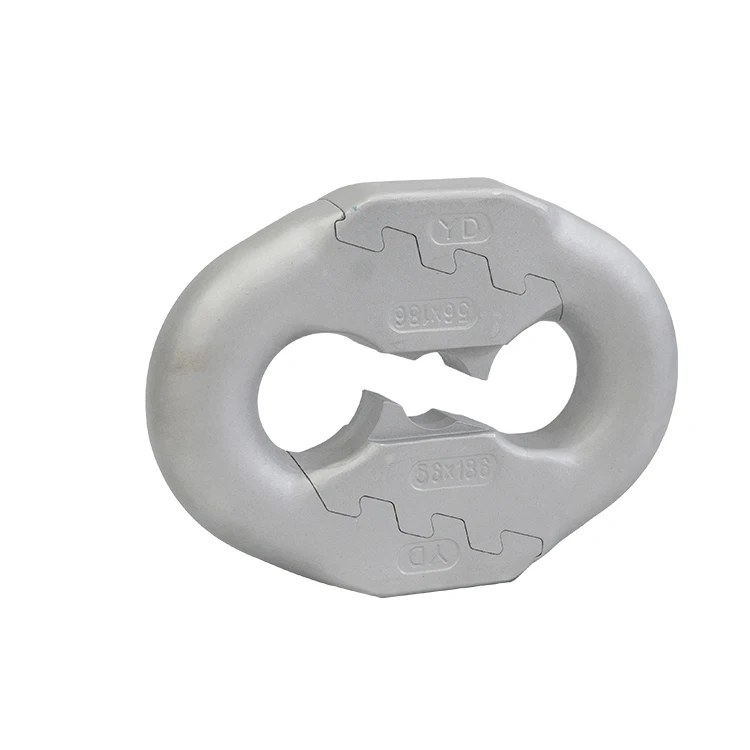

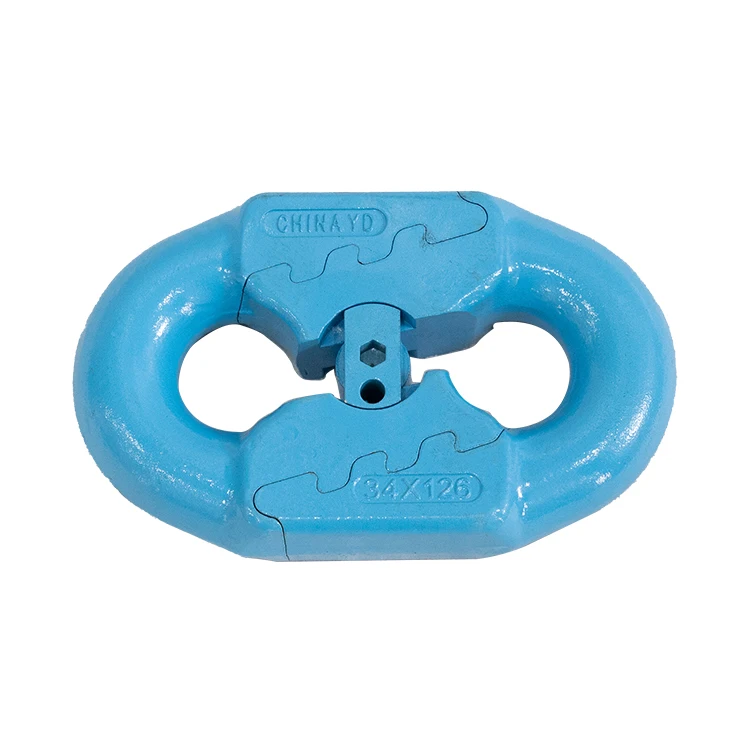

Flat Serrated Type MINE CHAIN
According to MT/T99-1997 standard and Yidong enterprise standard. The flat serrated chain link is in line with the national standard MT/T99-1997 standard. In the manufacturing process, high alloy steel containing Cr, Ti, Mn and other alloying elements and multiple heat treatment processes are selected to ensure that it (flat and vertical dual-purpose) matches perfectly with the supporting sprocket and operates safely. It is widely used in various specifications ring chain. The surface of the sawtooth ring is specially sprayed to extend the service life. Used for connecting vertical or horizontal mine ring chains, can also be used for other connections after agreement with Yidong.

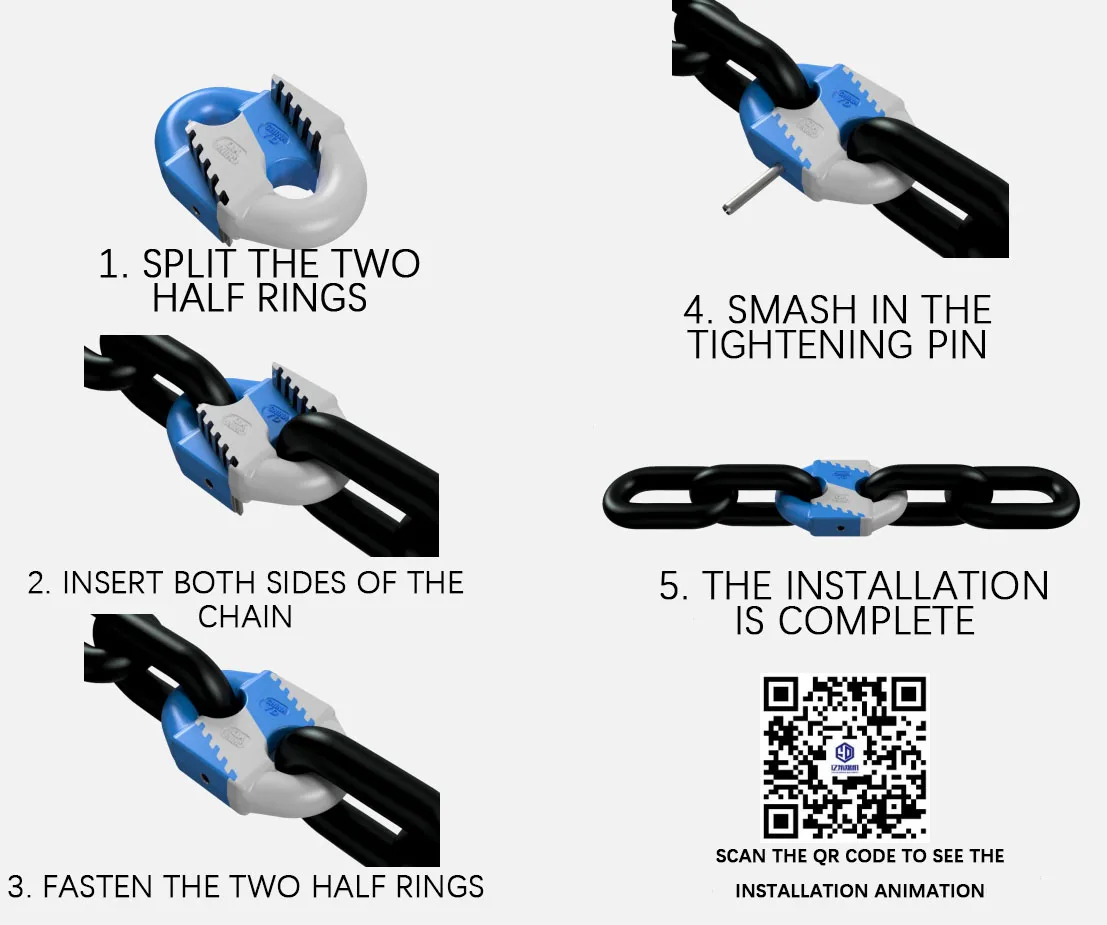

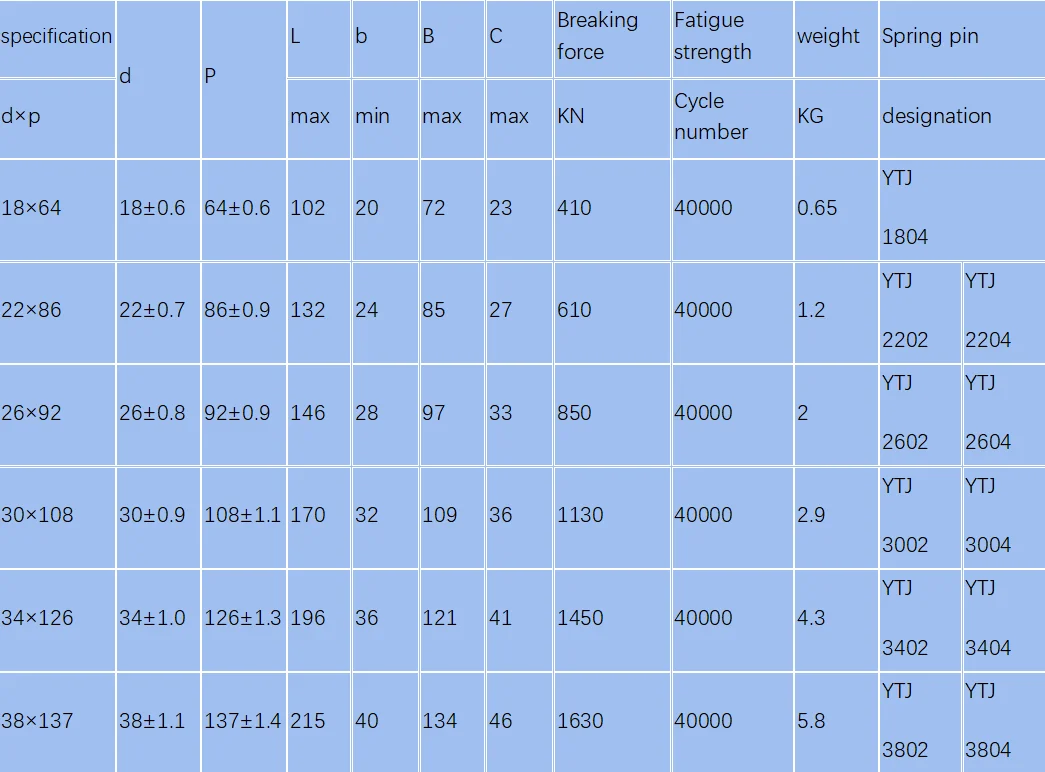

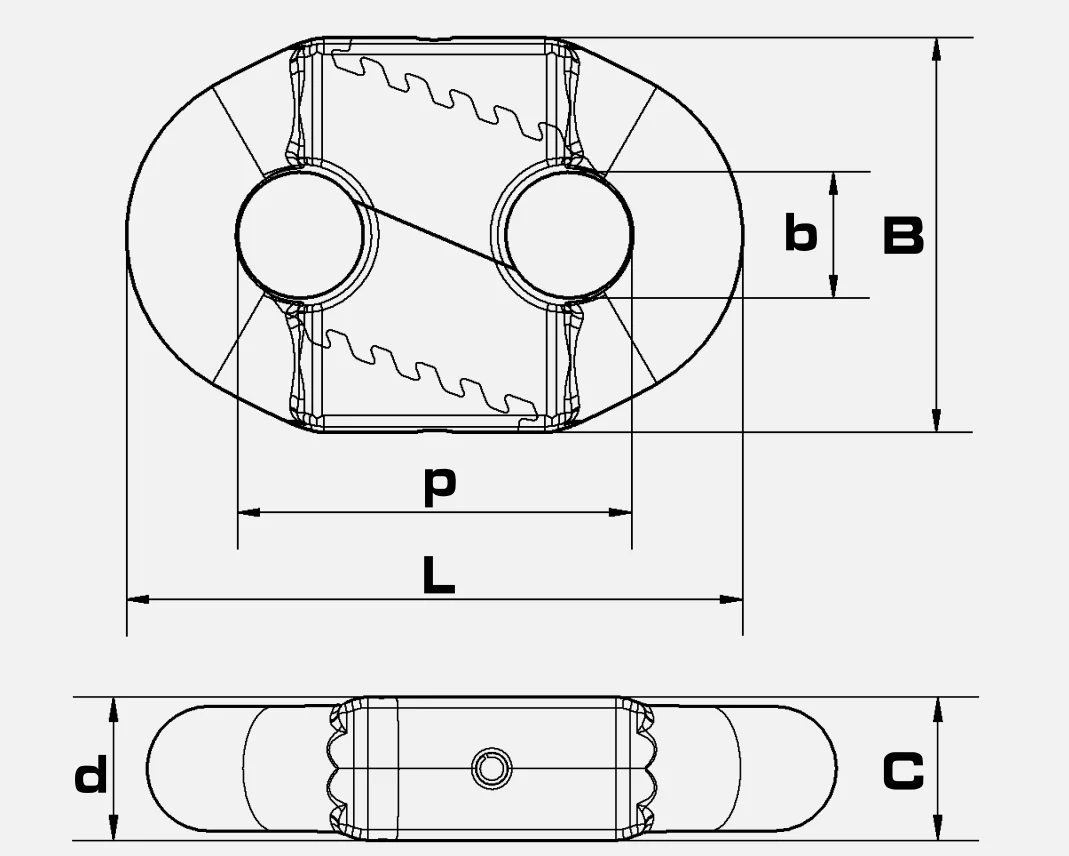

PRODUCT DIMENSIUNS AND INSTALLATION
SPECIAL MANUFACTURING PROCESS
Tensile data far exceeds DIN standards, the unique heat treatment process makesit have high tensile resistance and fatigue life.

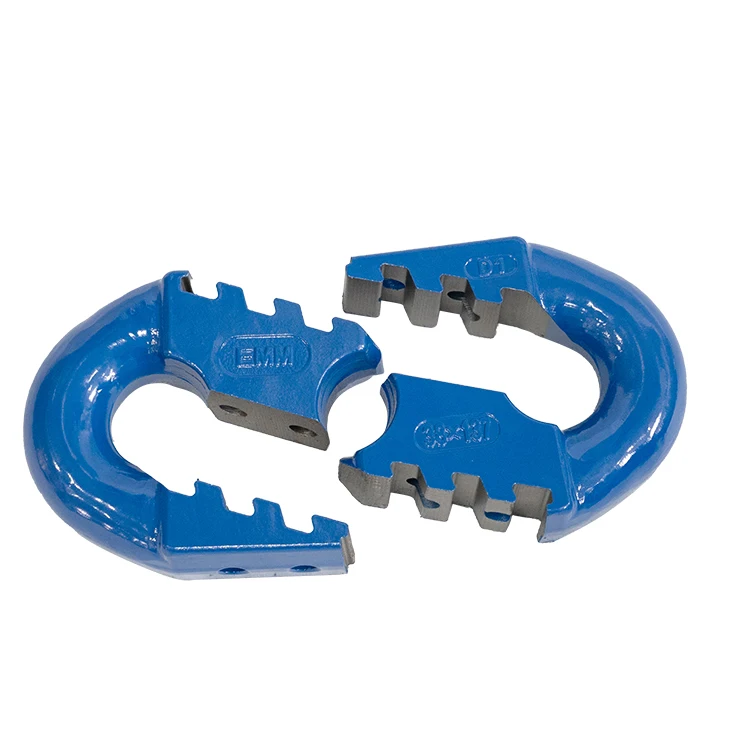

MORTISE AND TENON CONSTRUCTION
The mating surface of mortise and tenon structure is processed by precision CNC machining equipment after die forging
Product Name | Mining Chain Connectors |
Type | Connecting ring/Chain Link |
Size | Customized |
Material | Alloy Steel |

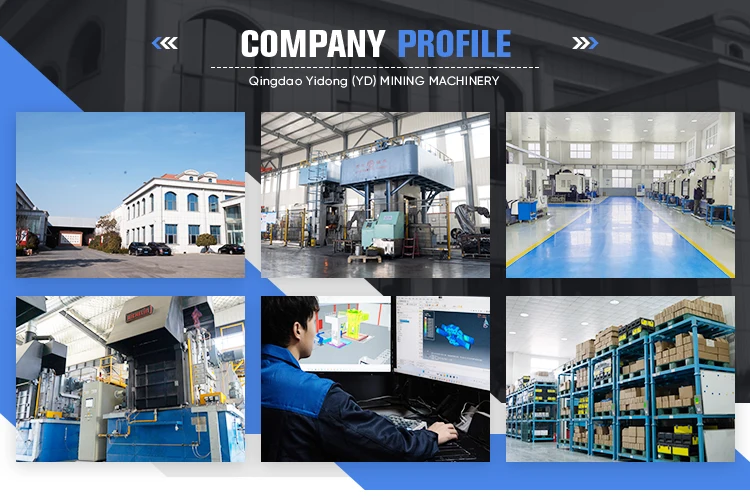

Qingdao Yidong (YD) was founded in 2004 and after 20 years of development, it has become one of the main manufacturers of mining chain connector worldwide. At the same time,we can provide one-stop services from non-standard forging product design and finite element analysis, to mold design, hot forging services, CNC machining services, various heat treatments, and different surface finishing.
We have two fully automatic forging production lines and 50 CNC machining centers. The company has a strict quality control system.
Our aim is to continuously create value for customers. Contact us, and we look forward to serving you in the near future.
