Прямая поставка с завода Merv11 Merv13 Merv14 карманный мешок из синтетического волокна воздушный фильтр тканевый рулонный

Описание и отзывы

Характеристики

Factory Direct Merv11 Merv13 Merv14 Medium Efficiency Synthetic Fiber Pocket Bag Air Filter Cloth Roll Media



product performance

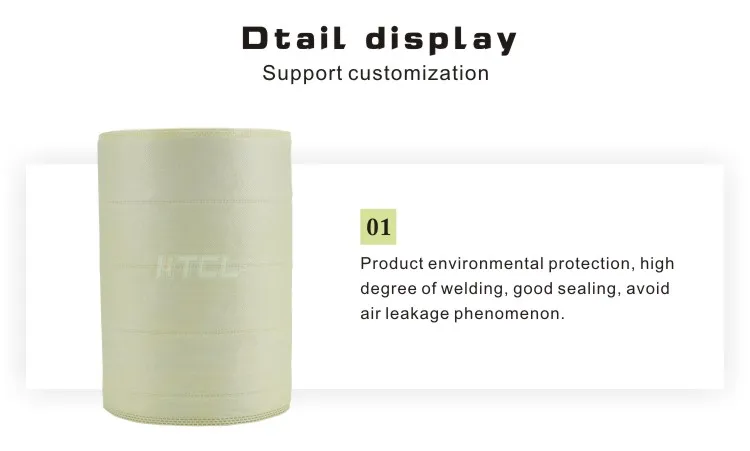

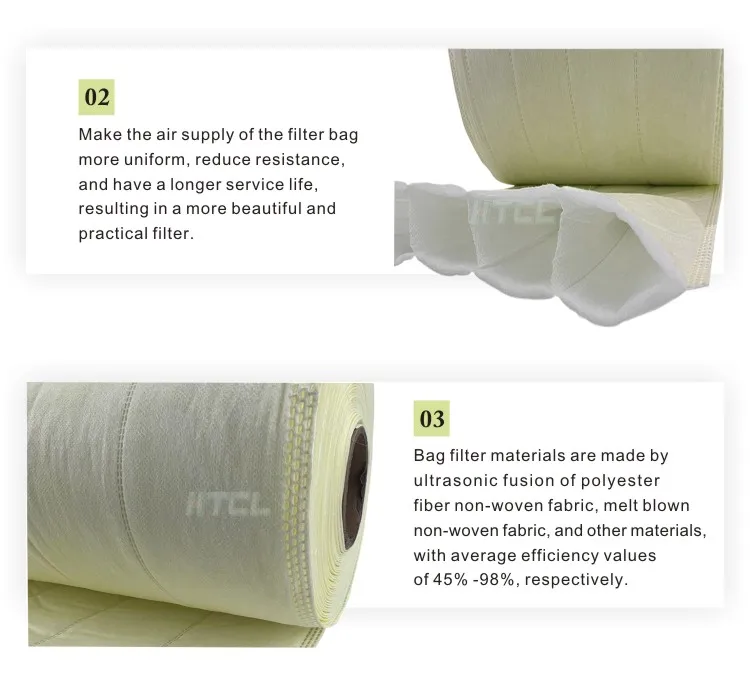

Bag type filter material is made of polyester fiber non-woven fabric, melt-blown non-woven fabric and other materials ultrasonic welding, the average efficiency value is 45%-98%. Bag air filter mainly be used on central air-conditioning and centralized ventilation system. It can be used as primary, medium and senior filter to protect inferior filter of system and itself. It adopts special process of ultrasonic heat sealing process which replaced the original process and avoid dust leakage on pinhole office as well as enhance filter efficiency. The amount of small V type bag is determined by equipment's condition of using factory.



product design

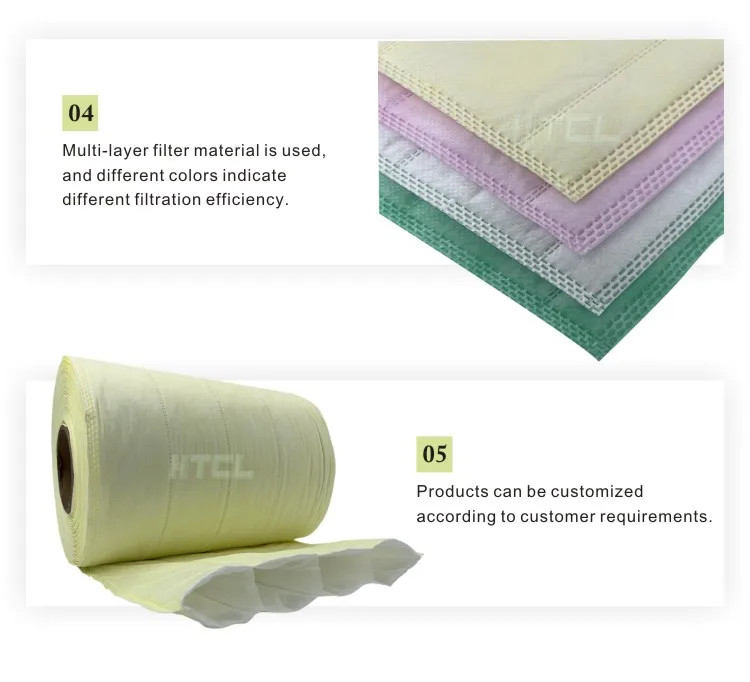

•Surface layer: 100% high strength PP spun-bond media, different color code indicate different filtration efficiency.
• Melt-blown layer: fine filtration layer to capture sub-micron particles.
• Dust holding layer: needle punched media or compound media applied, design to filter the larger particles at lower initial pressure    drop and enhance to reach the max dust volume.
•Inner protective layer: to protect compound media and prolong filter service life.



product feature

♦Large air flow
♦Low resistance
♦Large dust holding capacity.
♦Hot melting
♦Strong Tightness and Combination
♦Low cost
♦Easy to change



Technical parameters and testing results

Model number	Test item	Resistance (pa)		efficiency (%)		Basic W (g/m2)		Thickness (mm)

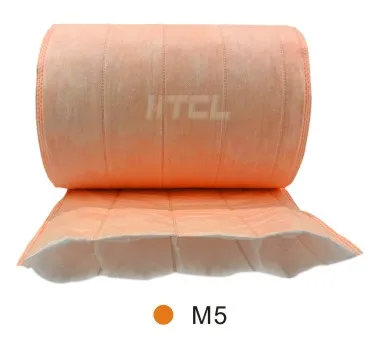

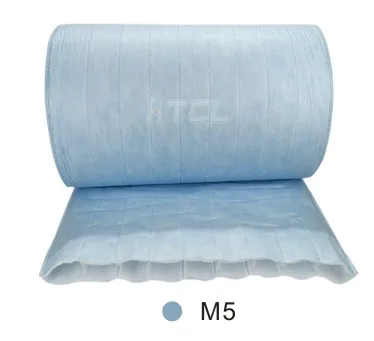

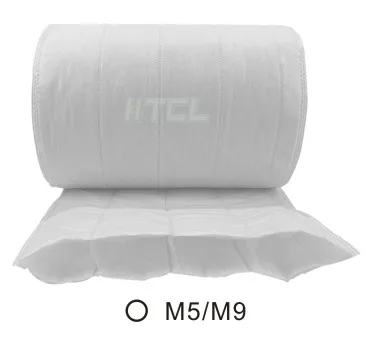

M5	Standard requirements	≤6		≥45%		168±5		5.5±1
	Measured data	5		47.22		171		5

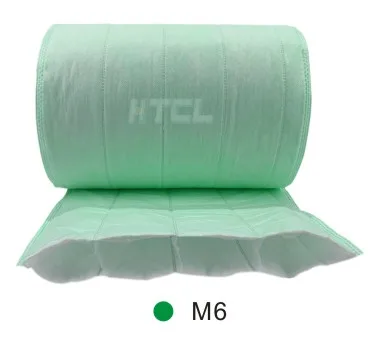

M6	Standard requirements	≤10		≥65%		192±5		6±1
	Measured data	10		66.85		196		5.6

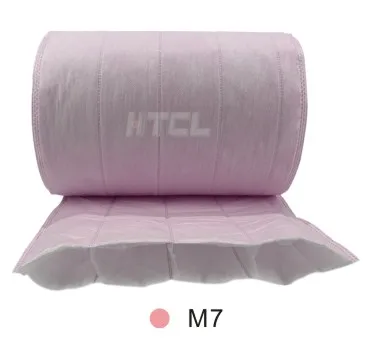

M7	Standard requirements	≤16		≥85%		204±5		6.5±1
	Measured data	15		88.13		208		5.9

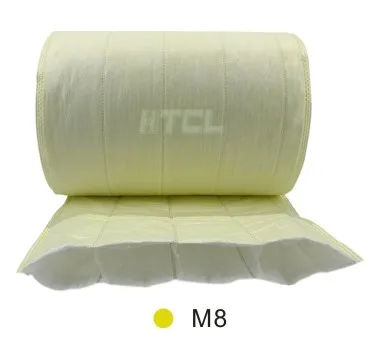

M8	Standard requirements	≤22		≥95%		218±5		7±1
	Measured data	19		96.61		220		6.3
M9	Standard requirements	≤28		≥98%		232±5		7±1
	Measured data	25		98.43		233		6.7

 Note : color can be customized according to customer ' s requirement
