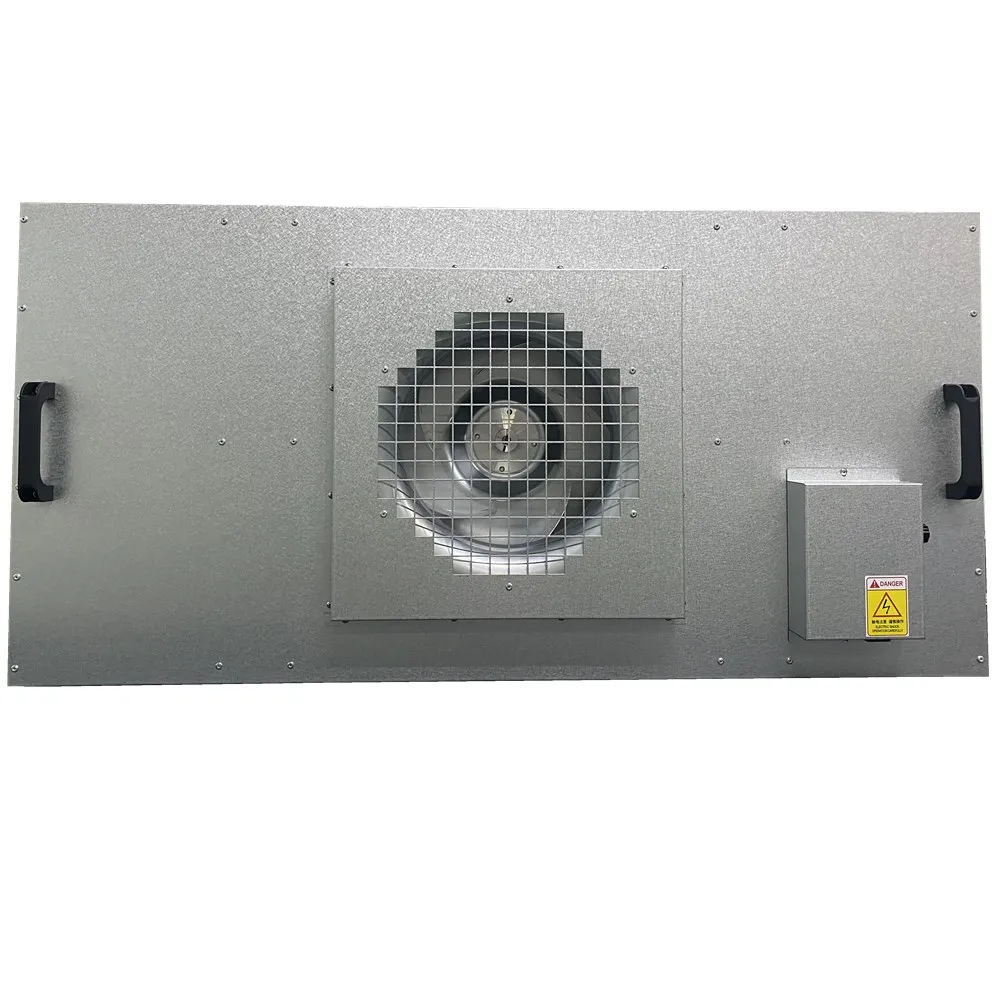

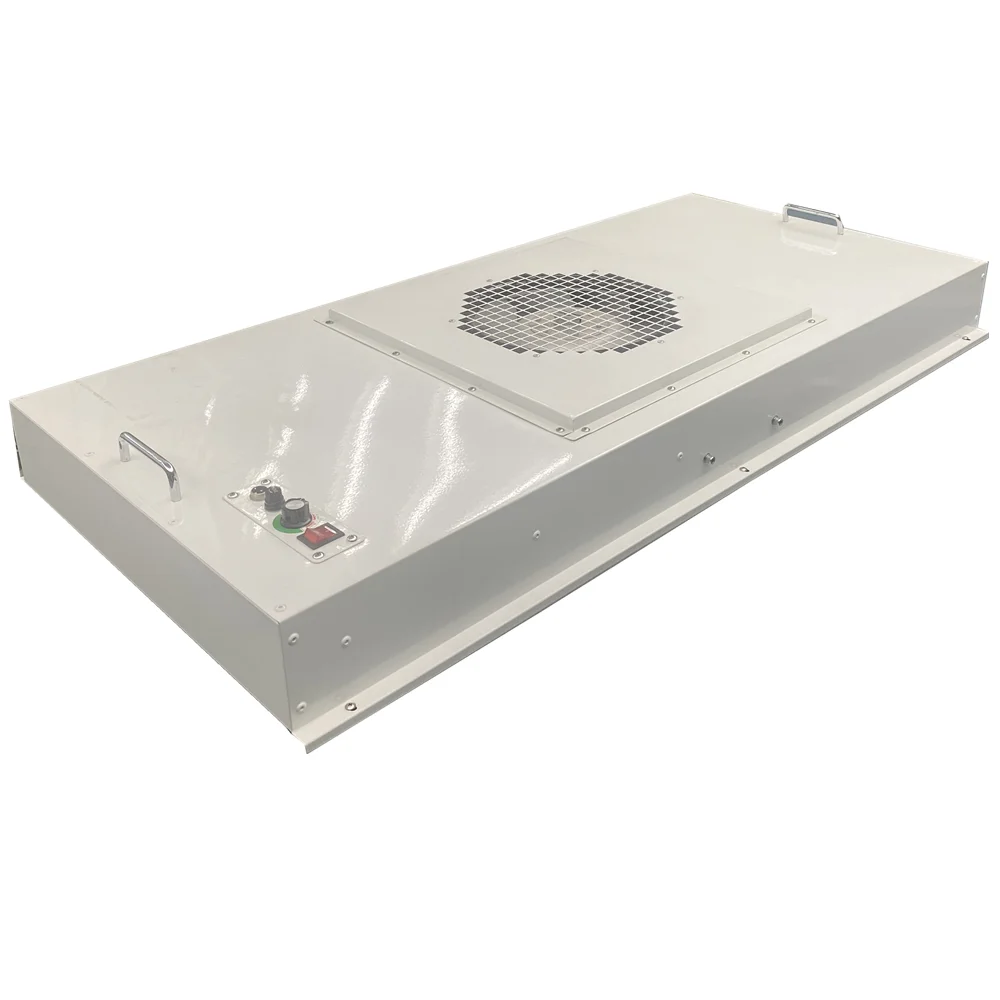

2x4 H14 ламинарный вытяжной вытяжка горизонтальный Микологический грибной с фильтром блок HEPA для чистящего помещения другое оборудование очистки
- Категории: >>>
- Поставщик: Dongguan,Leader,Clean,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

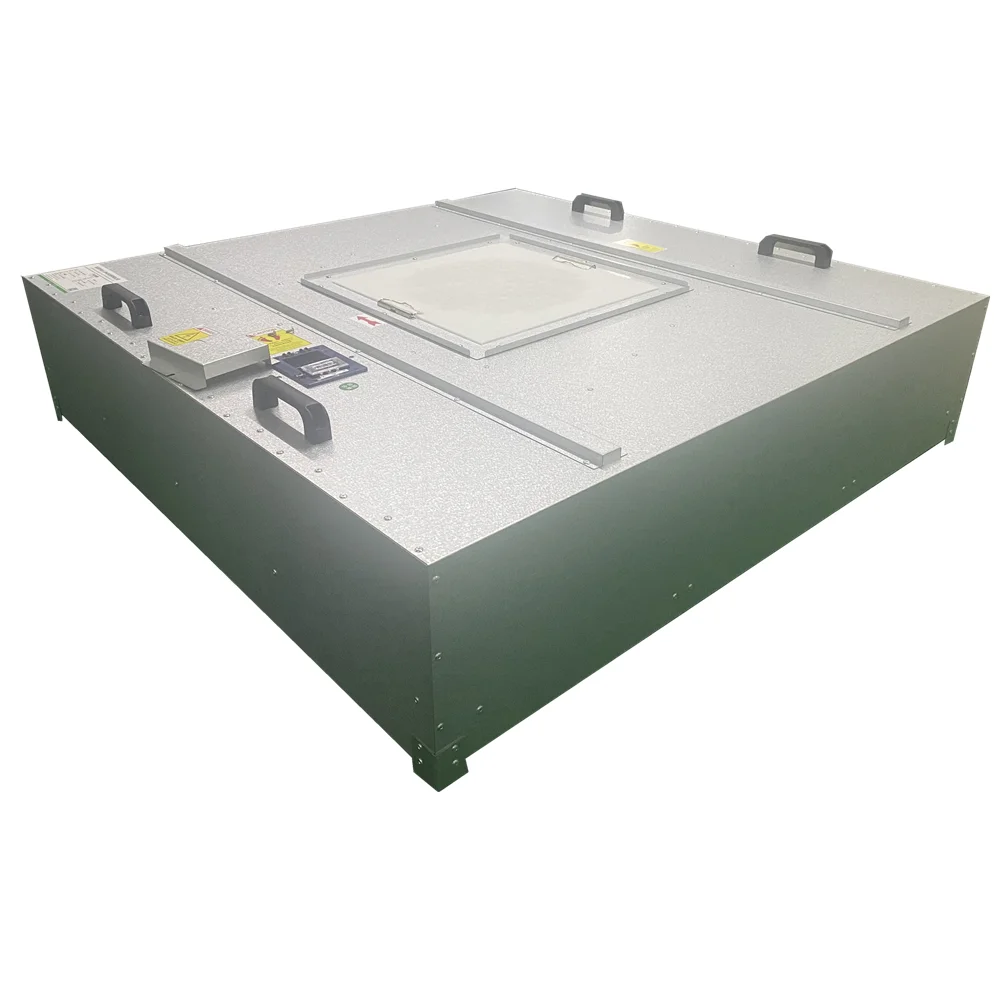

Product Overview
Application
The FFUs are mainly used to clean the air into the clean area so that it meets the requirements for a clean environment. It is installed on the T-Grid or equipment in the clean area or working area. FFUs have extensive applications such as semi-conductors,LCDs, optoelectronics, precision instruments, chemistry, biomedicines & hospitals, foods, research institutes, universities,aerospace and automobiles, painting and printing
FEATURES AT A GLANCE
Air is output evenly
Flexible control
Customizable size
The high-performance motor
Small monitoring system
Up elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
Model | LR-FFU-2*2A | LR-FFU-2*4A | LR-FFU-3*4A | LR-FFU-4*4A | LR-FFU-2.5*5A | ||||
Size of keel | 2’ * 2’/600*600 | 2’ * 4’/600*1200 | 3’ * 4’/900*1200 | 4’ * 4’/1200*1200 | 2.5’ * 5’/750*1500 | ||||
Box size (mm) (W * L * H) | 575*575*250 | 575*1175*250 | 875*1175*250 | 1175*1175*250 | 725*1475*250 | ||||
Strainer size (mm) W1 * L1 * D1 | 570*570*69 | 570*1170*69 | 870*1170*69 | 1170*1170*69 | 720*1470*69 | ||||
Air flow | 5~8 CMM | 12~18 CMM | 19~28 CMM | 21~37 CMM | 19~29 CMM | ||||
Noise | 48~54 dB(A) | 48~54 dB(A) | 50~56 dB(A) | 52~58 dB(A) | 50~56 dB(A) | ||||
Consumed power | 130-150 W | 130-150 W | 170-190 W | 235-255 W | 170-190 W | ||||
Weight | 28 kg | 35 kg | 47 kg | 55 kg | 50 kg | ||||
Material | Enameled steel sheet or Al-Zn coated steel sheet or stainless steel or enameled aluminum | ||||||||
Power supply | AC single-phase 110V or 220V 50Hz or 60Hz or AC single-phase 220V or 380V 50Hz or 60Hz | ||||||||
Speed adjustment power | 3-stage, 5-stage or stepless speed adjustment (except for 3-phase power supply) | ||||||||

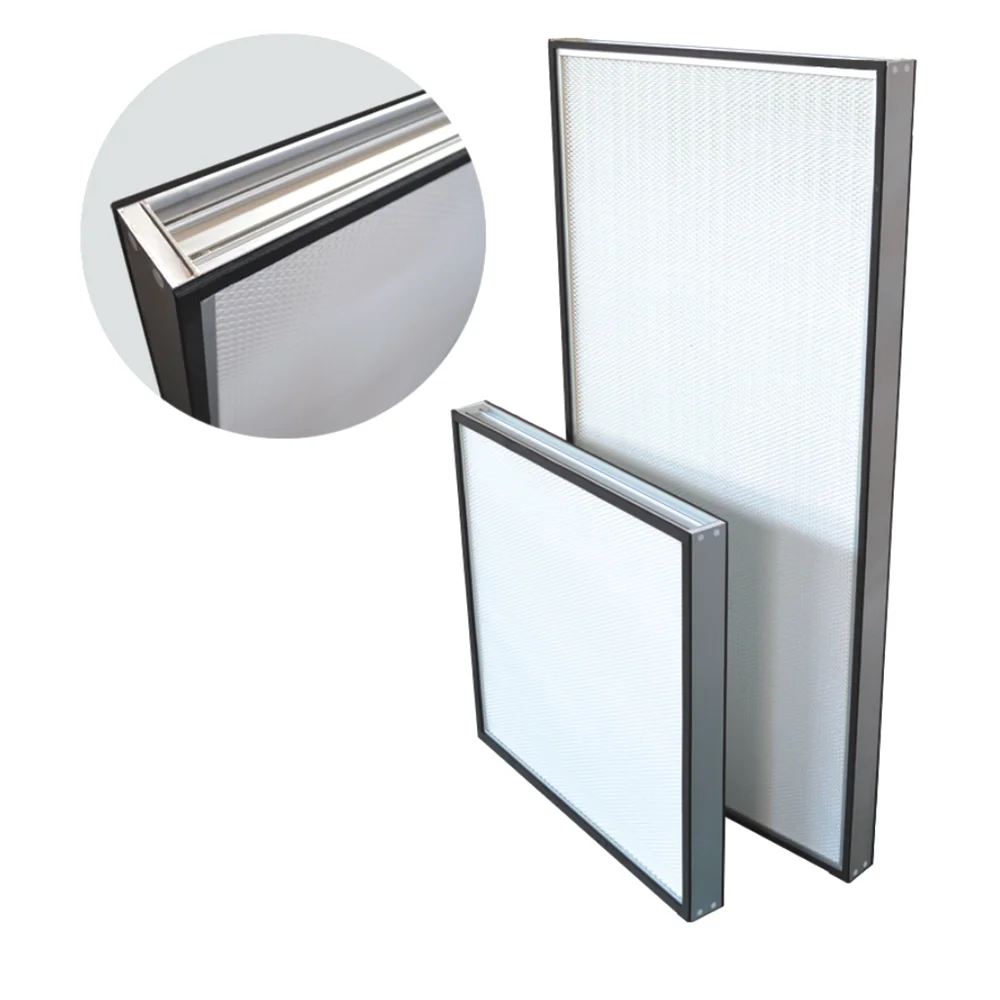

Filtering efficiency | HEPA 0.3um 99.99% or above, or ULPA 0.12um 99.999% or above | ||||||||
Operating status | Power indicator switch, operation and failure indicator lights | ||||||||
Overload protection | Dual overload protection switch including motor and controller | ||||||||
Wiring mode | Terminal block or male/female connector or power cord | ||||||||
Monitoring connection point | Reserved operational and failure dry contacts | ||||||||
PRODUCT CONFIGURATION
Air duct is designed in such a manner to ensure better current and noise than similar products.
The impeller is electrophoresis treated for resistance to acid and alkali. It has obtained a national patent
The impeller is electrophoresis treated for resistance to acid and alkali. It has obtained a national patent
Unique ring design enables increased FFU total pressure so as to ensure air flow pressure necessary for clean conditions for the
installation and to improve the service life and air flow rate of the HEPA filter.
installation and to improve the service life and air flow rate of the HEPA filter.
Small group control (99 FFUs) or PC-based large group control may be installed as appropriate.
SIMILAR PRODUCTS
Details Images

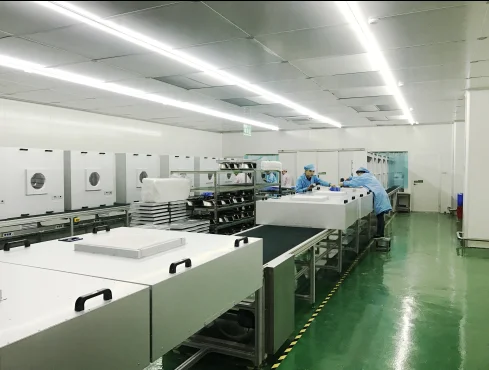

FFU assemble

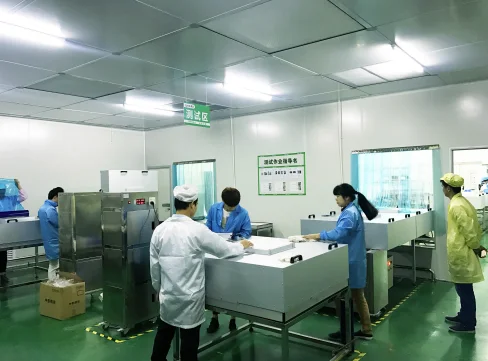

FFU testing

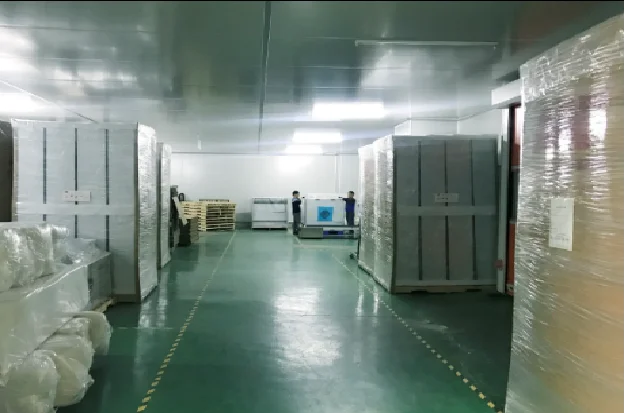

FFU packing

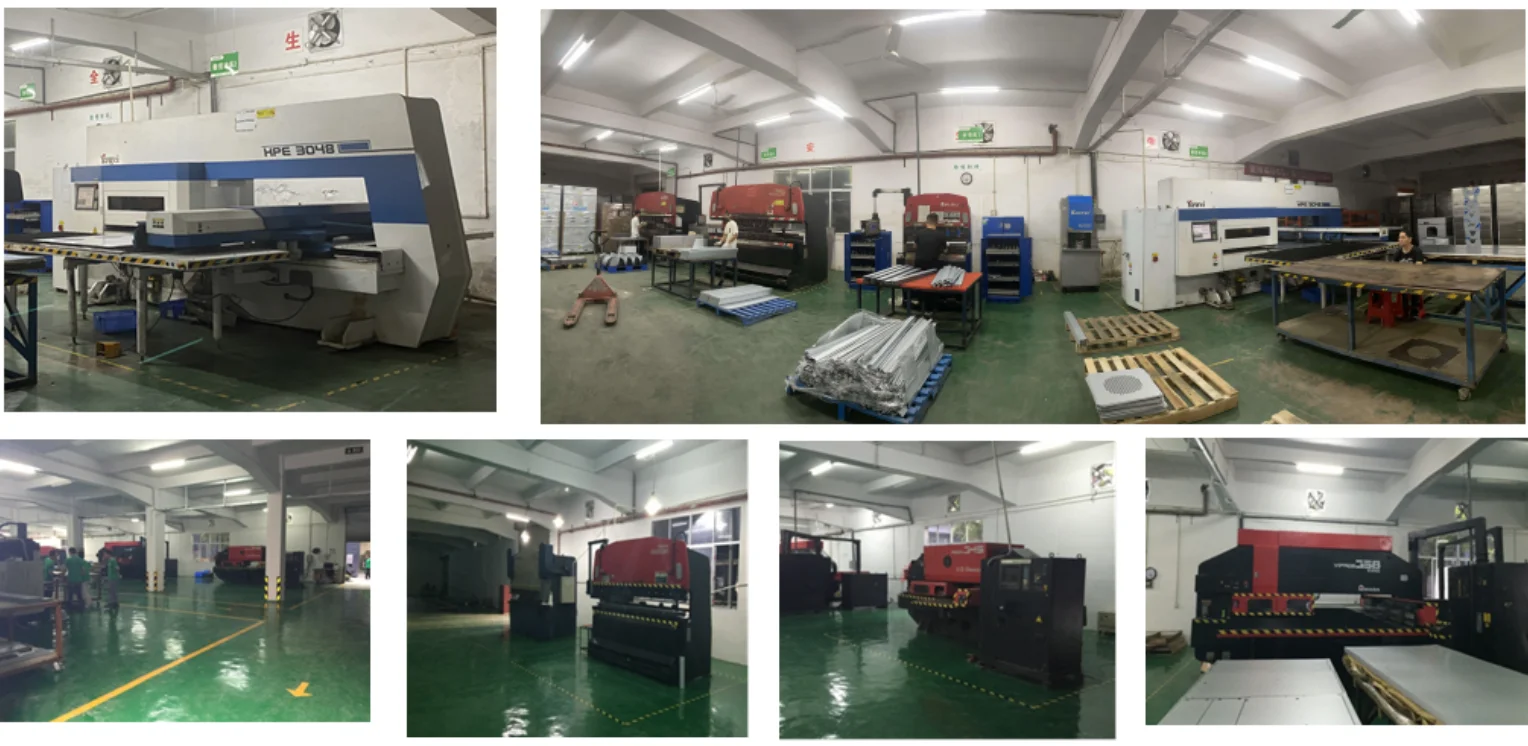

Sheet matal working place

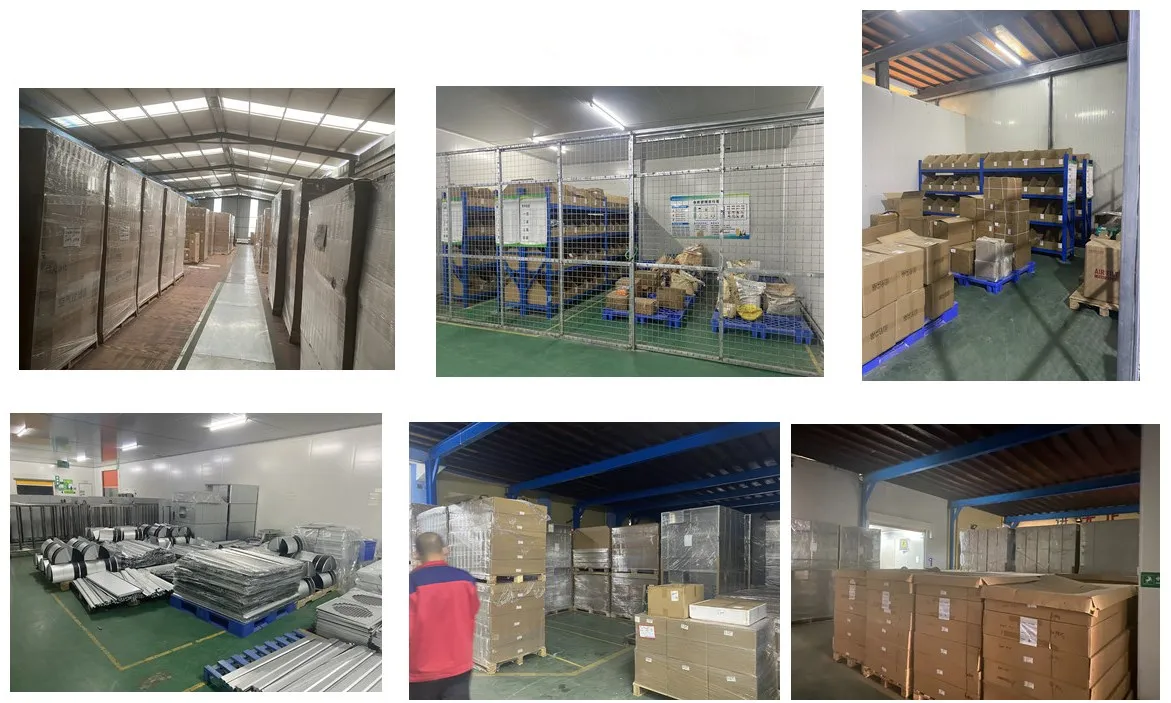

Warehouse
