It meets the requirements of process automation operation, eliminates the need for frequent manual intervention, and ensures uninterrupted production process.
Specifications Data
We will select the model for you according to your flow rate, and can customize your logo and material, as well as the connection method and size of the inlet and outlet.
Product name | Model | Diameter | Inlet/Oultlet | Refer Flow | Thickness | |
self-cleaning filter | Stainless steel automatic brush filter | YT-SZ-273 | Φ273 | DN100 | 30T/H | 4.0mm |
YT-SZ-377 | Φ377 | DN125 | 50T/H | 4.0mm | ||
YT-SZ-426 | Φ426 | DN200 | 80T/H | 4.0mm | ||
YT-SZ-612 | Φ612 | DN250 | 150T/H | 5.0mm | ||
YT-SZ-712 | Φ712 | DN300 | 260T/H | 5.0mm | ||

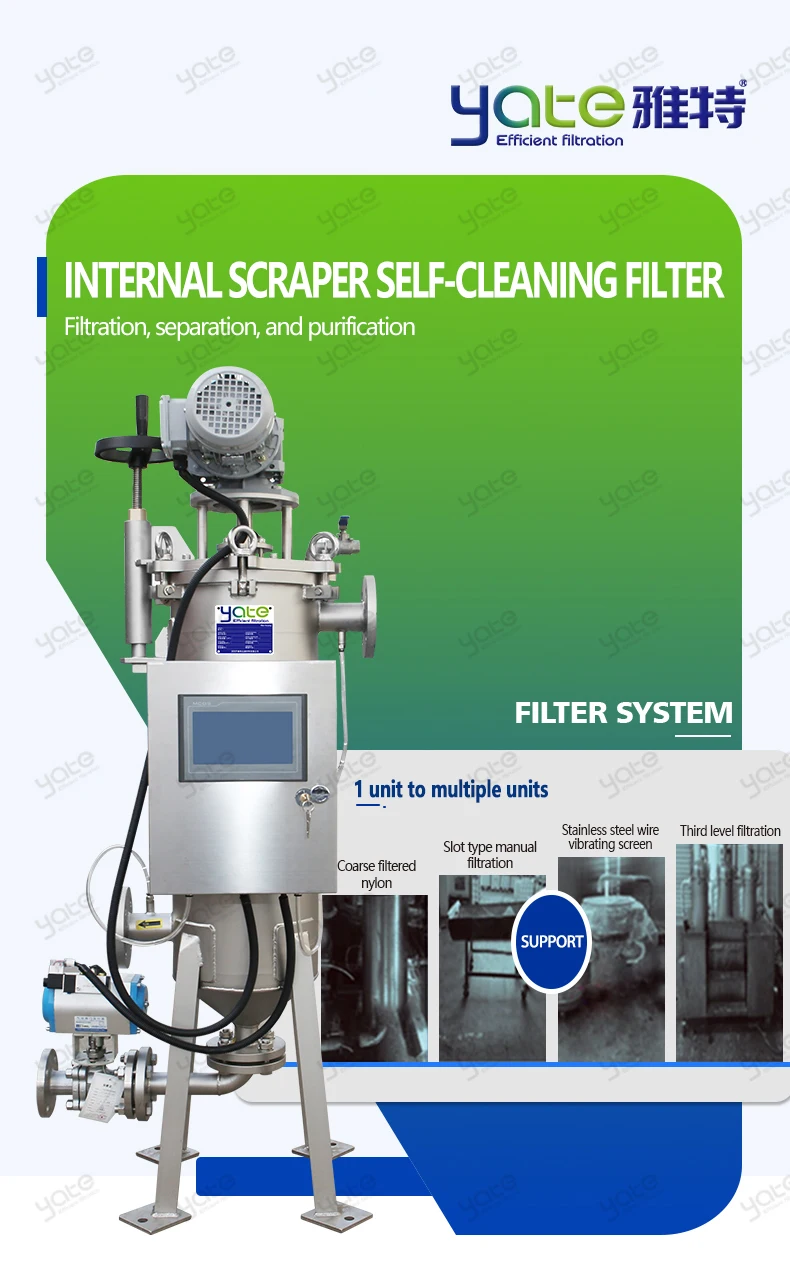

Internal scraper self-cleaning filter | YT-NG-219 | Φ219 | DN50 | 15T/H | 4.0mm | |
YT-NG-273 | Φ273 | DN65 | 20T/H | 4.0mm | ||
YT-NG-450 | Φ450 | DN80 | 50T/H | 4.0mm | ||
YT-NG-600 | Φ600 | DN100 | 100T/H | 5.0mm | ||
External scraper self-cleaning filter | YT-WG-219 | Φ219 | DN65 | 10T/H | 4.0mm | |
YT-WG-350 | Φ350 | DN65 | 20T/H | 4.0mm | ||
YT-WG-420 | Φ420 | DN80 | 30T/H | 4.0mm | ||
Backwash automatic filter | YT-FC-377-6 | Φ377 | DN80 | 40T/H | 4.0mm | |
YT-FC-400-10 | Φ400 | DN150 | 80T/H | 4.0mm | ||
YT-FC-600-20 | Φ600 | DN200 | 150T/H | 5.0mm | ||
YT-FC-700-30 | Φ700 | DN250 | 280T/H | 5.0mm |
Products Description

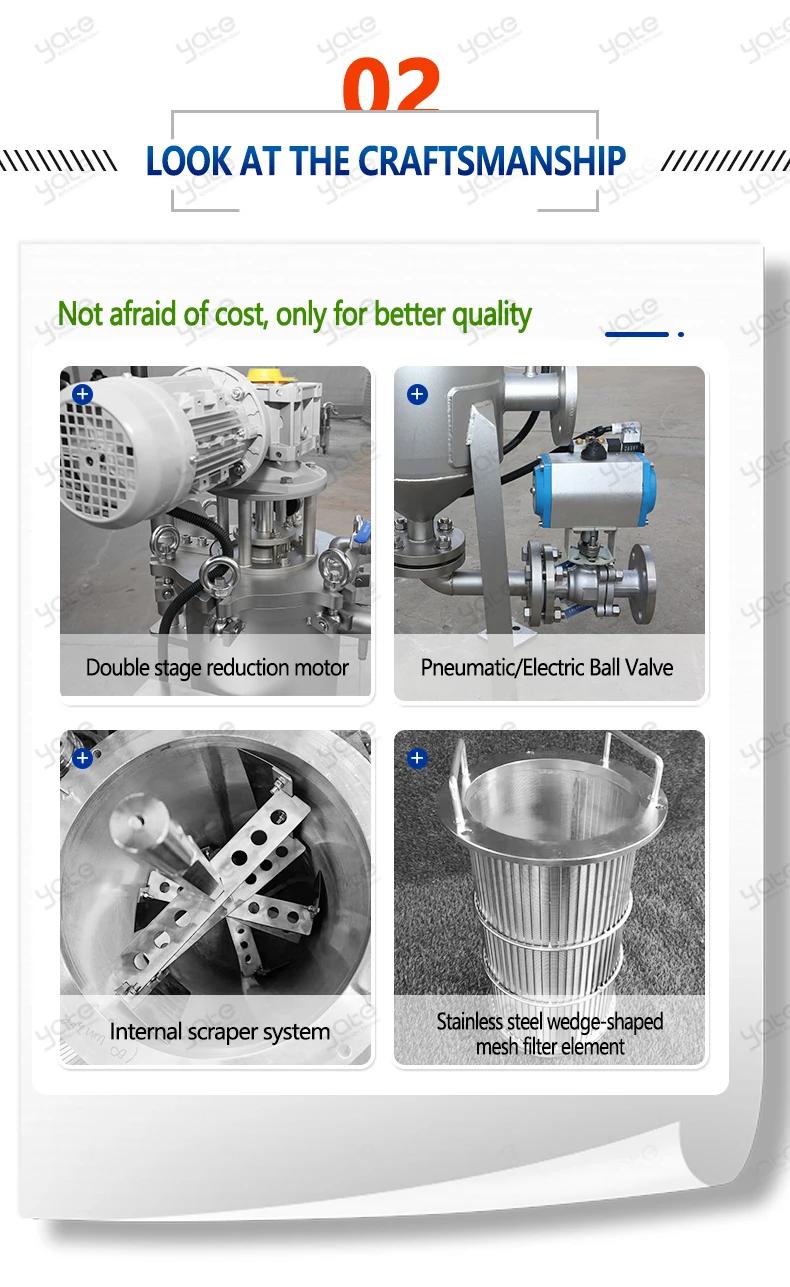

Double-stage reduction motor: Under the same input power, the torque output capacity of the double-stage reduction motor is usually greater than that of the single-stage reduction motor due to the two-stage reduction, which makes it more advantageous in situations where high torque is required.
Pneumatic electric drain ball valve: Pneumatic ball valves and electric ball valves have different advantages. Pneumatic ball valves are more sensitive and can achieve instant sewage discharge requirements. Electric ball valves are more convenient to use. They only need to be connected to a power source and can achieve instant sewage discharge requirements.
Internal scraper system: We can customize reasonable scrapers for you according to the characteristics of your liquid. There are options such as PTFE scrapers and stainless steel brushes. Engineers with 12 years of experience will give you reasonable suggestions.
Stainless steel wedge mesh filter element:The stainless steel wedge mesh has high strength and rigidity, can withstand greater pressure and load, and ensure stable operation under harsh working conditions.Especially suitable for filtering needs in high viscosity and high concentration situations

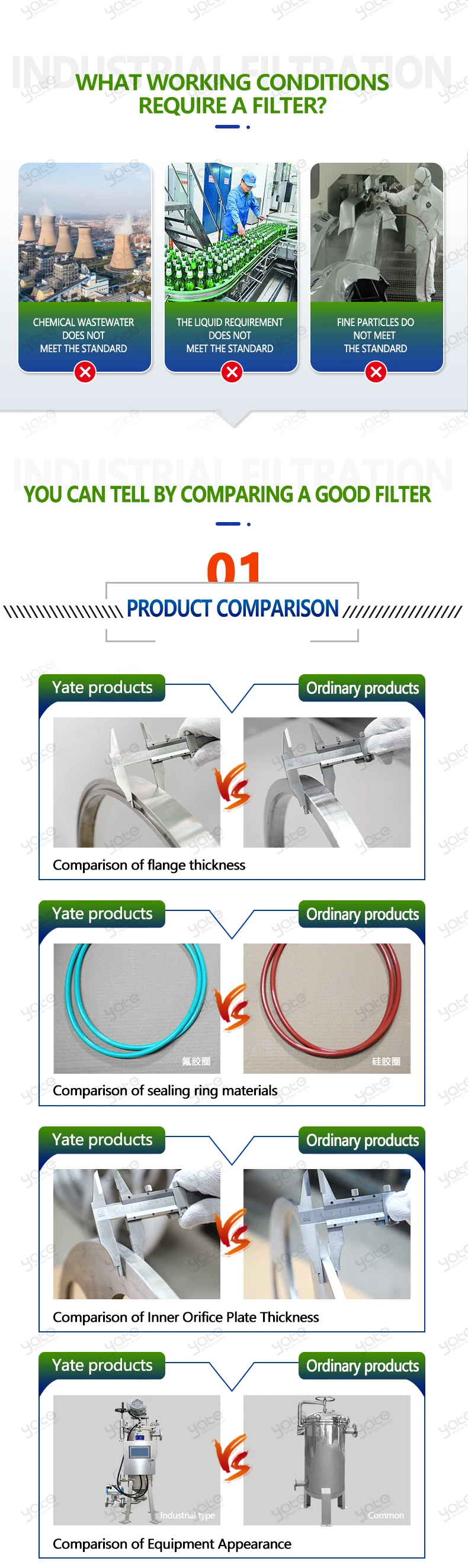

Below I will tell you the advantages of the YATE brand fully automatic filter through detailed comparison.
Flange thickness and material: YATE factory has its own laboratory, which will conduct water pressure tests on the equipment.Since it needs to meet the pressure standards, the YATE factory will choose thicker flanges to ensure the safe use of the equipment.
Sealing ring: YATE factory will select suitable and standard fluoro rubber rings for different food and beverage industries and fine chemical industries. Fluorine rubber rings are more expensive and more corrosion-resistant and wear-resistant.
Inner plate thickness:The YATE factory will choose a thicker inner hole plate, because when we conduct pressure and sealing tests on the filter housing, we find that the thicker inner hole plate has better pressure and sealing performance, and is more in line with safety standards during use.
Equipment appearance and automation comparison: Fully automatic filters have significant advantages over bag filters in terms of automation, ease of maintenance, resource conservation, reliability, adaptability, intelligent management, environmental protection and energy saving. These advantages make fully automatic filters more and more widely used in modern industrial production and water treatment and other fields.
What I want to say to you:We have two professional factories and a professional team with 12 years of experience. We have a very complete system for pre-sales, sales and after-sales services. If you want to know more, you can contact me directly and I will provide you with more information and show you my factory.
