Product Overview
QihangRAS new design 110v 220v mini rotary drum filter koi pond 5m3hr aquarium fish tank gravity feed pond filter
FEATURES AT A GLANCE
Front
Side
Top
75um 316L Stainless Steel Precision Sieve Mesh
316L stainless steel screen drum that filters contaminants largelthan 75 micron impurities (e.g., fish, bait, algae, pellets,
etc.) fromthe water stream.
etc.) fromthe water stream.

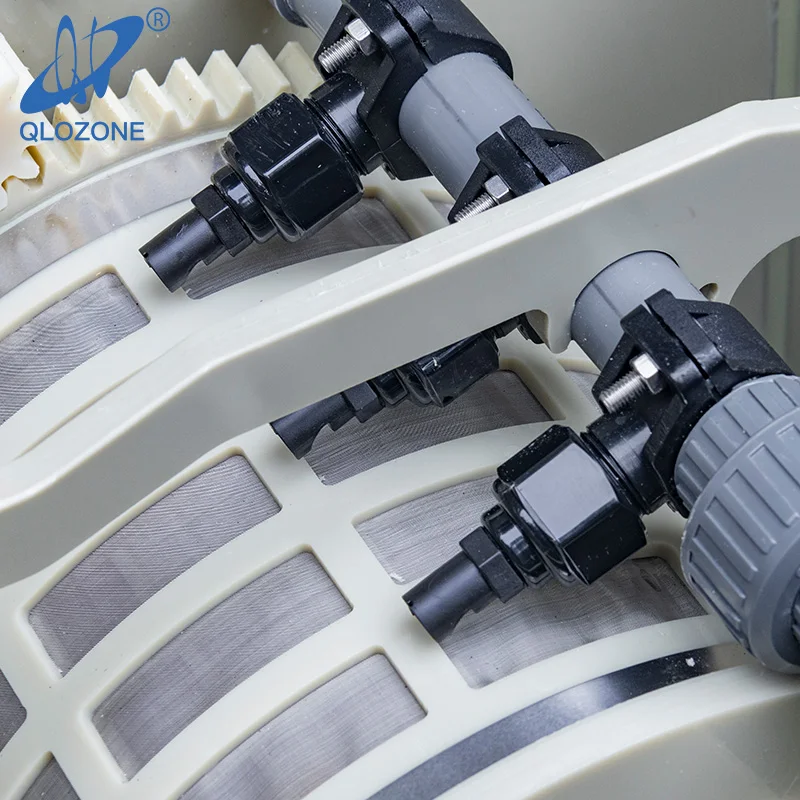

HIGH PRESSURE NOZZLE
Timed high-pressure nozzle not only saves energy, butalso has stronger cleaning ability

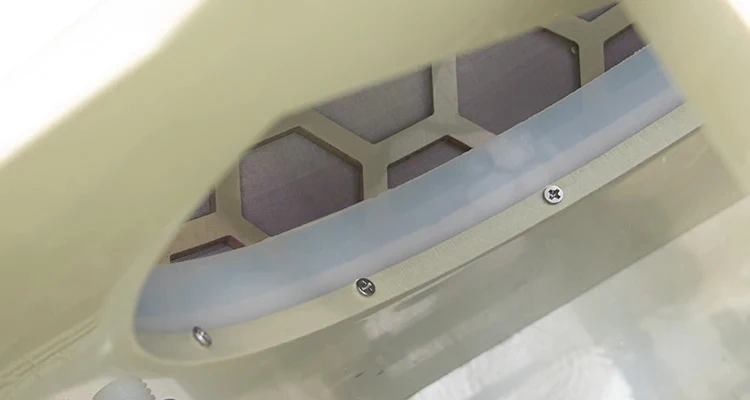

Upgraded andimproved seals
Upgraded sealing performance to effectively eliminate overflow areas

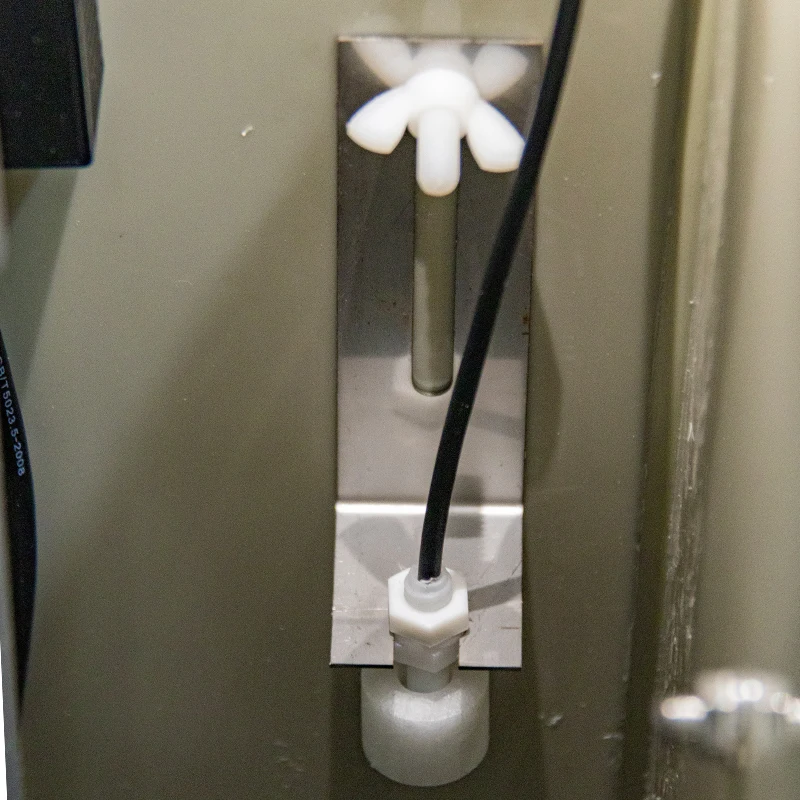

Automatically sensesclogging and flushes
Save Time - Save Effort - Save Heart As soon as a clogged cartridge is detected, thelevel sensor is activated and the
backwashprogram is carried out automatically.
backwashprogram is carried out automatically.

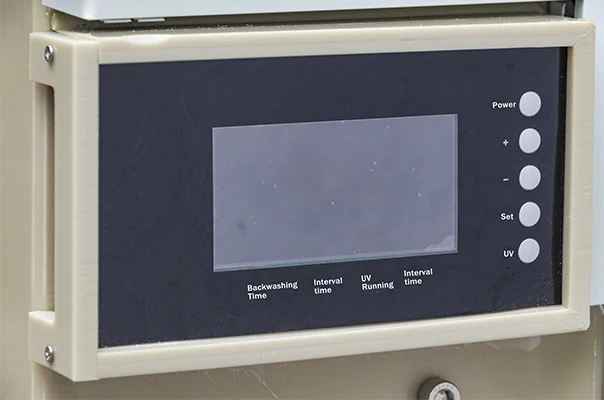

Liquid Crystal Display
Controlling each part through the panel box, and with microcomputertimer switch,reasonable and efficient cleaning of the fish pond.
PRODUCT SPECIFICATIONS
Model | QL-PM5 | QL-PM10 | QL-PM20 | QL-PM30 |
Flow | 5T/H | 10T/H | 15-20T/H | 20-30T/H |
Inlet | 50mm | 50mm*2 | 75mm*2 | 160mm |
Outlet | 63mm | 63mm*2 | 110mm*2 | 160mm |
Sewage Outfalls | 50mm | 50mm | 50mm | 50mm |
Size | 400*360*375mm | 480*380*440mm | 930*590*770mm | 2.1m*1.2m*1.1m |
Drum specifications | φ250*230MM | φ300*326MM | φ370*376MM | φ500*500MM |
Pump power | 40W | 60w | 90W | 90W |

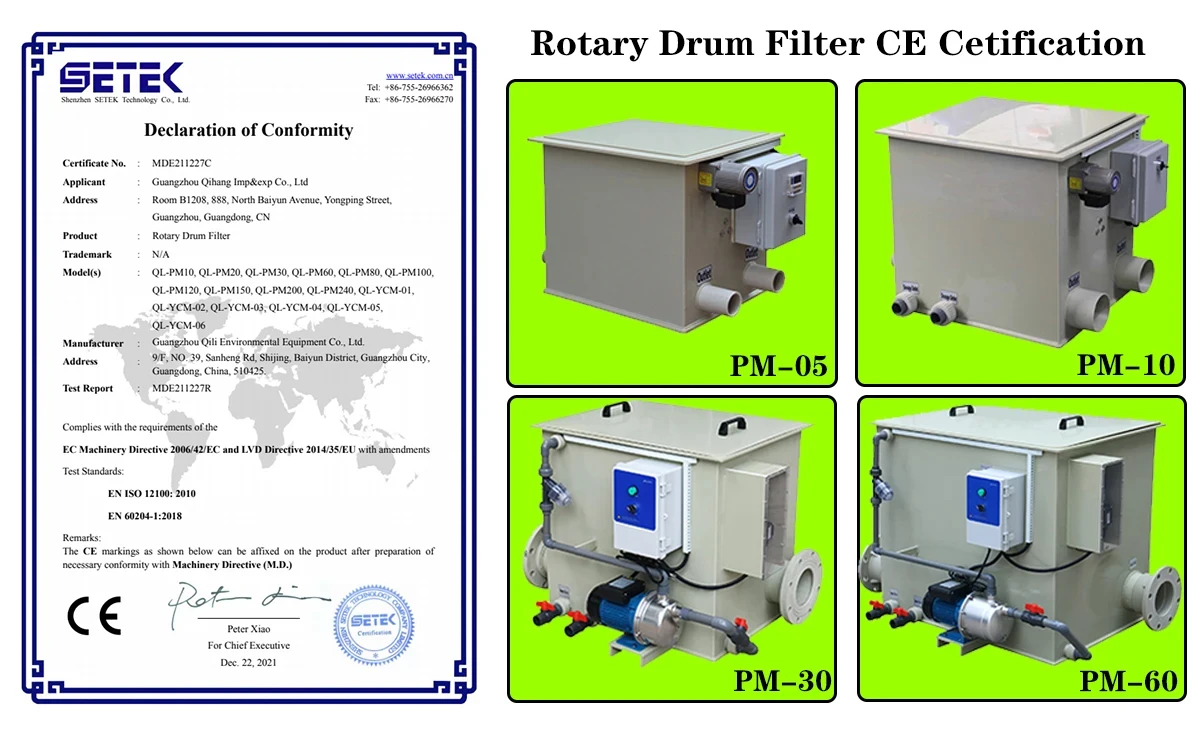

Cetification

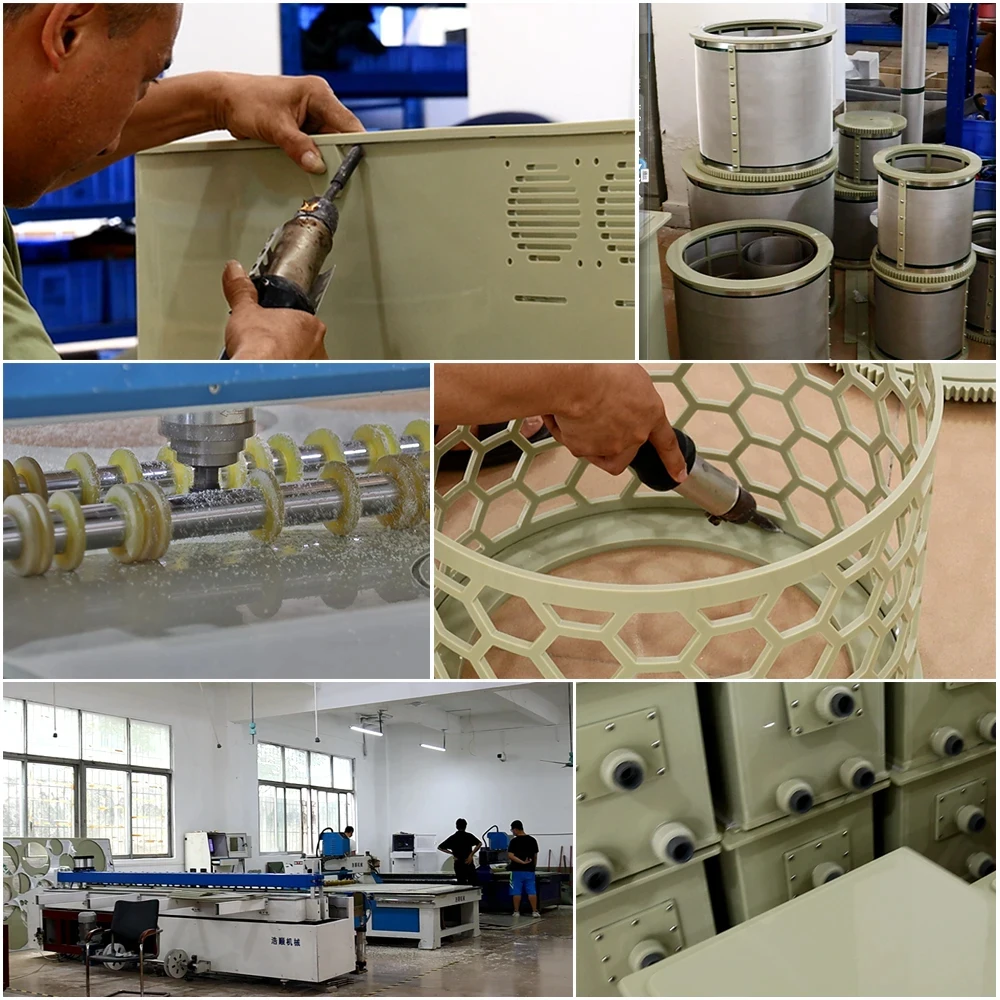

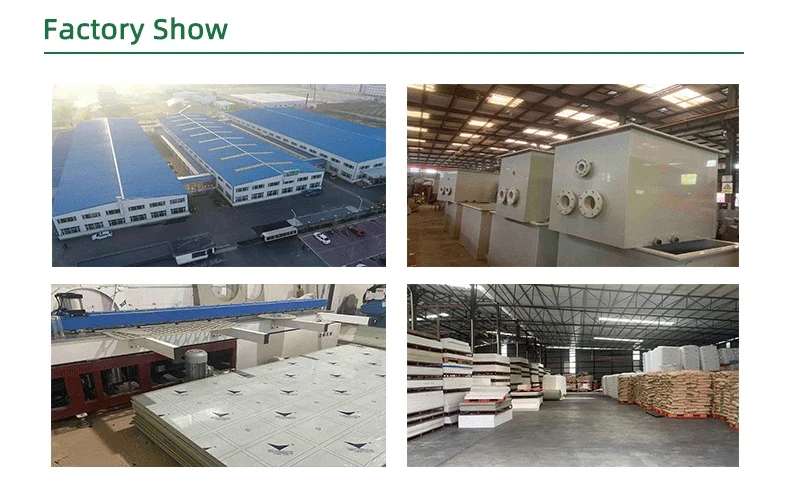

Professional Factory

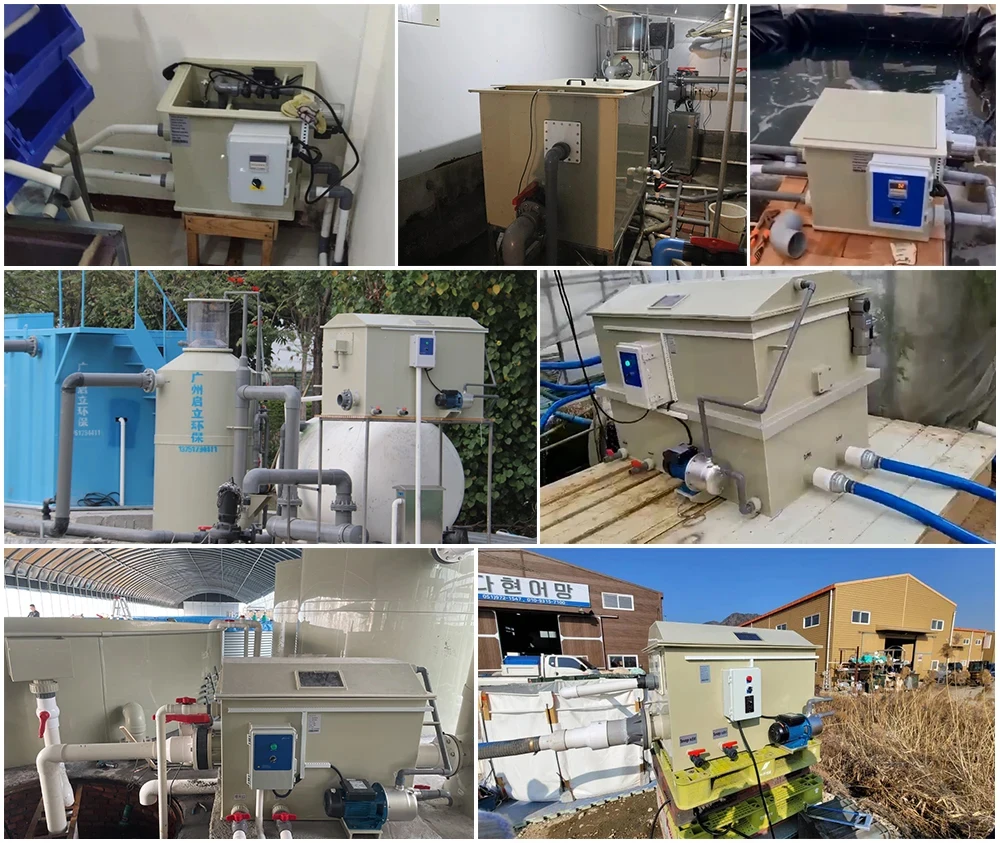

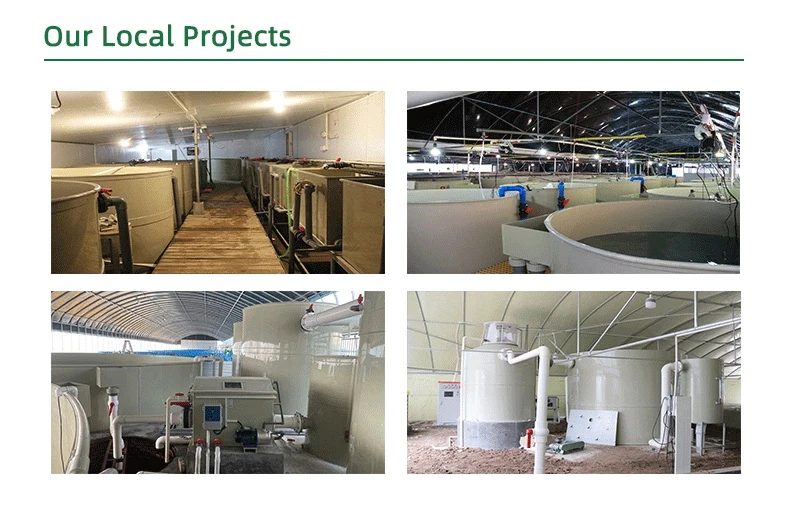

Customer Photos
Company Introduction

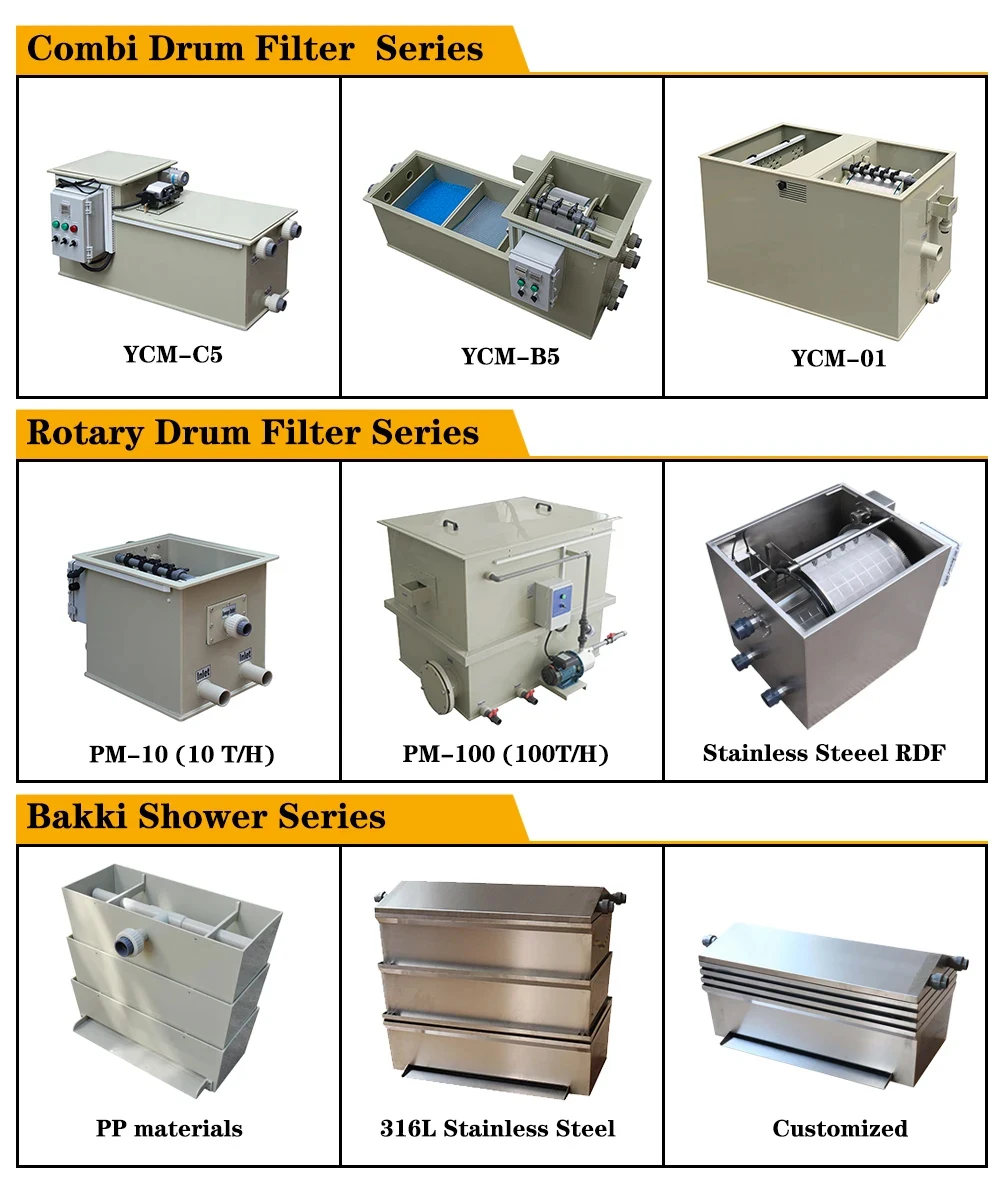

We are professional manufaturer of aquaculture equipment. Our production lines havehigh efficiency. The annual output is 60,000 sets per year. The main products include ozonegenerator; rotary drum filter; koi pond combi drum filter; protein skimmer; bio filter tower:pp tank; trickle tower; oxygen concentrator; ozone tester; ozone spare parts; temperaturecontrol system; UV lamp;oxygen cone and etc.The person in charge of QihangRAS Fisheriessaid: system design, engineering solutions and other service details are the corecompetitiveness that can't be copied by other manufacturers in the industry!
FAQ
Q: Are you manufacturer or trader?
A: We’re professional manufacturer focus on aquaculture equipment, located in Baiyun District,Guangzhou City, China. Welcome to visit us.
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
