 Plasma Cutter with Built-In Air Compressor Non-HF CUT 40 Plasma Cutting Machine(CUT-45AIR)



Product Description







1). 110V/220V dual voltage can be optional.


Advanced (IGBT) inverter technology and Single PCB structure with high duty-cycle.


2). Integrated into the machine design can make it very portable for carrying it outdoors.


3). Built-in 450W pure copper compressor, Lightweight suitable for outdoor work but powerful,


easy to operate, stable output and quiet work. Easily clean cut 8mm, Max Severance 12mm metal.


4). With external air compressor connect can supply more strong air pressure and easily clean cut 16mm,


Max Severance 25mm metal.


5). HF or Non-HF can be optional, Non-Touch Pilot Arc, 2T/4T, Air Check, dual displays show current and air pressure.


6). With Non-HF Pilot Arc function, Pilot arc will not interference to machine, safe and ideal for general use, friendly to the surrounding electrical machine and human health.


7). Non-Touch Pilot Arc applicable for grid workpiece, minimize interference with electronics and help lengthen consumable life, better cutting quality and can efficiently cut through rough surfaces, rusty surfaces, even painted surfaces, and produce    only minimal slag.


8). Built-in air regulator, safer and more convenient to operate.


9). Easy to cut thick metal plate in a fast and economical way.


10). Widely used for cutting carbon steel, stainless steel, copper and aluminum, etc.


11). Standard 10mm thickness honeycomb box is safer to protect and transport.















































































































Model



CUT-45AIR (HF Pilot Version)



CUT-45AIR (Non-HF Pilot Version)



Max


Cutting thickness(mm)



External Air Compressor



16



25



Built-in Compressor



12



12



Input Voltage(V)



1*220V-240V



1*220V-240V



Frequency (HZ)



50/60



50/60



No load voltage(V)



265



280



Input capacity (KVA)



5.2



5.2



Current range(A)



20-40



20-40



Rated Duty Cycle (%)



60%



60%



Insulation /Protection Class



F / IP21



F / IP21



Starting arc



HF Pilot



Non-HF Pilot



Power factor



0.93



0.93



Dimension (L*W*H mm)



450*210*350



450*210*350



Weight (KG)



18



18

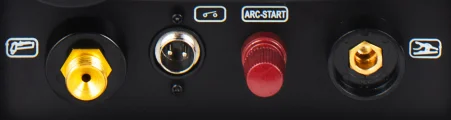

Panel Socket



Nut Type.jpg


Nut Type

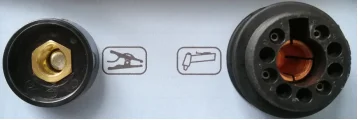

Central Socket


               Central Socket



Torch









Accessories

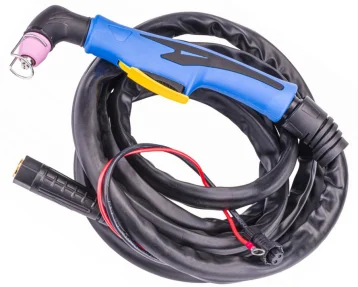

AG-60 Plasma Torch With 4M Cable, Earth Clamp With 2M Cable.



IPT-40 Plasma Torch With 4M Cable, Earth Clamp With 2M Cable.



MOQ



100PCS



100PCS
