Product Description
CAN GAS CAPN /CAPN HP series PSA Nitrogen Gas Generator
CANGAS PSA( pressure swing adsorption) on-site nitrogen generator -product gas technical indicators:
Nitrogen flow rate:5-8000Nm3/h
Nitrogen purity: ≥97%~99.9995%
Nitrogen dew point:-20~-80℃
Nitrogen outlet pressure: 0.2~1.0Mpa (adjustable)
CANGAS PSA nitrogen production equipment is divided into: 95%,97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.995%, 99.999%,99.9995
according to nitrogen purity, for your choice.
Nitrogen Generator type: PSA N2 generator , Membrane nitrogen generator , Skid mounted type ,small box type ,container type, trailer type, truck type .
CANGAS PSA( pressure swing adsorption) on-site nitrogen generator -product gas technical indicators:
Nitrogen flow rate:5-8000Nm3/h
Nitrogen purity: ≥97%~99.9995%
Nitrogen dew point:-20~-80℃
Nitrogen outlet pressure: 0.2~1.0Mpa (adjustable)
CANGAS PSA nitrogen production equipment is divided into: 95%,97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.995%, 99.999%,99.9995
according to nitrogen purity, for your choice.
Nitrogen Generator type: PSA N2 generator , Membrane nitrogen generator , Skid mounted type ,small box type ,container type, trailer type, truck type .
Nitrogen Applications for Renewable Energy
Wind Turbine Operation
One of the most well-known sources of renewable energy is the use of wind turbines. They generate electricity as wind blows and turns giant blades. The spinning blades turn an electrical generator and activate a hydraulic system and the accumulator, which create energy that can be stored and used as needed. The accumulator consists of two compartments: one filled with gas, and the other full of fluid.
An inert gas is required to keep the compartments separate and to operate the turbine. When supplied continuously, nitrogen gas can prevent these two components from mixing if there is a leak. Nitrogen is the ideal gas for this system because it does not absorb moisture and would not combust, produce hazardous pollutants, or create environmental hazards.
Wood Biomass Fuel
Wood biomass is a popular fuel for carbon-neutral, renewable energy generation. Giant silos house the wood pellets that are used for production, and while they are stored for exportation there is a higher risk of fire safety hazards. This is one of the biggest concerns with wood-pellet storage.
To reduce this risk, it is important to eliminate gases like methane in the air, which can be produced from biological and
chemical reaction activities. Since these gases are combustible, injecting inert nitrogen gas into the silo in sufficient volumes will lower the fire hazard risks.
Refinery Co-Processing
Nitrogen gas is also involved in the bioenergy process of turning forest and agricultural waste products into fuel. This
application, known as refinery co-processing, requires the use of biowaste (e.g. wood chips) as raw material and converts it to ASTM (American Society for Texting and Materials) specification renewable gasoline and diesel. Biocrude fuel can also be used for heating and cooling commercial and industrial grade boilers.
Since fuel oil is extremely combustible, nitrogen gas is used to inert refined fuel oil tanks and prevent hazards like fires and
explosions.
One of the most well-known sources of renewable energy is the use of wind turbines. They generate electricity as wind blows and turns giant blades. The spinning blades turn an electrical generator and activate a hydraulic system and the accumulator, which create energy that can be stored and used as needed. The accumulator consists of two compartments: one filled with gas, and the other full of fluid.
An inert gas is required to keep the compartments separate and to operate the turbine. When supplied continuously, nitrogen gas can prevent these two components from mixing if there is a leak. Nitrogen is the ideal gas for this system because it does not absorb moisture and would not combust, produce hazardous pollutants, or create environmental hazards.
Wood Biomass Fuel
Wood biomass is a popular fuel for carbon-neutral, renewable energy generation. Giant silos house the wood pellets that are used for production, and while they are stored for exportation there is a higher risk of fire safety hazards. This is one of the biggest concerns with wood-pellet storage.
To reduce this risk, it is important to eliminate gases like methane in the air, which can be produced from biological and
chemical reaction activities. Since these gases are combustible, injecting inert nitrogen gas into the silo in sufficient volumes will lower the fire hazard risks.
Refinery Co-Processing
Nitrogen gas is also involved in the bioenergy process of turning forest and agricultural waste products into fuel. This
application, known as refinery co-processing, requires the use of biowaste (e.g. wood chips) as raw material and converts it to ASTM (American Society for Texting and Materials) specification renewable gasoline and diesel. Biocrude fuel can also be used for heating and cooling commercial and industrial grade boilers.
Since fuel oil is extremely combustible, nitrogen gas is used to inert refined fuel oil tanks and prevent hazards like fires and
explosions.

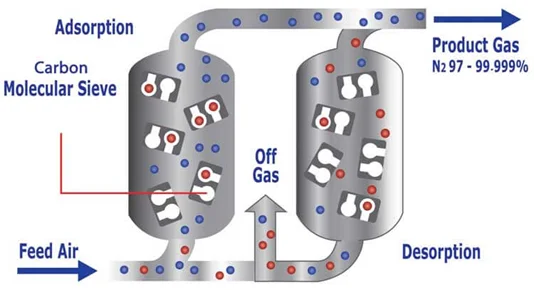

Working Principle
How to select nitrogen generator
Tell CAN GAS purity/ pressure/ flow rate needed in your application, our professional sales team will help you .
Host model | Extended model | Purity（%） | 99.999 | 99.995 | 99.99 | 99.9 | 99.5 | |||||||
CAPN HP-2 | CAPN HP-2 | Capacity（Nm³/h） | 1.12 | 1.76 | 2 | / | / | |||||||
Size（mm） | 1120×950×1110 | / | ||||||||||||
Weight（KG） | 397 | |||||||||||||
CAPN HP-2C | Size（mm） | 1200×1100×1150 | ||||||||||||
Weight（KG） | 437 | |||||||||||||
CAPN HP-10 | CAPN HP-10 | Capacity（Nm³/h） | 5.6 | 8.8 | 10 | / | / | |||||||
Size（mm） | 1270×1030×1740 | |||||||||||||
Weight（KG） | 550 | |||||||||||||
CAPN HP-10C | Size（mm） | 1350×1100×1800 | ||||||||||||
Weight（KG） | 600 | |||||||||||||
CAPN HP-35 | CAPN HP-35 | Capacity（Nm³/h） | 19.6 | 30.8 | 35 | 56 | 64.4 | |||||||
Size（mm） | 1600×1450×1950 | |||||||||||||
Weight（KG） | 1400 | |||||||||||||
CAPN HP-35C | Size（mm） | 1700×1550×2000 | ||||||||||||
Weight（KG） | 1450 | |||||||||||||
CAPN HP-80 | CAPN HP-80 | Capacity（Nm³/h） | 44.8 | 80 | 128 | 160 | 192 | |||||||
Size（mm） | 2000×1800×2500 | 1900×1200×2350 | ||||||||||||
Weight（KG） | 2036 | 1614 | ||||||||||||
CAPN HP-80C | Size（mm） | 2100×1900×2600 | / | |||||||||||
Weight（KG） | 2096 | |||||||||||||
The above table shows some models of nitrogen generators, others can be customizable. | ||||||||||||||
Company Profile
We have the largest professional production base of PSA oxygen generators，PSA nitrogen generator,membrane nitrogen
generator,medical on-site oxygen generator etc air seperation system in China since 1998, covers an area of 28,000m2.
1. One of the most experienced manufacturer of air separation Unit(ASU) in China CAN GAS is one of the first air separation technology developing companies in China, dedicated to researching and developing more suitable onsite medical gas solutions for hospitals.
2. Most professional oxygen generator manufacturer in China
(1)Since establishment, R&D and production of ASU is our professional field.
(2)The only company own High-tech enterprise and new tech product/service certificate for medical PSA oxygen generator.
(3)The most patent certificate for medical oxygen generator and software copyright.
(4)Unique company covering business sectors, medical, commercial and artificial environment.
(5)Trusted by customers and distributors
generator,medical on-site oxygen generator etc air seperation system in China since 1998, covers an area of 28,000m2.
1. One of the most experienced manufacturer of air separation Unit(ASU) in China CAN GAS is one of the first air separation technology developing companies in China, dedicated to researching and developing more suitable onsite medical gas solutions for hospitals.
2. Most professional oxygen generator manufacturer in China
(1)Since establishment, R&D and production of ASU is our professional field.
(2)The only company own High-tech enterprise and new tech product/service certificate for medical PSA oxygen generator.
(3)The most patent certificate for medical oxygen generator and software copyright.
(4)Unique company covering business sectors, medical, commercial and artificial environment.
(5)Trusted by customers and distributors
Certifications
References
Service
After service and Warranty:
Warranty: PERIOD of warranty is 18 months after shipment or 12 months after commissioning, whichever occurs first. It is responsible for CANGAS to analysis, answer breakdowns for users all through the working life of CANGAS oxygen generator. Engineer can be sent on-site for free after-service service if necessary. Please refer to Warranty terms for more information.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
