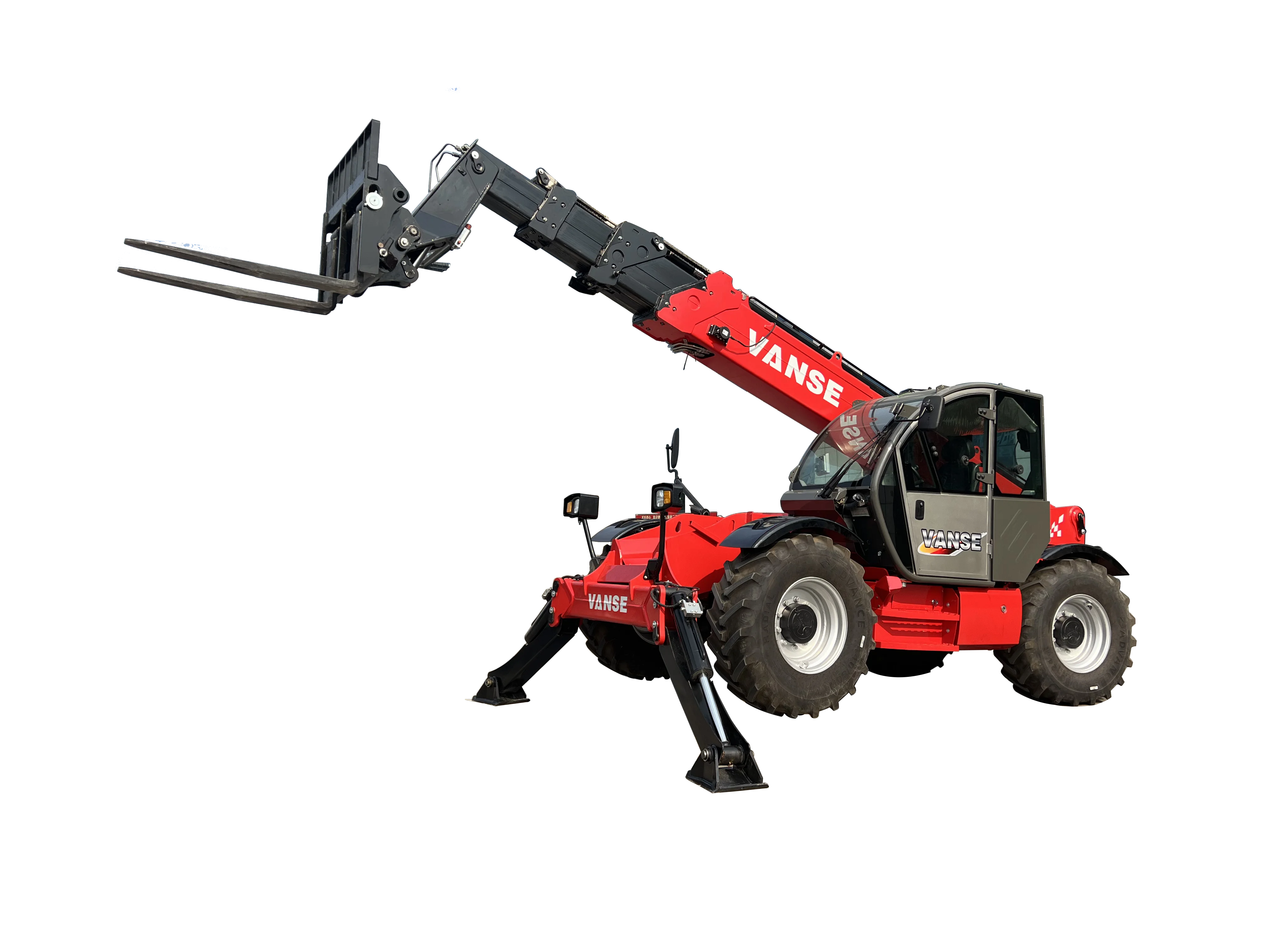

Мини-китайский 2 5-16 тонный дизельный кран со стрелой телескопический погрузчик для

Max. capacity

4000 kg

8818 lb

Max. lifting height

17.6 m

57 ft 8 in

Max. outreach

13.1 m

43 ft

Breakout force with bucket

7500 daN

7500 daN

Lift capacity at maximum height

2500 kg

5511 lb

Lift capacity at maximum reach

700 kg

1544 lb

Dimension

Overall length

6.24m

20 ft 6 in.

Overall width

2.42 m

8 ft

Overall height

2.7 m

8 ft 9 in.

Wheelbase

3.07 m

10 ft 1 in.

Front track

1.96 m

6 ft 6 in.

Ground clearance

0.41 m

16.2 in.

Tilt angle

±9º

±9º

External turning radius(overtyres)

4.2 m

13 ft 9 in.

Overall cab width

0.98 m

3 ft 4 in.

Tires type

440/80R24

440/80R24

Performance

Lifting

7.5 s-17.5 s

7.5 s-17.5 s

Lowering

13.5-23.5 s

13.5-23.5 s

Extension

12.5-22.5 s

12.5-22.5 s

Retraction

8 s-18 s

8 s-18 s

Crowd

5.5 s-24.8 s

5.5 s-24.8 s

Dump

7.3 s-17.2 s

7.3 s-17.2 s

Engine

Engine brand

Cummins

Cummins

Engine model

QSB3.9-C110

QSB3.9-C110

Displacement

3.9 L

1.1 gal

Cooling method

Water Cooling

Water Cooling

Max. power

81/2200 kW

109/2950 hp

Max. torque

480 Nm

354.1 ft.-lb.

Traction force

70.5 kN

15849 lbf
