Контроллер клавиатуры TEVO-KB200PRO RS422/RS485/RS232/RJ45(Ethernet) 5 'ЖК-экран в режиме реального времени Предпросмотр 4D джойстик для церкви прямом
- Категории: >>>
- Поставщик: Sz,Tenveo,Video,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
4D Joystick Keyboard Controller + 20X NDI Camera

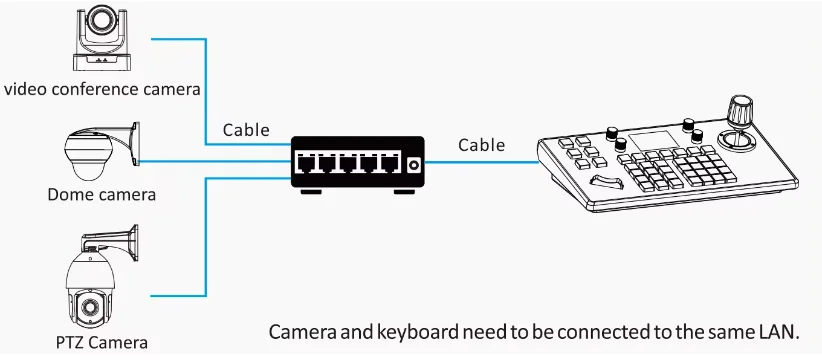

This combination of Joystick keyboard controller and camera works well for church live streaming, studio broadcasting, video conferencing. Camera and keyboard need to be connected to the same LAN.
* Support IP version and Analog version at same time * Support full VISCA, ONVIF, PELCO-P, PELCO-D protocl
* Support control the software function of the conference camera

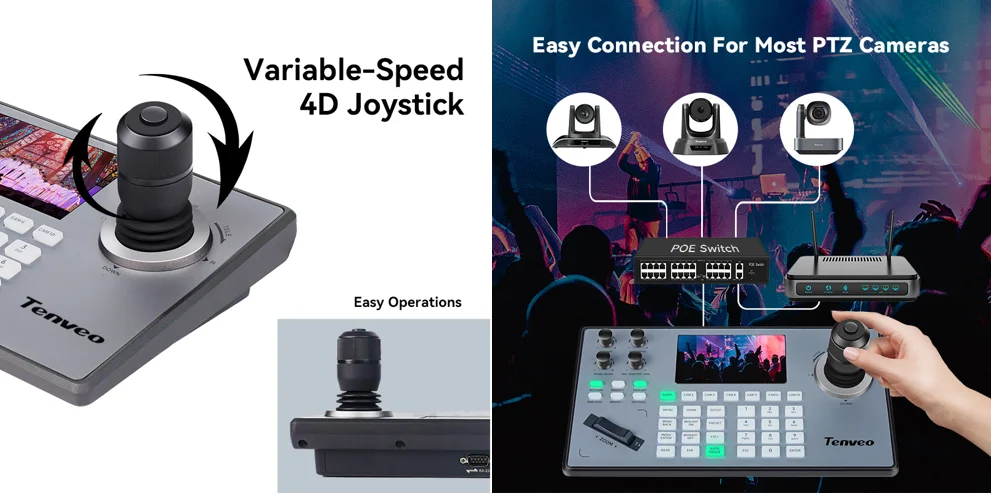

* Support 4D joystick control ptz function
* Seesaw switch control zoom speed
* Support IE web setting
* Support 7 buttons for CAM1 to CAM7 ,fast switch easily
* Support POE
* Support control the software function of the conference camera
* Support 4D joystick control ptz function
* Seesaw switch control zoom speed
* Support IE web setting
* Support 7 buttons for CAM1 to CAM7 ,fast switch easily
* Support POE
Product Parameters
4D Joystick Controller | ||
Product Model No. | KB200Pro | |
CHIP | HIS3536DV100 | |
SYSTEM | Linux | |
Max equipment | 999 | |
Decoding | H.265, H.264 | |
RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps | |
PROTOCOL | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF | |
Camera Control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES | |
User Interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 | |
Joystick | 4D | |

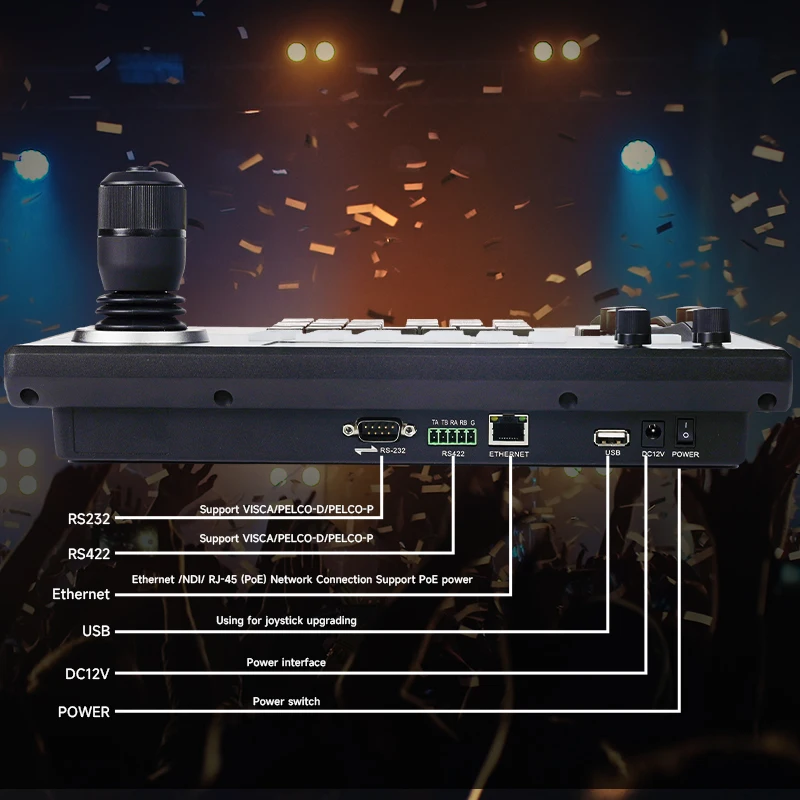

Output | RS232, RS422, RJ45 | |
Accessories | Knob, Silicone button | |
Beep | On/off | |
Display | TFT LCD 720*1280 | |
Max camera control | Max 255 | |
Power consumption | ≤5W | |
POWER | DC12V-2A POE | |
Product Size | 321*181*116mm/354*221*135mm (before/after packing) | |
Product Weight | 1.83kg/2.45kg( (net / gross weight)) | |
Application Scenarios & Installations
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
