Product Overview
1325 4*8ft CO2 Laser Cutting & Engraving Machine
Our machine is widely used in Advertisment, Crafts gift, shoes, toys, comuters, garments, mode cutting, building, packaging, paper industry, electronics and electrial appliances, etcs.
1325 CO2 LASER CUTTING AND ENGRAVING MACHINE
1. Support Latest Software AutoCAD, CDR and other graphical software
2. Offline control System which can not only work without computer, but also can connect to U Disk, USB communication.
3. Adopt high precision stepper motor and drive, utilizes three original guide rail tracks in X and Y axis.
4. LCD Control panel in English, convenient to operate
5. Strong machine frame, ensure stable performance during high speed cutting and engraving
6. Humanized design workbench, hardy material recycling drawer.
2. Offline control System which can not only work without computer, but also can connect to U Disk, USB communication.
3. Adopt high precision stepper motor and drive, utilizes three original guide rail tracks in X and Y axis.
4. LCD Control panel in English, convenient to operate
5. Strong machine frame, ensure stable performance during high speed cutting and engraving
6. Humanized design workbench, hardy material recycling drawer.

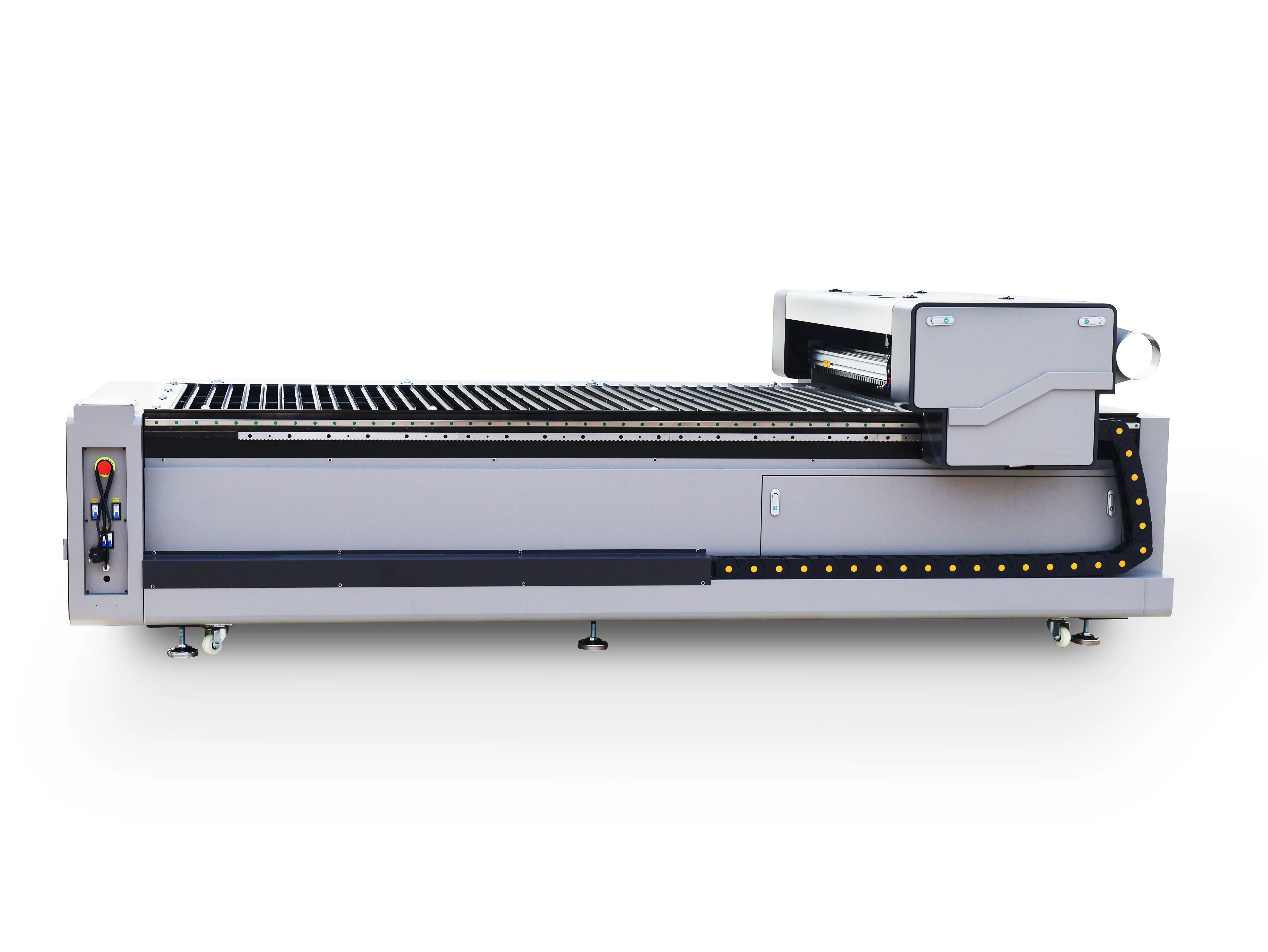

Front Side
Right Side
Left Side
PRODUCT SPECIFICATIONS
1 | Model | LY-1325 |
2 | Working Size | 1300*2500mm / 4*8 feet |
3 | Laser Type | Sealed CO2 Glass Laser Tube |
4 | Laser Power | 100W/130W/150W/300W/500W |
5 | Laser Brand | Yongli/EFR/RECI and other brand on optional |
6 | Cooling System | Water Chiller |
7 | Engrave Speed | 0-60000mm/min |
8 | Cut Speed | 0-30000mmm/min |
9 | Position Accuracy | ≤0.01mm |
10 | Control & Drive | High Speed Offline DSP Control |
11 | Voltage | 22OV±10% 50-60HZ |
12 | Power | ≤2500W |
13 | Working Environment | Temperature：0-45 ℃ Humidity：5%-90% （No Condensing Water） |
14 | Support Format | PLT, DST, DXF, DWG, AI, LAS, etc |
15 | Support Software | Support AutoCAD, Coreldraw Output Directly |
PRODUCT CONFIGURATION

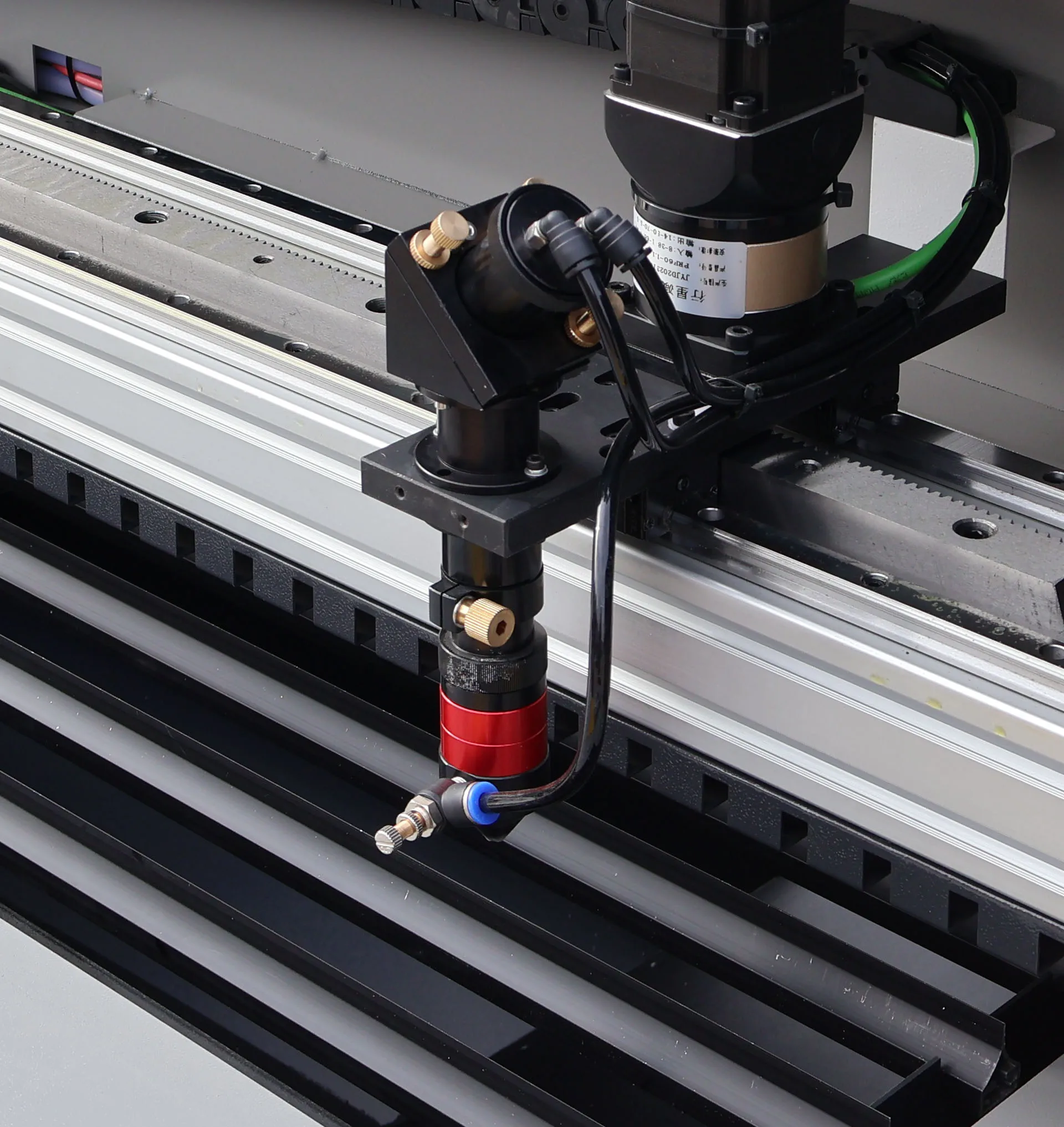

Laser Cutting Head
Industrial Grade Lever laser cutitng head，Long-Life Span For Cutting.
High Cutting Speed
High Cutting Accuracy
Durable Cutting

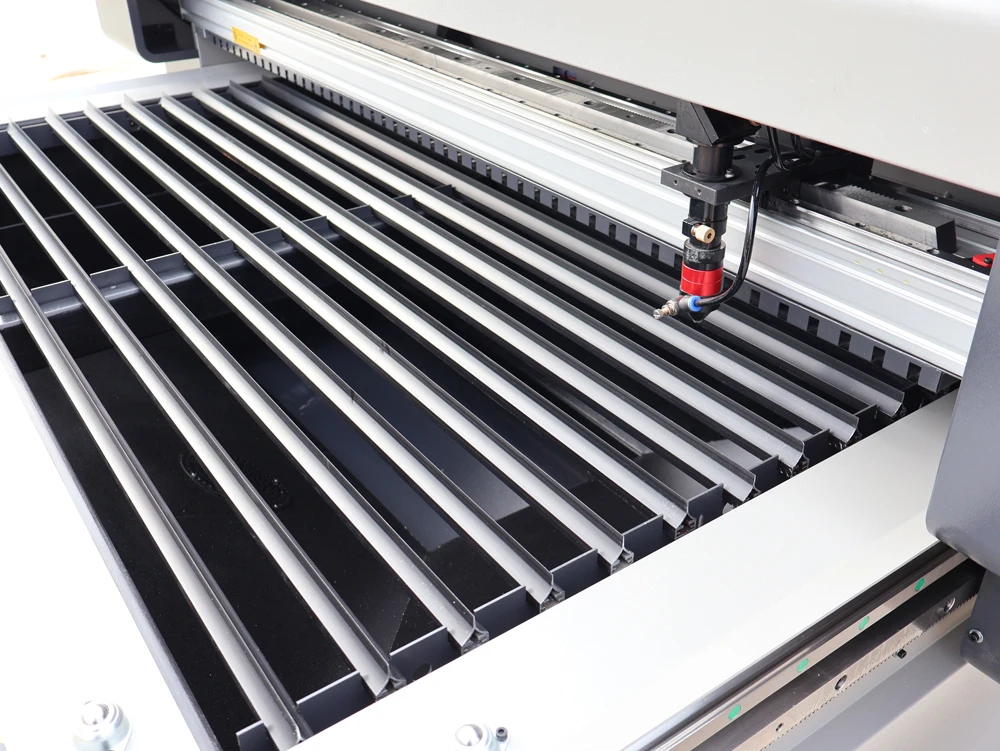

Blade Cutting Table with Size：1300*2500mm

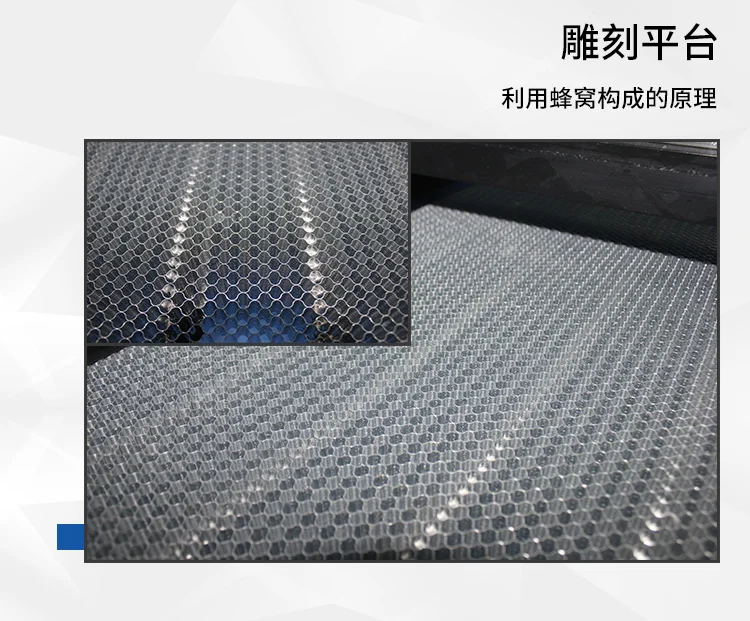

Honeycomb Working Table On Option
Honeycomb Table with Size：1300*2500mm
X Axis Rack & Pinion Transmission
Y Axis Rack & Pinion Transmission
CO2 Laser Tube-Yongli/EFR/Reci On Option
Ruida Control Panel
Leadshine Motor
Applicable material
Package & Shipment
Machine Size | 3550*2030*1200mm |
Net Weight | 650 KGS |
Packing Size | 3670*2180*1430mm / 11.44CBM |
Packing Weight | 800 KGS |
40HQ Container Loading Quantity | 6 Sets |
Packing Photos Display
2 Sets
4 Sets
6 Sets
