Steel Profile - Suspended Ceiling And Drywall Stud & Track
CUSTOMER FEEDBACK
CERTIFICATION
Why TRUSUS Building Material Manufacturer CO., LTD is your best choice?
TRUSUS TEAM guarantees ' TRUSUS ' as following
Trust us from heart cooperation
Reasonable price
Unique quality
Schedule delivery on time
Updated technology and equipment
Service warmly
1.DESCRIPTION
TRUSUS steel channel is made from hot cold-rolled galvanized steel, and we adopt advanced
process and technology to produce it. According to customer's requirement, special specification
is accepted for OEM.
2. ADVANTAGE
- Good quality galvanized steel is produced from large and advanced production line, high strength and good flexibility
- Continuous hot dip galvanizing process, deep zinc thickness, corrosion resistance.
- Nice and special design on surface, easily to fix the screw
- High strength framework for gypsum
3. SPECIFICATION
Ceiling Channel Specification
Item | Size(mm) | Thickness(mm) | |
Load Channel | 38 DU | 38×12 | 1.0 1.2 |
50 DU | 50×15 | 1.0 1.2 | |
60 DU | 60×27 | 1.2 1.5 | |
Cover Channel | 50DC | 50×19 | 0.5 0.6 |
60DC | 60×27 | 0.6 | |
50 Wall Angle | 20×20×30 | 0.45 0.5 | |
Remark: Special size is accepted according to customer's requirement | |||
Drywall Channel Specification
Item | Size(mm) | Thickness(mm) |
C Steel Channel | 50*35/40 | 0.35-1.2 |
(Stud) | 75*35/40 | 0.35-1.2 |
| 100*35/40 | 0.35-1.2 |
U Steel Channel | 50*40/45 | 0.35-1.2 |
(Runner) | 75*40/45 | 0.35-1.2 |
| 100*40/45 | 0.35-1.2 |
Remark: Special size is accepted according to customer’s requirement | ||
4. TECHNICAL PERFORMANCE
Inspection Item | Standard | Inspection Value | |
Appearance | No corrosion, no damage, no black speckle and no pock points | Pass | |
Both surface galvanization | ≥100g/m² | 115g/m² | |
Load Channel | Dimension difference A | Dimension A:±0.4mm | -0.3——0.2mm |
Dimension difference B | Dimension B: ±1.0mm | -0.5——0.5mm | |
Cover Channel | Dimension difference A | Dimension A:±1.0mm | -0.4——0.1mm |
Dimension difference B | Dimension B:±0.4mm | -0.3——0.1mm | |
Side flatness | ≤1.5mm/1000mm | 0.6mm/1000mm | |
Underside flatness | ≤1.5mm/1000mm | 0.5mm/1000mm | |
Angle difference | ≤1°15′ | 1° 5′ | |
Load Channel | Load test | Strengthen flexibility limitation 5.0mm | Strengthen flexibility 4.2mm |
Cover Channel | Load test | Strengthen flexibility limitation10.0mm | Strengthen flexibility 8.9mm |
Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm | |||
5. PRODUCTION LINE

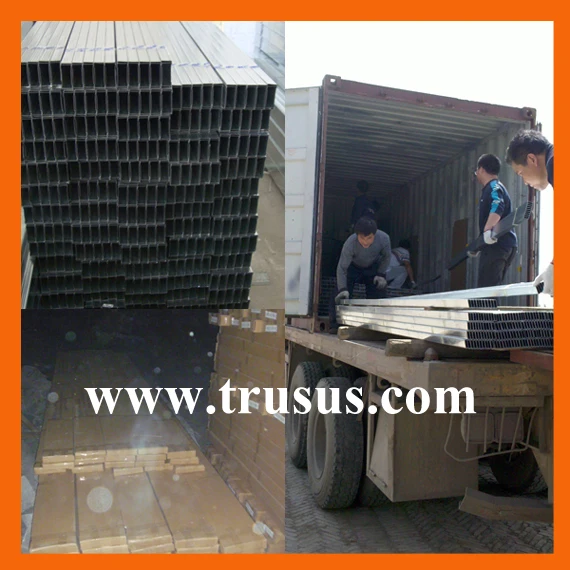

6. PACKING & LOADING

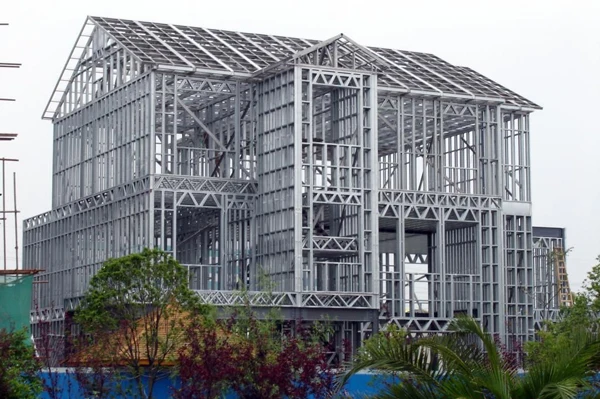

7. PROJECT OF STEEL CHANNEL
RECENT OVERSEAS EXHIBITION
Feel free to contact us if you would like to know more details, we will reply you ASAP, thanks a lot !
Welcome to visit our factory
