Knuckle Boom Truck Mounted Crane
Telescopic Boom Truck Mounted Crane
Track Crane
Timber Crane
Marine Crane
More Products
Products Description

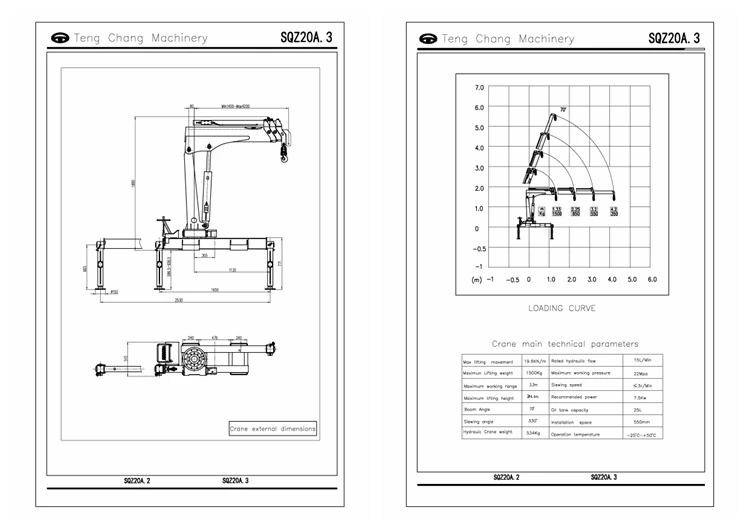

Crane main technical parameters——SQZ20A.2/A.3 | ||||||
Max lifting movement | 19.6KN/m | Rated hydraulic flow | 15L/Min | |||
Maximum lifting weight | 1500KG | Rated hydraulic pressure | 22Mpa | |||
Maximum working range | 3.2m | Slewing speed | ≤3r/Min | |||
Maximum lifting height | ≥4.4m | Recommended power | 7.5Kw | |||
Boom angle(°) | 70° | Oil tank capacity | 25L | |||
Slewing angle(°) | 330° | Installation space | 550mm | |||
Hydraulic crane weight | 534KG | Operating temperature | -25℃-+50℃ | |||
Knuckle Boom Truck Mounted Crane | ||
Maximum lifting weight | 1t 2t 3.2t 4t 5t 6.3t 8t 10t 12t 14t 16t 20t 25t | |
Max Lifting Movement | 4/6.4/8/10/12.6/16/20/30/35/40/50/60/67.5t.M | |
Recommended Power | 7.5Kw/8KW/15KW/20KW/30KW/35KW/40KW/45KW/63KW | |
Recommended Hydraulic Flow | 15~90 L/ Min | |
Rated Hydraulic Pressure | 22/28/30/32/33MPa | |
Oil Tank Capacity | 25/30/60/100/150/180/200/250/280L | |
Hydraulic Crane Weight | 534KG~8250Kg | |
Installation Space | 550/800/850/1050/1070/1200/1300/1500/1610/1680/1700mm | |
Applications

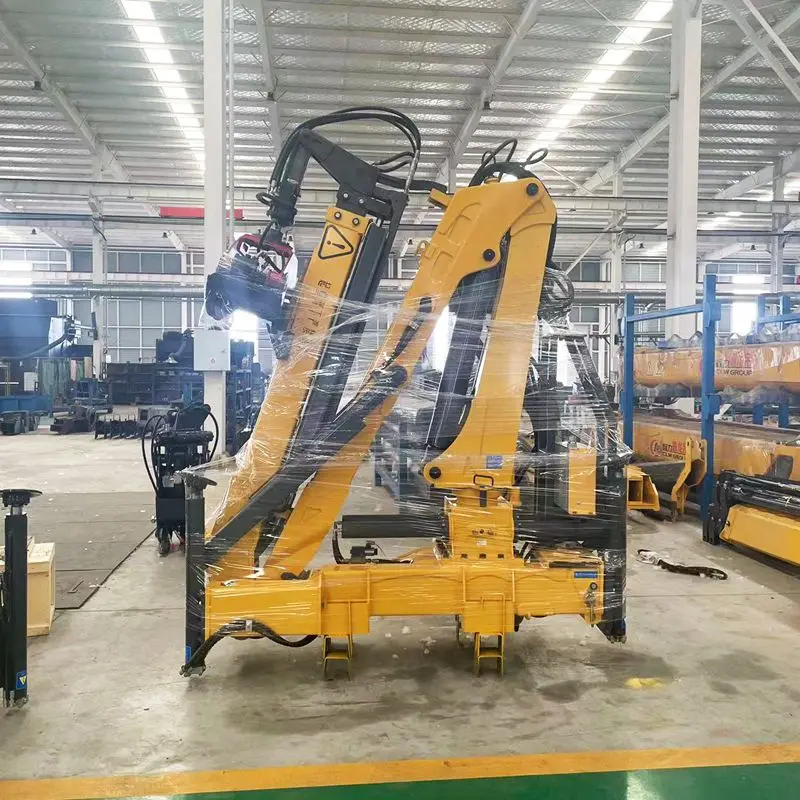

Packaging & Shipping

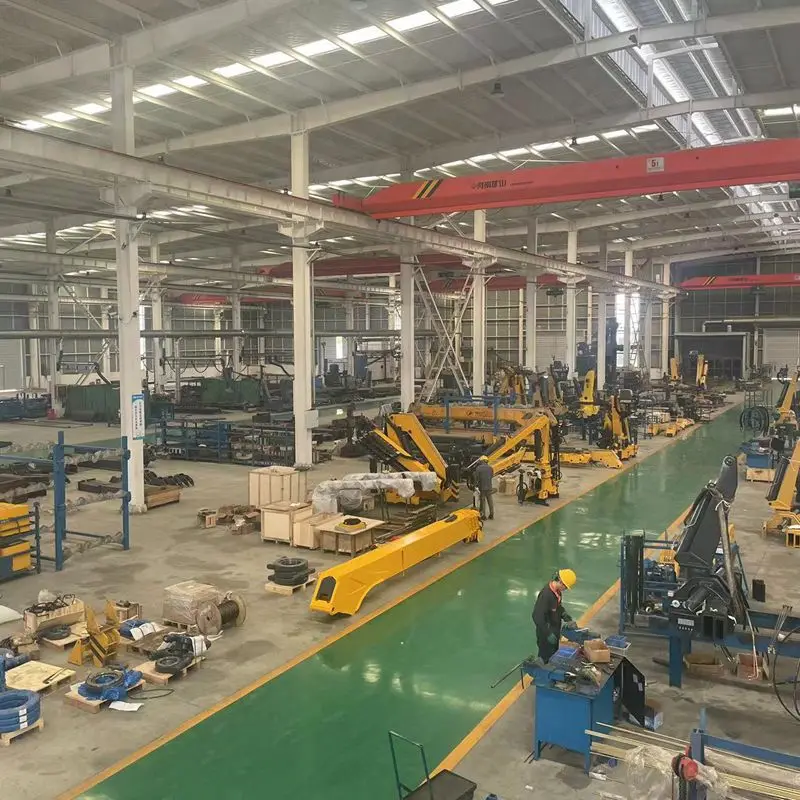

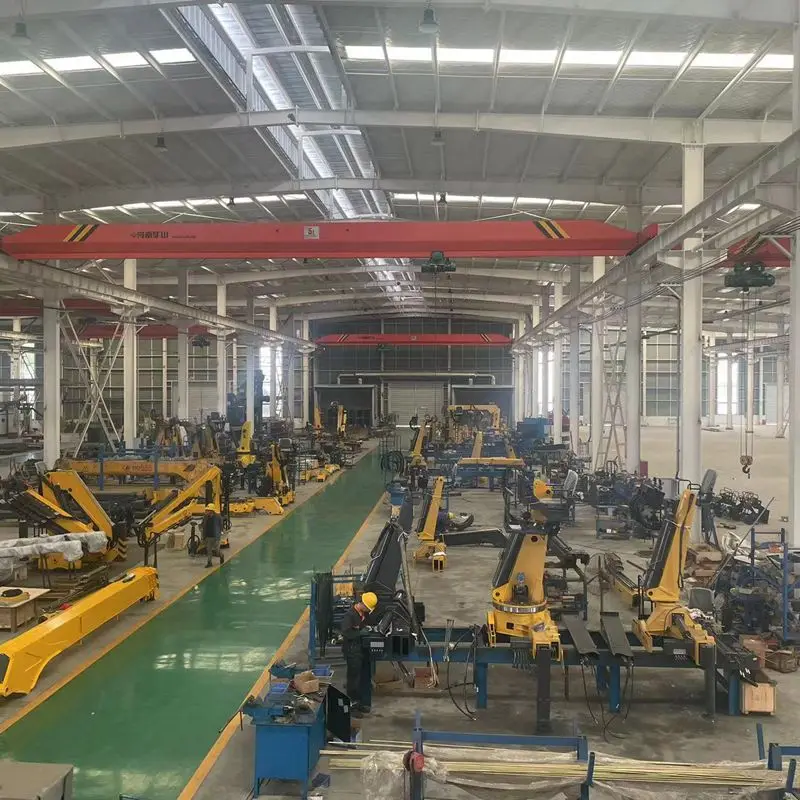

Company Profile
Tengchang Construction Machinery Co., Ltd. excels in precision forging and craftsmanship, with a focus on innovation and efficiency. With a vast facility, certifications including ISO9001, and a team of industry professionals, we lead in the design, development, and manufacturing of construction machinery. Our flagship products include truck cranes, rail cranes, fire-fighting equipment, and hydraulic control systems, known for their simplicity, durability, and reliability. Committed to quality and service excellence, we aim to be a top brand in China's crane industry through continuous technological innovation and collaboration with our customers.
Certifications
FAQ
1)Are you a manufacturer or a trading company?
We are a direct source factory with 20 years of production experience. Over the past decade, we have exported to more than 80 countries and regions.
2)What payment methods do you accept?
We accept both T/T (telegraphic transfer) and L/C (letter of credit) at sight.
3)What is your delivery time?
Delivery time is typically 20-40 working days after receiving a 30% T/T deposit or L/C.
4)What is the warranty period for your products?
Our standard warranty period is 1 year. For large orders, we can discuss extended warranty options.
5)What is your minimum order quantity (MOQ)?
Our MOQ is 1 unit.
6)Do you offer OEM services?
Yes, we offer OEM services and can customize products according to your requirements.
7)What optional attachments are available for your products?
Optional attachments include Remote Control, Basket, Auger, Grapple, Top Seat, and Rear Legs.
8)What certifications and standards do you adhere to?
We adhere to the ISO9001 quality management system and hold national truck crane manufacturing licenses, as well as weaponry quality management system certifications (GJB9001C-2017).
9)What are the advantages of your key products?
Our Truck Cranes, Telescopic Cranes, Hydraulic Cranes, Marine Cranes, and Folding Cranes are known for their durability, stability, and high performance. With precision craftsmanship and advanced manufacturing technology, our cranes offer exceptional lifting capacity, smooth operation, and reliability.
10)What are your strengths in technology and innovation?
We have a top-notch R&D team and advanced development platforms, including 3D design and mechanical analysis systems. Our innovations in lifting capacity, speed, and smoothness are supported by multiple utility model patents and invention patents, reflecting our commitment to technological advancement and high-quality products.
We are a direct source factory with 20 years of production experience. Over the past decade, we have exported to more than 80 countries and regions.
2)What payment methods do you accept?
We accept both T/T (telegraphic transfer) and L/C (letter of credit) at sight.
3)What is your delivery time?
Delivery time is typically 20-40 working days after receiving a 30% T/T deposit or L/C.
4)What is the warranty period for your products?
Our standard warranty period is 1 year. For large orders, we can discuss extended warranty options.
5)What is your minimum order quantity (MOQ)?
Our MOQ is 1 unit.
6)Do you offer OEM services?
Yes, we offer OEM services and can customize products according to your requirements.
7)What optional attachments are available for your products?
Optional attachments include Remote Control, Basket, Auger, Grapple, Top Seat, and Rear Legs.
8)What certifications and standards do you adhere to?
We adhere to the ISO9001 quality management system and hold national truck crane manufacturing licenses, as well as weaponry quality management system certifications (GJB9001C-2017).
9)What are the advantages of your key products?
Our Truck Cranes, Telescopic Cranes, Hydraulic Cranes, Marine Cranes, and Folding Cranes are known for their durability, stability, and high performance. With precision craftsmanship and advanced manufacturing technology, our cranes offer exceptional lifting capacity, smooth operation, and reliability.
10)What are your strengths in technology and innovation?
We have a top-notch R&D team and advanced development platforms, including 3D design and mechanical analysis systems. Our innovations in lifting capacity, speed, and smoothness are supported by multiple utility model patents and invention patents, reflecting our commitment to technological advancement and high-quality products.
