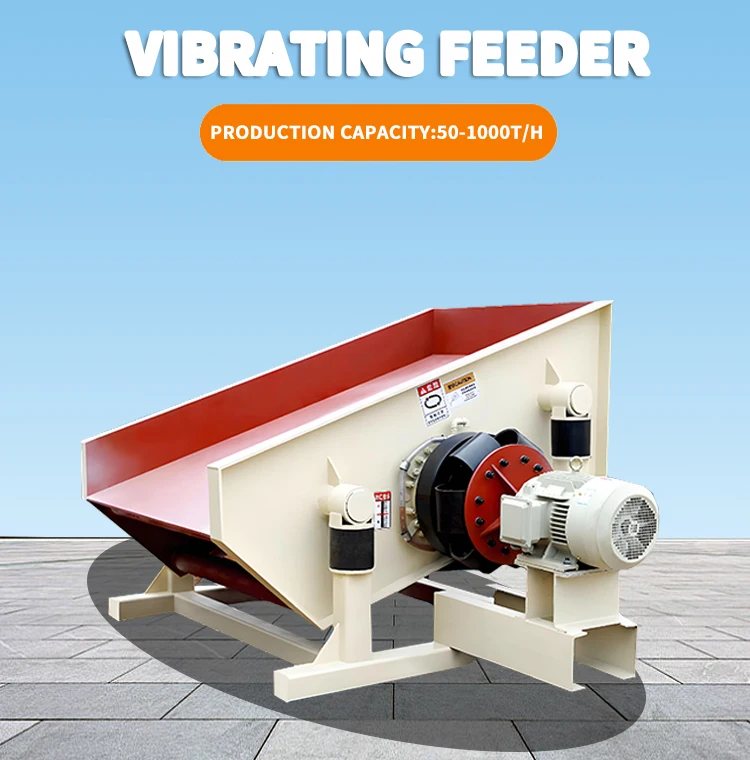

VIBRATING FEEDER

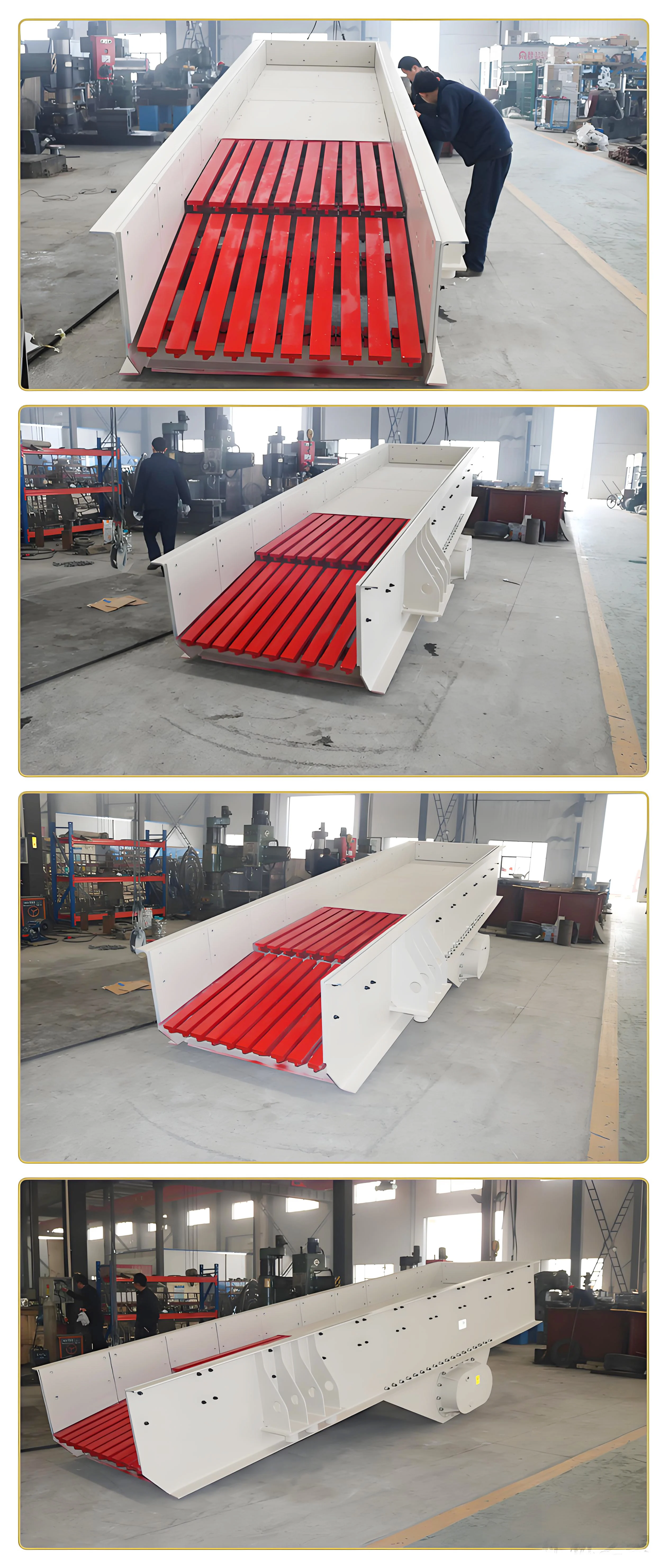

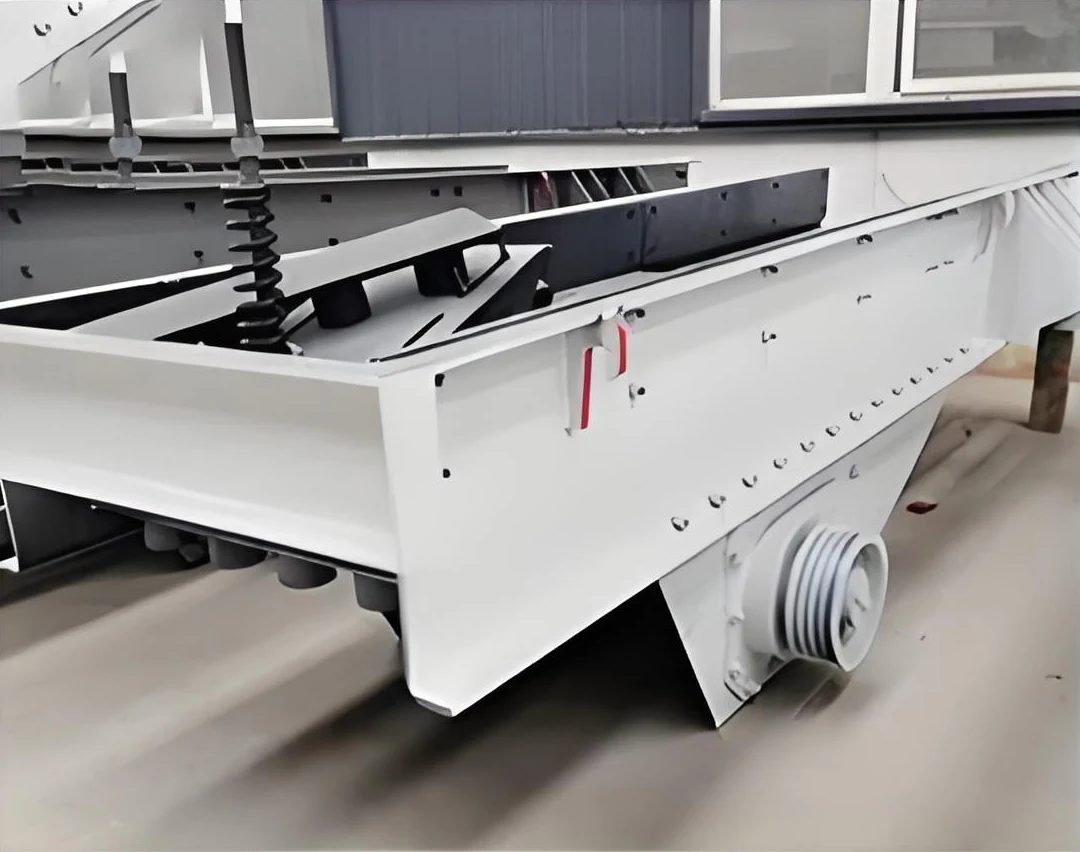

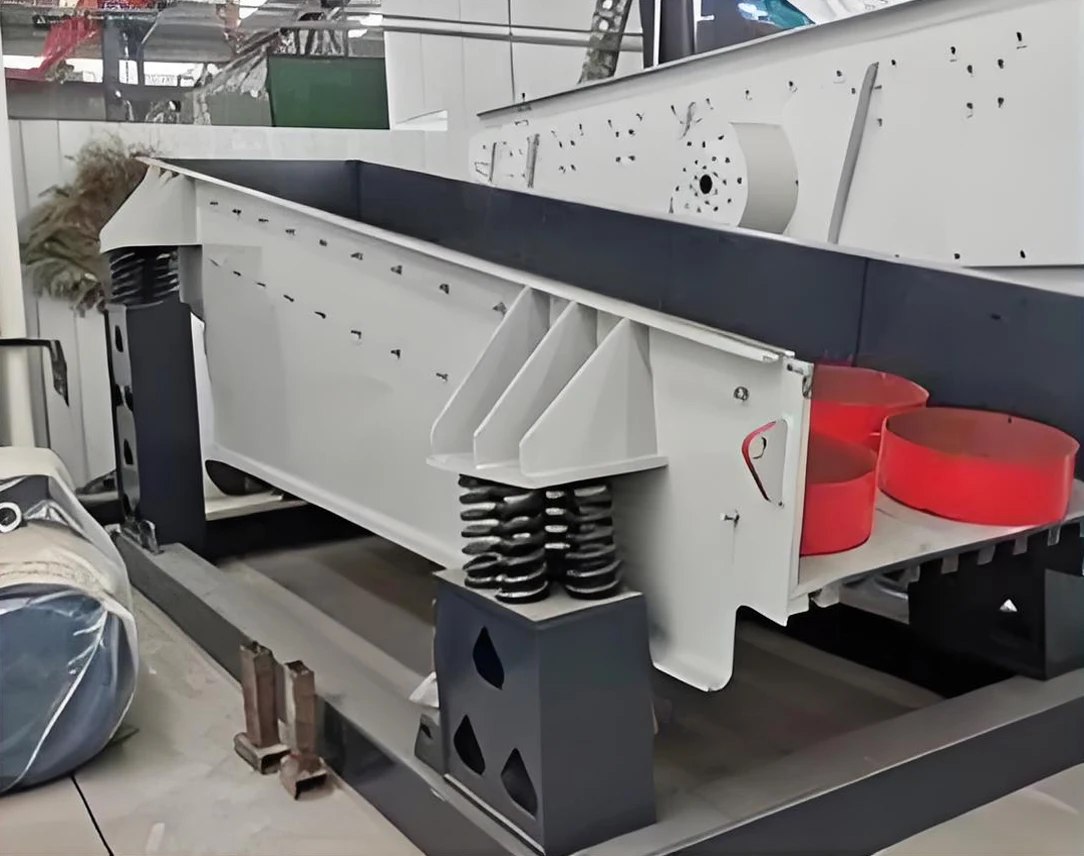

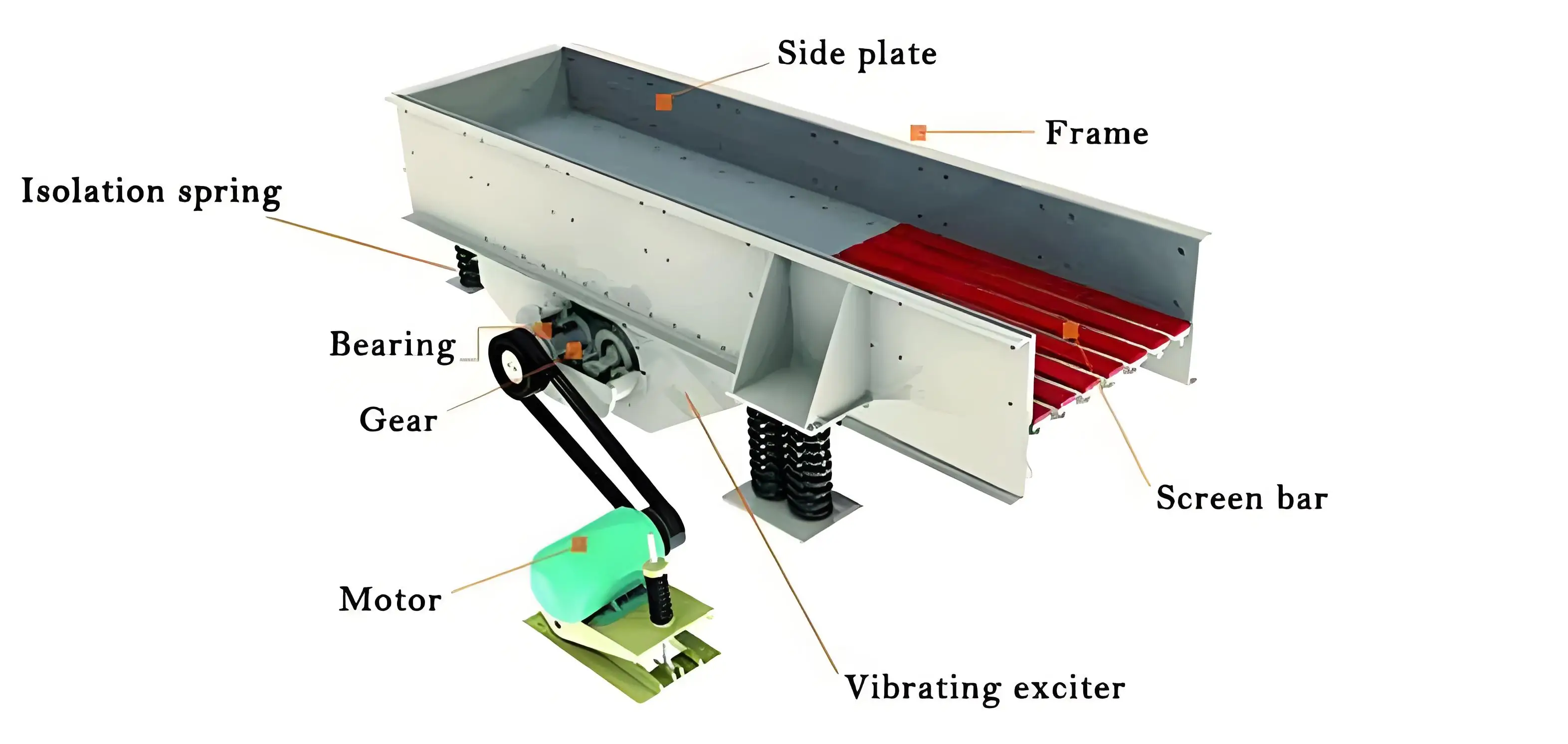

Vibration feeder is mainly used for continuous, uniform speed feeding before coarse crusher, and sieve fine material at the same time so increase crusher capacity . The feeder is divided into steel structure type and grate structure type. The steel structure type is used in gravel material production line to feed the materials evenly into the crushing equipment; grate structure type is used in coarse screening of materials to low cost. It is indispensable machine in the crushing and screening process. The machine is widely used for crushing and screening process in metallurgy, coal, mineral processing, building materials, chemical, grinding process and other industries.
Performance characteristics
1. Simple structure, uniform feeding, good continuous performance, adjustable exciting force;
2, Change and control the flow at any time, easy to operate;
3, The eccentric block is the excitation source, low noise, less power consumption, good adjustment performance, no punching phenomenon;
4, Can adjust the exciting force, can change and control the flow at any time, easy and stable adjustment; Vibration motor is excitation source, low noise, low power consumption, good adjustment performance, no punching phenomenon;
5, Simple structure, reliable operation, easy adjustment and installation, light weight, small size, easy maintenance.
2, Change and control the flow at any time, easy to operate;
3, The eccentric block is the excitation source, low noise, less power consumption, good adjustment performance, no punching phenomenon;
4, Can adjust the exciting force, can change and control the flow at any time, easy and stable adjustment; Vibration motor is excitation source, low noise, low power consumption, good adjustment performance, no punching phenomenon;
5, Simple structure, reliable operation, easy adjustment and installation, light weight, small size, easy maintenance.

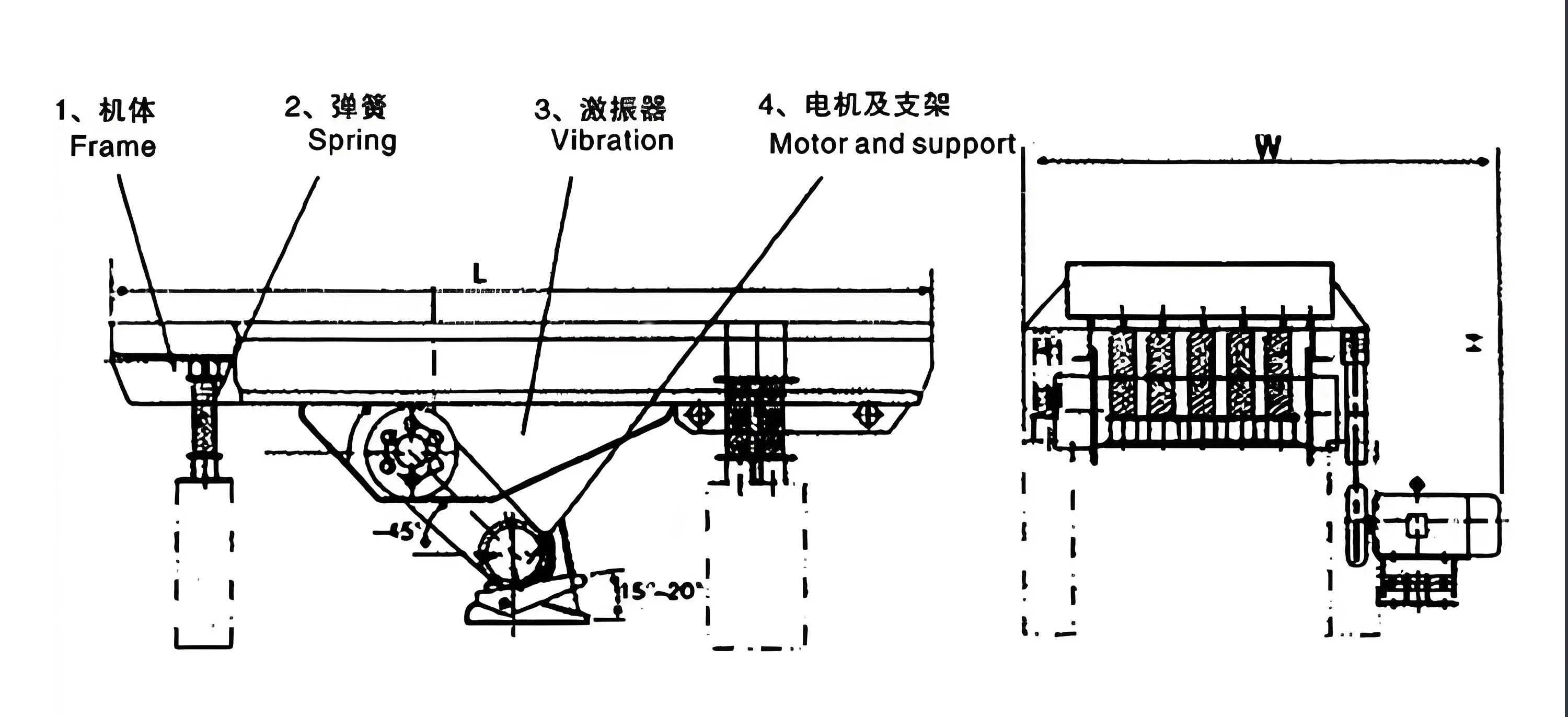

Model | Feed Spout Size(mm) | Max Feed Size(mm) | Power(kw) | Capacity(t/h) | Dimension(mm) |
ZSW-9638 | 960×3800 | 500 | 11 | 96-230 | 3880×2175×1957 |
ZSW-1142 | 1100×4200 | 580 | 15 | 120-300 | 4957×2371×2125 |
ZSW-1150 | 1100×5000 | 600 | 22 | 150-350 | 5957×2467×2125 |
ZSW-1349 | 1300×4900 | 750 | 22 | 380-560 | 4980×3277×1525 |
ZSW-1360 | 1300×6000 | 750 | 22 | 400-660 | 6080×3277×1525 |
ZSW-1560 | 1500×6000 | 1000 | 30 | 460-860 | 6080×3541×1545 |
ZSW-1860 | 1800×6000 | 1200 | 37 | 500-900 | 6080×3760×1680 |
ZSW-2060 | 2000×6000 | 1400 | 45 | 600-1500 | 6080×4094×1810 |
Q1: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.If I need the complete crushing plant can you help us to build it?

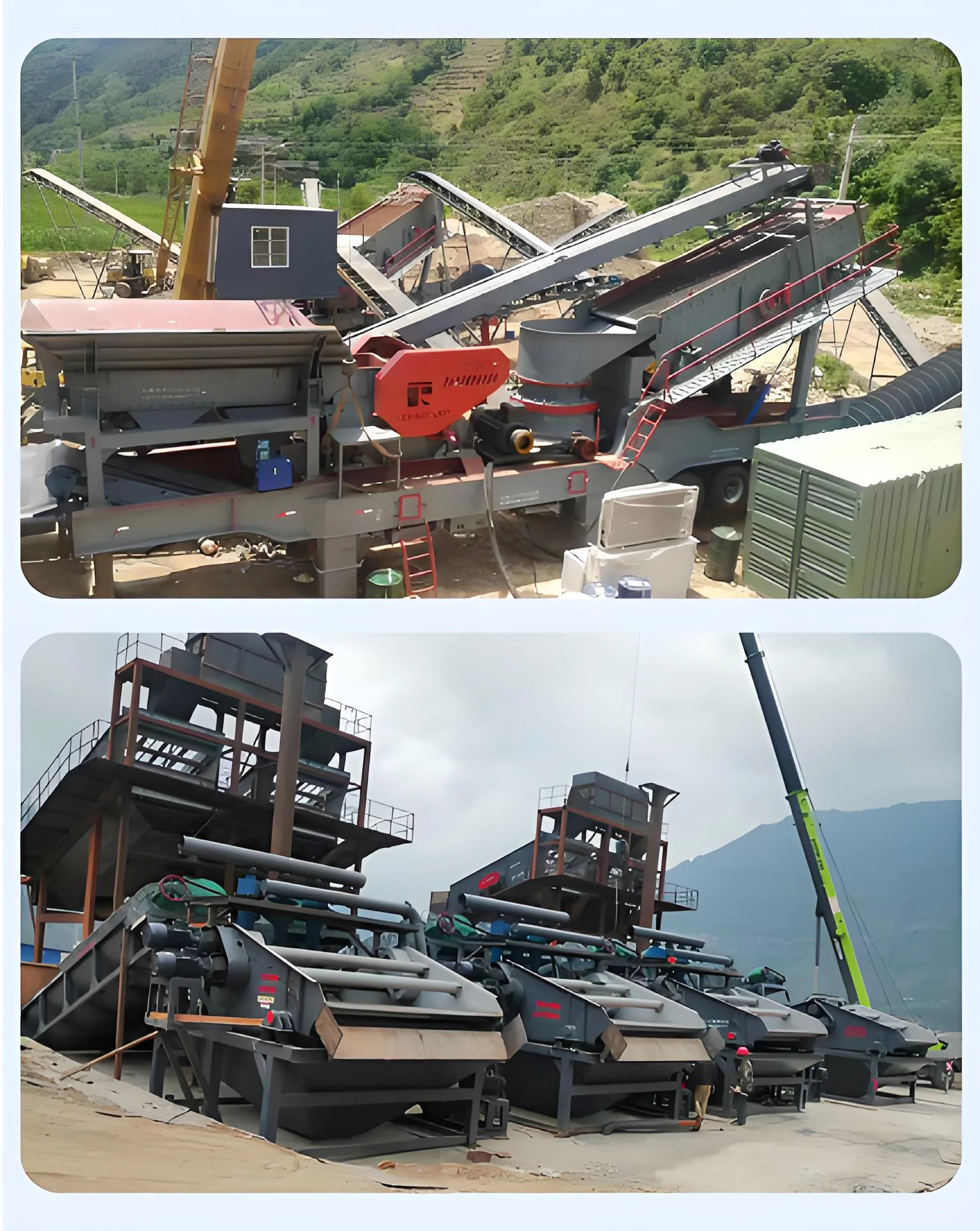

A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
A: The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
