WORKING PRINCIPLE:

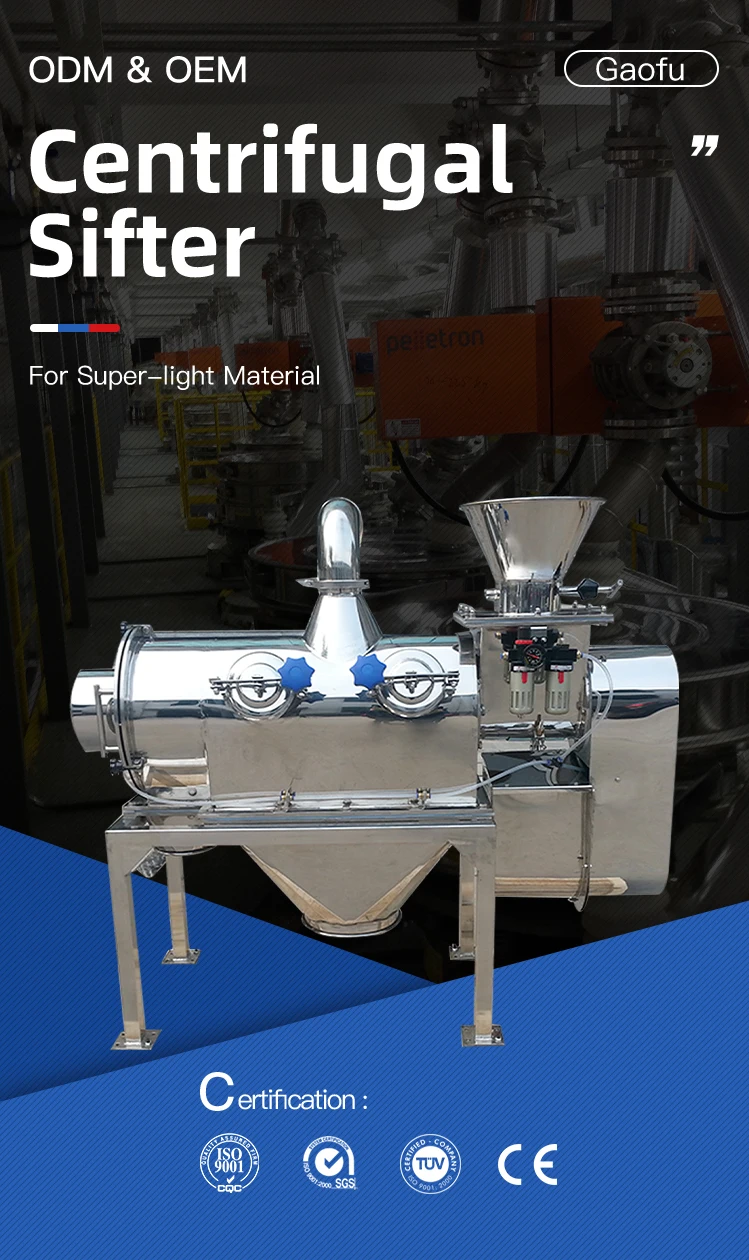

The screen of this equipment is cylindrical and placed in the body. The material is mixed with the airflow and atomized into the mesh cylinder after passing through the screw conveying system. The material is simultaneously subjected to centrifugal force and cyclone propulsion through the wind wheel blades in the mesh cylinder, so that The material is sprayed through the screen, and the material that passes through the screen is discharged from the fine material discharge port, and the material that cannot pass through the screen is discharged from the coarse material discharge port along the cylinder wall, so as to achieve the purpose of high-efficiency separation.
The screen of this equipment is cylindrical and placed in the body. The material is mixed with the airflow and atomized into the mesh cylinder after passing through the screw conveying system. The material is simultaneously subjected to centrifugal force and cyclone propulsion through the wind wheel blades in the mesh cylinder, so that The material is sprayed through the screen, and the material that passes through the screen is discharged from the fine material discharge port, and the material that cannot pass through the screen is discharged from the coarse material discharge port along the cylinder wall, so as to achieve the purpose of high-efficiency separation.
Model | Material | Screening area(m2) | power (kw) | speed （r.p.m.） | Screen material | Applicable |
WSA18-65 | Q235A | 0.47 | 2.2 | 815-1109 | Stainless steel or carbon steel | under 500 mesh |
SUS304 | ||||||
WSA30-100 | Q235A | 0.85 | 4 | 824-982 | ||
SUS304 | ||||||
GFQ30-80 | Q235A | 0.68 | 4 | 824-982 | ||
SUS304 |
Note:
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
1 GRADING
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
Applicable industries：
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.
2. Food industry
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Type selection:
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
ODM & OEM
Customization options:

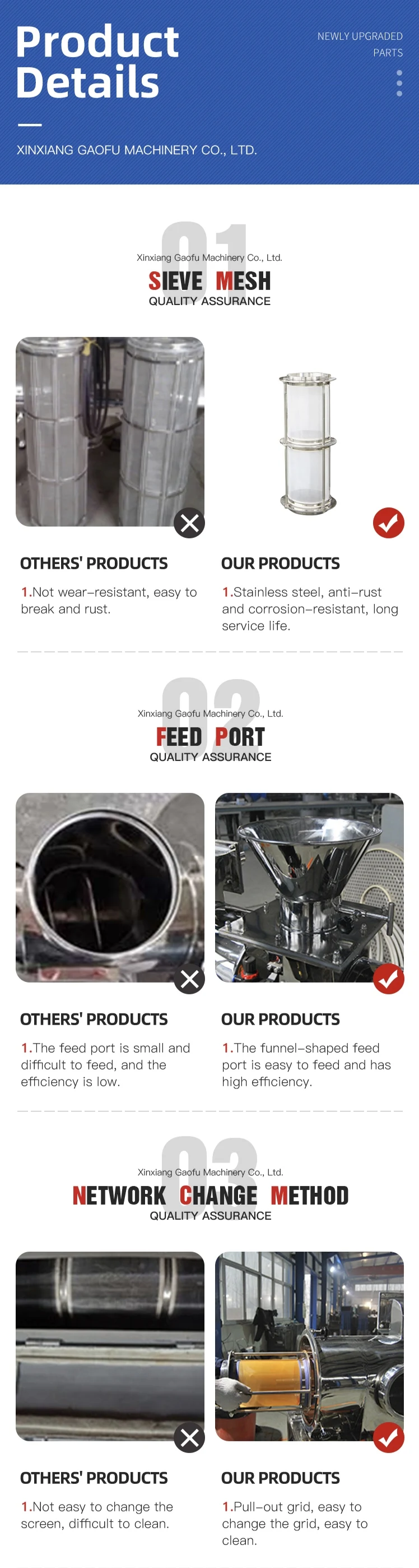

1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white... CONTACT US
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white... CONTACT US
RELATED PRODUCTS
Xinxiang Gaofu Machinery Co., Ltd.
Company Profile
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
In 2017, the company brand “GAOFU ®" is identified as “China well-known trademark" by the Trademark Office of The State Administration For Industry and Commerce. Gaofu company also owns three “Henan Province Famous Trademark", is a provincial “High Technology Expertise”, “Henan Technical Small and Medium Enterprises”, “Enterprise of Observing Contract and Value Credit”. The company has science and technology achievement award issued by the Ministry of Industry and Information Technology of The Republic of China, and hundreds of various patents.
1 INTELLIGENT MANUFACTURING :
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
The factory strictly implements the "6S" management model, improves the information construction of the workshop, and improves the production management ability.
FAQ
Xinxiang Gaofu Machinery Co.,Ltd.
Q1: Industry application
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
2. By sea port to port: about 20-35 days.
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
