Product Description
Grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material. According to be stacked
capture material density is divided into light, medium, heavy, and super heavy. So it can handle of stones, pipes, disposable
waste, landscaping works and many others.
capture material density is divided into light, medium, heavy, and super heavy. So it can handle of stones, pipes, disposable
waste, landscaping works and many others.
Our Hydraulic Rotary Steel Grapple Product Specification | ||||||||||
Model | Unit | HL60MGY | HL150MGY-3 | HL200MGY-3 | HL300MGY | |||||
External Dimensions | mm | 1415*630 | 1740*750 | 2440*1255 | 2480*1260 | |||||
Max. opening width | mm | 1500 | 1710 | 2250 | 2300 | |||||
Grasp weight | kg | 1300 | 1400 | 2000 | 2500 | |||||
Rotating oil flow | L/min | 25-35 | 30-40 | 30-40 | 30-40 | |||||
Rotating pressure | Kg/cm2 | 80-120 | 90-120 | 100-130 | 100-130 | |||||
Operating oil flow | L/min | 30-50 | 80-140 | 100-150 | 100-150 | |||||
operating pressure | Kg/cm2 | 160-220 | 180-220 | 180-220 | 180-220 | |||||
Weight | kg | 360 | 850 | 1600 | 1800 | |||||
Suitable excavator | ton | 5--8 | 12--18 | 18--24 | 25--36 | |||||
Product Maintenance
1.Daily checkpoint: Whether there is any damage or deformation of the body, hose interface leakage, damage to the pin and bushing and its replacement cycle,check the oil level of the gear, check the bolt and nut, the gear
tightening loose state.
2.Conventional checkpoint: The seals and rotating parts of the hydraulic cylinder will wear out, and should be replaced in time after reaching the service life. Replacement parts should be matched with the original factory.
Check the rotating shaft in 360 degrees,whether easy to work from any Angle, check that there is enough lubricant on the rotating shaft and bolts are tight enough.
3. Check the tightening state of bolts, install new bolts, check 8 hours after use, and ensure that the tightened bolts are not loose. Damaged bolts should be replaced in time. Bolts should be replaced after approximately
1500 hours or 12 months of use after installation.
4. It is recommended to check whether there is oil leakage regularly to ensure that there is no fault and the product can run smoothly. Every 4 hours: fill lubricating oil, lubricate shaft pin and rotating gear once; Every half year or 1000 hours (whichever comes first) : Replace the hydraulic cylinder oil seal and motor
tightening loose state.
2.Conventional checkpoint: The seals and rotating parts of the hydraulic cylinder will wear out, and should be replaced in time after reaching the service life. Replacement parts should be matched with the original factory.
Check the rotating shaft in 360 degrees,whether easy to work from any Angle, check that there is enough lubricant on the rotating shaft and bolts are tight enough.
3. Check the tightening state of bolts, install new bolts, check 8 hours after use, and ensure that the tightened bolts are not loose. Damaged bolts should be replaced in time. Bolts should be replaced after approximately
1500 hours or 12 months of use after installation.
4. It is recommended to check whether there is oil leakage regularly to ensure that there is no fault and the product can run smoothly. Every 4 hours: fill lubricating oil, lubricate shaft pin and rotating gear once; Every half year or 1000 hours (whichever comes first) : Replace the hydraulic cylinder oil seal and motor

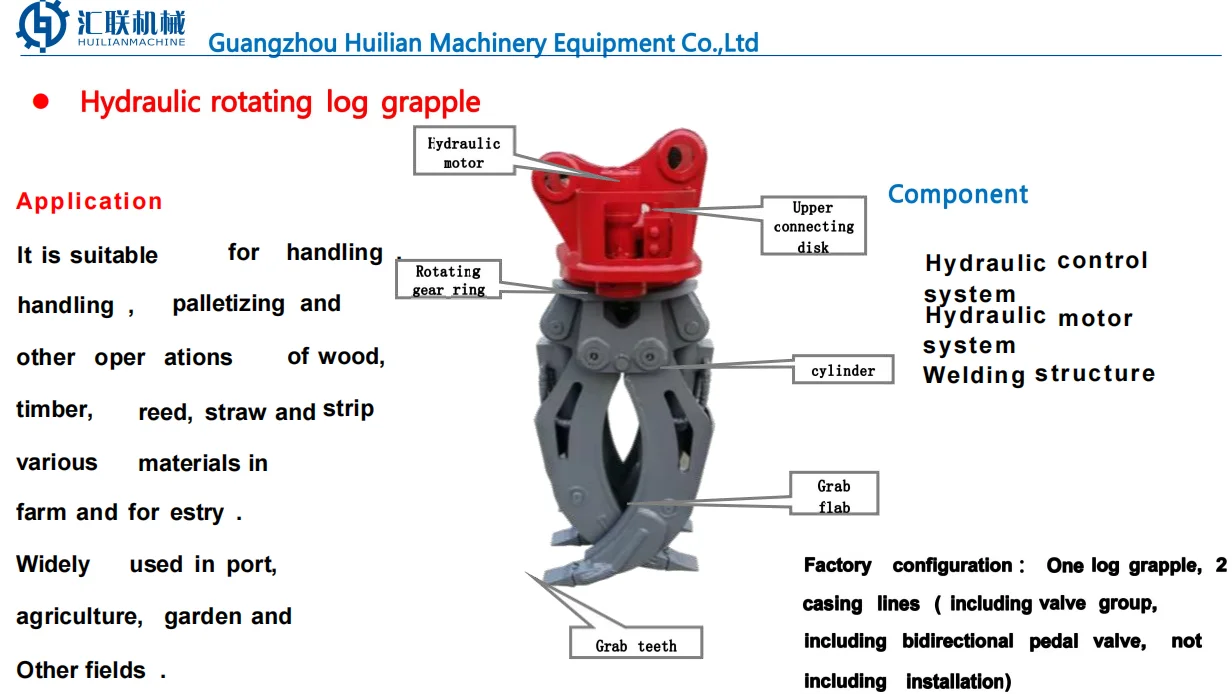

Product structure diagram
Product Details

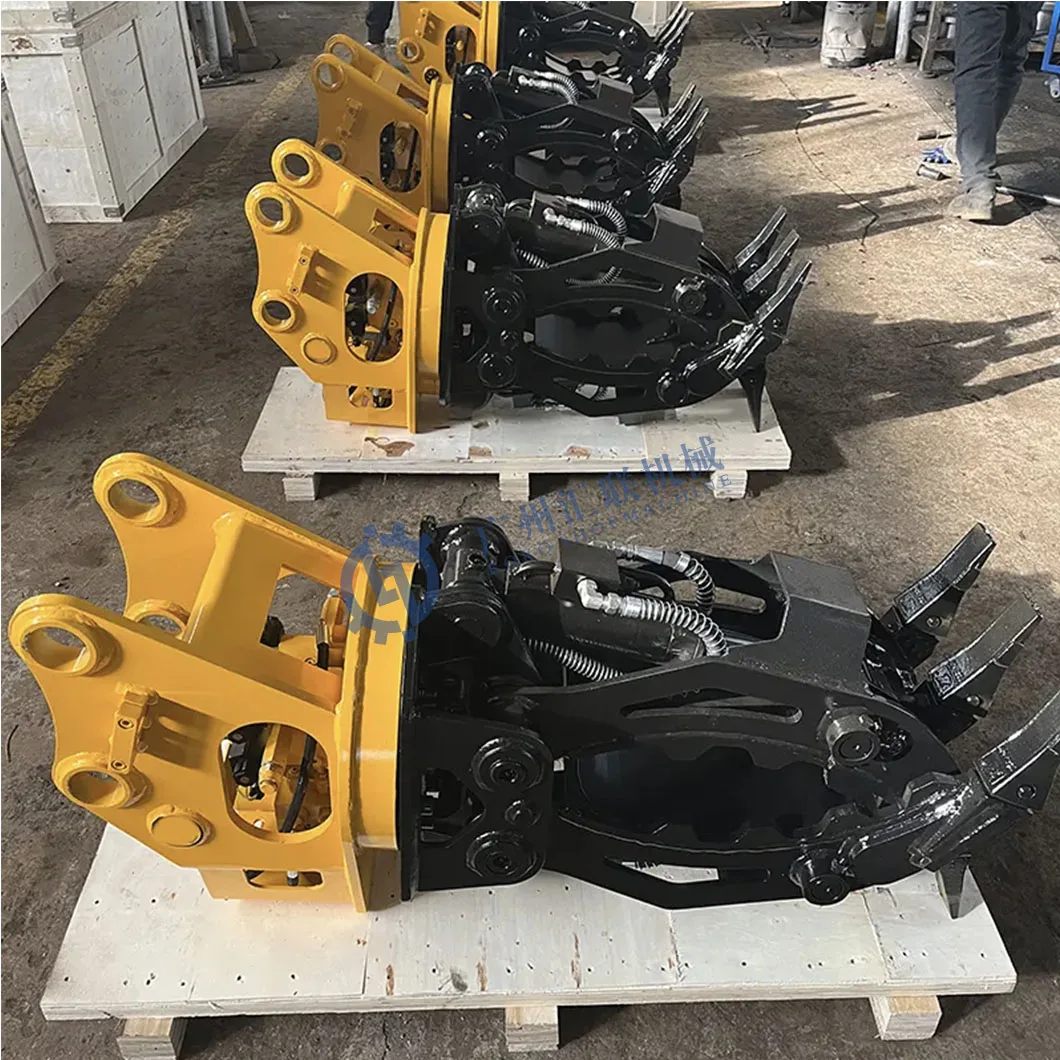

hydraulic scrap grapple

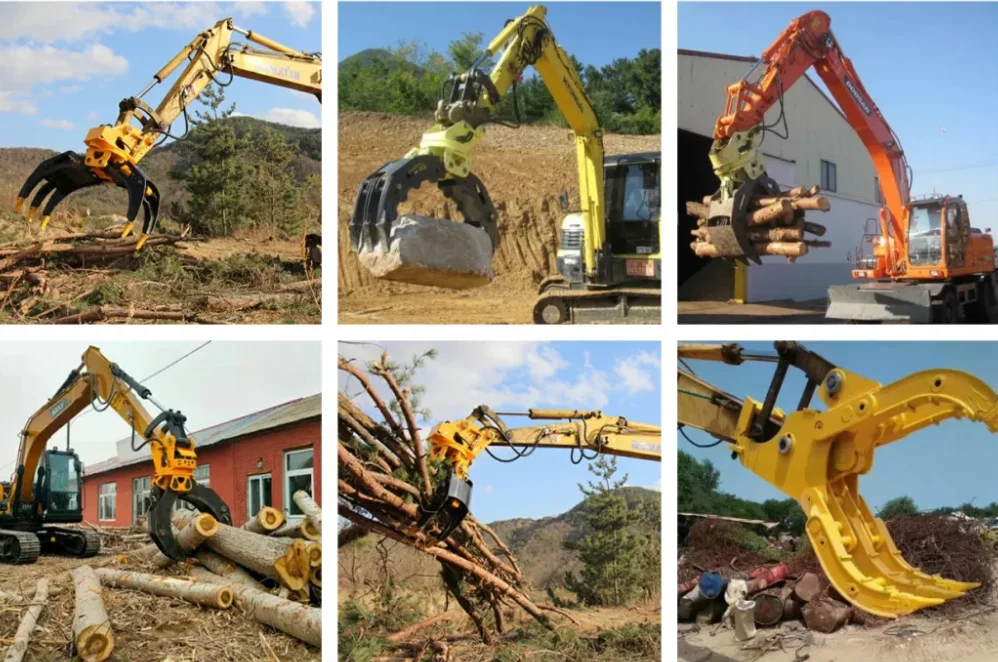

The excavator attachment—grapple is used to handling materials such as wood, rock, steel block etc. HUILIAN specifically developed this excavator attachment to meet customers’ demands. The maximum jaw opening ranges from 1800mm to 2500mm and it is capable of handling the weight from 3 ton to 8 ton. HUILIAN’s grapple has several advantages in power system, product design, structure and material to maximize your job site productivity and reduce fuel consumption.,

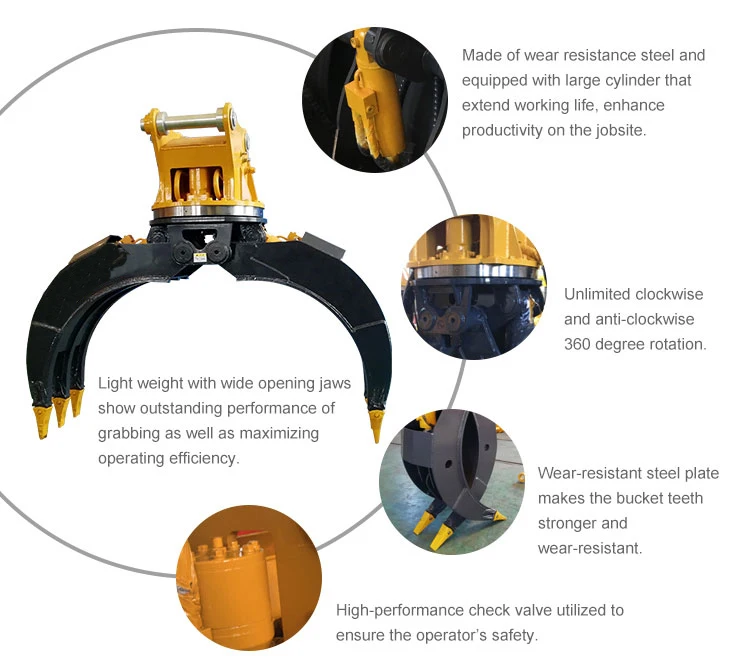

The excavator attachment adopts the 360° rotation hydraulic system. The rotation motor features high stability, large operation torque, high safety and low failure rate, which greatly improves the rotary device’s life span and stability. The grapple is equipped with a hydraulic control valve to achieve the adjustment of different rotate speed and accomplish the grapple operation in various working conditions. In order to improve working efficiency and handling ability, the excavator attachment is designed with a high-capacity hydraulic cylinder. In terms of the excavator’s raw material, HUILIAN boast the advanced hydraulic attachment production line. All the interconnecting pieces such as pin roll, bush etc. are made from high standard steel. Through tempering and quench, the material has the advantages of abrasive and wear resistance | ||

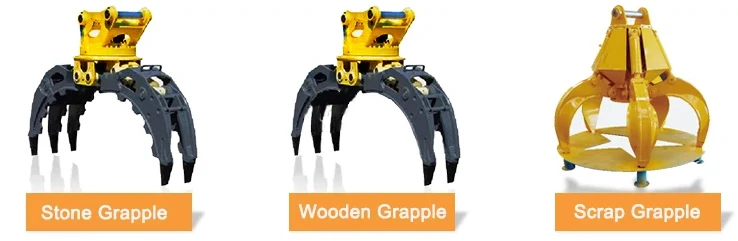

Related Products
