Product Description
Roll to Roll Laser Cutting Machine for roll-to-roll laser systems cut films Reflective Material PP film,roll-to-roll laser cutting machine with a cutting area of 500x600mm or 700x800mm is suitable for handling various applications, including cutting films such as PET.
Cutting Area: The cutting area of 500x600mm or 700x800mm provides ample space for processing rolls of film with varying widths and lengths. Ensure that the machine can accommodate the sizes of rolls you typically work with.
Roll-to-Roll Capability: Confirm that the machine is designed for roll-to-roll processing, allowing for continuous feeding and cutting of material from rolls. This feature enhances efficiency, especially in high-volume production environments.
Roll-to-Roll Laser Cutting Machine with CCD Positioning for privacy film explosion-proof film optical film backlight film

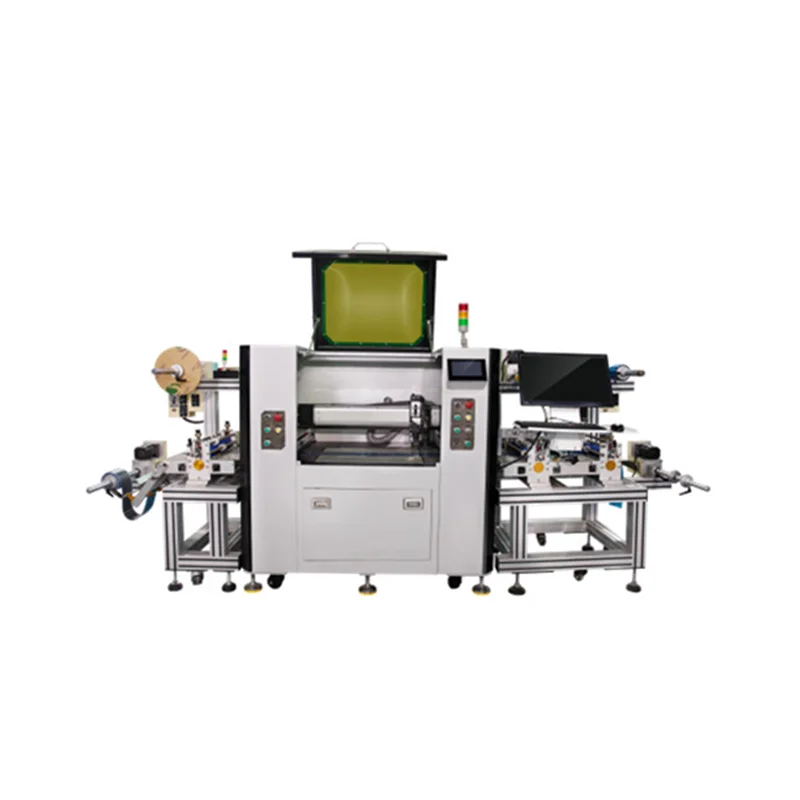

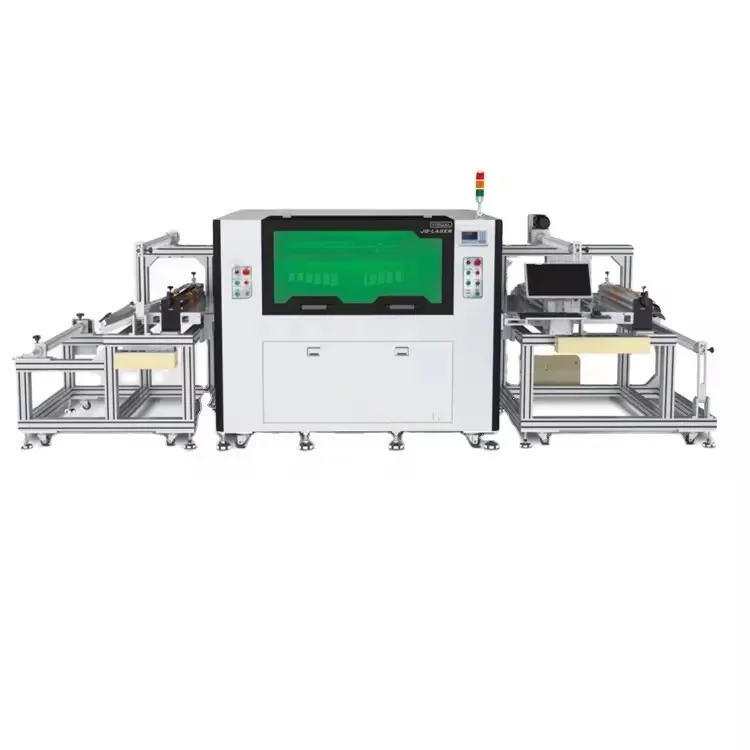

JG-5060R / 7080R / 5060RC / 7080RC Roll-to-Roll Laser Cutting Machine (with CCD Positioning Function)
Performance Features:
Imported Laser: Provides a stable light source and laser path.
Mature Control System: Enables precise cutting of any graphics.
AC Servo Dual-Drive Screw Structure: Ensures precise and efficient motion control.
Independent Servo Material Feeding System: Can be combined with front and rear lamination machines to realize functions such as material lamination, cutting, waste discharge, and rewinding.
Technical Specifications:
Feed Width: 450mm for JG-5060R / 7080R / 5060RC / 7080RC.
Processing Range (W x L): 500mm x 600mm for JG-5060R/5060RC, 700mm x 800mm for JG-7080R/7080RC.
Cutting Speed: 0-400mm/s.
Laser Type: CO2 Metal Laser.
Laser Power: 30W or 55W.
Laser Wavelength: 9.3μm.
Cutting Accuracy: 0.03mm.
Positioning Accuracy: 0.01mm.
Total Power: AC220V 4.5KW for JG-5060R/5060RC, AC220V 5.0KW for JG-7080R/7080RC.
Main Machine Weight: 1000Kg for JG-5060R/5060RC, 1200Kg for JG-7080R/7080RC.
Main Machine Dimensions (L x W x H): 1450mm x 1300mm x 1400mm for JG-5060R/5060RC, 1700mm x 1500mm x 1600mm for JG-7080R/7080RC.
Combined Dimensions: 4000mm x 1300mm x 1400mm for JG-5060R/5060RC, 5000mm x 1500mm x 1600mm for JG-7080R/7080RC.
Supported Graphic Formats: DXF/AI/PLT.
Cutting Method: Suction type.
Cutting Energy: 0-99%, controlled by software.
Stratified Cutting: Supports multiple cutting parameters based on needs.
Cooling Method: Air cooling.
Operating Environment: 5°C to 30°C.
Applicable Materials:
Suitable for perfect cutting of non-metallic materials such as 3M, EVA, PET, PC, PAPER, POLO, OCA, privacy film, explosion-proof film, optical film, backlight film, foam, leather, electronic insulation materials, and more.
Cutting Area: The cutting area of 500x600mm or 700x800mm provides ample space for processing rolls of film with varying widths and lengths. Ensure that the machine can accommodate the sizes of rolls you typically work with.
Roll-to-Roll Capability: Confirm that the machine is designed for roll-to-roll processing, allowing for continuous feeding and cutting of material from rolls. This feature enhances efficiency, especially in high-volume production environments.
Roll-to-Roll Laser Cutting Machine with CCD Positioning for privacy film explosion-proof film optical film backlight film
JG-5060R / 7080R / 5060RC / 7080RC Roll-to-Roll Laser Cutting Machine (with CCD Positioning Function)
Performance Features:
Imported Laser: Provides a stable light source and laser path.
Mature Control System: Enables precise cutting of any graphics.
AC Servo Dual-Drive Screw Structure: Ensures precise and efficient motion control.
Independent Servo Material Feeding System: Can be combined with front and rear lamination machines to realize functions such as material lamination, cutting, waste discharge, and rewinding.
Technical Specifications:
Feed Width: 450mm for JG-5060R / 7080R / 5060RC / 7080RC.
Processing Range (W x L): 500mm x 600mm for JG-5060R/5060RC, 700mm x 800mm for JG-7080R/7080RC.
Cutting Speed: 0-400mm/s.
Laser Type: CO2 Metal Laser.
Laser Power: 30W or 55W.
Laser Wavelength: 9.3μm.
Cutting Accuracy: 0.03mm.
Positioning Accuracy: 0.01mm.
Total Power: AC220V 4.5KW for JG-5060R/5060RC, AC220V 5.0KW for JG-7080R/7080RC.
Main Machine Weight: 1000Kg for JG-5060R/5060RC, 1200Kg for JG-7080R/7080RC.
Main Machine Dimensions (L x W x H): 1450mm x 1300mm x 1400mm for JG-5060R/5060RC, 1700mm x 1500mm x 1600mm for JG-7080R/7080RC.
Combined Dimensions: 4000mm x 1300mm x 1400mm for JG-5060R/5060RC, 5000mm x 1500mm x 1600mm for JG-7080R/7080RC.
Supported Graphic Formats: DXF/AI/PLT.
Cutting Method: Suction type.
Cutting Energy: 0-99%, controlled by software.
Stratified Cutting: Supports multiple cutting parameters based on needs.
Cooling Method: Air cooling.
Operating Environment: 5°C to 30°C.
Applicable Materials:
Suitable for perfect cutting of non-metallic materials such as 3M, EVA, PET, PC, PAPER, POLO, OCA, privacy film, explosion-proof film, optical film, backlight film, foam, leather, electronic insulation materials, and more.
Specification
Model | JG-5060R/5060RC | JG-7080R/7080RC |
Feed width | 450mm | 700mm |
Processing effective area | 500*600mm | 700*800mm |
Cutting speed | 0-400mm/s | 0-400mm/s |
Laser type | co2 metal laser | co2 metal laser |
Laser power | 30/55w | 30/55w |
Laser wavelength | 9.3um | 9.3um |
Cutting accuracy | 0.03mm | 0.03mm |
Positioning accuracy | 0.01mm | 0.01mm |
Total power | AC220V 5.0 | AC220V 5.5 |
Net weight | 1000kg | 1200kg |
Main engine size | 1450*1300*1400mm | 1700*1500*1600mm |
Combined size | 4000*1300*1400mm | 5000*1500*1600mm |
Graphic format support | DXF/AI/PLT | DXF/AI/PLT |
Sucker type | Vacuum chuck | Vacuum chuck |
Cutting energy | 0-99%software conthrol | 0-99%software conthrol |
Stratified cutting | / | / |
Heat dissipation mode | Air-cooling | Air-cooling |
Operating temperature | 5-30 | 5-30 |
Applicable materials:3M,EVA,PET,PC,PAPER,POLO,OCA,POLARIZER,ANTI PEEPING FILM,BACKLIGHT,FOAM,OPTICAL FILM,LEATHER,ELECTRONIC
INSULATING MATERIAL,DOUBLE-SIDED ADHESIVE,AND OTHER NON-METALLIC MATERIALS.
INSULATING MATERIAL,DOUBLE-SIDED ADHESIVE,AND OTHER NON-METALLIC MATERIALS.
CO2 laser cutting machine is indeed suitable for cutting many of the materials
3M: Various adhesive products, tapes, or similar materials produced by the 3M company.
EVA: Ethylene-vinyl acetate foam, used for padding and cushioning.
PET: Polyethylene terephthalate, a type of plastic used in bottles, packaging, and more.
PC: Polycarbonate, a durable and transparent thermoplastic.
PAPER: Different types of paper materials, including cardboard and cardstock.
OCA: Optical Clear Adhesive, commonly used in electronics.
POLARIZER: An optical filter used in LCD displays and photography.
ANTI PEEPING FILM: Privacy screen protectors that limit viewing angles.
BACKLIGHT: Components used in lighting systems, including those for LCD displays.
FOAM: Various foam materials, including EVA foam and polyurethane foam.
OPTICAL FILM: Thin films used in optical applications, such as lenses and coatings.
LEATHER: Animal hides or synthetic materials resembling leather.
ELECTRONIC INSULATING MATERIAL: Materials used to insulate electronic components.
DOUBLE-SIDED ADHESIVE: Adhesive materials coated on both sides of a substrate.
CO2 lasers are known for their versatility in cutting a wide range of materials with precision and efficiency. They work by directing a high-powered CO2 laser beam onto the material's surface, causing it to melt, vaporize, or burn away, resulting in a clean and precise cut. This makes CO2 laser cutting machines ideal for various industries, including manufacturing, electronics, signage, and crafts.
3M: Various adhesive products, tapes, or similar materials produced by the 3M company.
EVA: Ethylene-vinyl acetate foam, used for padding and cushioning.
PET: Polyethylene terephthalate, a type of plastic used in bottles, packaging, and more.
PC: Polycarbonate, a durable and transparent thermoplastic.
PAPER: Different types of paper materials, including cardboard and cardstock.
OCA: Optical Clear Adhesive, commonly used in electronics.
POLARIZER: An optical filter used in LCD displays and photography.
ANTI PEEPING FILM: Privacy screen protectors that limit viewing angles.
BACKLIGHT: Components used in lighting systems, including those for LCD displays.
FOAM: Various foam materials, including EVA foam and polyurethane foam.
OPTICAL FILM: Thin films used in optical applications, such as lenses and coatings.
LEATHER: Animal hides or synthetic materials resembling leather.
ELECTRONIC INSULATING MATERIAL: Materials used to insulate electronic components.
DOUBLE-SIDED ADHESIVE: Adhesive materials coated on both sides of a substrate.
CO2 lasers are known for their versatility in cutting a wide range of materials with precision and efficiency. They work by directing a high-powered CO2 laser beam onto the material's surface, causing it to melt, vaporize, or burn away, resulting in a clean and precise cut. This makes CO2 laser cutting machines ideal for various industries, including manufacturing, electronics, signage, and crafts.
Packing & Delivery
FAQ
Q: What materials can the CO2 PET film laser cutting machine cut? A: The CO2 laser cutting machine is designed primarily for cutting PET (polyethylene terephthalate) film. It can also cut other materials such as acrylic, wood, paper, and certain plastics.
Q: What thickness of PET film can the machine handle? A: The machine can typically handle PET film thicknesses ranging from a few micrometers to several millimeters, depending on the specific model and laser power.
Q: How precise are the cuts made by the machine? A: The machine can achieve high precision and accuracy in cutting PET film, with minimal kerf width (the width of material removed by the laser). It can produce intricate designs and precise dimensions.
Q: Is it possible to cut custom shapes or patterns with the machine? A: Yes, the machine is capable of cutting custom shapes, patterns, and designs on PET film. Users can create their designs using compatible software and import them into the machine for cutting.

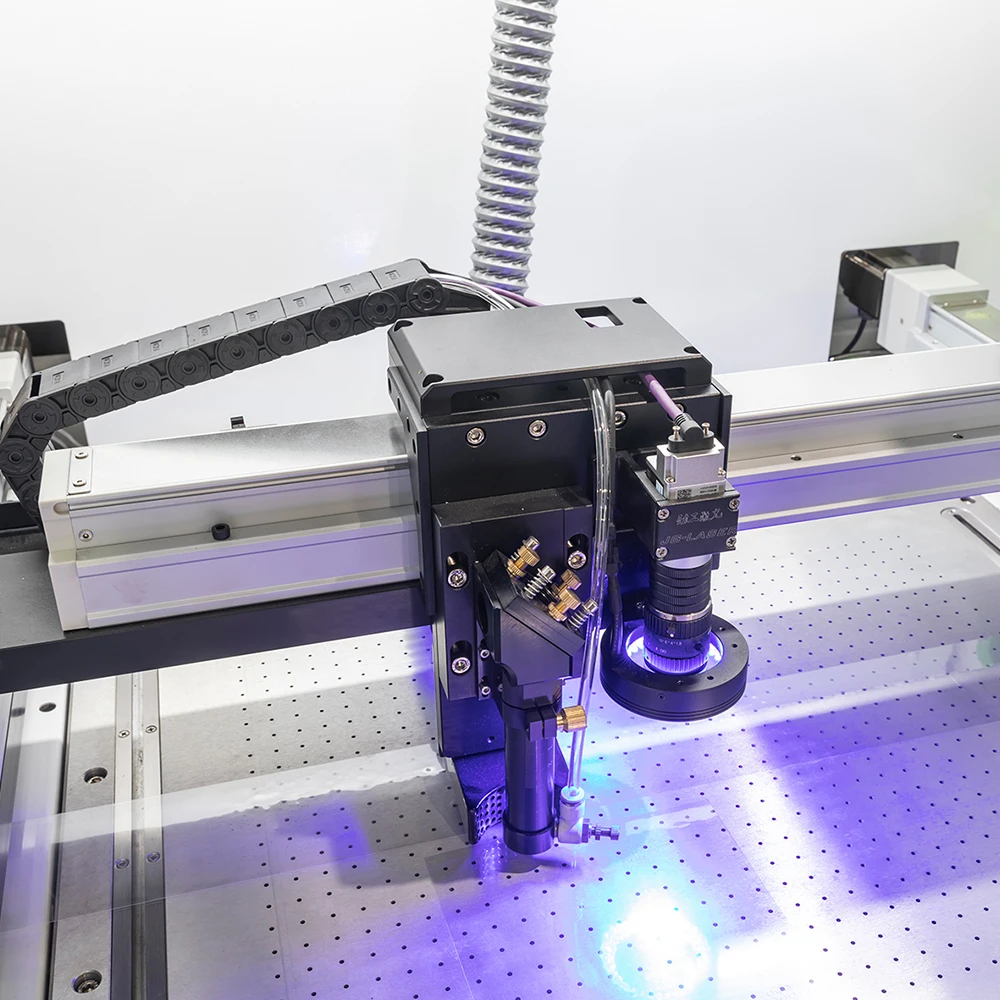

Q: Does the machine come with a CCD positioning function? A: Yes, the machine is equipped with a CCD (Charge-Coupled Device) camera system for precise positioning and alignment of the PET film before cutting. This ensures accurate cutting of predefined patterns or shapes.
Q: How fast is the cutting speed of the machine? A: The cutting speed can vary depending on factors such as the thickness of the PET film, the complexity of the design, and the laser power. Generally, the machine can achieve high cutting speeds to maximize productivity.
Q: What safety features are included with the machine? A: The machine comes with various safety features, including interlocks, safety curtains, and emergency stop buttons, to ensure operator safety during operation.
Q: Is training provided for operating the machine? A: Yes, comprehensive training is provided for operators to familiarize them with the operation, maintenance, and safety procedures of the machine.
Q: What is the warranty and support offered with the machine? A: The machine typically comes with a warranty covering parts and labor. Additionally, technical support is available to assist with any issues or questions regarding the machine's operation.
Q: What thickness of PET film can the machine handle? A: The machine can typically handle PET film thicknesses ranging from a few micrometers to several millimeters, depending on the specific model and laser power.
Q: How precise are the cuts made by the machine? A: The machine can achieve high precision and accuracy in cutting PET film, with minimal kerf width (the width of material removed by the laser). It can produce intricate designs and precise dimensions.
Q: Is it possible to cut custom shapes or patterns with the machine? A: Yes, the machine is capable of cutting custom shapes, patterns, and designs on PET film. Users can create their designs using compatible software and import them into the machine for cutting.
Q: Does the machine come with a CCD positioning function? A: Yes, the machine is equipped with a CCD (Charge-Coupled Device) camera system for precise positioning and alignment of the PET film before cutting. This ensures accurate cutting of predefined patterns or shapes.
Q: How fast is the cutting speed of the machine? A: The cutting speed can vary depending on factors such as the thickness of the PET film, the complexity of the design, and the laser power. Generally, the machine can achieve high cutting speeds to maximize productivity.
Q: What safety features are included with the machine? A: The machine comes with various safety features, including interlocks, safety curtains, and emergency stop buttons, to ensure operator safety during operation.
Q: Is training provided for operating the machine? A: Yes, comprehensive training is provided for operators to familiarize them with the operation, maintenance, and safety procedures of the machine.
Q: What is the warranty and support offered with the machine? A: The machine typically comes with a warranty covering parts and labor. Additionally, technical support is available to assist with any issues or questions regarding the machine's operation.
