Best Price Large Nitrogen Liquification System100L/h-2000L/h Liquid Nitrogen Plant
Best Selling Liquid Nitrogen Generator Industrial ≧99.999% Cryogen Liquid Nitrogen Plant with Conveyor




Products Profile


Cryogenic Liquid nitrogen plant not only for nitrogen but also for liquid nitrogen, for processes requiring larger liquid
nitrogen.We are the leading manufacturer of air separation Plants in China. Providing safe reliable advanced intelligent gas
solutions free of charge.






Product Specifications


Nitorgen Purity
≧99.999%
Liquid Nitrogen Production
100L/h-2400L/h
Nitrogen Gas Production
200-8000Nm³/h
N2 Pressure
0.34-1 Mpa
land area
85-410㎡


Model
WB-100
WB-200
WB-400
WB-500
WB-1000
WB-2400
Type
Tower
Liquid Nitrogen Production
100L/H
200L/H
400L/H
500L/H
1000L/H
2400L/H
Oxygen Purity
≥99.5%
Nitrogen Purity
≥99.995%
Voltage frequency
380VAC 3P 50Hz/220VAC 1P 50Hz
Ambient temperature requirements
0-30℃，Ground level, good ventilation
Infrastructure
Infrastructure required
Note
For non-standard voltage and frequency, altitude >1000m, purity >99%, custom-made




Product Features:
High Production Capacity: Up to 2,400 litres of liquid nitrogen can be produced per hour.

Efficiency: Includes safety devices to ensure safe operation, such as pressure relief valves and level gauges.

Automation: Includes safety devices to ensure safe operation, such as pressure relief valves and level gauges.

Compact Design: Small footprint, making them suitable for various installation environments

Versatility: Suitable for a wide range of applications, including laboratories, medical facilities, and industrial processes


Technical Principle






Liquid nitrogen generator Working principle:
Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180℃) for Nitrogen Liquefier from TIPC, CAS. MRJT, a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants through optimizing various refrigerants with different boiling points with a good match along with their respective efficient refrigeration temperature ranges, is an efficient refrigerator for the temperature range from -40 to -196℃. The feature of this product is as following: the available mature commercial compressors and heat exchanges, high liquefaction efficiency, high reliability, no maintenance and long life.




Our Advantages

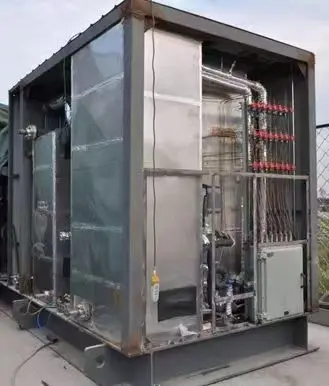

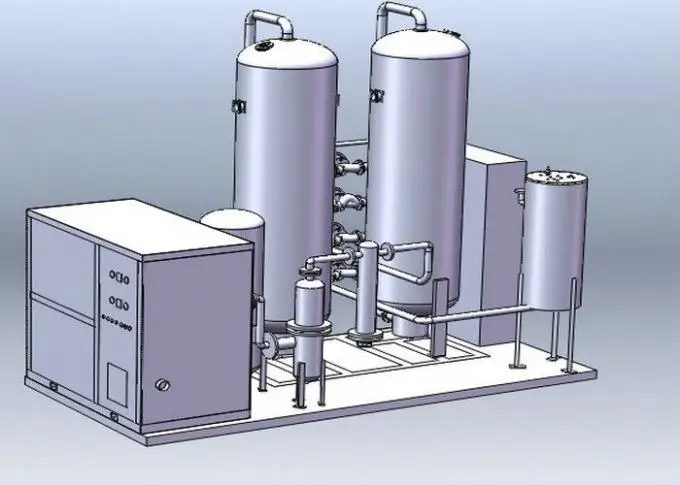

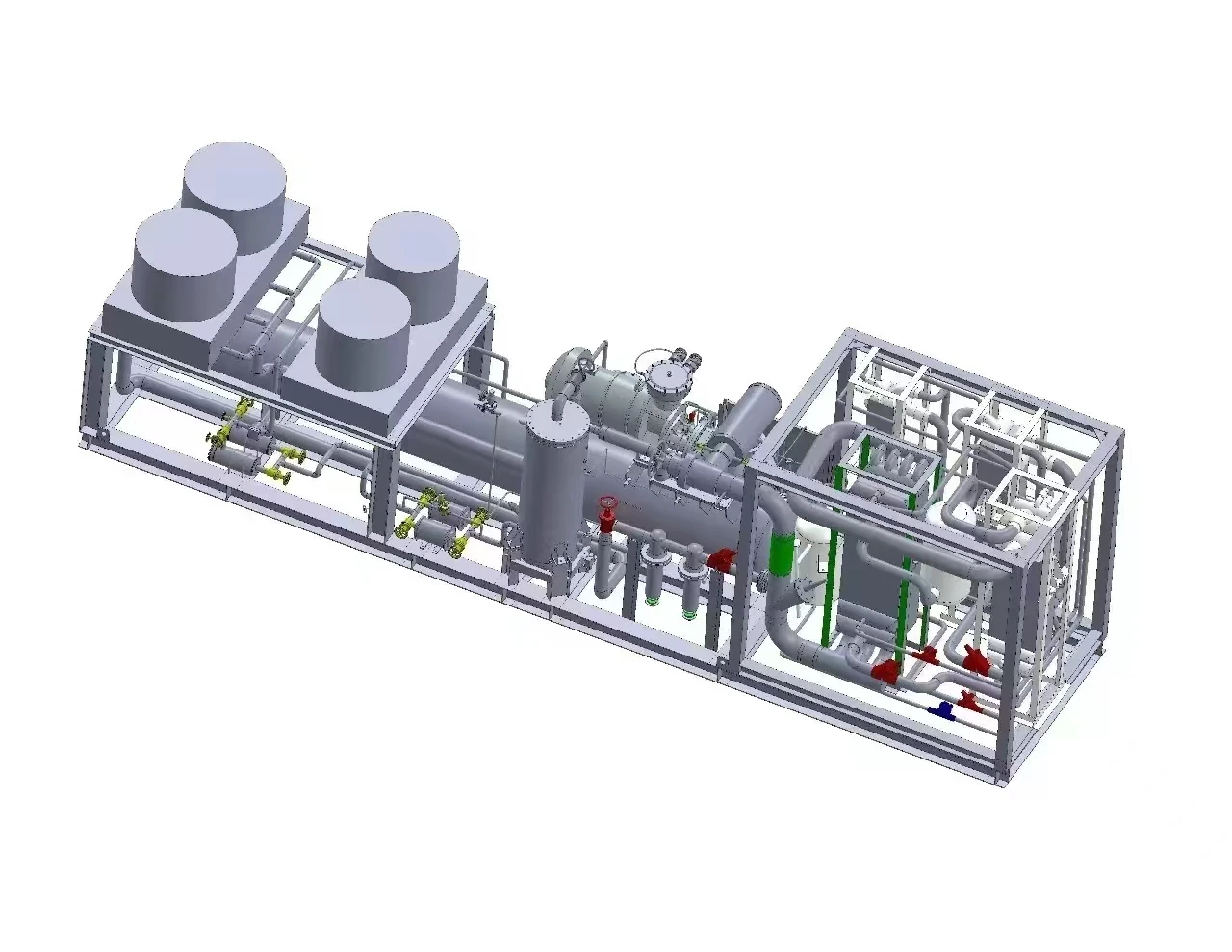

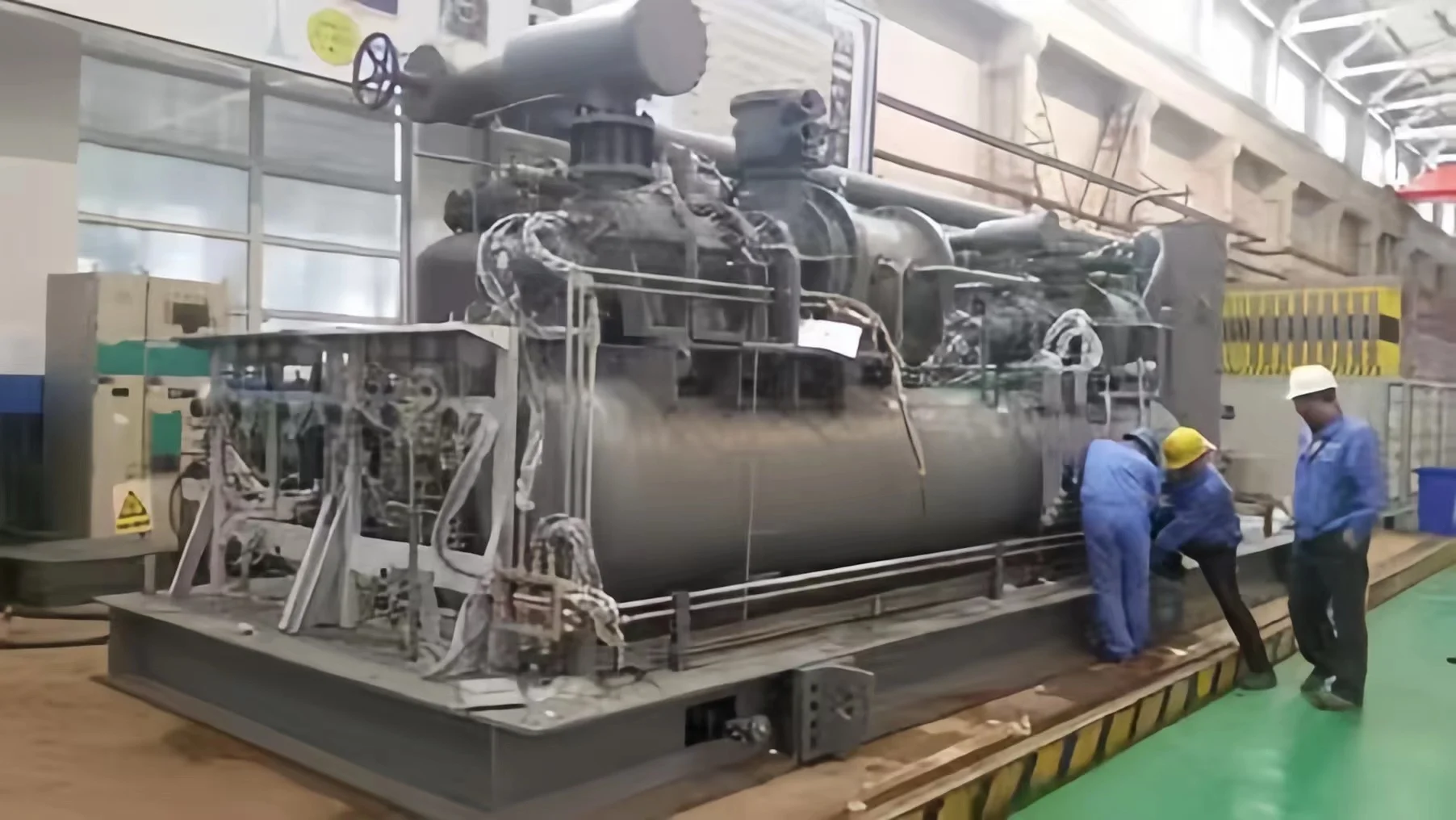

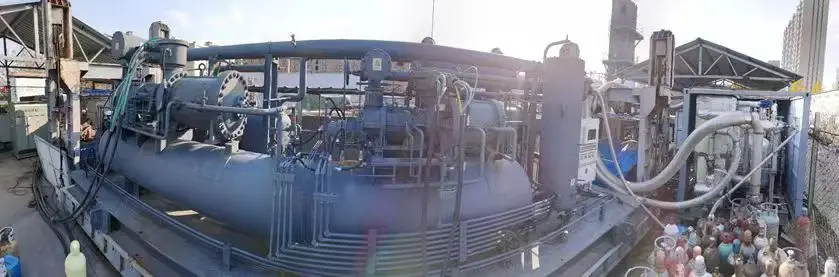

Product Display




Applications


* Food freezing and refrigeration: Liquid nitrogen is used for rapid freezing in the food industry to maintain the quality and
freshness of food and to extend the shelf life.
* Medical and biological sciences: Liquid nitrogen is used in the medical field for the preservation of biological samples,
cells, tissues and cryopreserved embryos, as well as in cryosurgery and the treatment of certain diseases.
* Industrial gas production: Liquid nitrogen is widely used in industrial production as a type of industrial gas, which is
produced by air separation method.
* Laboratory and scientific research: Liquid nitrogen is used in laboratories for cryogenic experiments, liquid nitrogen traps
and spectroscopic studies, supporting a variety of scientific research.
* Chemical and Pharmaceutical Industry: Liquid nitrogen is used as a coolant and refrigerant in the chemical and pharmaceutical
industries to control the temperature and speed of reactions.
* Many others
* The low-temperature characteristics of liquid nitrogen make it play an important role in the above fields. With the advancement
of technology and the growth of market demand, the application scenarios of liquid nitrogen may be further expanded, and it is
also an opportunity to choose suitable cryogenic liquid nitrogen equipment in time.
