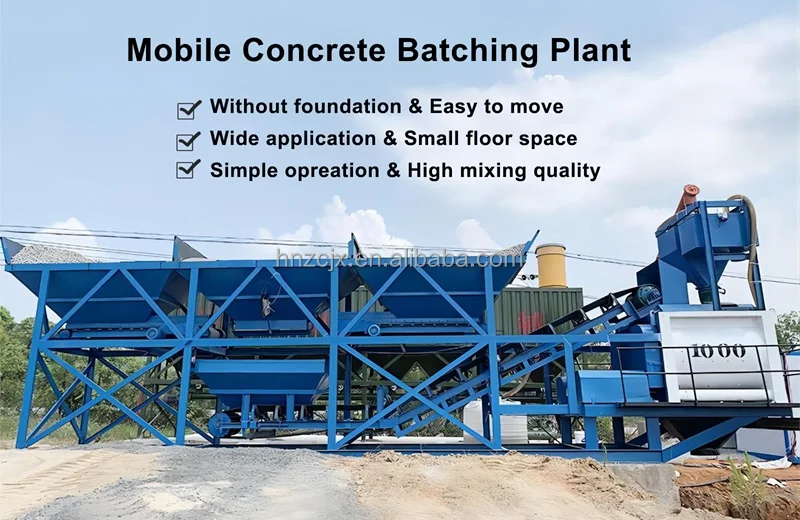

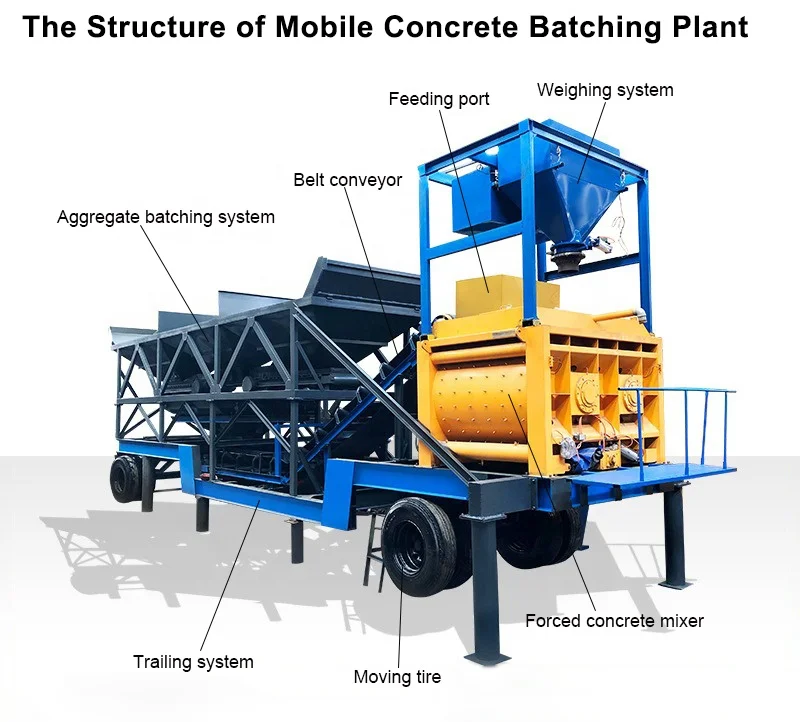

YHZS series mobile concrete mixing plant is one kind of high integration concrete mixing plant. It is designed for customers who need to change working site frequently. This plant is completely equipped with concrete batching system, mixing system, weighing system and fully automatic control system. All components are fixed on the chassis of concrete mixing plant, and its wheels are easy to move. The capacity ranges from 25m3/hr to 75m3/hr.
The concrete plant occupies small place, convenient movement and simple operation. It is suitable for small and medium movable engineering construction project, such as water and electricity, road construction, airport and bridge, etc.
The concrete plant occupies small place, convenient movement and simple operation. It is suitable for small and medium movable engineering construction project, such as water and electricity, road construction, airport and bridge, etc.
Product Advantages

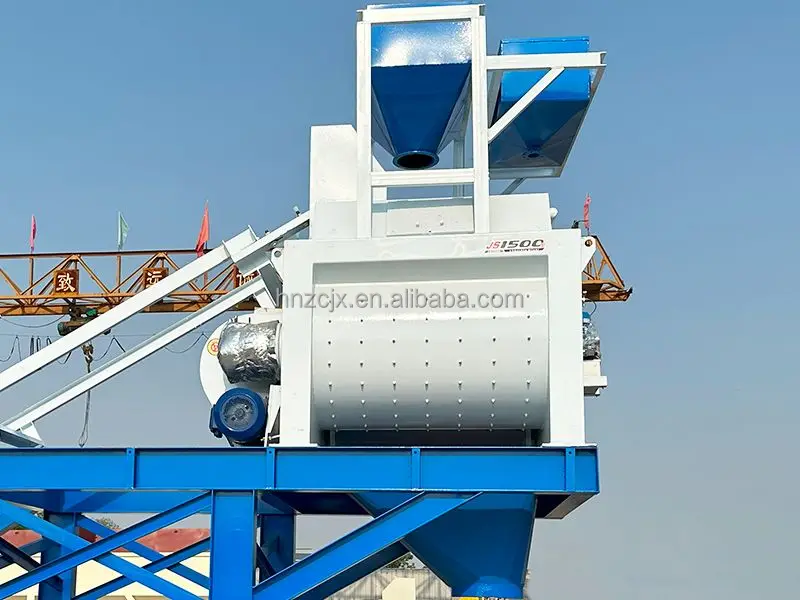

Mixing System
1. Perfect multi-sealing system to avoid leakage and protect shaft ends.
2. Equipped with changeable wear-resistance blade and liner plates, lifetime is over 60,000 times.
3. Equipped with auto lubrication pump, once fill for 5-7 days running.
4. Advanced motor and reducer driven system to keep stable performance.
Weighing System
1. Powder and water or additives are measured independently, ensuring rapid action and high accurate measurement.
2. High accuracy sensor ensures the error no more than 1%.
Batching System
1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
2. Accumulative weighing system and separate weighing system are available choice.
3. High accuracy sensor ensures the error no more than 2%.

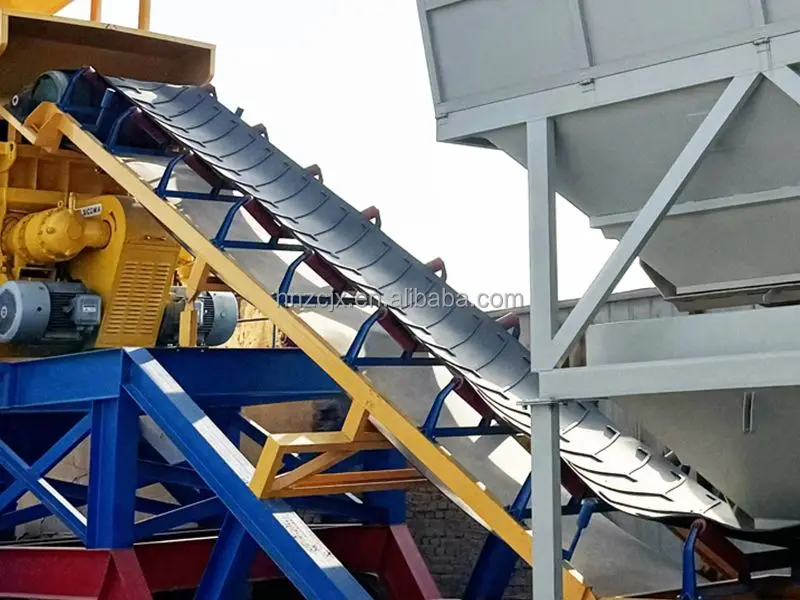

Aggregate Feeding System
1. Inclined angle up to 32 degree, stand small area.
2. Equipped with recycled belt conveyor to reuse the leakage material.
3. Vibrating Return cover to avoid sticks.
4. Equipped with maintenance aisle. Easy for maintenance and clean.
5. Fully rain cover to reduce the dust emission and protect the belt if customers need.
Control System
1. Automatic or manual can be adjusted flexibly smoothly.
2. All wires & cables are coded, easy to track and maintenance.
3. Intelligent management system for task tracking, printing, etc.
4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.
Cement Screw Conveyor
1. High revolving speed, large conveying capacity, high precision and nice conveying condition.
2. Easy assembly, easy connection, reliable sealing and wide application.
3. Suitable for conveying a variety of powder, granular, small bulk materials.
4. Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.
2. Easy assembly, easy connection, reliable sealing and wide application.
3. Suitable for conveying a variety of powder, granular, small bulk materials.
4. Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.

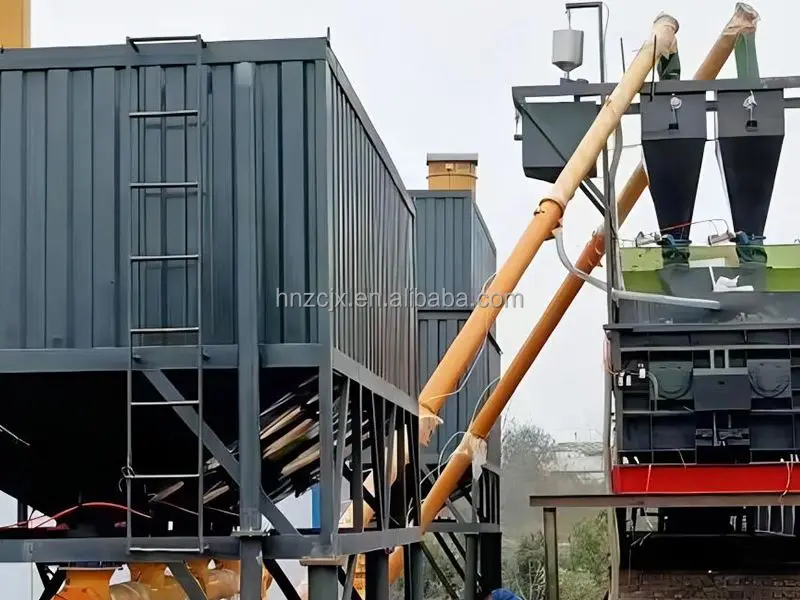

Cement Silo
1. Vertical cement silo and horizontal cement silo are available for selection.
2. Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc.
3. High-quality steel, good sealing, stable support and long service life.
The main structure is made of O235 high-quality carbon steel, which has good toughness, strong bearing capacity, corrosion resistance and is not easy to break.
More details, please contact us by clicking here. Thank you!
Detail Images
Concrete Mixer Blades

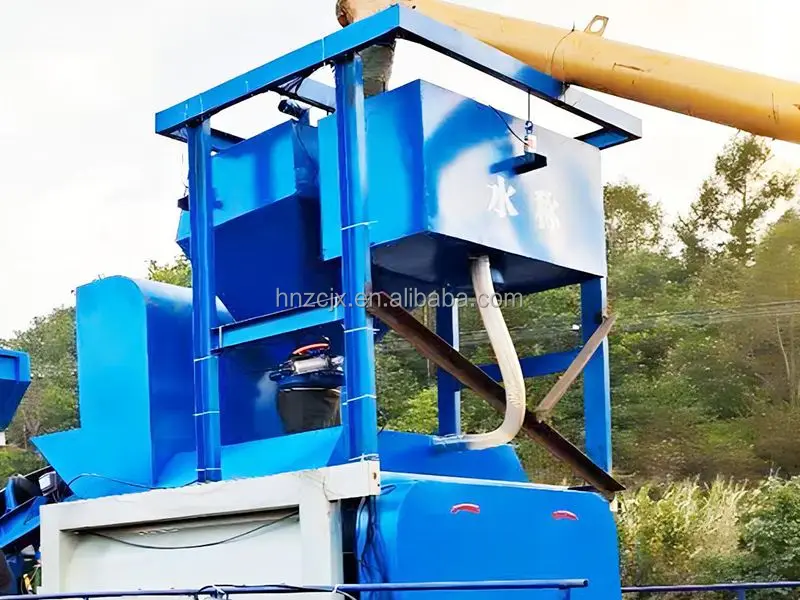

Weighing Hopper
Moving Tire
Cement Silo
Vertical Cement Silo

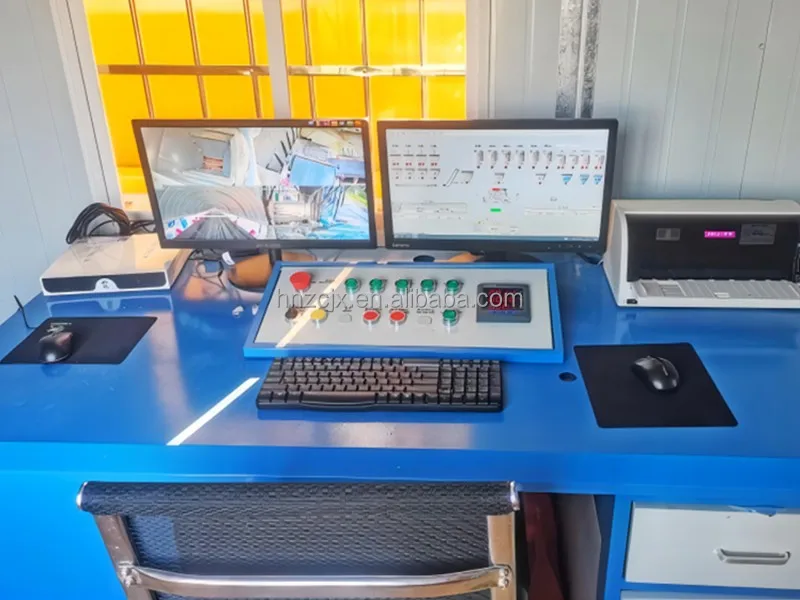

Control Room

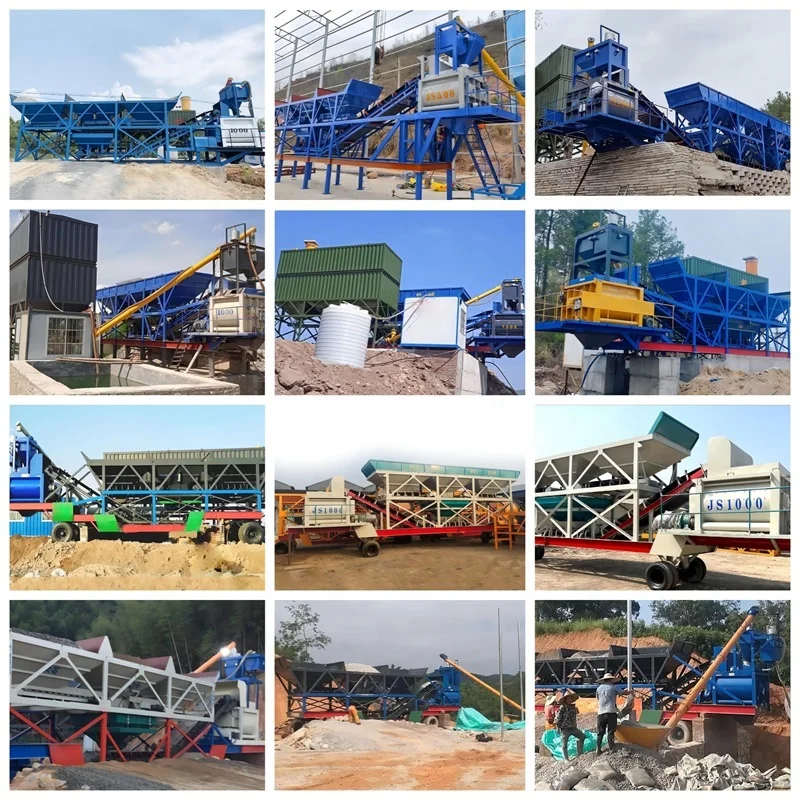

Customer Site
More details, please contact us by clicking here. Thank you!
Product Paramenters
Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | |||
Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h | |||
Mixer Model | JS500 | JS750 | JS1000 | JS1500 | |||
Mixer Power | 18.5Kw | 30Kw | 37Kw | 2*30Kw | |||
Discharge Height | 1500-3800mm | ||||||
Discharge Volume | 500L | 750L | 1000L | 1500L | |||
Charging Volume | 800L | 1200L | 1600L | 2400L | |||
Mixing Cycle | 60S | ||||||
Max. Agg. Size | 80/60mm | ||||||
Loading Way | Belt conveyor | ||||||
No. of Storage Hopper | 3 | 3 | 4 | 4 | |||
Agg. Silo Capacity | 4m3 | 4m3 | 5m3 | 5m3 | |||
Agg. Weighing Accuracy | ±2% | ±2% | ±2% | ±2% | |||
Water/Cement/Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | |||
No. Of Wheels | 2 | 2 | 2 | 2 | |||
Dragging Way | 360 Degree bayonet | ||||||
Control System | Fully automatic/Manual | ||||||
Total Power | 51KW | 75KW | 105KW | 145KW | |||
Total Weight | 22t | 28t | 32t | 35t | |||
More details, please contact us by clicking here. Thank you!
Company Profile
Henan Zhucheng Machinery Manufacturing CO., LTD is one of the scientific and technological enterprises integrated with research and development, manufacture, sales and service.
We are specialized in manufacturing all kinds of concrete mixing plant factories, do export more than 20 years, choose us you can quickly get the product quotation, there is no middleman to earn the price difference, the price is going to make you satisfied, we have professional engineering technicians responsible for the installation of your products to guide and lifelong after-sales service. Welcome to visit our factory!
We are specialized in manufacturing all kinds of concrete mixing plant factories, do export more than 20 years, choose us you can quickly get the product quotation, there is no middleman to earn the price difference, the price is going to make you satisfied, we have professional engineering technicians responsible for the installation of your products to guide and lifelong after-sales service. Welcome to visit our factory!
Raw Material
Machine Finishing
Ready For Delivery
Foreign Trade Department
Technology R&D Department
Production Workers
More details, please contact us by clicking here. Thank you!
Customer Visits
Packing&Delivery
FAQ
Q1: How to choose the suitable concrete batching plant model?
A: Our professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, and project budget, etc.
Q2: Do you provide overseas service to install and debug?
A: Sure friend. We have overseas after-sale service team to meet customer requires.As a reputable supplier, we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging?
A: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete batch plant?
A: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there are any question, feel free to contact.
Q5: Is the Belt conveyor necessary?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor. While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
Q6: Is the control system of the concrete mixing station computerized?
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
Q7: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q8: Is the concrete mixing station measured separately?
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
Q9: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q10: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
A: Our professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, and project budget, etc.
Q2: Do you provide overseas service to install and debug?
A: Sure friend. We have overseas after-sale service team to meet customer requires.As a reputable supplier, we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging?
A: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete batch plant?
A: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there are any question, feel free to contact.
Q5: Is the Belt conveyor necessary?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor. While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
Q6: Is the control system of the concrete mixing station computerized?
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
Q7: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q8: Is the concrete mixing station measured separately?
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
Q9: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q10: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
