The above price is for Grace12

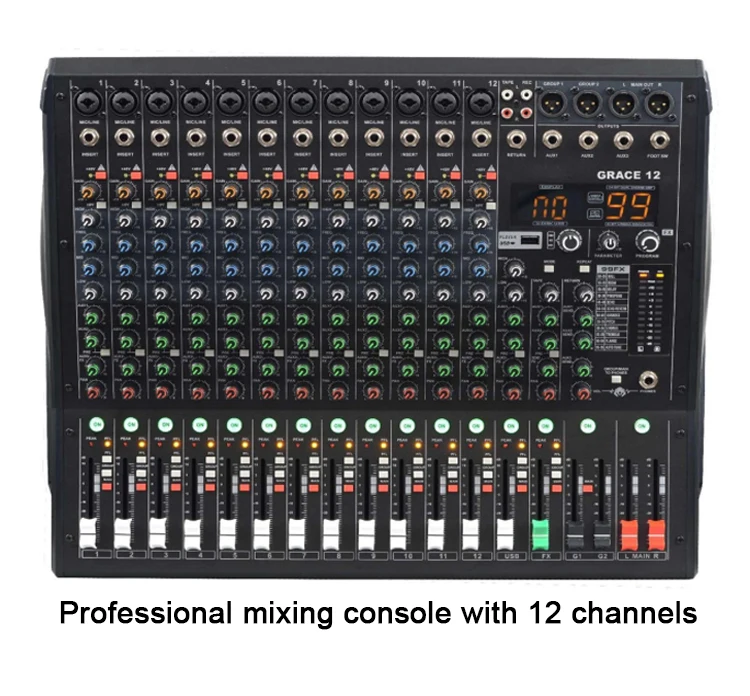

GRACE12 mixing console 12 channels audio mixer
-------------------------------------------

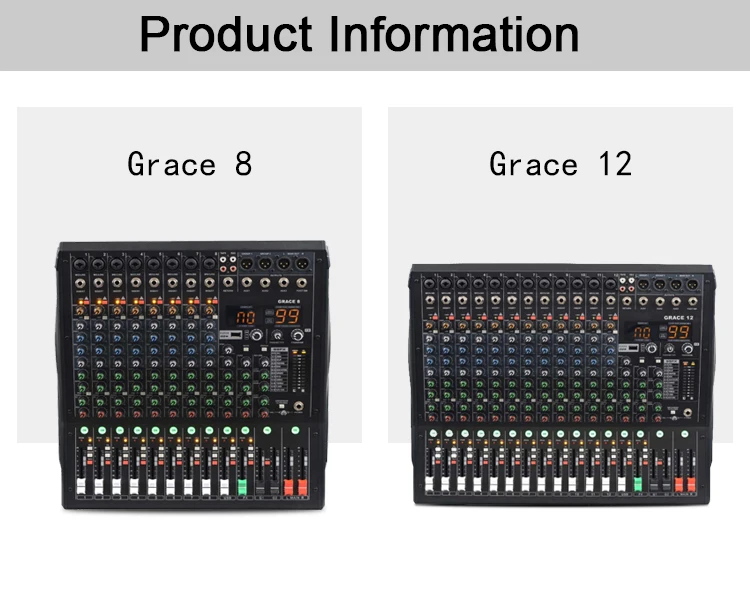

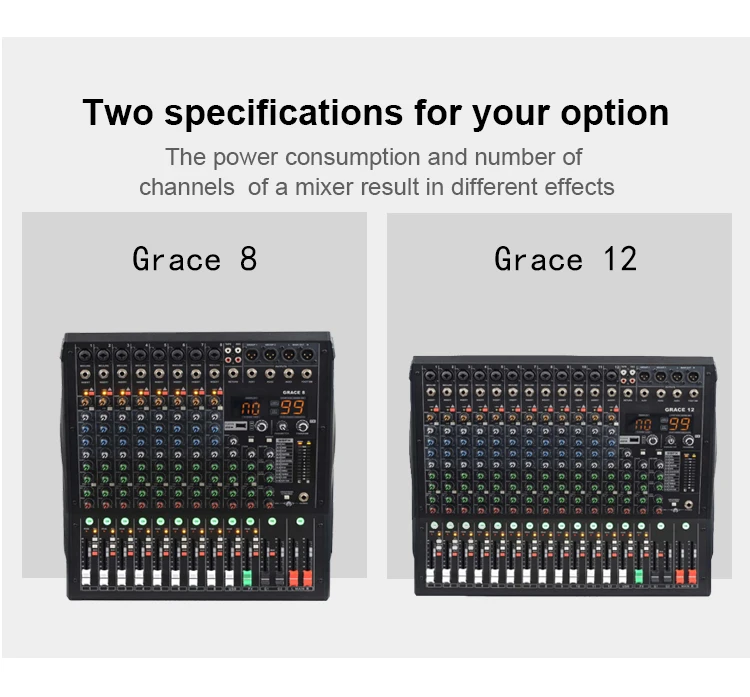

****GRACE series including 2 models****
-------------------------------------------

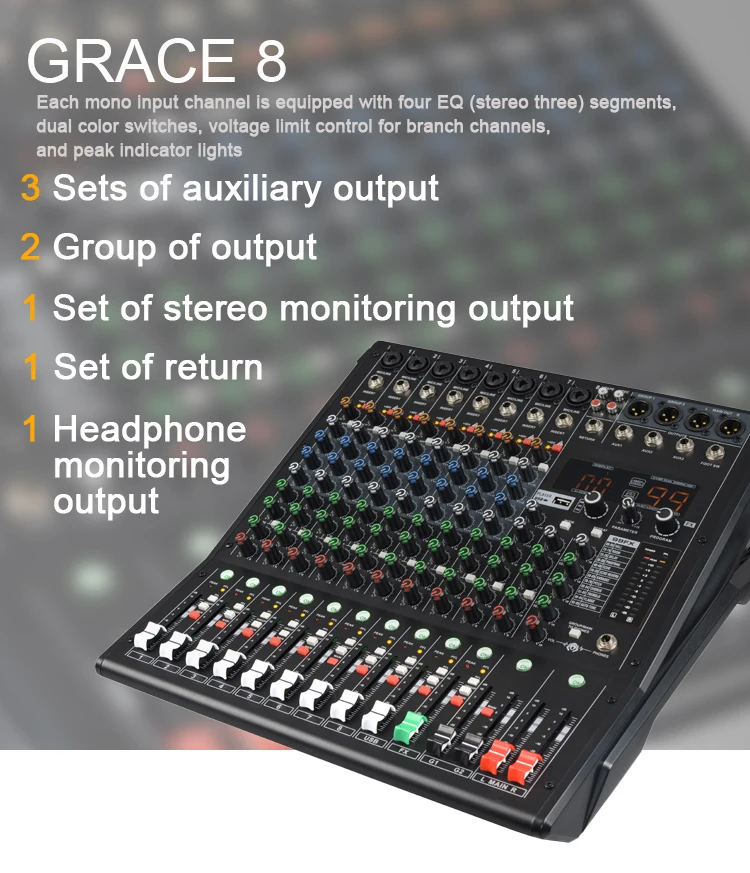

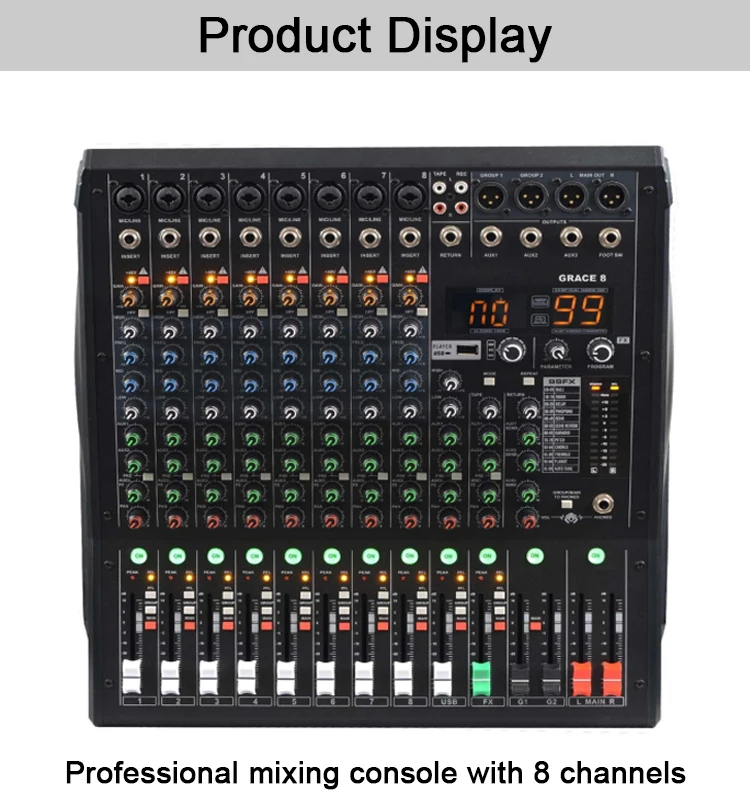

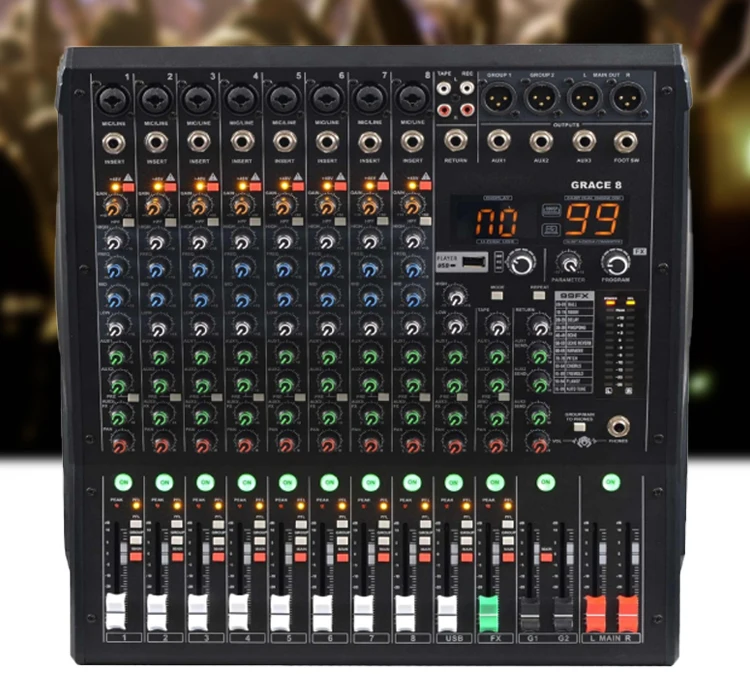

GRACE8-8 channels
GRACE12-12 channels
----------------------------------------
**** GRACE series MIXER specification****
----------------------------------------
| GRACE series mixer specification | ||
| Model | GRACE8 | GRACE12 |
| Frequency response | 20Hz-20kHz, ± 3dB | 20Hz-20kHz, ± 3dB |
| Distortion | <0.003% (A-weighted) | <0.003% (A-weighted) |
| Microphone balanced input noise | -119dB (A-weighted) | -119dB (A-weighted) |
| Common mode rejection ratio | 60dB | 60dB |
| Single channel input gain | MIC: 0 to 48dB, LINE: -33 to+15dB | MIC: 0 to 48dB, LINE: -33 to+15dB |
| Stereo channel input gain | LINE: -8 to+6dB | LINE: -8 to+6dB |
| Main mix crosstalk | -87dBu (A-weighted) | -87dBu (A-weighted) |
| Channel crosstalk | -85dBu (A-weighted) | -85dBu (A-weighted) |
| Maximum output level | +20dBu | +20dBu |
| MIC input high pass filtering | 75Hz, 18dB/oct | 75Hz, 18dB/oct |
| Single channel equalization | High frequency: ± 15dB/12KHz ; Intermediate frequency: ± 12dB/2.5KHz ; Low frequency: ± 15dB/80Hz | High frequency: ± 15dB/12KHz ; Intermediate frequency: ± 12dB/2.5KHz ; Low frequency: ± 15dB/80Hz |
| Power supply | 110-220V, 30W | 110-220V, 30W |
| Power consumption | ≤ 18W | ≤ 18W |
| Size (L x W x H) | 345 * 385 * 95mm | 460 * 385 * 95mm |
| Weight | 5.8kg | 6.8kg |
------------------------------
***GRACE12 Features***
------------------------------
1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.
2. Provide 10 Mic input interfaces compatible with 10 line input interfaces, with a 48V phantom power supply.
3. Provide 2 sets of stereo inputs that can be connected to stereo devices.
4. Each single channel input channel is equipped with 3 EQ segments (stereo two segments), built-in 7 stereo equalizers, and peak indicator lights.
5. Provide 2 sets of stereo main outputs, 2 sets of auxiliary outputs, 2 sets of outputs, 1 set of stereo monitoring outputs, 1 set of headphone monitoring outputs, and 1 set of CD/Tape outputs.
6. Built in 24 bit DSP effector.
7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording
Technical parameters:
1. Microphone input: 10 channels (10 XLR interfaces)
2. Line input: 10 single plug mono/stereo automatic switching and mixing interfaces
3. Stereo input: 2 sets
4. CD/TAPE input: 1 channel CD/TAPE RCA stereo input interface
5. Output path: 2 sets of stereo main outputs, 2 sets of auxiliary outputs, 2 sets of outputs, 1 set of stereo monitoring outputs, 1 set of headphone monitoring outputs, and 1 set of CD/Tape outputs
6. Effector: 24 bit DSP effector (including vocals, small houses, halls, echoes, echoes+echoes, plates, vocal boards, choir GTR, rotating GTR, vibrato GTR types)
7. Phantom power supply:+48V with switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone balanced input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main mix crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB/12KHz ; Intermediate frequency: ± 12dB/2.5KHz ; Low frequency: ± 15dB/80Hz

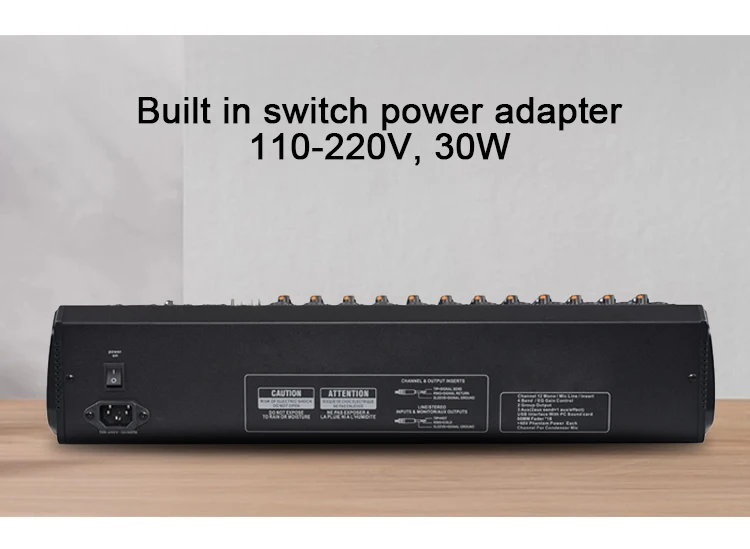

19. Power supply: Built in switch power adapter 110-220V, 30W
20. Power consumption: ≤ 18W
21. Size (L x W x H): 460 * 385 * 95mm
22. Weight: 6.8kg
-----------------------------------------

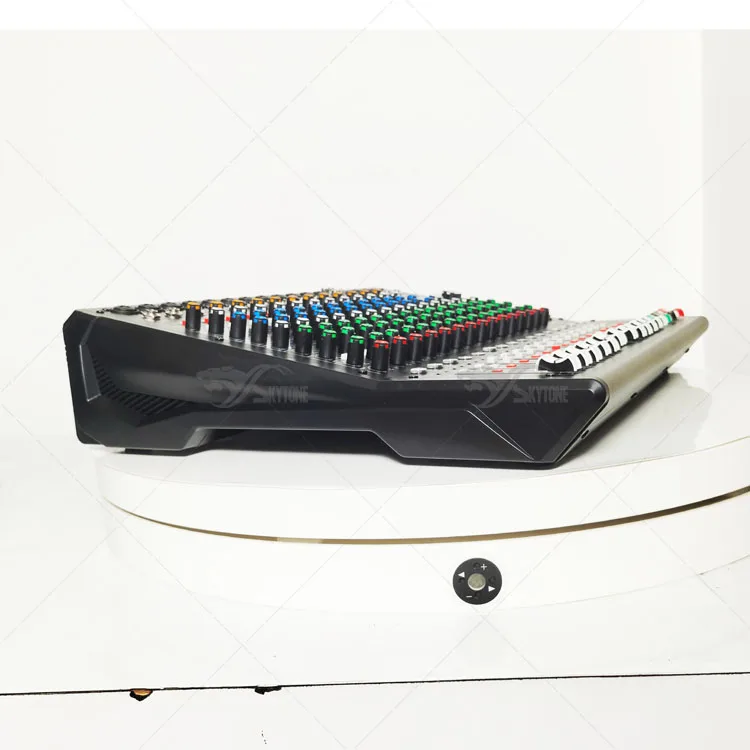

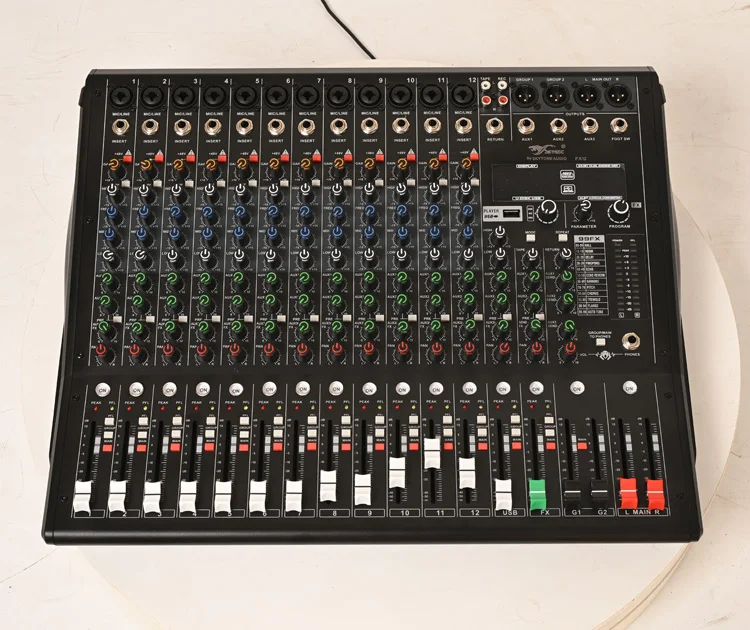

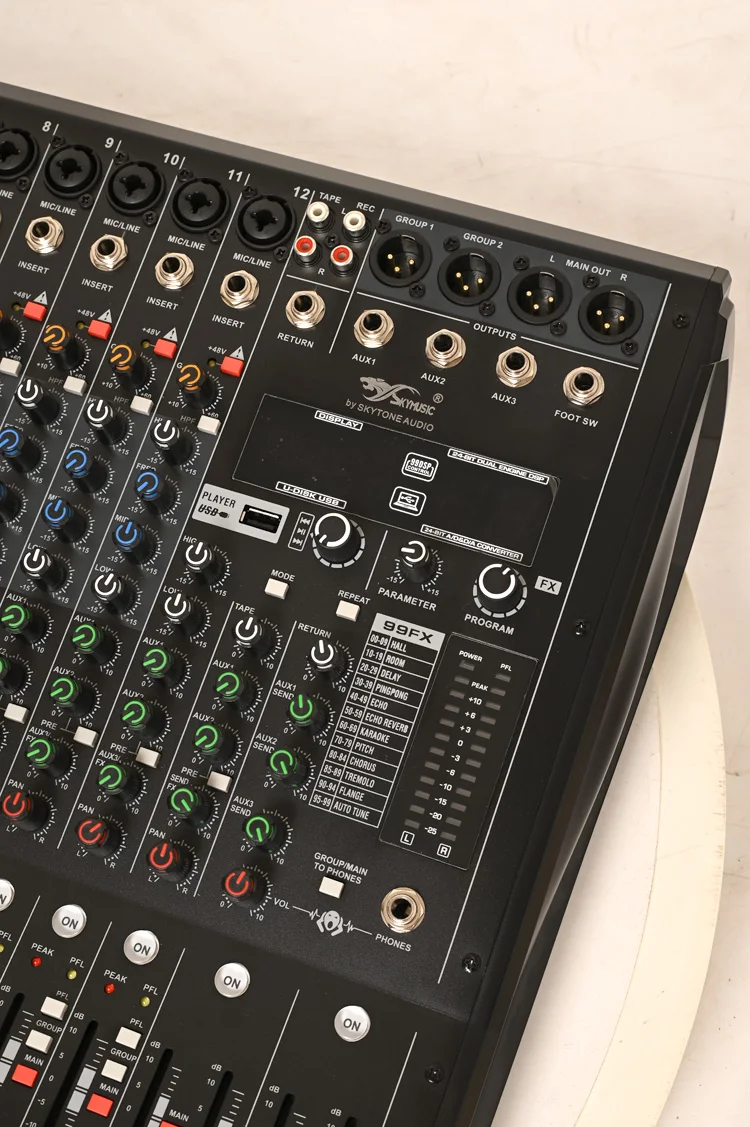

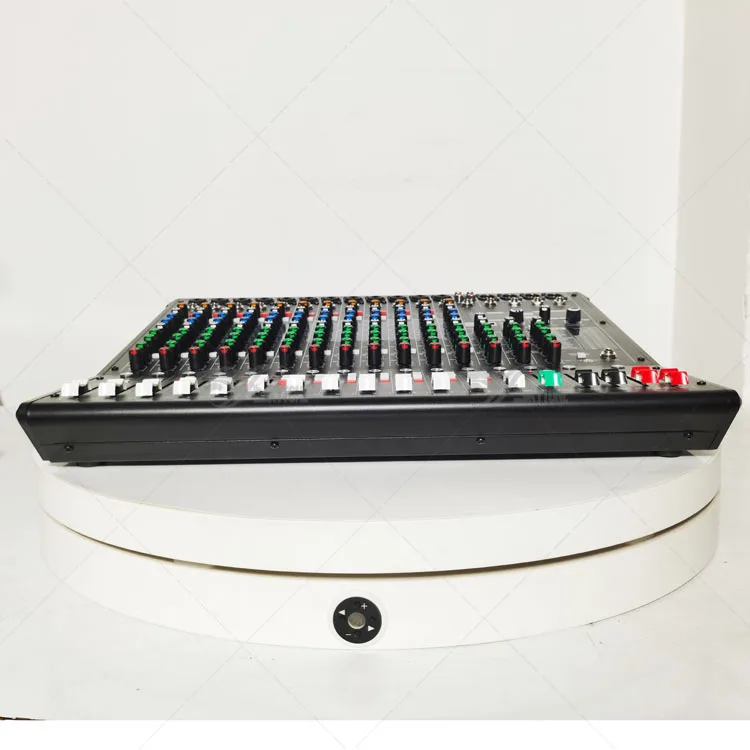

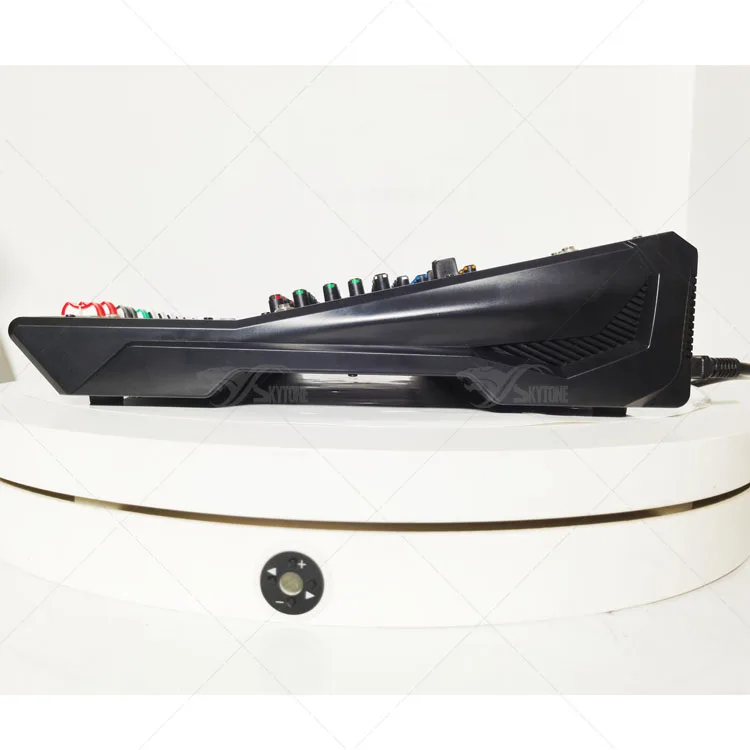

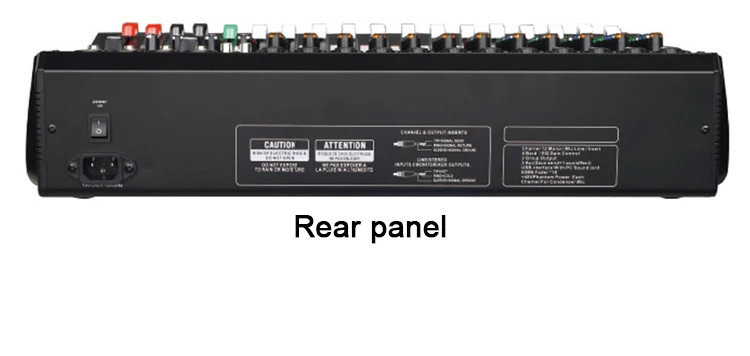

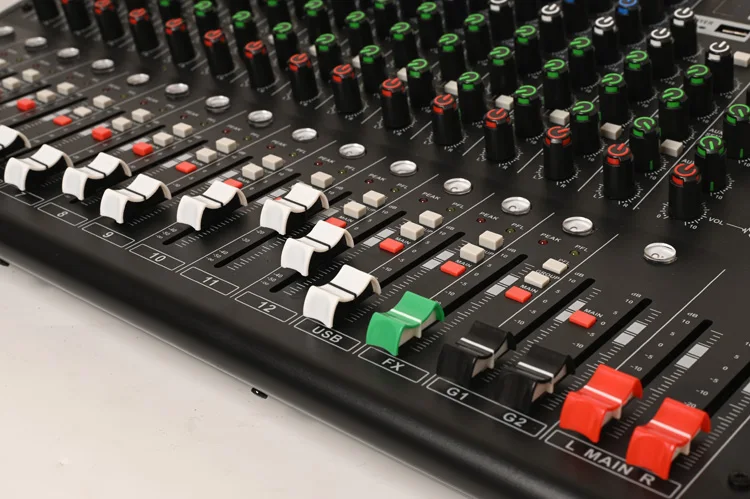

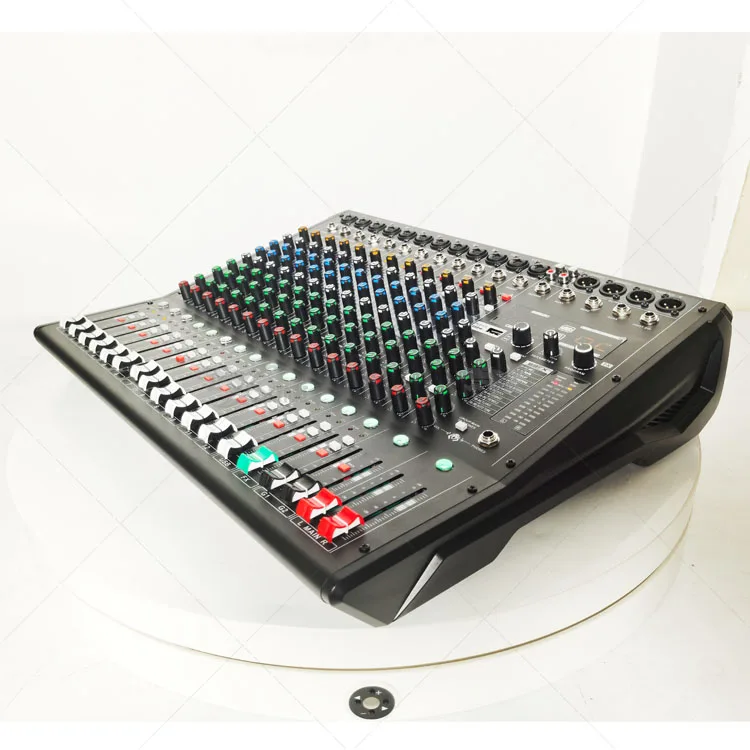

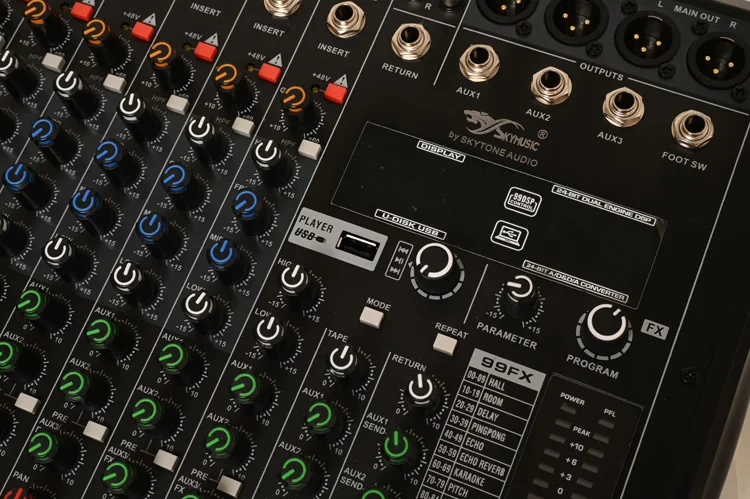

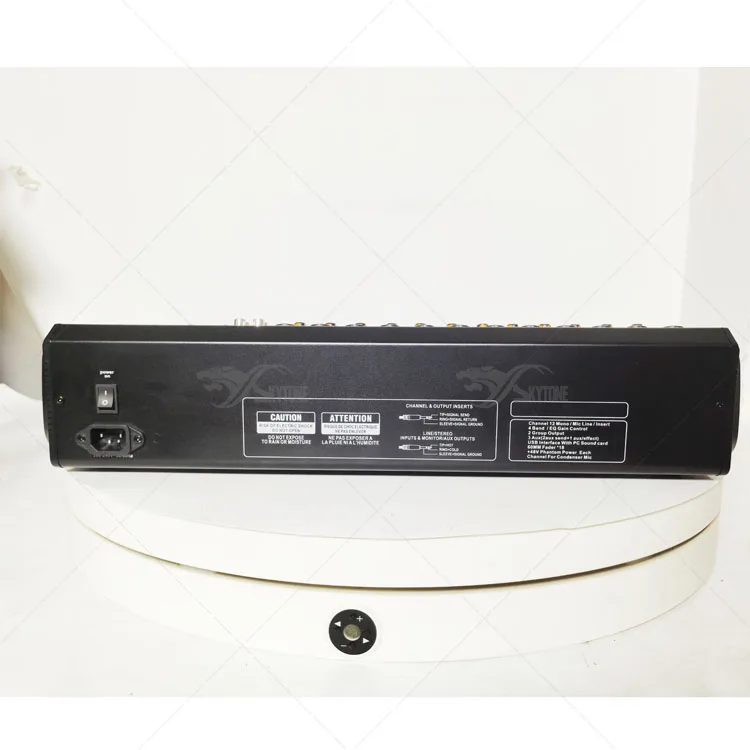

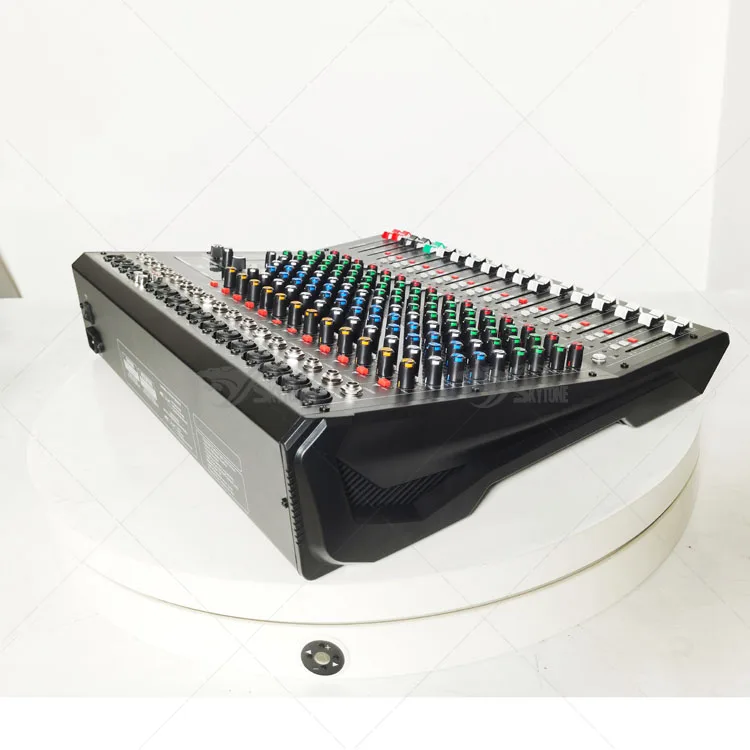

***GRACE12 REAL PHOTOS***
-----------------------------------------
-------------------------------------
*** mixer application***
-------------------------------------
