Hot Sale Sand Washing Mining Machine Spiral Classifier Gold Silica Washing Processing Plant
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine, mining magnetic separator, mining gravity separator and gold smelting furnace.If you want to buy mining equipment, choose Hengchang, we ensure that you will be satisfied.
Introduction
Widely ApplicationIt is widely applied to the construction industry, such as separating light particles from heavy particles in the gravity separation process, separating fine particles and liquid from coarse particles in the metal ore processing, and separating the slurry or liquid from solid particles in ore processing plant.

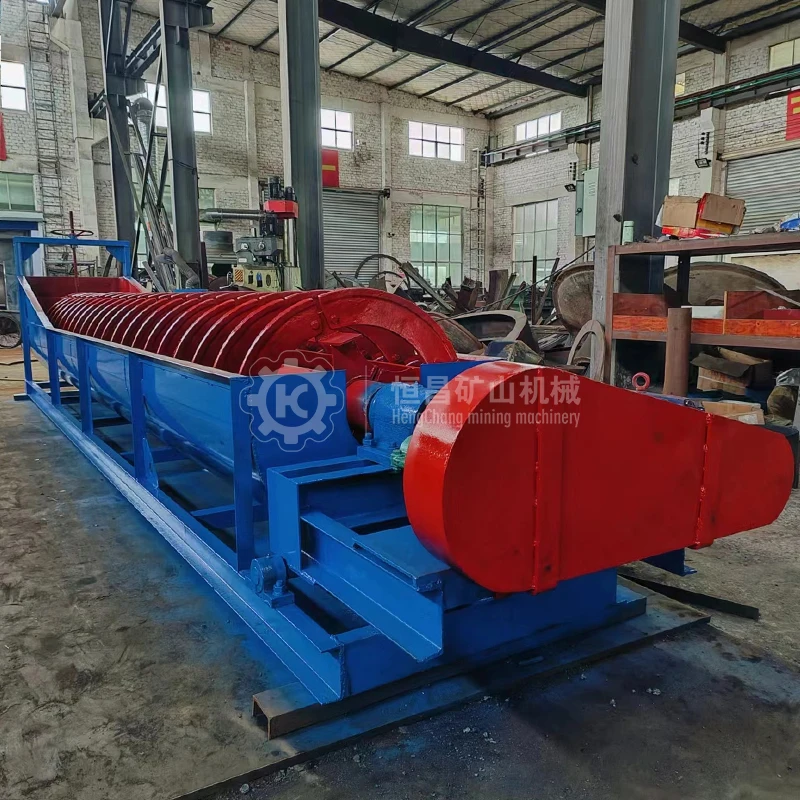

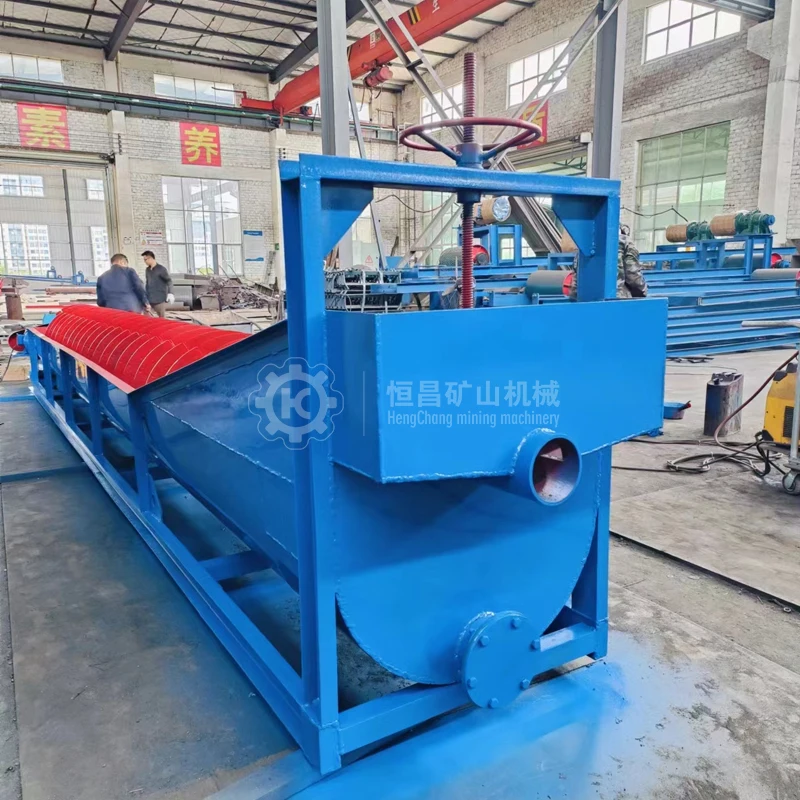

Spiral sand washer is one of the washing equipment in sand washing. It is suitable for washinging materials in the sand stone processing plant as well as the desliming and dehydrating in the materials washing operating process and widely applied to separate the particles into a number of products graded according to size in the complete closed loop together with ball mill in the mining industry.
Widely Application
Details Images
Working Principle The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
Type | Model | Spiral Speed (r/min) | Chute Length(mm) | Capacity of Returning (t/d) | Capacity of Overflow (t/d) | Drive Motor Power (kw) | Lifting Motor Power (kw) | Weight (kg) |
High weir single spiral classifier | FLG-500 | 10.5 | 4500 | 145~260 | 32 | 1.1 | Manual operation | 1600 |
FLG-750 | 7.8 | 5500 | 256~654 | 65 | 3 | 2716 | ||
FLG-1000 | 6.6 | 6500 | 473~1026 | 85 | 5.5 | 4000 | ||
FLG-1200 | 6 | 6500 | 1145~1600 | 155 | 5.5 | 1.5 | 7943 | |
FLG-1500 | 2.5,4.4 | 8265 | 1140~2740 | 235 | 7.5 | 2.2 | 11680 | |
FLG-2000 | 3.6,5.5 | 8400 | 3890~5940 | 400 | 11/15 | 3 | 20450 | |
FLG-2400 | 3.6 | 9130 | 6800 | 580 | 22 | 3 | 24194 | |
FLG-3000 | 3.2 | 12500 | 11625 | 890 | 30 | 4 | 37000 | |
High weir double spirals classifier | 2FLG-1200 | 6 | 6500 | 2340~3200 | 310 | 5.5×2 | 1.5×2 | 15840 |
2FLG-1500 | 2.5,4.6 | 8250 | 2280~5480 | 470 | 7.5×2 | 2.2×2 | 22100 | |
2FLG-2000 | 3.6,5.5 | 8400 | 7780~11880 | 800 | 15×2 | 3.0×2 | 34621 | |
2FLG-2400 | 3.67 | 9130 | 13600 | 1160 | 18.5×2 | 3.0×2 | 42460 | |
2FLG-3000 | 3.2 | 12500 | 23300 | 1785 | 22×2 | 4.0×2 | 73030 | |
Submerged single spiral classifier | FLC-1000 | 5 | 8400 | 473~1026 | 75 | 5.5 | Manual operation | 5225 |
FLC-1200 | 5,6,7 | 8400 | 1150~1640 | 120 | 7.5 | 2.2 | 9583 | |
FLC-1500 | 2.5,4.6 | 10500 | 1830~2740 | 185 | 7.5 | 2.2 | 14226 | |
FLC-2000 | 3.6,5.5 | 12900 | 3240~5940 | 320 | 11/15 | 3 | 27753 | |
FLC-2400 | 3.6 | 14130 | 6800 | 455 | 18.5 | 4 | 32467 | |
FLC-3000 | 3.2 | 14300 | 11650 | 705 | 30 | 4 | 43500 | |
Submerged double spirals classifier | 2FLC -1200 | 6 | 8400 | 2340~3260 | 240 | 7.5×2 | 1.5×2 | 19610 |
2FLC-1500 | 2.5,4.6 | 10500 | 2280~5480 | 370 | 7.5×2 | 2.2×2 | 27450 | |
2FLC-2000 | 3.6,5.5 | 12900 | 7780~11880 | 640 | 15×2 | 3.0×2 | 50000 | |
2FLC-2400 | 3.6 | 14130 | 13700 | 910 | 18.5×2 | 4.0×2 | 65283 | |
2FLC-3000 | 3.2 | 14300 | 23300 | 1410 | 22×2 | 4.0×2 | 84900 |
1.Are you factory or trade company?
Yes, we are the professional manufacturer from 1985.So we could give you original factory price than those trade companies.
Yes, we are the professional manufacturer from 1985.So we could give you original factory price than those trade companies.
2.Can I operate it well, if I have no experience?
Do not worry! Our machines is easy to operate.You are welcome to visit our company to be trained here or be guided online by our technical engineers.
3.How about your Service ?
All of our machines have one year warranty and whole life technological support to make sure your machine work well.
4.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are out of stock.
5.What about the payment method?
Payment<=$1000, 100% in advance. Payment>=$1000, 30% T/T in advance ,balance before shipment.
Jiangxi Hengchang International Mining Machinery Co., Ltd. is the leading company in mining gravity separator machine designing & manufacturing in China. Up to now, we have developed four major product lines, they are mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. We have three senior engineers and two junior engineers on equipment designing and mining process designing. At the same time, we kept good relationship with some mining research institute and university, such as Jiangxi University of Science and Technology, Ganzhou Nonferrous Metallurgy Research Institute, Hunan Research Institute of Nonferrous Metals, and etc., to improve our designing and production, and also provide technology support for the mining project. With more than 30 years in mining business, we have accumulated enough experience in gold mining plant, tungsten mining plant, wolfram mining plant, tin mining plant, cassiterite mining plant, coltan mining plant, columbite mining plant, iron ore mining plant, black/beach sand mining plant designing, manufacturing, installing, commissioning and training. We could provide the customized complete mining solution to our customer. Our major overseas market is Africa and Southeast Asia, and our products covers 43 global countries, as more and more customers are aware of our quality products and good service, this number is growing fast.Focus areas:Mining equipment, vibrating feeder, vibrating screen, crusher, ball mill, classifying separator, leaching tank, flotation machine, gravity separator, shaking table, spiral chute, jig machine, centrifugal concentrator and other mining equipment.
