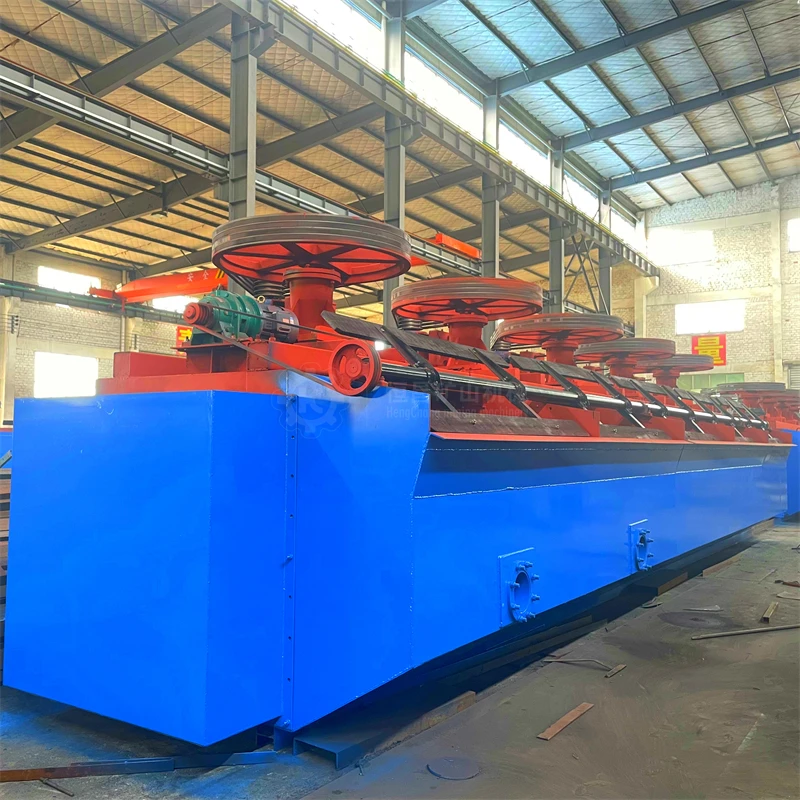

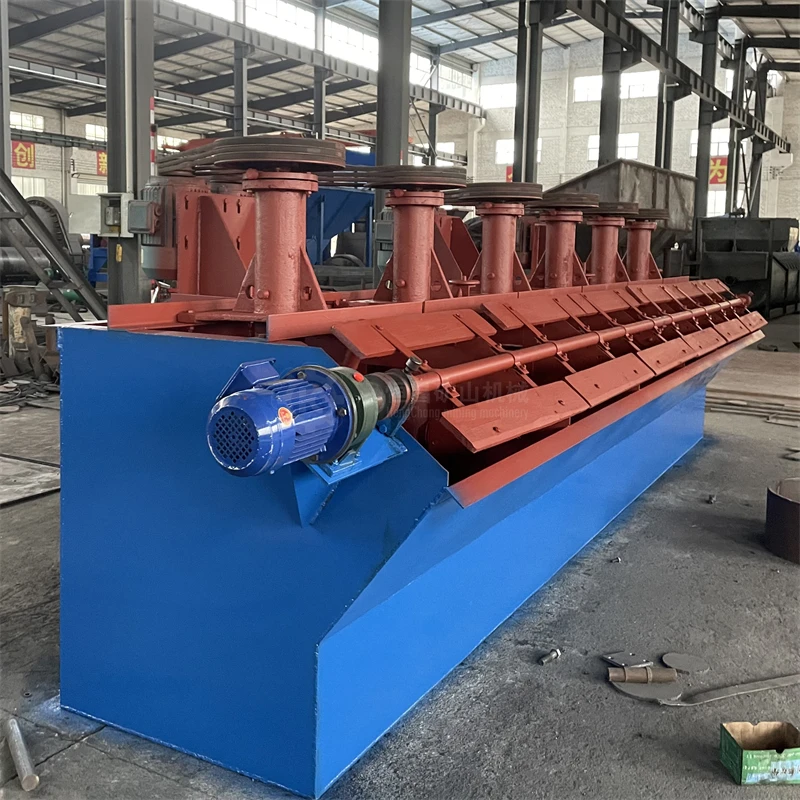

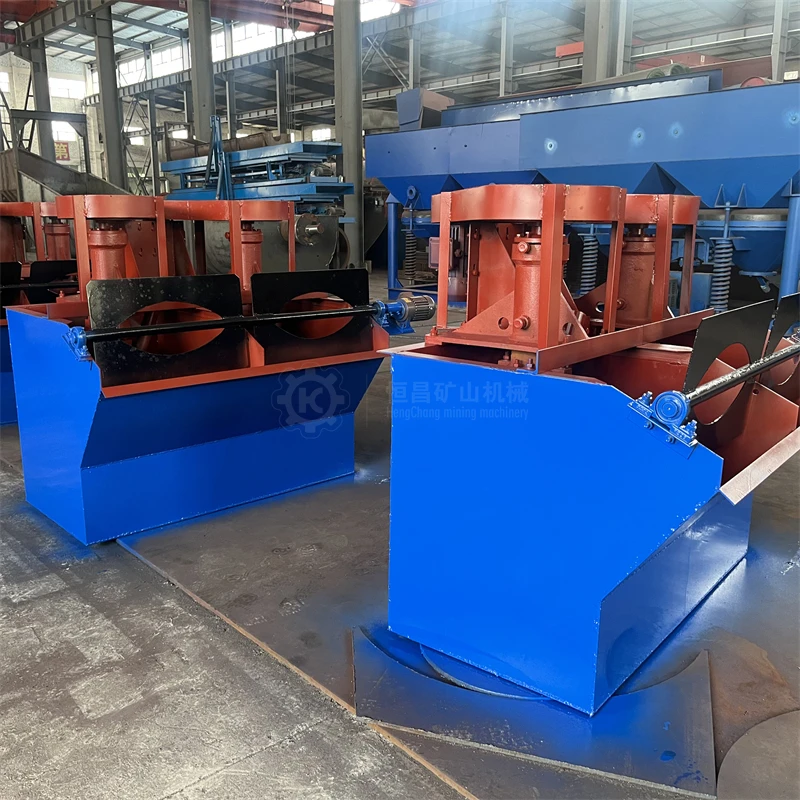

High Efficiency Small Large XJK SF Series Froth Copper Iron Lead Zinc Nickel Aluminum Lithium Gold Flotation Cell Tank Machine
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.




Flotation Cell Tank Machine Introduction

XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body. XJK-3A,4A,5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the basic cell and combining some cells for the roughing, scavenging and cleaning concentration.


Flotation Cell Tank Machine Working Principle

The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.When the flotation machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.


Flotation Cell Tank Machine Widely Applications

It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous
metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.

















Type
Specification model
Effective cubage (m³)
Processing capcity (m³/min)
Main shaft loam board
Power (kw)
Rotate speed (r/min)
Rotate speed (r/min)
Power (kw)
XJK Series
XJK-0.35
0.35
0.18-0.4
1.5
483
25
1.1
XJK-0.62
0.62
0.3-0.9
3
400
25
1.1
XJK-1.1
1.1
0.6-1.6
5.5
330
25
1.1
XJK-2.8
2.8
1.5-3.5
11
280
25
1.1
XJK-5.8
5.8
1.1-2.9
22
240
25
1.5
SF Series
SF-0.37
0.37
0.2-0.4
1.5
386
25
1.1
SF-0.7
0.7
0.3-0.9
3
400
25
1.1
SF-1.2
1.2
0.6-1.6
5.5
330
25
1.1
SF-2.8
2.8
1.5-3.5
11
268
25
1.1
SF-4
4
2.0-4
15
220
25
1.5
SF-8
8
4.0-8
30
191
25
1.5
SF-16
16
5.0-16
30
191
25
1.5
SF-20
20
5.0-20
45
186
25
1.5


















Jaw Crusher
Jaw crusher is mainly used for crushing large particle stones, granite, limestone and construction waste, etc. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry etc.
Hammer Crusher
Hammer crusher is widely used in metallurgy, coal, chemical industry, building materials industry and electric power industry,which mainly forms universal medium crushing and fine crushing series, coal type medium crushing and fine crushing series.


Ball Grinding Mill
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
6S-Shaking Table
Shaking table is widely used for sorting tungsten ore. Its main function is sorting the rough and concentrate mixture after tungsten ore gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm.


Jig Separator Machine
Jig machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
Agitation Tank
Agitation tank is mainly used to blend medicament and ore magma ,it’s suitable for blending various kinds of metal and nonmetal ores. Especially it’s applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating,gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.






















1.What is your machine used for ?
Our flotation separator is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, concentration and flotation operations.Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.



2.Are you factory or trade company?
Yes ,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.



3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.



4.How about the service of your company?
We are 24hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.



5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



6.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
