Product Description

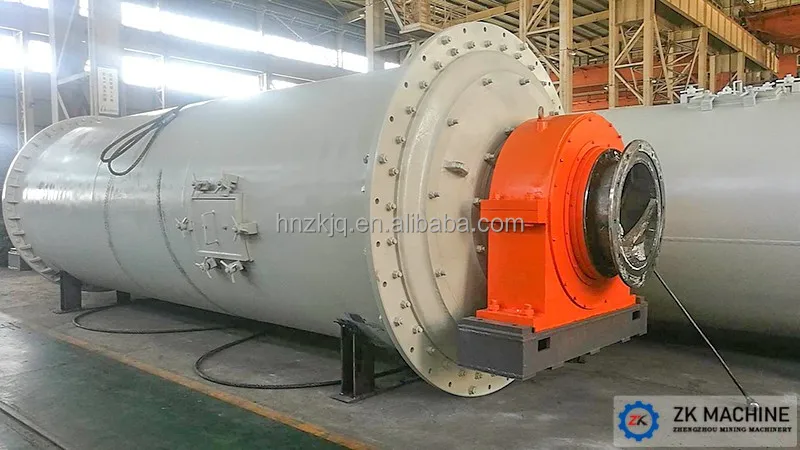

Gypsum Ball Mill Introduction:
The phosphogypsum ball mill is improved on the basis of the general-purpose ball mill. After phosphogypsum is dehydrated and calcined, it often needs to be ground into building gypsum powder before it can be used as a building material to make blocks and boards. The phosphogypsum ball mill is a special mill developed by our company based on the performance of phosphogypsum and combined with a series of advantages such as energy-saving ball mills. This machine has the characteristics of energy saving, high efficiency and low pollution in the production of phosphogypsum grinding.
According to the phosphogypsum material particle size and grindability data, it focuses on the grinding characteristics and weakens the crushing performance. In the process of phosphogypsum grinding, a proper proportion of lime and other catalysts can be added to realize the modification of phosphogypsum.




The Working Principle of the Gypsum Ball Mill:

The phosphogypsum ball mill adopts a horizontal cylindrical rotating device with outer gear transmission. The material enters the mill uniformly through the feeding device through the feeding hollow shaft spirally. The inner wall of the cylinder is equipped with a liner, and steel balls of different specifications are installed inside. Crushing and grinding effect. The material moves from the grinding head to the tail of the mill in the mill, and is gradually further ground until the mill is discharged through the discharge grate to complete the grinding operation.


Project Case




Features




1. The phosphogypsum ball mill is highly adaptable: according to the industrial use of building phosphogypsum powder, it can grind products with different fineness suitable for various purposes such as gypsum blocks, gypsum mortar, etc., with high adaptability and stable output.
2. Energy consumption of phosphogypsum ball mill equipment: Compared with other materials, phosphogypsum has high output and low power consumption due to its small particle size and good grindability.
3. The maturity and reliability of phosphogypsum ball mill equipment. The grinding technology of the ball mill is mature and universal, and the grinding characteristics in the production process are optimized, and the operation is stable and reliable, and avoids various shutdown and downtime risks caused by immature technology after it is put into production.
4. During the grinding process of the phosphogypsum ball mill, other production processes can be added, such as a proper amount of lime or other additives to achieve the performance of phosphogypsum and optimize the strength.


Technical Parameter


Model
Capaicty (t/h)
Rev. speed (r/min)
Grinding body (t)
Motor

Reducer
Weight (t)
Model
Power（KW）
Model
Speed ratio
Φ1.2x4.5
1.4
30.3
5
YR250M-6
55
ZD30-8
4.481
13.1
Φ1.5x5.7
3.5
26.34
11
JR127-8
130
ZD40-7
4
25
Φ1.83x6.4
6
23.9
18
JR137-8
210
ZD60-8
4.5
35.3
Φ1.83x7
6.5
24.5
20
JR138-8
245
ZD60-8
4.5
37.2
Φ2x9
9.5-10
23.88
31
JR158-8
380
ZD70-8
4.5
58.4
Φ2+B9:J37.2x6.5
11
21.4
30
JRQ158-8/YR630-8
380
ZD70-9
5
46.2
Φ2.2x6.5
14 Closed circuit
21.4
30
JRQ158-8/YR630-8
380
ZD70-9
5
46.2
Φ2.2x7
12
21.4
30
JR158-8
380
ZD70-9
5
54
Φ2.2x7.5
13
21.4
32
JR158-8
380
ZD70-9
5
63
Φ2.2x8
14
21.4
37
JR158-8
380
ZD70-9
5
65
Φ2.2x9.5
14-16 Closed circuit
21.4
43
JR1510-8
475
ZD70-9
5
70
Φ2.2x13
16
20.3
55
YR630-8/1180/Y100L-8
630/11
JD630/ZS82.5-7
6.3/99.96
114.4
Φ2.4x7
14-16 Closed circuit
20.4
36
JR1510-8
475
JDX450
5
67.9
Φ2.4x8
16-17 Closed circuit
20.3
41
JR1512-8/Y180L-8
570/11
JD630/ZS82.5-7
6.333/99.96
87.2
Φ2.4x9
17-19 Closed circuit
20.3
46
YR630-8/1180/Y100L-8
630/11
JD630/ZS82.5-7
6.333/99.96
93.5
Φ2.4x10
18-19 Open circuit
20.3
50
YR630-8/1180/Y100L-8
630/11
JD630/ZS82.5-7
6.333/99.96
99.4
Φ2.4x11
19-21 Open circuit
20.3
60
YR630-8/1180/Y100L-8
630/11
JD630/ZS82.5-7
6.333/99.96
99.4
Φ2.4x12
25-27 Closed circuit
20.3
61
YR800-8/1180/Y100L-8
800/11
JD630/ZS82.5-7
6.333/99.96
112.7
Φ2.4x13
25-27 High fine open circuit
20.3
66
YR800-8/1180/Y100L-8
800/11
JD630/ZS82.5-7
6.333/99.96
131.1
Φ2.4x13
21-23 Open circuit
20.3
66
YR1000-8/1180/Y160M-4
1000/11
JD630/ZS82.5-7
6.333/99.96
130.4
Φ2.6x10
25-27 Closed circuit
20.3
60
YR800-8/1250
800
JD800
5.5
150.5
Φ2.6x13
27-29
19.1
80
YR1000-8/1180/Y160M-4
1000/11

5.5/280
169
Φ3x9
33-34 Closed circuit
19.6
79
YR1000-8/1180/Y160M-4
1000/11
NAL108/8/ZS110-19
8/280
156.5
Φ3x11
35-40 Closed circuit
18.3
97
YR1250-8/1430/YR160M-4
1250/11
YNL1210
6.3
178
Φ3x11
47 Closed circuit
17.7
97
YR118/74-8
1250
ZI314
42.39
169
Φ3x12
38-40 Closed circuit
18.1
90
YR1250-8/1430
1250/11
JS1100-00
41.27
196.26
Φ3.2x11
40 Closed circuit
18
103
YR1400-8/1430/Y160M-4
1400/11
YNL1210/ZS110-19
12.35/28
186.1 Without motor
Φ3.5x11.5
65-70 Closed circuit
16.5
129
TYD143/49-8
2000
ZI370
36.239
138.3 Without motor
Φ3.5x11.5
50 Closed circuit
17.2
126
YR1800-8/1430/Y200L2-2
1800/37

43.02/318
252.27
Φ3.8x13 Double slipper
70-75 Closed circuit
16.6
170
YRKK800-8
2500
JS130/MFY250
44.9
203 Without motor
Φ3.8x13
60-62
16.3
170
YR2500-10/1730
2500
MFYX250

286
Φ4x13
65 Closed circuit
15.95
202
YRKK900-8
2800
JS130-8
46.7
264
Φ4.2x13
85 Closed circuit
16.3
224
YRKK900-8
3150
MFY320
47.8
250 Without motor
Φ4.2x13
85-87
16.3
224
YR1000-8
3530
JQS3550
15.6
254 Without motor


Packing & Delivery




Packing:
1.ZK CORP will make proper packing for different machine, which is suitable for sea transport and land transport.
2.Main part will be in nude. Small parts will be packed in wooden box.
Transport:
1. ZK CORP can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.


Company Profile


Henan Zhengzhou Mining Machinery Co., Ltd, established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 60000 m² and various building area of 35000 m². In the plant, there are workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.








FAQ


To help us provide you the first-rate service, could please kindly answer the following questions before sending an inquiry?

1. How many tons do you want to produce per hour?
2. What are your raw material to process?
3. May i have your email or Whats pp? So that our manager can contact you and quote as soon as possible.
