Product Description
Brand: | HeltecBMS |
Product: | 42KW 7000A Intelligent Pneumatic Energy Storage Spot Welder with air compresser |
Country of origin： | China |
MOQ： | 1pcs |
Pure nickel welding 18650 thickness | 0.15-0.5mm |
Nickel plating welding 18650 thickness | 0.15-0.6mm |
Pure nickel welding LFP aluminum electrode | 0.1-0.4mm |
Nickel aluminum composite sheet welding LFP aluminum electrode | 0.15-0.5mm |
Copper welding LFP Copper electrode (with flux) | 0.14-0.4mm |
Energy Storage Charging Current | 15-20A |
General precautions:
1.This machine is specially designed for welding between iron nickel materials andstainless steel materials, suitable for but not limited to the welding of termarybatteries with iron nickel and pure nickel materials.
2.The two welding needles can only be pressed and welded to one of the battery's poleconnections (nickel/aluminum/copper).Pressing and welding the two welding needlesimultaneously to both metal connections of two poles of the battery is strictlyprohibited. This action can lead to a short circuit in the battery. As a result, not only willthe battery suffer damage, but also the welding machine.
3.To ensure proper welding, adjust the height of the soldered battery or workpiece suchthat the distance between the unpressed welding needle and the connecting workpieceis within 5-8mm. Once you have confirmed that the welding needle can be normallypressurized onto the workpiece, it may begin welding.
4.When starting to debug the welding process parameters of the workpiece, it is importantto gradually adjust the pulse energy setting of the welding machine from small to large.This ensures that the appropriate welding points are firmly established withoutblackening or splashing. Excessive energy output will result in splashing and acceleratedpin loss.
5.The red laser emitted by the laser scaler on the welding mechanism should not bedirectly observed.
6.There are high-voltage components inside the machine that may pose a risk to safety, soplease do not attempt to dismantle the shell of the machine.
7.The machine must be operated in a well-ventilated area, and it is strictly forbidden toobstruct the heat dissipation window of the machine.
8.The air pressure input by the machine should not exceed 6 kg/cm²(0.6 MPa).
Notice:

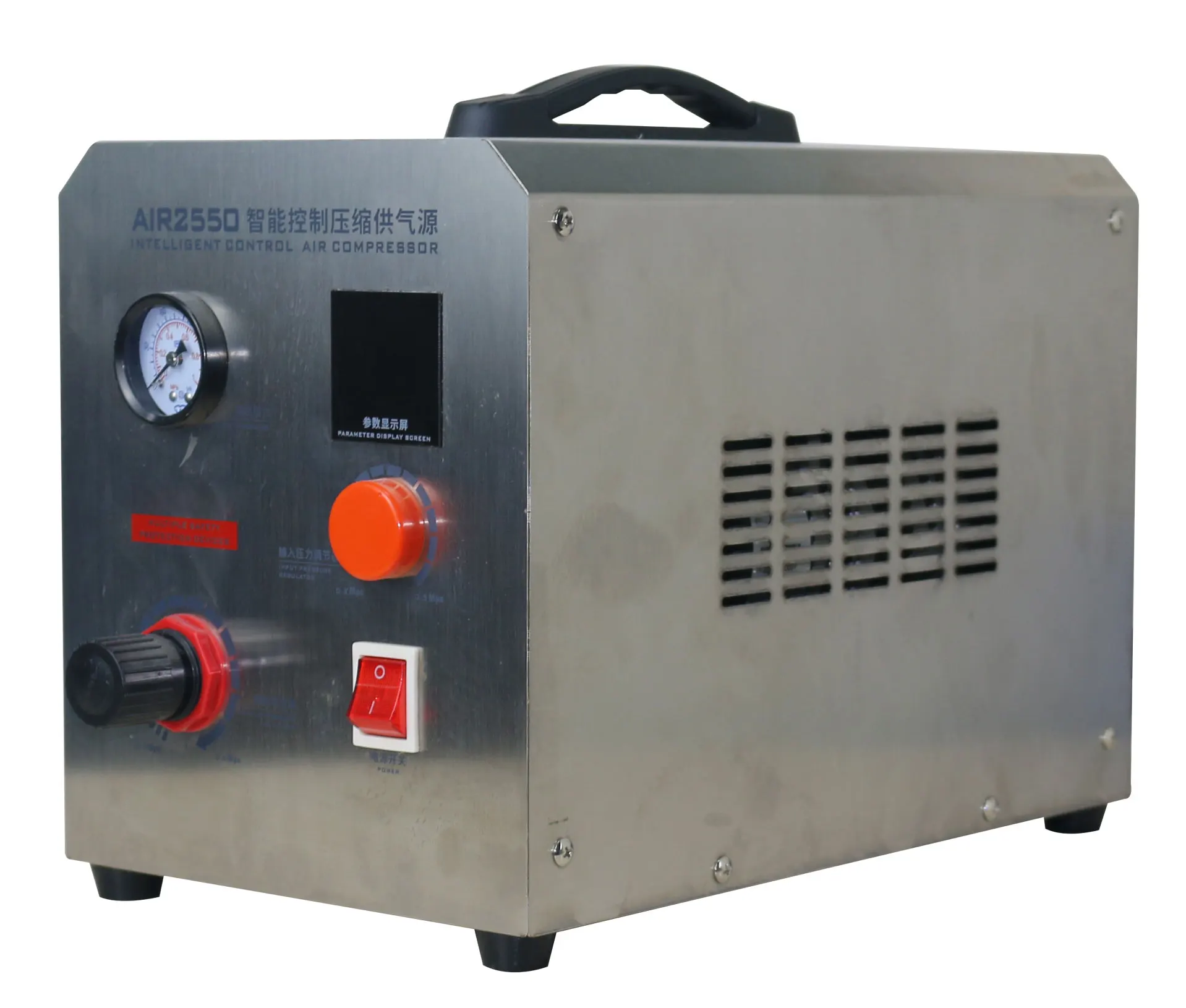

Connect the air compressor(external air source) to use this spot welder.Buy separately.

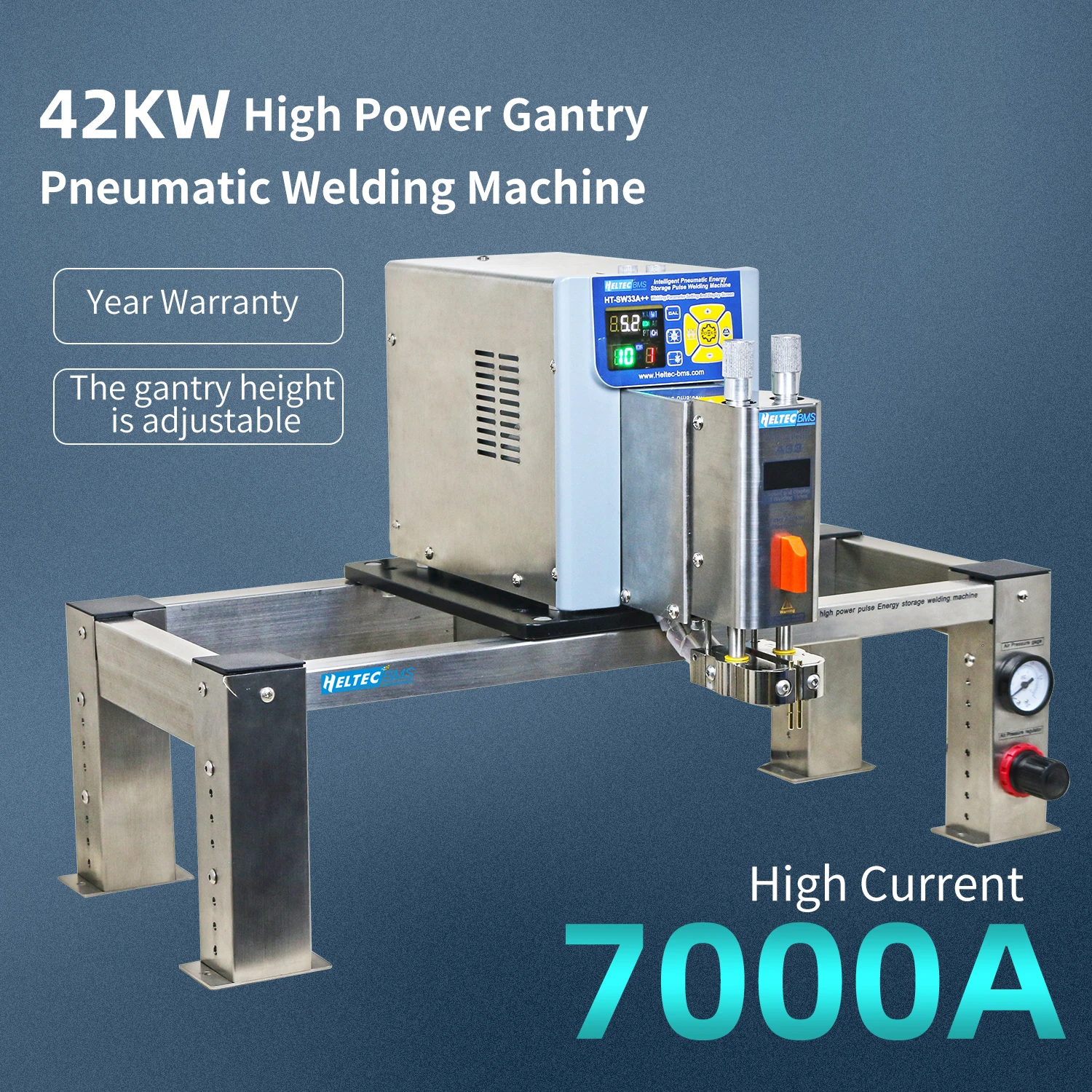

Spot welder Specifications:
Power frequency: 50Hz/60Hz
Pulse power: 42KW
Output maximum current: 7000A
Max pneumatic stroke of elctrode:20mm
Max welding thickness :0.5mm(pure nickle)
Power frequency: 50Hz/60Hz
Pulse power: 42KW
Output maximum current: 7000A
Max pneumatic stroke of elctrode:20mm
Max welding thickness :0.5mm(pure nickle)
Energy Grade: 0-99T(0.2m/T)
Welding Principles: DC Energy Storage Supper Farad Capacitor
Charging Time:<18 minutes
Dimensions:50.9*19*34cm

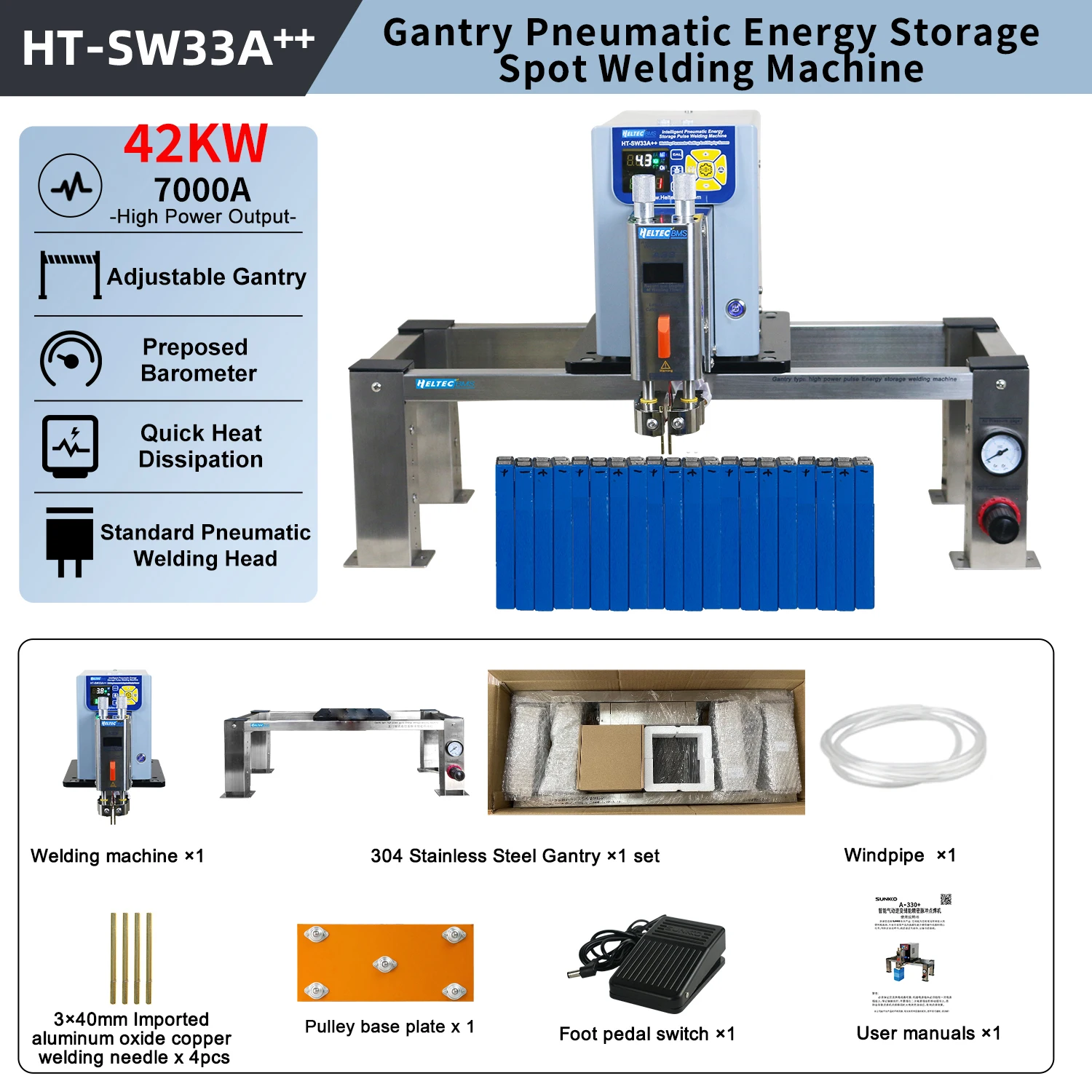

Parts List:

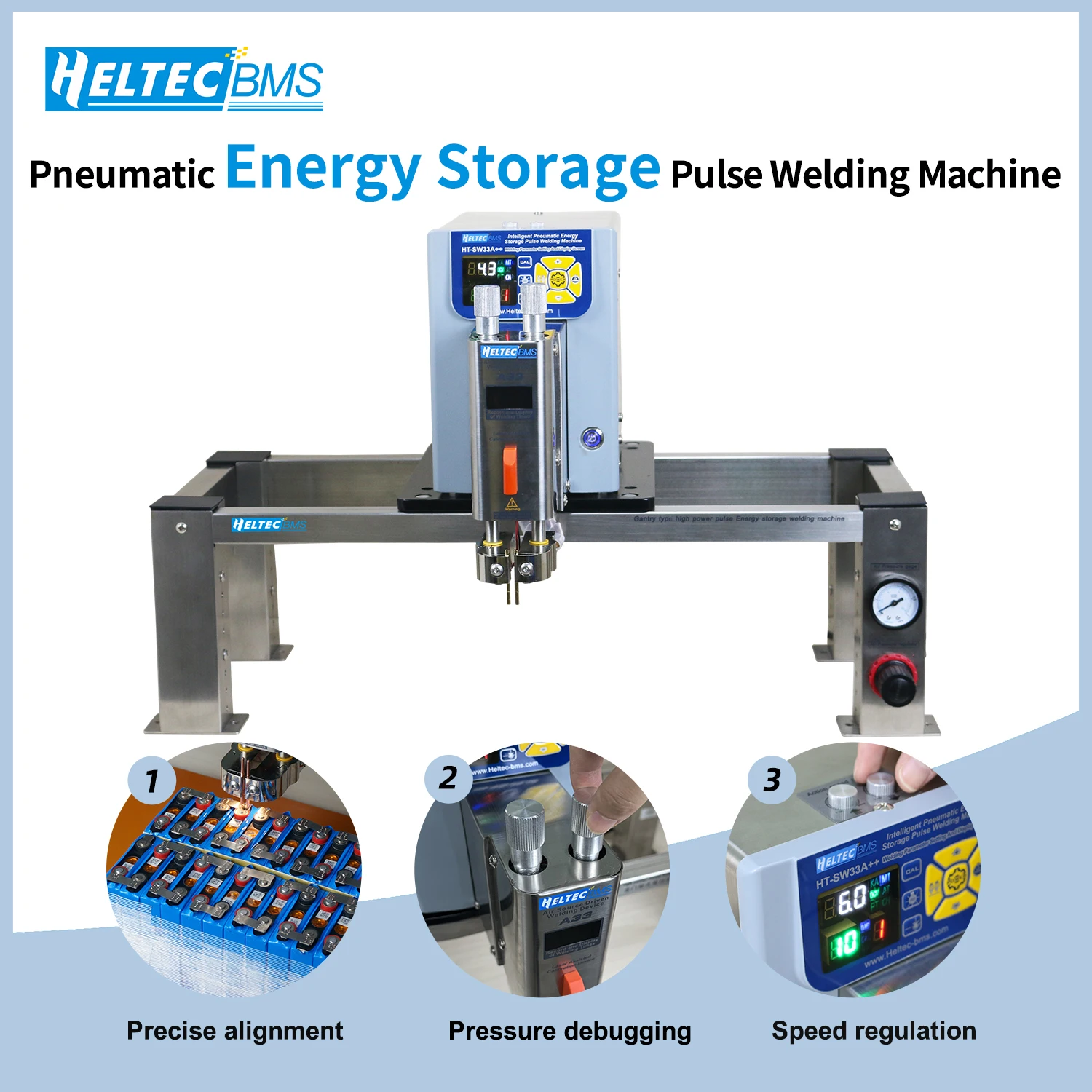

Product images
FAQ
1. Can you accept customization?
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system
software design.
software design.
Spot Welder Spot Welding Machine Spot Welder For Batteries aluminium spot welding
2. How long will it take for sample making and mass production?
A: it takes 3-5 days to make the sample, and 7-30 days for mass production.
Spot Welder Spot Welding Machine Spot Welder For Batteries aluminium spot welding
3.How about the productivity of your company?
A.We have enough storage for most of our products,if you need customize we have SMT factory to fulfill your needs
after you pay for the products.
after you pay for the products.
Spot Welder Spot Welding Machine Spot Welder For Batteries aluminium spot welding
4.What about the mode of transportation ?
A: according to the quantity and volume, we will choose the most suitable mode of transportation for you. Of course, you are also free to choose.
Spot Welder Spot Welding Machine Spot Welder For Batteries aluminium spot welding
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test.And we use manual inspection. Each
product will be tested before packaging.
product will be tested before packaging.
Spot Welder Spot Welding Machine Spot Welder For Batteries aluminium spot welding
