portable mining geological diesel engine spt test borehole core drilling rig machines
Product Description
Hydraulic drilling rig is one of the best-selling water well drilling rigs for sale in our company, for that it’s cheap and easy to use. Meanwhile, it is versatile and portable. In addition to drilling wells,it is also suitable for the geological exploration of railway, water conservancy, bridge, dam foundation and other buildings, as well as some other projects,such as, geological core drilling, small grouting hole, blasting hole, etc.
Techinical parameter
The whole machine parameters | |||
Model | YG-130Y | YG-180Y | YG-200Y |
Drilling depth | 130m | 180m | 200m |
Drilling diameter | Φ75-Φ220mm | Φ75-Φ220mm | Φ75-Φ325mm |
Drill rod diameter | Φ42-60mm | Φ42-60mm | Φ42-60mm |
Drill angle | 90°- 75° | 90°- 75° | 90°- 75° |
Power(diesel engine) | 13.2kw | 13.2kw | 15kw |
Size | 2.4*0.8*1.4m | 2.4*0.8*1.3m | 2.7*0.9*1.5m |
Spindle | |||
Vertical spindle speed | 142,285,570r/min | 130,480,730,1045r/min | 64,128,287,557r/min |
Vertical stroke | 450mm | 450mm | 450mm |
Winch | |||
Max pull force | 2000kg | 2100kg | 2500kg |
Pull speed | 0.41-1.64m/s | 0.35-2.23m/s | 0.12-0.95m/s |
Rope diameter | Φ9.3mm | Φ9.3mm | Φ13mm |
Roll capacity | 27m | 27m | 35m |
Drill mast | |||
Rated load | 18t | 18t | 18t |
Effective height | 6.5m | 6.5m | 6.5m |
Mud pump | |||
Model | BW160 | BW160 | BW160 |
Flow | 160L/min | 160L/min | 160L/min |
Maximum pressure | 1.3-2Mpa | 1.3-2Mpa | 1.3-2Mpa |
Inlet pipe diameter | Φ51mm | Φ51mm | Φ51mm |

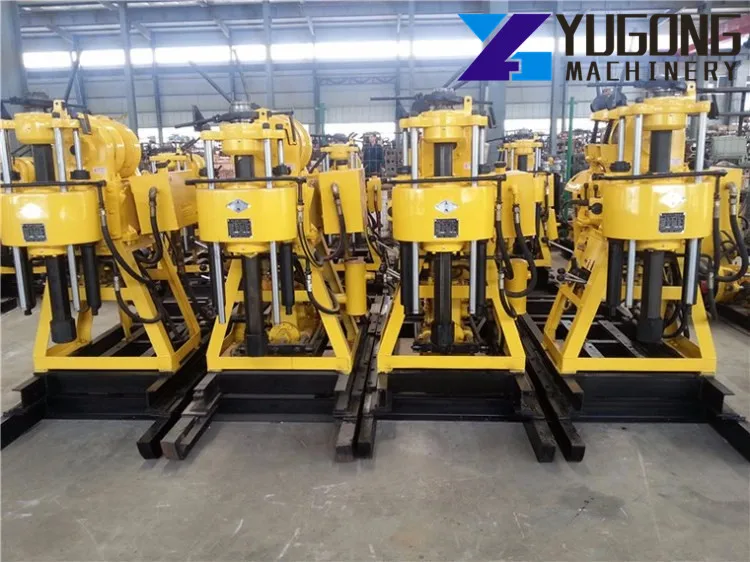

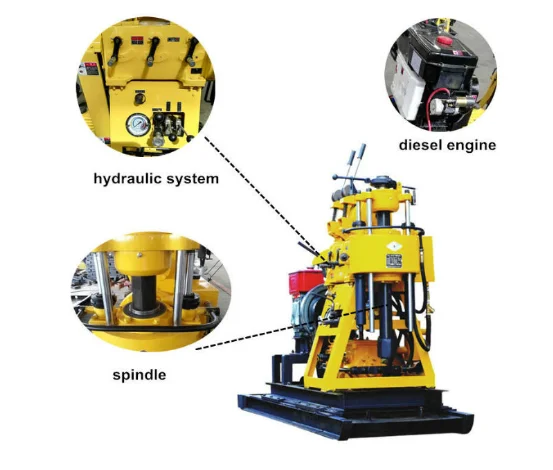

Detailed Images

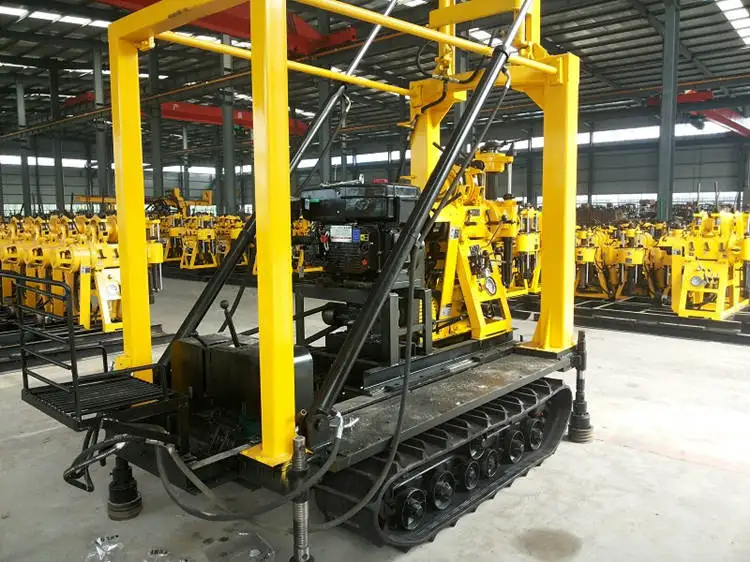

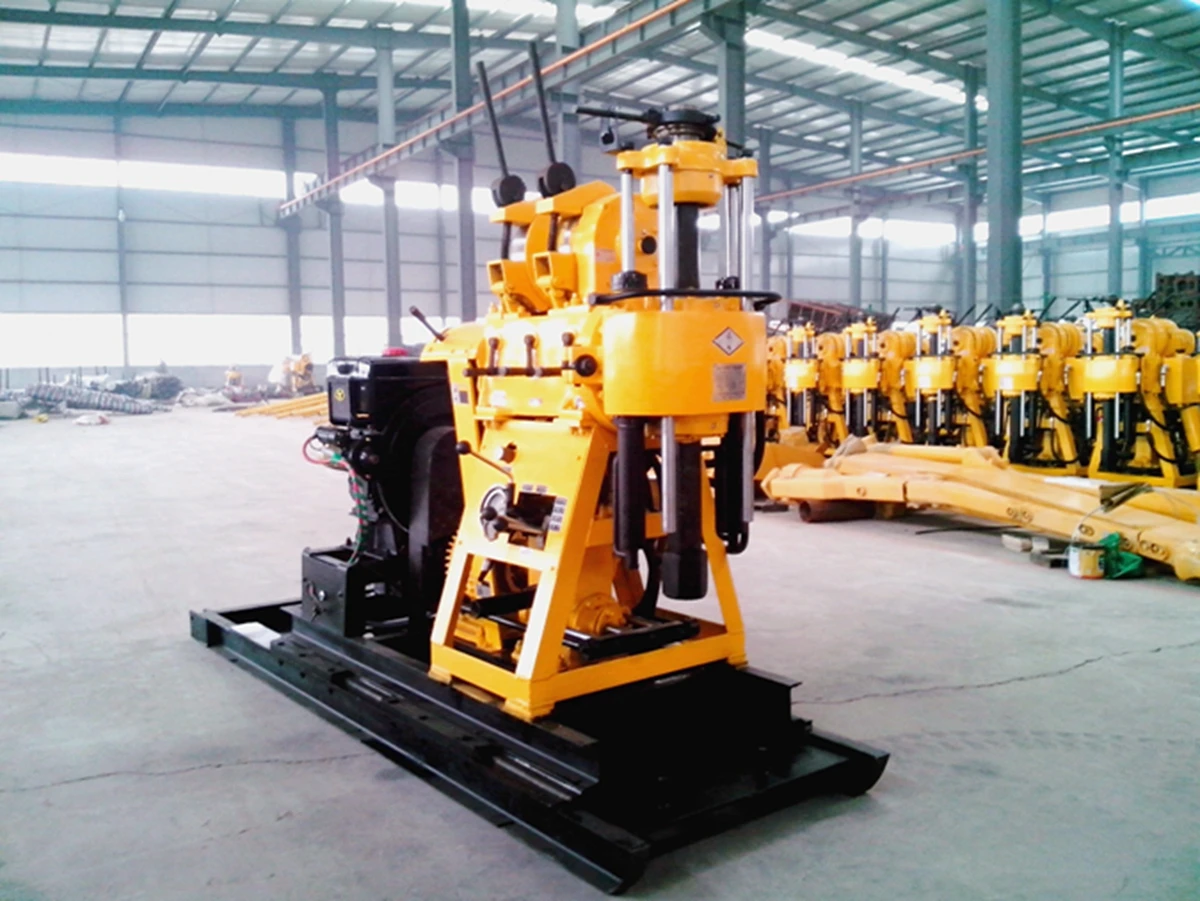

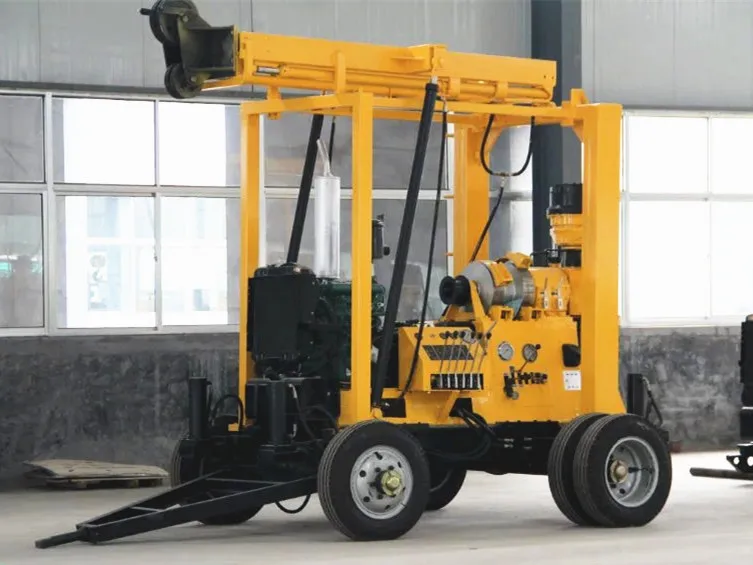

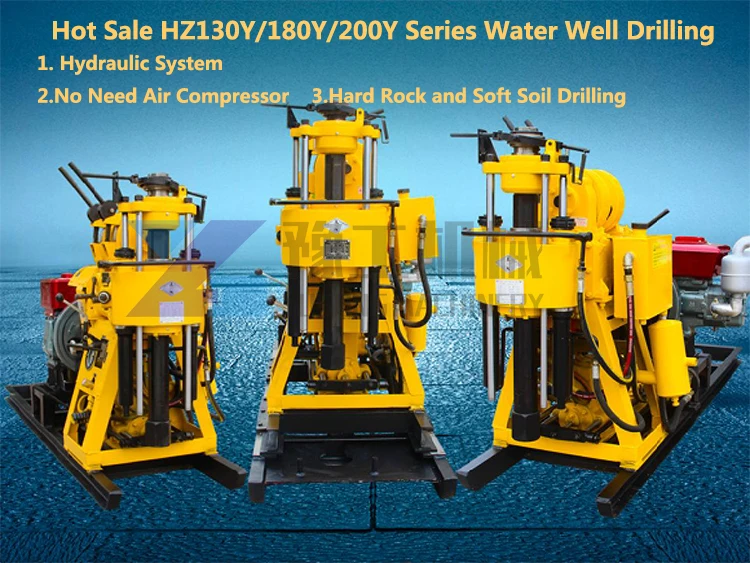

We have three hot sale type for your choose:standard type,crawler type and wheel type
Core drilling machine features:
1.The hoist is equipped with a cage to form a double-sided support star structure that can withstand strong impact.
2.Hydraulic automatic feed structure can reduce labor intensity and improve drilling efficiency.
3.The vertical axle has four sets of bearings to ensure that the gyrator is rigid enough to cope with the complex geological conditions such as gravel layer and pebble layer.
4.The taper clutch adopted in this machine has the outstanding features of large torque transfer, convenient operation and maintenance-free.
5.Ball card holder mechanism instead of chuck that the drilling pipes can be reversed without stopping the machine. This makes the operation more convenient, safe and reliable.
6.The hole bottom pressure gauge makes it easier for the operator to observe the situation inside the hole.
7.It is small in size, light in weight, which makes it easy to move.

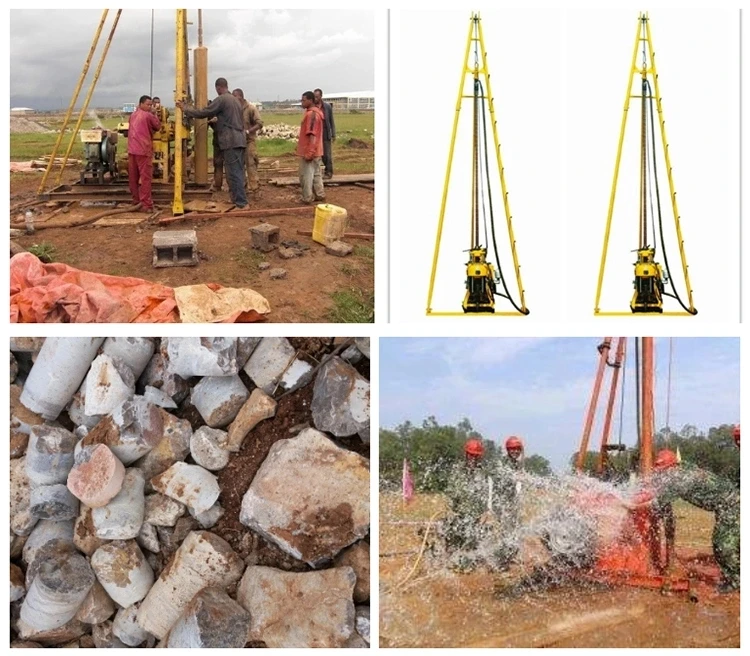

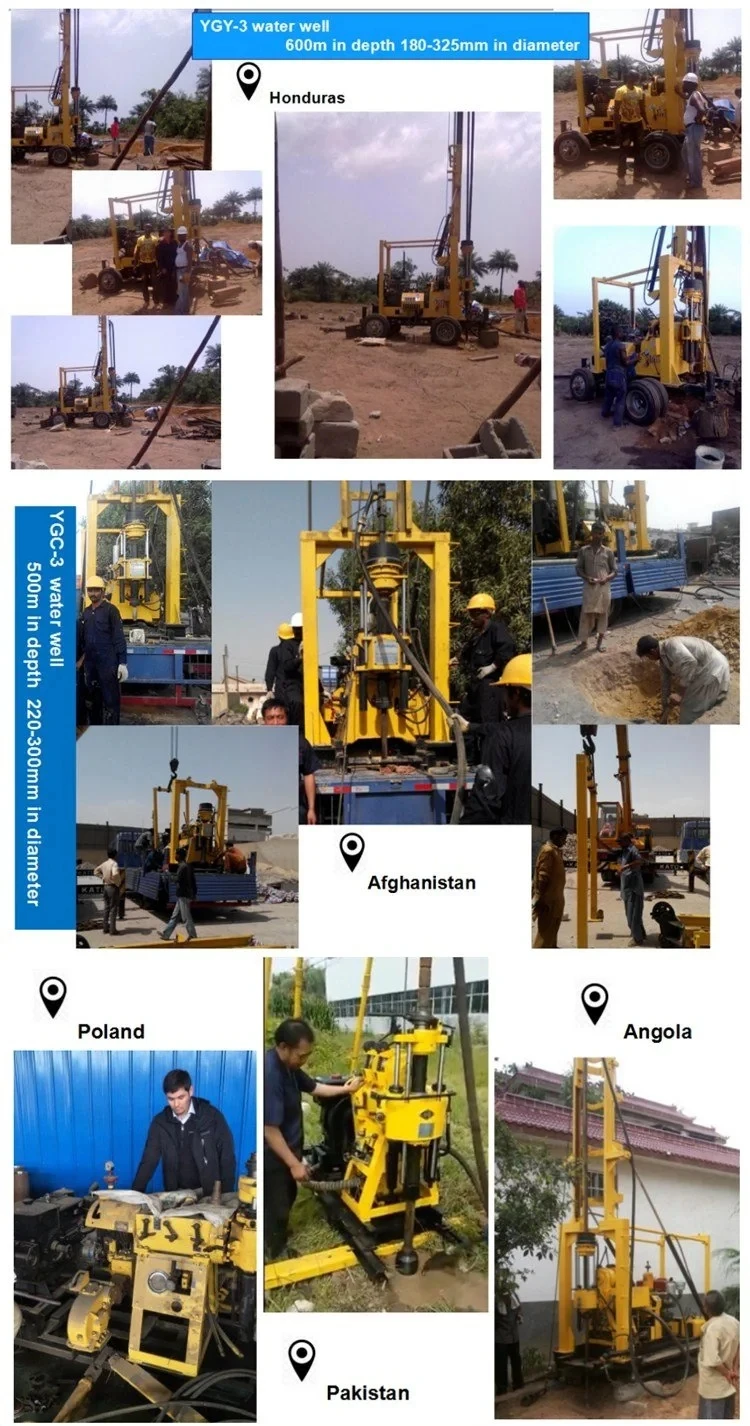

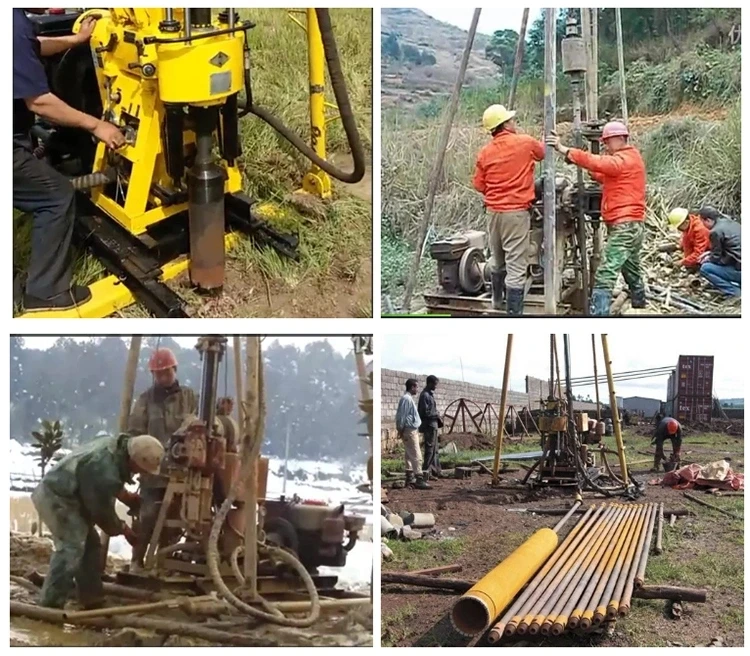

Customer cases

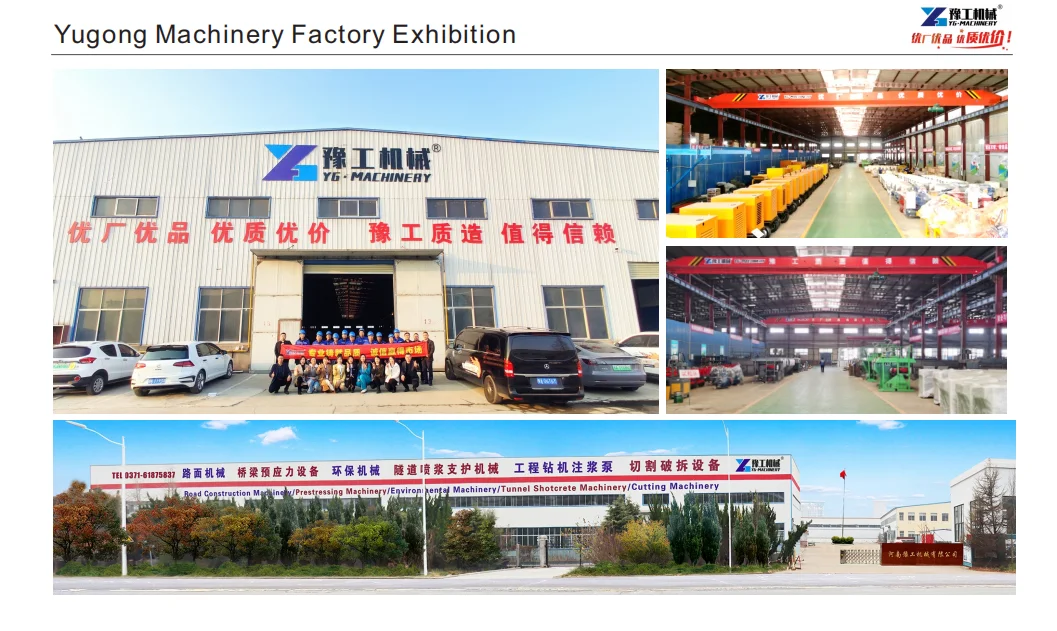

Company Information
Henan Yugong Machinery Co., Ltd. specializes in the manufacturing of different types of drilling rigs, such as water well drilling rig, core drilling equipment, crawler drilling rig, DTH drilling rig, air drilling rig, construction drilling rig, etc. We have a professional drilling rig production base, and we welcome your visit to our factory at any time.
From the assembly of raw material to the final rig, we strictly conform with the rig requirements to make sure our drilling rig create the greatest benefits for our customers around the world. You can find our customers in America, Honduras, South Africa, Sri Lanka, Bolivia, Domini, Ghana, Pakistan, Afghanistan, Norway, Australia, Philippines, Lizhi, Ethiopia, Mexico, Qatar, etc. Our professionalism is proved by our customers. They trust us, and we provide the assured drilling rig.
Expert Group of Exploration Research Institute of the Ministry of Land and Resources in China comes to our factory to check the production of our drilling rig, and they also think our drilling rig is very good in quality and design. And we even invite Germany drilling rig expert to our factory to guide us on how to make the drilling rig better. So, please rest assured to buy drilling rig from Yugong if you need, and we believe we can have a wonderful cooperation.
Packaging & Shipping
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 5-7 working days after deposit.
Shipping: Professional goods shipping forwarders.
Delivery Time: 5-7 working days after deposit.
Our Services
1. Pre-Sale Service: Recommend Suitable Machine According to Your Application.
2. In-Sale Services: Confirm the Order, Arrange Item Production, Supervise the Packaging and Shipping, and Offer Buying Guide to Finish the Purchase.
3. After-Sale Services: 24 Hour Technical Support Online. Contact Us to Get the Prompt Reply.
FAQ
1. Q: You are a Trading Company or Manufacturer?
A: We are an original reliable machinery manufacturer
2. Q: What Should We do if the Item doesn't Meet our Requirements after Receiveing?
A: If the item doesn't meet your requirements after receiving it, you can return it within 10-15 days.
3. Q: How Long is your Delivery Time?
A: It depends on the machine you buy and the quantity. Generally it is 3-5 days if the machine is in stock. And it will take 15-30 days if you want customized type.
4. Q: What is your Payment Term?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment<=USD 5000, 100% in advance. Payment>=USD 5000, 30% T/T in advance, balance before shipment.
