Серия YGM/4R шлифовальная мельница Raymond высокого давления для продажи
13 600,00-13 900,00 $
Henan горнодобывающая техника Высокоэффективная энергосберегающая шаровая мельница с роликовым подшипником серии
- Категории: >>>
- Поставщик: Henan,Zhengzhou,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
MQG Ball Mill Introduction:

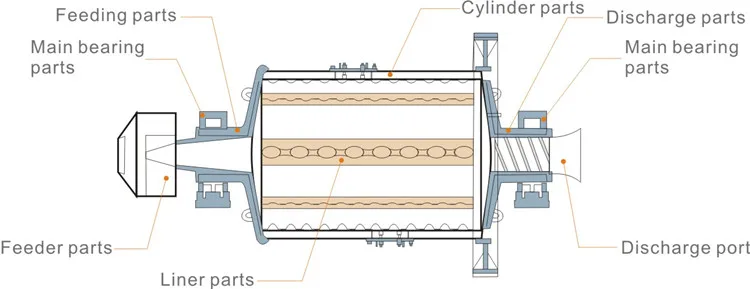

MQG lattice ball mill is mainly composed of transmission device, rotary part, outer edge gear, feed part, discharge part, etc. It has the advantages of large production capacity, high crushing efficiency, stable product quality, simple maintenance operation, reliable mechanical performance, etc.
MQG lattice ball mill is mainly composed of transmission device, rotary part, outer edge gear, feed part, discharge part, etc. It has the advantages of large production capacity, high crushing efficiency, stable product quality, simple maintenance operation, reliable mechanical performance, etc.
Working principle:
The Ball Mill is a horizontal rotary drum apparatus driven by gears outside. It is a lattice pattern with two storage cells. The
raw materials enter into the first cell of the Ball Mill evenly through the quill shaft in charging part. There are step liner
palates or wave liner palates in the first cell which have been loaded various steel spheres of different scales. When rotating, the drum causes centrifugal force that brings the steel spheres to a certain height and then the spheres drop to impact and grind the materials. After the rough grinding in the first cell, the qualified partials will enter into the second cell through a single division plate .There are flat palates welded on the inner wall of the second cell, as well as steel spheres. The materials will be further grinded in it and at last the qualified granularities will be discharged through the unload part. Then the whole process is completed.
The Ball Mill is a horizontal rotary drum apparatus driven by gears outside. It is a lattice pattern with two storage cells. The
raw materials enter into the first cell of the Ball Mill evenly through the quill shaft in charging part. There are step liner
palates or wave liner palates in the first cell which have been loaded various steel spheres of different scales. When rotating, the drum causes centrifugal force that brings the steel spheres to a certain height and then the spheres drop to impact and grind the materials. After the rough grinding in the first cell, the qualified partials will enter into the second cell through a single division plate .There are flat palates welded on the inner wall of the second cell, as well as steel spheres. The materials will be further grinded in it and at last the qualified granularities will be discharged through the unload part. Then the whole process is completed.

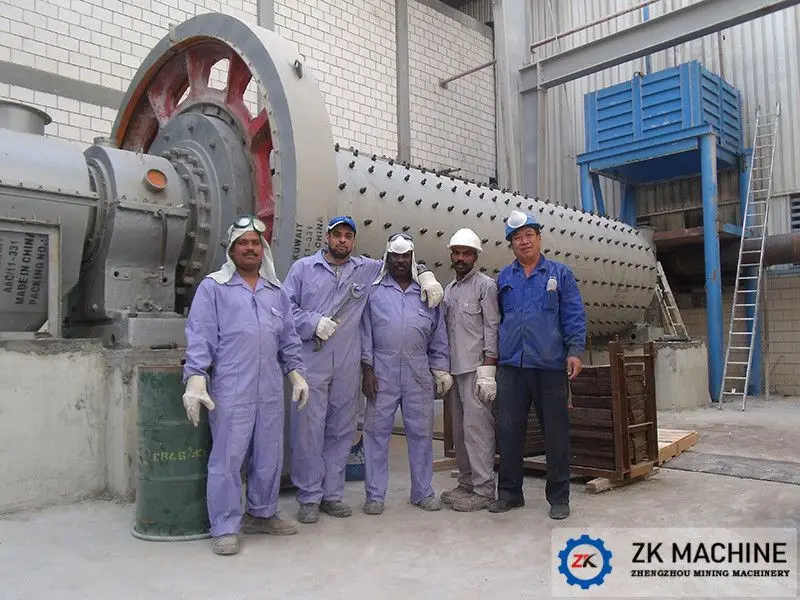

Project Case
Features
1. The liner is cast from high-quality wear-resistant materials, which is wear-resistant and has a long service life;
2. Strong adaptability to fluctuations of material physical properties (such as particle size, moisture, hardness, etc.);
3. The product has uniform particle size, easy to adjust particle size, and high qualification rate;
4. With large production capacity and large crushing ratio, it can adapt to the operation requirements of different conditions and has good sealing performance.
2. Strong adaptability to fluctuations of material physical properties (such as particle size, moisture, hardness, etc.);
3. The product has uniform particle size, easy to adjust particle size, and high qualification rate;
4. With large production capacity and large crushing ratio, it can adapt to the operation requirements of different conditions and has good sealing performance.
Technical Parameter
Specification | Capacity (t/h) | Rotating speed (r/min) | Grinding body (t) | Motor | Reducer | Weight (t) | Model | Power (kW) |
MQG1245 | 1.7 | 30.3 | 5 | YR250M-6 | 55 | ZD30-8 | 4.481 | 13.1 |
MQG1557 | 4.5 | 26.34 | 11 | JR127-8 | 130 | ZD40-7 | 4 | 25 |
MQG1870 | 11 | 24.5 | 20 | JR138-8 | 245 | ZD60-8 | 4.5 | 37.2 |
MQG2275 | 16～22 | 21.4 | 32 | JR158-8 | 380 | ZD70-9 | 5 | 53.6 |
MQG2413 | 35～38 | 19.4 | 69 | YR800-8 | 800 | JDX800/MBY800 | 6.33 | 78 |
MQG2613 | 50～55 | 19.5 | 83 | YR1000-8/1180 | 1000 | JDX800/MBY800 | 4.5 | 129.6 |
MQG2810 | 40～48 | 19.18 | 66 | YR5604-8 | 800 | TMBY800 | 5.6 | 123.2 |
MQG3013 | 55～58 | 18.08 | 108 | YR1400-8/1430 | 1400 | JDX900 | 7.1 | 165.83 |
MQG3213 | 60 | 17.7 | 130 | YR7107-8 | 1600 | MBY1000-7.1-II-L | 7.1 | 200.2 |
MQG3511 | 73 | 16.57 | 135 | YR2000-8/1730 | 2000 | MBY900 | 5.6 | 220 |

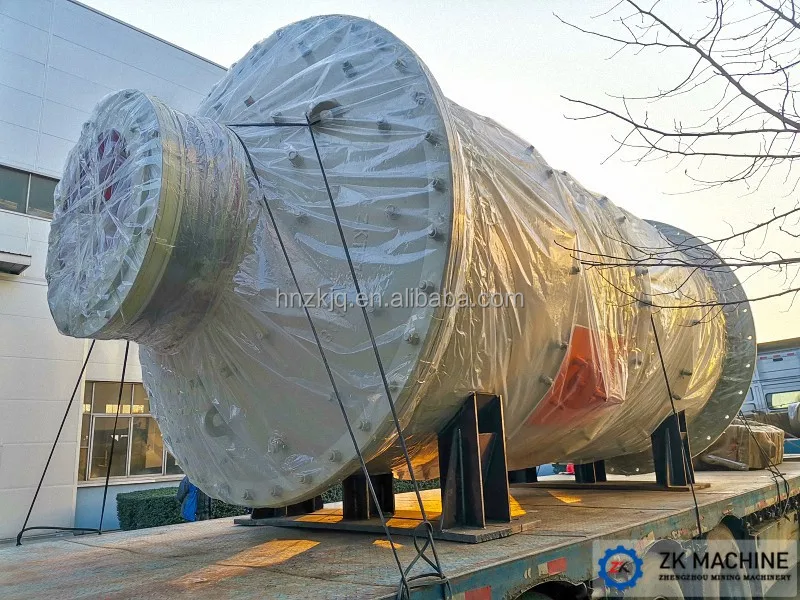

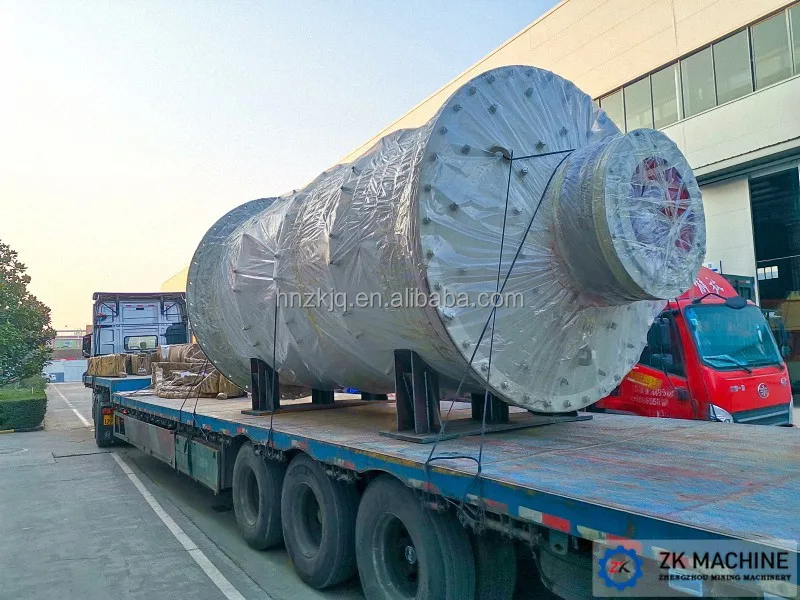

Packing & Delivery
Packing:
1.ZK CORP will make proper packing for different machine, which is suitable for sea transport and land transport.
2.Main part will be in nude. Small parts will be packed in wooden box.
Transport:
1. ZK CORP can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.
1.ZK CORP will make proper packing for different machine, which is suitable for sea transport and land transport.
2.Main part will be in nude. Small parts will be packed in wooden box.
Transport:
1. ZK CORP can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.
Company Profile
Henan Zhengzhou Mining Machinery Co., Ltd, established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 60000 m² and various building area of 35000 m². In the plant, there are workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
FAQ
To help us provide you the first-rate service, could please kindly answer the following questions before sending an inquiry?
1. How many tons do you want to produce per hour?
2. What are your raw material to process?
3. May i have your email or Whats pp? So that our manager can contact you and quote as soon as possible.
1. How many tons do you want to produce per hour?
2. What are your raw material to process?
3. May i have your email or Whats pp? So that our manager can contact you and quote as soon as possible.
