Advantages

1. Beautiful with largest light of all the world's GDOs.
2. You could control light separately with transmitter which could be considered both GDO and room light.
3. Bottom is made of metal.
4. Door-in-door protection
5. 8W Illumination
6. Automatic closing (1-9 minutes Adjustable)
7. Built-in WiFi (Optional)
8. Electronic limit switch
9. Soft start and soft stop
10. Bounce off resistance
11. Manual release handle in case of power failure
12. Motor:20,000 cycles testing

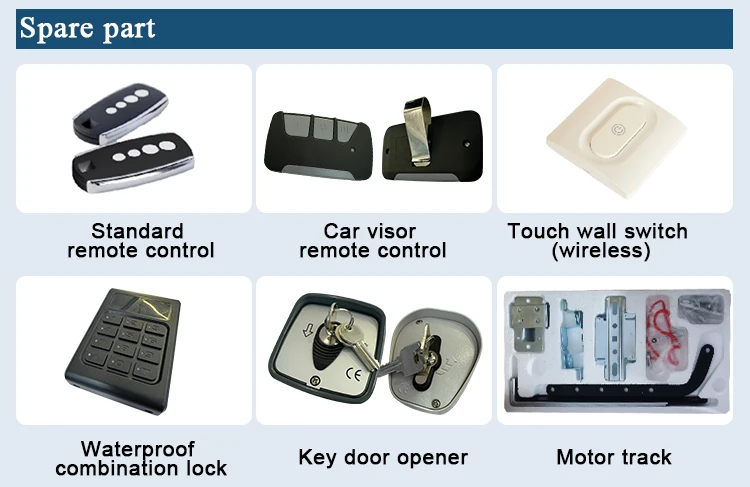

13. Alarm system (Optional) /photo sensor/wall switch/backup battery/external receiver can be added



Description

Model	M600	M800	M1000	M1500
Rated Current	0.5A	0.7A	0.9A	1.1A
Motor Power	110W	154W	198W	240W
Pull and Push Force	600N	800N	1000N	1500N
Max,Door Area Advised	8m2-10m2	10m2-12m2	12m2-14m2	14m2-18m2
Motor Voltage	24V/DC
Rated Voltage	AC230V/AC120V
Rated Frequency	50Hz/60Hz
Ambient Temperature	-20℃~+45℃
Rated Operation Time	4Min
Rated Operation Speed	150-180mm/s
Radio Frequency	433.92MHz
Remote Control Code	Rolling Code
Range(In Open Areas)	50m
Opener Size	343mm*210mm*130mm
Package Size	450mm*226mm*205mm



Accessories

Transmitter	T22, 2pcs
Drive of Rail	Chain or Belt
Type of Rail	Single rail; 2 sectional rail; 3 sectional rail
Length of Rail	3000, 3300, 3600, 3900, 4200mm
WiFi (Optional)	Optional
Customization (Optional)	Support









1.package size: 450mm*226mm*205mm

2.For sample order :the motor ,the steel rail are in one big package. One opener includes:one motor,one 3.3 meters steel rail,2 remotes, fixed brackets and screws.



FAQ

Q1:What's The MOQ?
A:MOQ is normally 10 sets,exact MOQ is depend on the product.
Q2:Can you stamp the customers' own logo and their own package?
A:Sure!We provide OEM&ODM service.
Q3:Can i get sample and how long will it take?
A:Yes.We offer samples,you need to pay shipping fee.about 25-35 days after receiving the payment,you will get it.
Q4:How does your factory carry out quality control?
A:We attach great importance to quality control.Every process of our production has its own qc.And after the production finishing,we will send you pictures or video to cheak.
Q5:Can I mix different models in one container?
A:Yes.Different models can be mixed in one container,but each quantity should not be less than MOQ.
Q6:Could i get a discounted price?
A:Yes.If you have a big qty of order,we would give a discount.
Q7:What's the delivery time?
A:It willtake about 25-35 days to finish an order.The exact time is according to actual quantity.
