Автоматическая система очистки и экстракции нуклеиновой кислоты с 16 трубками ветеринарный прибор для анализа крови на ДНК
- Категории: >>>
- Поставщик: Wuhan,Shangrui,Biotechnology,Co.,Ltd.Wuhan,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Equipment Specifications | ||
Model | S-16 | |
Weight | 8.9 kg | |
Dimensions | 300 mm (L) x 240 mm (W) x 320 mm (H) | |
Operating Conditions | ||
Power Requirements | 200-240V~/160W, 50Hz/60Hz | |
Operating Temperature | 10°C to 40°C | |
Operating Humidity | Below 80% | |
Operating Environment | ||
User Interface | 7-inch full-color LCD touch screen | |
Operating System | Linux operating system | |
Operating Languages | Chinese/English, freely switchable | |
Performance Specifications | ||
Processing Capacity | 1 to 16 samples | |
Processing Time | 10 min to 60 min | |
Working Volume | 20 μL to 1000 μL, absolute elution volume 20 μL | |
Permanent Magnet Strength | >4600 Gs | |
Magnetic Bead Recovery Rate | >99% | |
Purification Well-to-Well Variability | CV < 3% | |
Temperature Module | Ambient to 120°C, with four independently controlled heating modules | |
Temperature Display Resolution | 0.1°C | |
Mixing Mode | Multi-speed variable oscillation mixing mode | |
Lighting | Built-in LED light, controllable via the screen | |
Interface | Supports USB interface | |
Internal Programs | Can store more than 10,000 programs | |
Product Introductio：

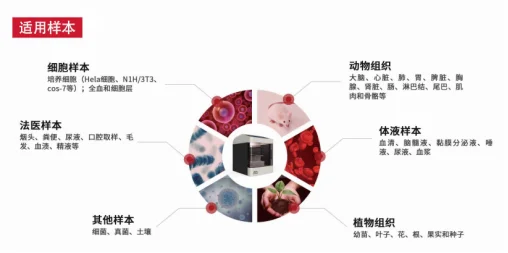

S-16 is an automated nucleic acid preparation system designed to purify nucleic acids from a variety of biological samples, including whole blood, viruses, tissues, plants, bacteria, and cultured cells. With intelligent pre-installed extraction programs and accompanying nucleic acid extraction kits and consumables based on magnetic beads, it provides laboratories with an efficient, automated, and high-quality solution for nucleic acid purification.
S-16 is an automated nucleic acid preparation system designed to purify nucleic acids from a variety of biological samples, including whole blood, viruses, tissues, plants, bacteria, and cultured cells. With intelligent pre-installed extraction programs and accompanying nucleic acid extraction kits and consumables based on magnetic beads, it provides laboratories with an efficient, automated, and high-quality solution for nucleic acid purification.
principle of operation：

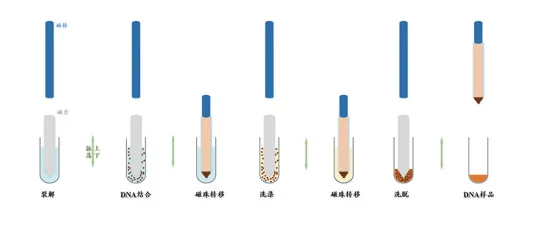

After lysing the biological sample with a lysis buffer, the nucleic acids are adsorbed onto the surface of the nanomagnetic beads. The beads, carrying the nucleic acids, are then transferred to a wash buffer using a magnetic rod. Following multiple washing steps, they are moved to an elution buffer, where the nucleic acids are finally separated from the nanomagnetic beads, yielding the DNA product.
Product Features：
1.Power Failure Protection: In the event of an unexpected power outage, once power is restored, you have the option to continue running the experiment.
2.Sample Protection: Features include power-on self-test, silent operation, power failure protection, high-temperature alarm, and over-temperature protection, which collectively minimize sample loss during instrument use.
3.Reminder Function: It includes a reminder for the magnetic rod sleeve, which prevents contamination of the magnetic rod due to forgetting to insert the sleeve, thus protecting the magnetic rod.
4.Contamination Control: The experimental chamber is equipped with a negative pressure HEPA exhaust filtration module and an integrated UV disinfection module.
Product Features：
1.Power Failure Protection: In the event of an unexpected power outage, once power is restored, you have the option to continue running the experiment.
2.Sample Protection: Features include power-on self-test, silent operation, power failure protection, high-temperature alarm, and over-temperature protection, which collectively minimize sample loss during instrument use.
3.Reminder Function: It includes a reminder for the magnetic rod sleeve, which prevents contamination of the magnetic rod due to forgetting to insert the sleeve, thus protecting the magnetic rod.
4.Contamination Control: The experimental chamber is equipped with a negative pressure HEPA exhaust filtration module and an integrated UV disinfection module.
Wuhan Shangrui Biotechnology Co., Ltd. is a high-tech enterprise specializing in the research and development of next-generation molecular diagnostic technologies and products.The company boasts advanced R&D laboratories, standardized production facilities, and a rigorous quality control system, dedicated to providing high-quality products and technical solutions. has obtained over 20 utility model patents and multiple invention patents, and has been recognized as a National High-Tech Enterprise in China.
The core products of the company are microfluidic chip-based qPCR instruments, along with their associated chips and fast-drying qPCR reagents.veterinary diagnostic kits, plant transgenic detection kits, and animal-derived component detection kits. These products are widely recognized in the market for their efficiency and convenience.
Shangrui Biology actively participates in the formulation of industry standards and maintains close cooperation with government laboratories and higher education institutions, continuously exploring new technologies, with the aim of becoming a leading global provider of molecular testing solutions. The company’s sales network covers more than ten cities in China, including Beijing, Shanghai, and henan, and its products are exported to Europe, Southeast Asia, South America, and Africa.
we also welcome oem and odm orders. whether selecting a current product from our catalog or seeking engineering assistance for your applicationg,you can talk to our customer service center about.
What is the warranty of your products?
Express: UPS, DHL, FedEx, TNT, ect. (Door to door) United States (3-7 days), Ghana (7 days), Uganda (7-10 days), Nigeria (3-9
days) Air freight(Airport to airport) Los Angeles(3-7 days), Accra (7-10 days), Kampala (3-5 days), Lagos (3-5 days),
Asuncion(3-10 days) Sea(To any sea port) Mombasa(30 days), Port Kelang (12 days), Manila (10 days), Lagos (45 days), Guayaquil (45
days)
We offer one year guarantee.
What is your after-sales service?
We provide technical support through operating manual and video. Once you have questions, you can get our engineer's prompt response by email, phone call or training in factory. If it's a hardware problem within the warranty period, we will send the spare parts for free, or you may send it back and we do the repair job.
What is the delivery time?
What is the delivery time?
Although we quote the FOB prices, we may also deliver the products to you directly by express, air freight or sea. Below is the delivery time for your reference.
Express: UPS, DHL, FedEx, TNT, ect. (Door to door) United States (3-7 days), Ghana (7 days), Uganda (7-10 days), Nigeria (3-9
days) Air freight(Airport to airport) Los Angeles(3-7 days), Accra (7-10 days), Kampala (3-5 days), Lagos (3-5 days),
Asuncion(3-10 days) Sea(To any sea port) Mombasa(30 days), Port Kelang (12 days), Manila (10 days), Lagos (45 days), Guayaquil (45
days)
