Цена:395 939,60-565 628,00 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

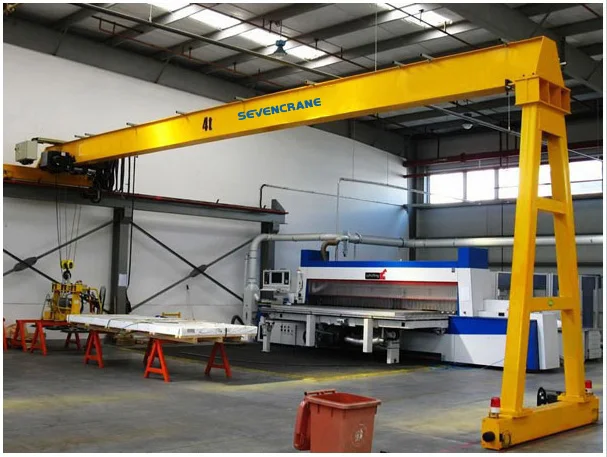

Semi gantry crane is composed of bridge, crane running mechanism, trolley running mechanism and hoisting mechanism. This crane is a combination of overhead crane and gantry crane. It is designed with one leg riding on wheels or rails and the other side of the crane riding on a runway system connected to building columns or a side wall of the building structure. This type of crane can be adapted to both indoor and outdoor applications.






Span(rail to rail center)
6m~data reduired
Cantilever
according to your demand, but not more than 1/3 of span
Lifting height
as required
Capacity
3t, 5t
10t
15t, 16t
20t, 25t
30t,32t
Lifting speed(m/min)
8.8/0.8
7.7/0.7
3.5/0.35
4.4/0.4
3.3/0.3
Cross travelling speed(m/min)
10/20
Cross travelling speed(m/min)
20,30
Duty class
A3, A5
Power source
380V, 50Hz, 3phase (or other standard)
Power supply mode
cable reel/busbar
Control model
pendent pushbutton control, cabin control or remote control


MH type electric gantry crane with CD,MD,HC and other types of electric hoist necessary use, is a rail running small crane.
The application of 3-32 tons of weight, applicable span 12-30 meters, working environment -20 degrees to +40 degrees.
The product has ground control and interior control two types,the user can freely according to the actual needs of choice.






Main Beam
1.It employs bias-rail box-type structure
2.connects eith end beam by high-strength
3.bolt ensuringeasy transportation.
Hoist
1.Capacity: 1-50t
2. Protection class F class
3. Single/Double speed, with traveling trolley and reducer, drum and motor, include overload limiter switch
End Outrigger
Mainly composed of anti-twisted box profiles and travel units. They can adapt to various load capacities and can becustomized
according to customer requirements.


Wheel and Reducer
1.A full range of safety systems
2. Products meet international standards
3. Customized services s will meet your needs
Motor
1.The technical parameters comply
2.with standars of FEM and HMI.
3.With high rotational speed and low noise
Hook
1. Capacity: 1-450t
2. Type: Single hook, double hooks.
3. Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath.




Warehouse
Factory
Outdoors


BX type wall mounted jib crane is usually applicable to short distance, frequent and intensive material handling operations, in the places, such as, workshops, warehouses, docks, storage, ports, and assembly line, etc
