Автоматический оператор раздвижной двери удаленный беспроводной выход
Автоматический оператор раздвижной двери удаленный беспроводной выход
Автоматический оператор раздвижной двери удаленный беспроводной выход

Автоматический оператор раздвижной двери удаленный беспроводной выход


Поделиться:

Цена:1 928,70 ₽ - 2 094,02 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

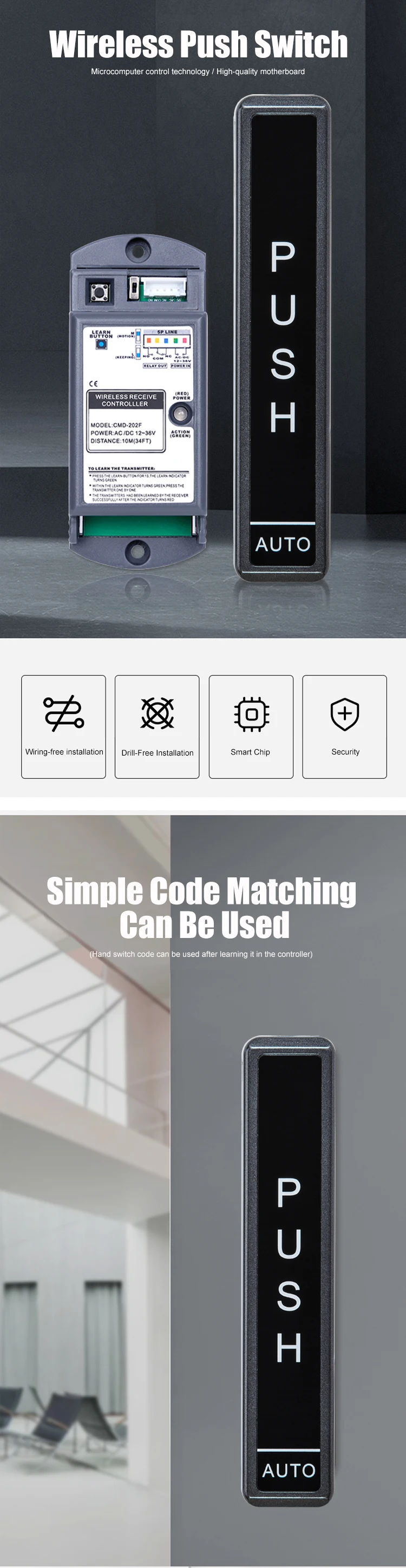

Auto sliding door operator remote wireless exit buttons


Model No: S4A-407





Over-all Characteristic


ADOPT uniformity frequency, high stability of wireless signal receiving and sending


Siludification of PU varnished shell, dapper appearance with anti-off screw


Operation frequency 315M


Panel pushing with low-power consumption,long service life battery


Three point of trigger pressing design to ensure the effective action


With large capacity output,available to be used with autodoor,electric lock and access controller


Door open within 2s when signal received


Wide voltage input of AC/DC12-36V


Function switch with voice indicator,power indicator turns green to confirm the validity of operation






















































Power supply



AC/DC 12V- 24V



Quiescent Current



15mA



Operating current



80mA (when powered by DC12V)



Main contact capacity (wireless receiver)



20A 14VDC



Contact holding time (wireless receiver)



2 seconds



Emission current



3.9mA



Working temperature



-42°C 45°C



Working environment humidity



10-90%RH

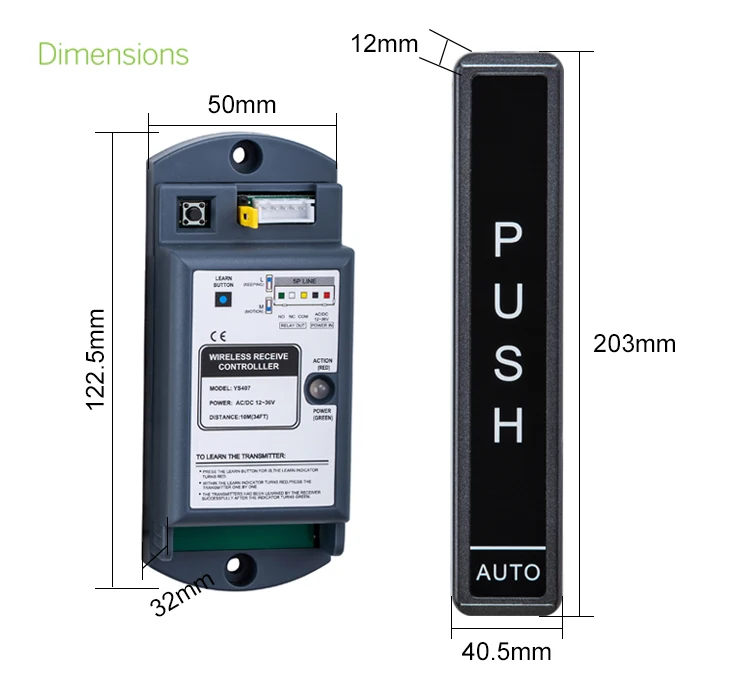

physical dimension



203mm(L)X40.5mm(W)X12mm(H) (hand press)




122.5mm(L)X50mm(W)X32mm(H) (receiver)



gross weight



About 148 grams (hand switch) about 100 grams (receiver)










Why choose S4A?




























































Our service - NO EXCUSE



All technical issues must be solved within 12 hours.



All emails must be replied within 2 hour at working time,



and it must be replied within 24 hours at non-working time.



Payment method



1. We accept TT, Paypal, Western Union



2.Small amount by Paypal or Western Union; Big amount by bank transfer



Shipping



1. Normally 1-3 working days after receipt of payment. If it is out of stock, we need a little time to process and we will leave notice or messages for that.



2. Weight under 100KG.express such as : DHL.UPS.FEDEX suggested.



Warranty Policy



From the day of purchasing Crypton & S4A products (in formal purchase invoice date, here in after referred to as: the purchasing date) ,S4A offer you free warranty



ACB series control board & UHF long range card reader - 2 years quality guarantee.



RFID card reader,exit push button,magnetic lock,bolt lock, strike lock,



standalone access controller ,access power supply etc warranty period - 1 year quality guarantee.



There will be labour and parts cost charged if the warranty period is expired;



If the product need to be renovated,



there will be labour cost and handling cost incured






S4AS4AVivian
