Серия YGM/4R шлифовальная мельница Raymond высокого давления для продажи
13 600,00-13 900,00 $
Автоматическая Вертикальная шаровая
- Категории: >>>
- Поставщик: Hainan,Oasis,Industrial,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
Model | Rotate Speed （r/min） | Volume（L） | loading volume（L) | Power（KW) | Body material | Input Size（mm） | Output Size (mm) | Speed regulation |
JM-1L | 50-1400 | 1 | 0.35 | 0.37 | Stainless steel, nylon, zircon, agagte | ≤5 | ≤1 | Frequency control |
JM-2L | 50-1400 | 2 | 0.7 | 0.37 | ||||
JM-3L | 50-1400 | 3 | 1.05 | 0.37 | ||||
JM-5L | 60-560 | 5 | 1.75 | 0.75 | Frequency control or certain speed | |||
JM-10L | 60-560 | 10 | 3.5 | 1.5 | ≤10 | |||
JM-15L | 60-380 | 15 | 5.25 | 2.2 | ||||
JM-20L | 60-380 | 20 | 7 | 2.2 | carbon steel, nylon liner zircon, agagte | |||
JM-30L | 60-310 | 30 | 10.5 | 3 | ||||
JM-50L | 60-140 | 50 | 17.5 | 4 | ||||
JM-100L | 60-140 | 100 | 35 | 7.5 | ≤15 | |||
JM-200L | 60-110 | 200 | 70 | 11 | ||||
JM-300L | 60-110 | 300 | 100 | 15 | ||||
JM-500L | 60-90 | 500 | 170 | 18.5 | ||||
JM-600L | 60-90 | 600 | 200 | 22 |
Products Description

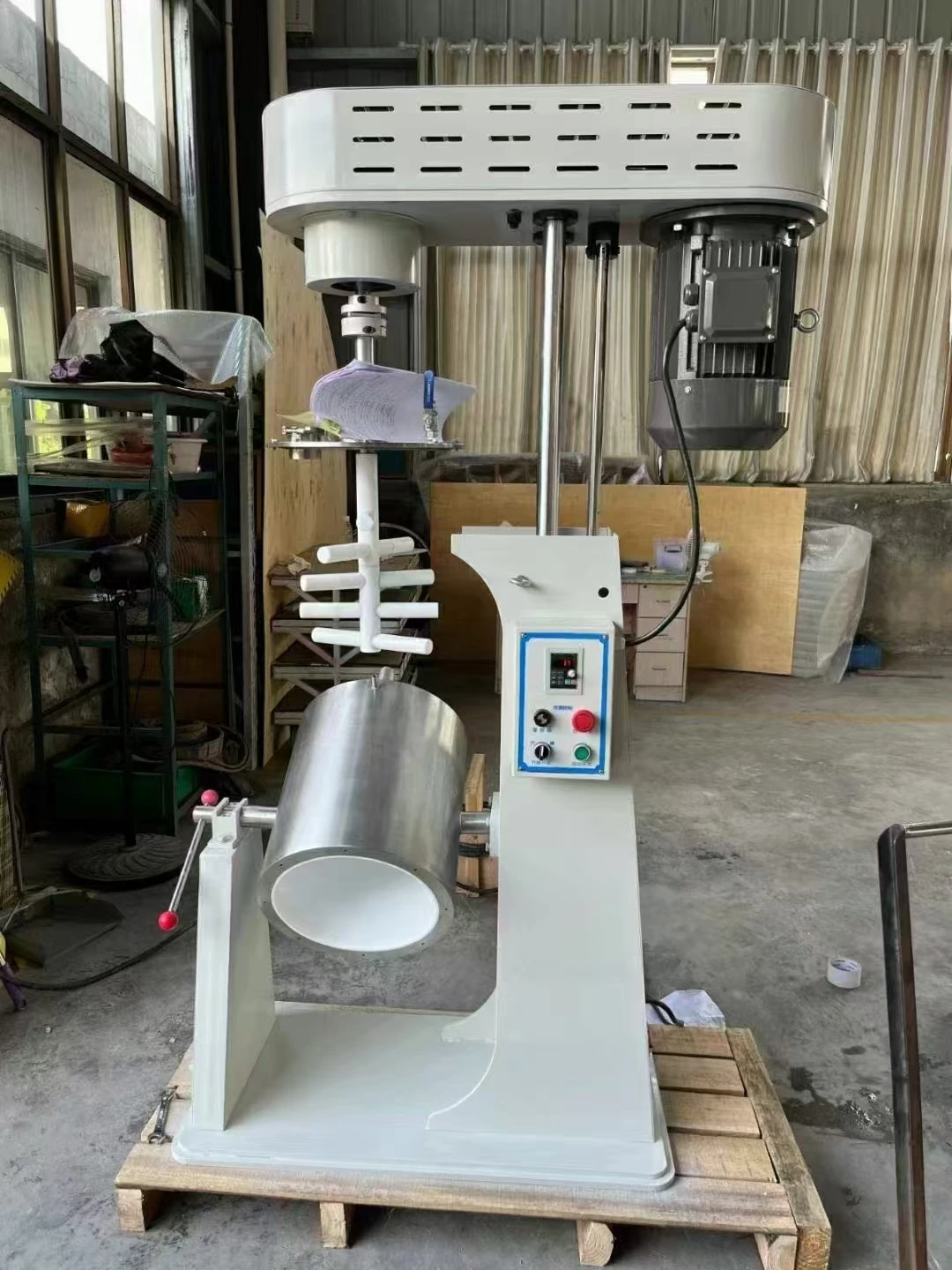

Stirring mill mainly consists of a stationary cylinder filled with a small diameter grinder, a stirring device and other auxiliary devices (such as: Circulation device, cooling device, timing, speed control, etc.) composition, high grinding efficiency, small grinding particle size, can well achieve various process parameter requirements, simulation of production indicators, at the same time because of its small batch, low power consumption, low price advantages, is the school, research units, companies are grinding process, new materials, coating research optional equipment. Widely used in zirconium silicate, zirconium oxide, alumina, ceramics, chemical, electronic materials, magnetic materials, paper, coatings, non-metallic minerals, new materials, paint, graphite, calcium carbonate, pharmaceutical and other fine powder production fields.
Details Images
The principle of mixing mill experiment

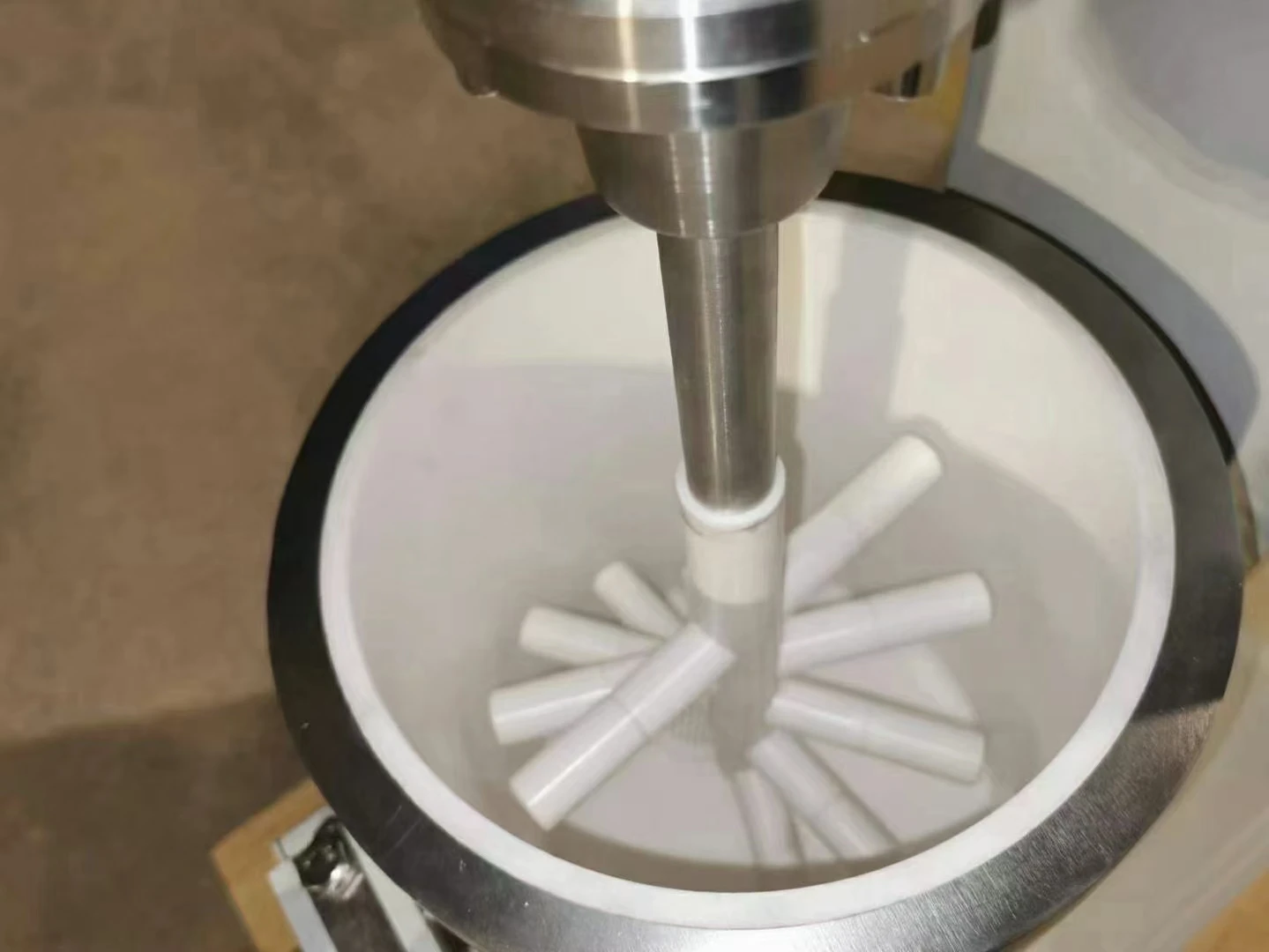

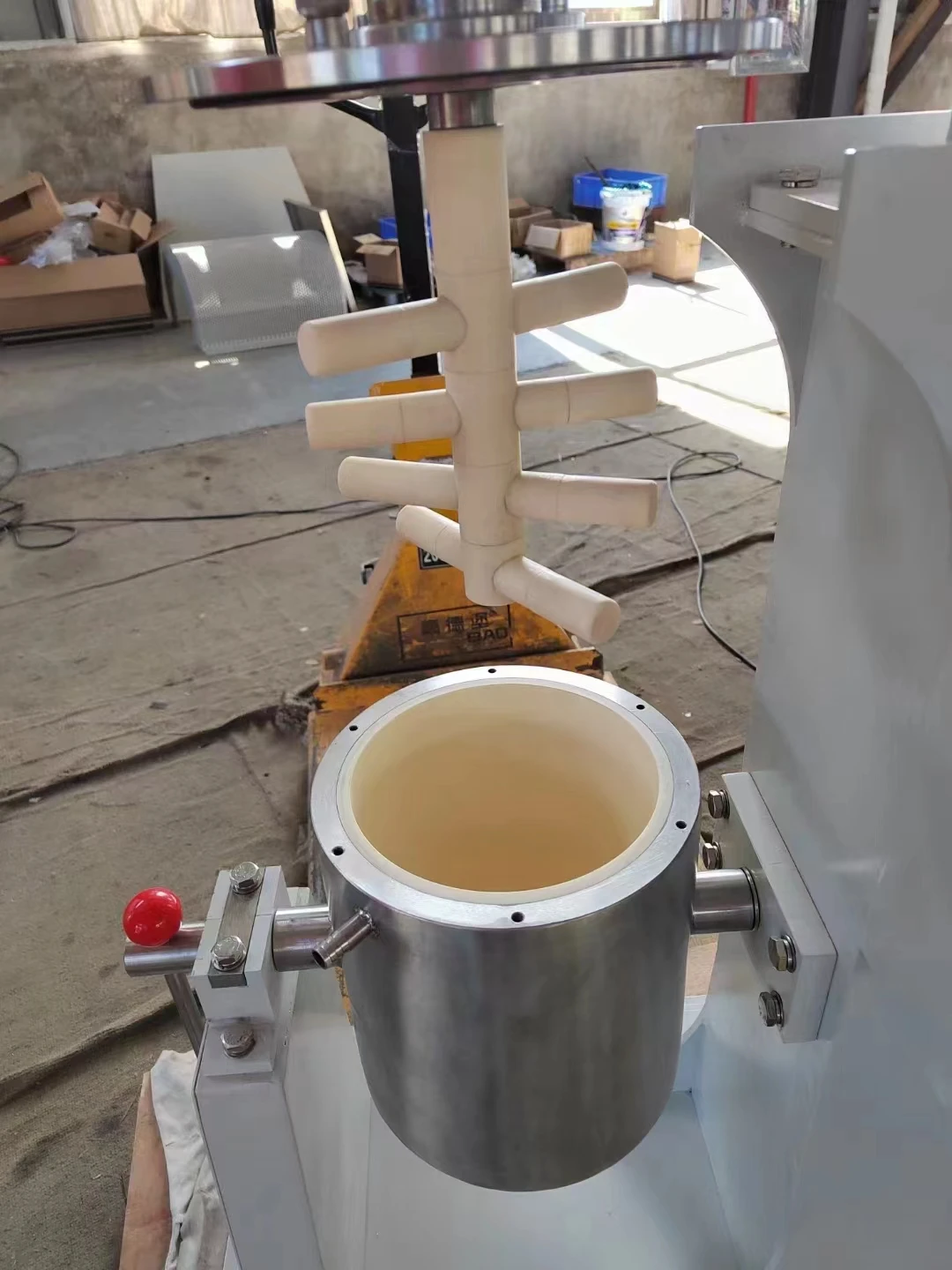

The spindle drives the agitator to rotate at a high speed, so that the grinding medium does irregular movement, which produces the collision, extrusion, friction and shear of the grinding medium, so that the material is crushed and finely ground. In addition, the size, shape and ratio of grinding media are different, and the grinding effect is different. Under normal circumstances, the larger the size of the grinding medium, the more coarse the material is crushed. On the contrary, the smaller the grinding medium, the finer the material grinding. And the appropriate ratio of different specifications of grinding media, coupled with the appropriate adjustment of speed, the grinding effect is better."
Third, Laboratory mixing mill characteristics
1, high energy utilization, can obtain a high power density, so energy saving.
2, the product particle size is easy to adjust, and the fineness can be ensured by adjusting the retention time of the material in the cylinder.
3, low vibration, low noise.
4, beautiful shape, high-end atmosphere, excellent performance, simple maintenance, easy to operate, durable.
5, the stirring rod can be lifted automatically, and the mill can be turned freely.
6, can well achieve a variety of process requirements, according to the need for continuous or intermittent production.
7, because the ball mill cylinder with jacket, can be a good control of grinding temperature.
8, can be made according to the need with a variety of special functions of the equipment, such as: timing, speed regulation, circulation, temperature control, etc.
9, you can choose different materials (stainless steel, corundum ceramic, polyurethane, zirconia, etc.) grinding cylinder and stirring device
2, the product particle size is easy to adjust, and the fineness can be ensured by adjusting the retention time of the material in the cylinder.
3, low vibration, low noise.
4, beautiful shape, high-end atmosphere, excellent performance, simple maintenance, easy to operate, durable.
5, the stirring rod can be lifted automatically, and the mill can be turned freely.
6, can well achieve a variety of process requirements, according to the need for continuous or intermittent production.
7, because the ball mill cylinder with jacket, can be a good control of grinding temperature.
8, can be made according to the need with a variety of special functions of the equipment, such as: timing, speed regulation, circulation, temperature control, etc.
9, you can choose different materials (stainless steel, corundum ceramic, polyurethane, zirconia, etc.) grinding cylinder and stirring device
